Ideal For

Automaton, Machine vision,
Image processing, Alignment,
Position, Medical / Science,
Counting, Measurement and
Precision 3D scanner.

Feature

Red / Green laser line / crosshairs.
With / Without TTL function.
Class 1M / Class 2M.

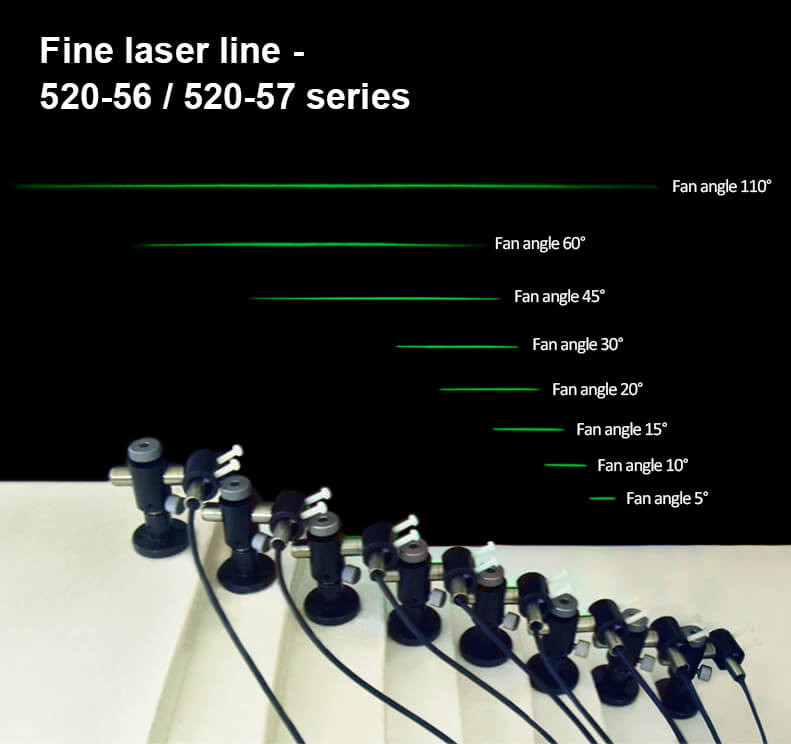

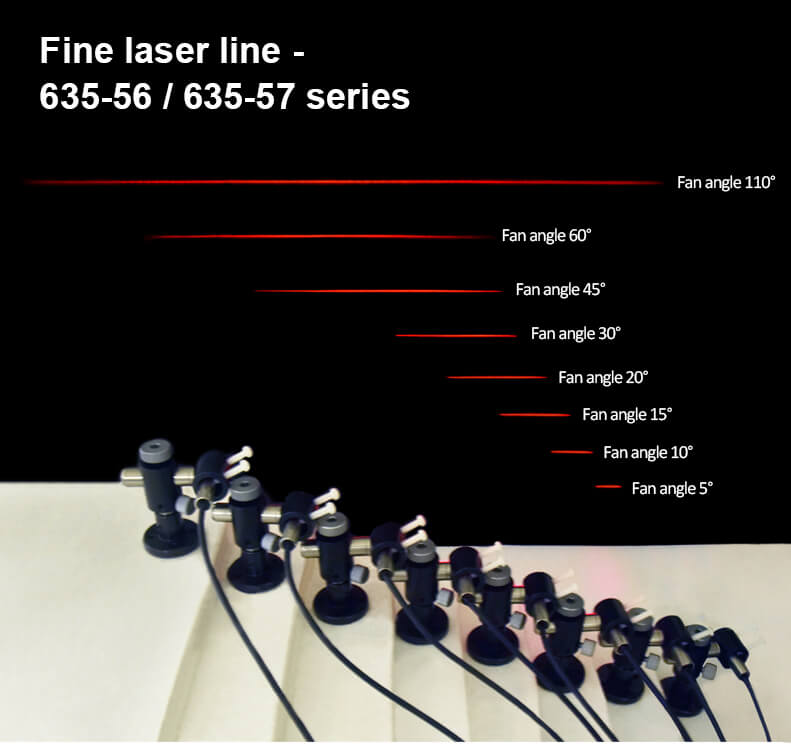

Various fan angle :
5°, 10°, 15°, 20°, 30°, 45°, 60° and 110°.
Various focus length for best fine line quality :
10cm, 20cm, 40cm and 90cm.
Robust stainless steel housing.
Fine dot series provides extremely fine circular dot within 90 cm.and circular dot.

Selection Table

SelectionTable

Length Table

table_download

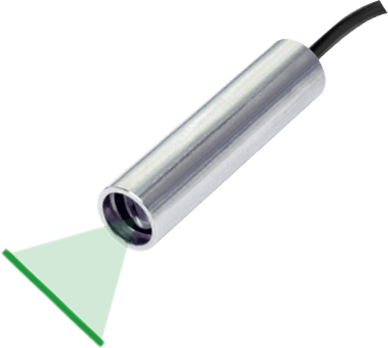

Green Line Laser

Green_Line_Laser

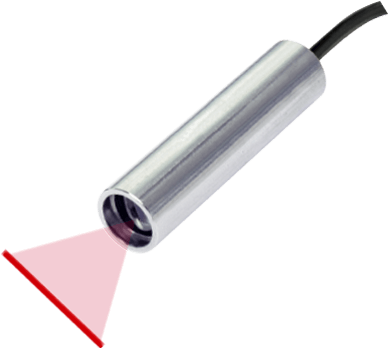

Red Line Laser

Red_Line_Laser

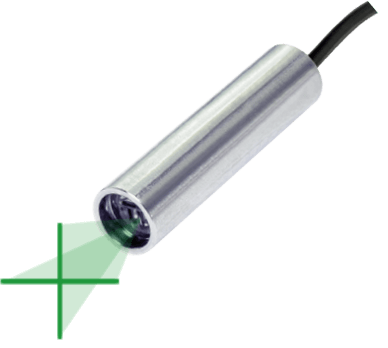

Green Crosshairs Laser

Green_Crosshairs_Laser

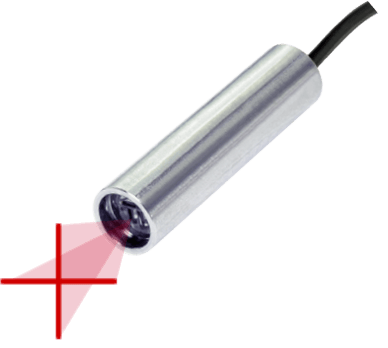

Red Crosshairs Laser

Red_Crosshairs_Laser

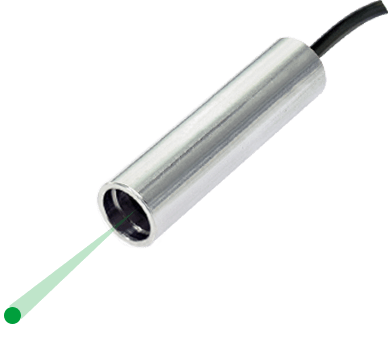

Green Circular Dot Laser

Red_Crosshairs_Laser

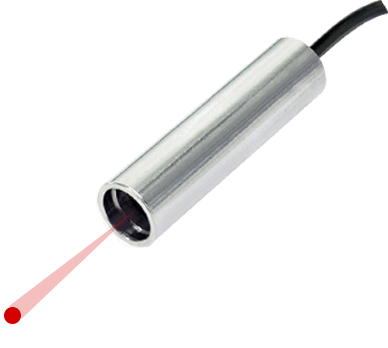

Red Circular Dot Laser

Red_Crosshairs_Laser

optional_accessories

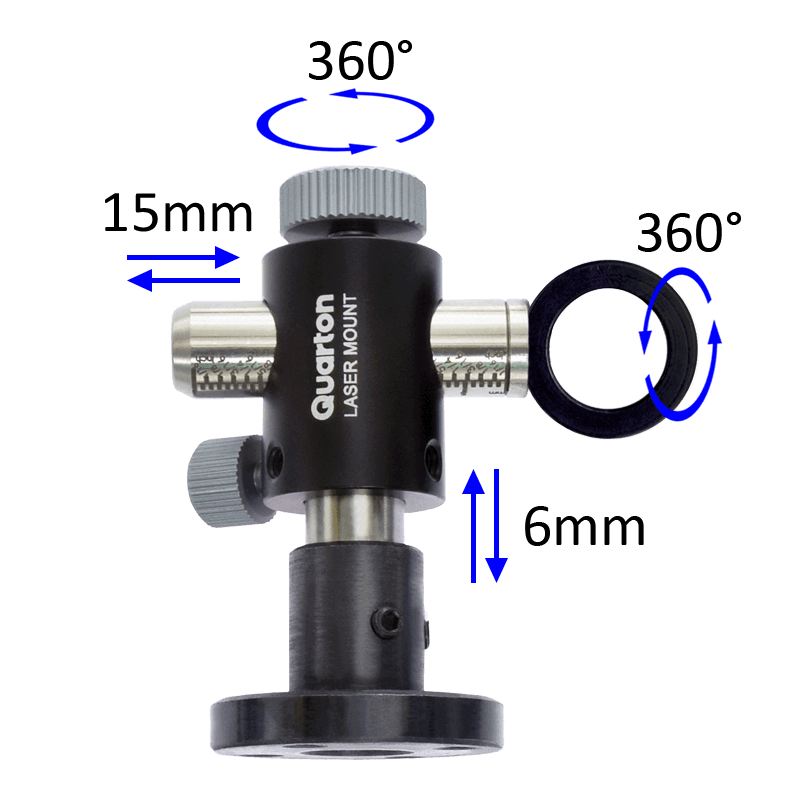

QLM-1125
Laser Module Mount

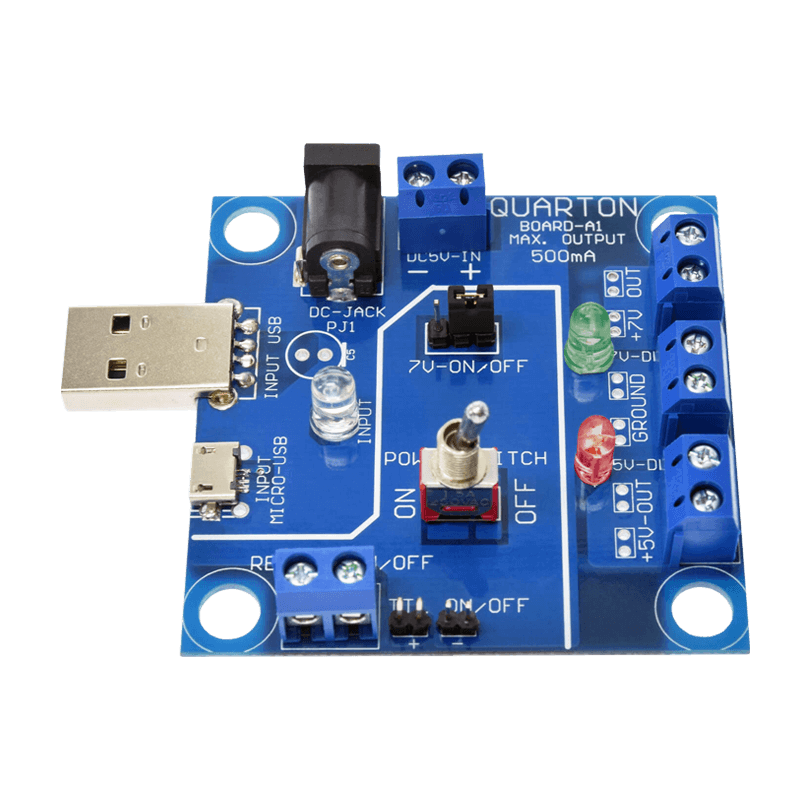

LMPS-MP1
Multi-function Laser Module
Power Supply Board

LMPS-MP2
DC Converter
In: 9-36V
Out: 5V 1A

LMPS-mUSB1
Laser Module
Power Supply Board
(micro USB)

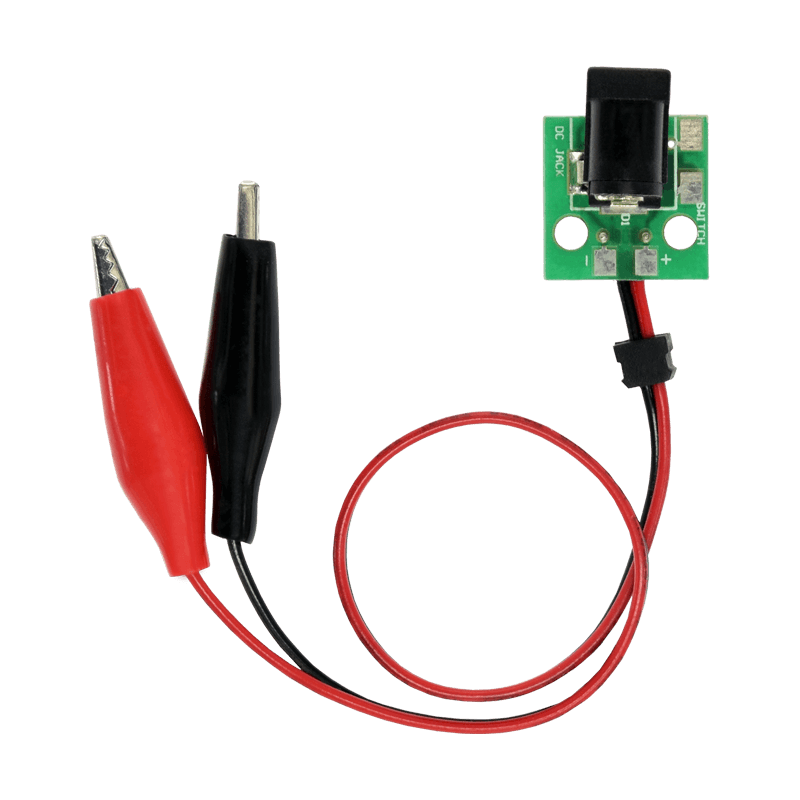

LMPS-DC1
Laser Module
Power Supply Board
(DC Power Jack)

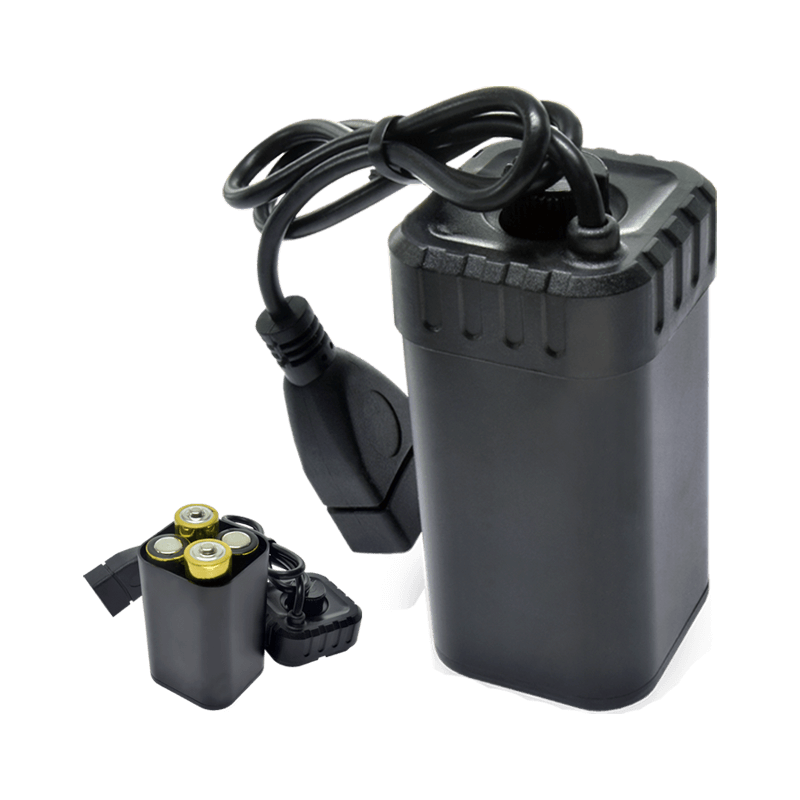

CLM-BP4N3
Battery pack
(4*AA batteries)
(Batteries NOT included)

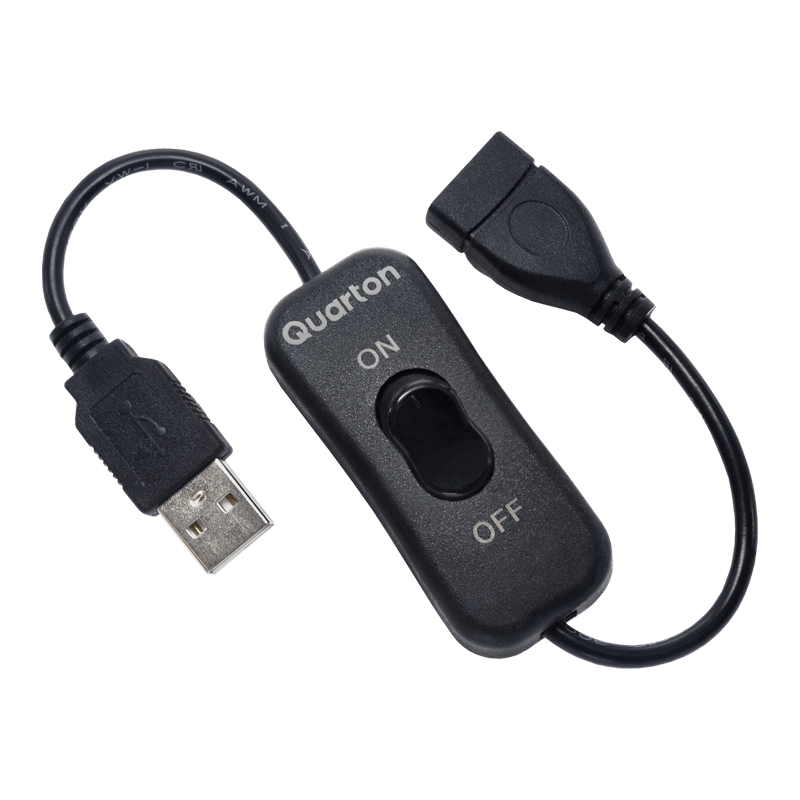

CLM-USBSW
USB Cable Switch

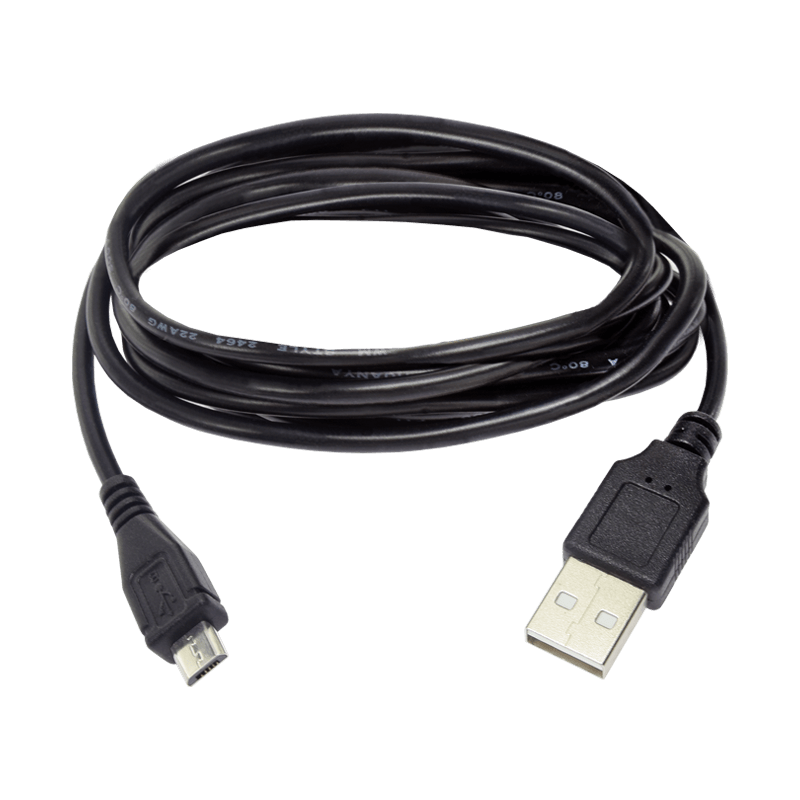

CLM-UM3M
USB to micro USB Cable

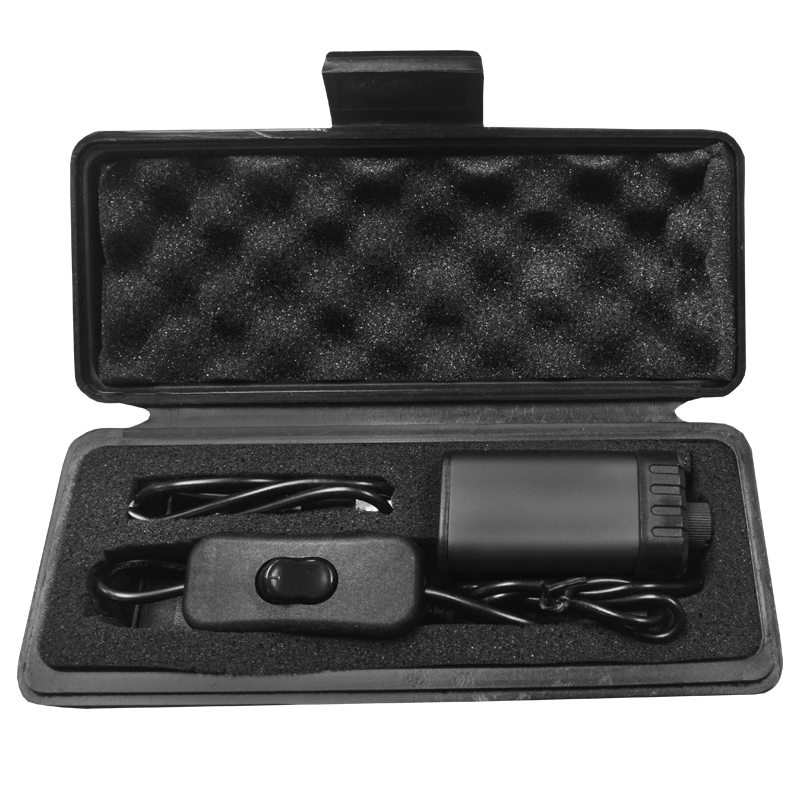

6V Laser Module
Power Supply Kit

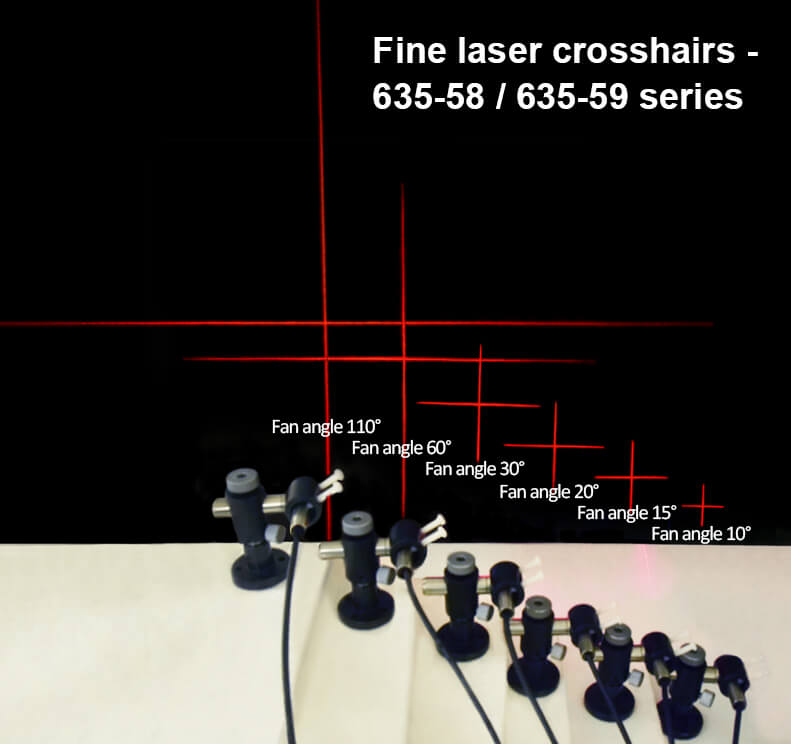

Demonstration

where_to_buy

title_concentricity

product_concentricity

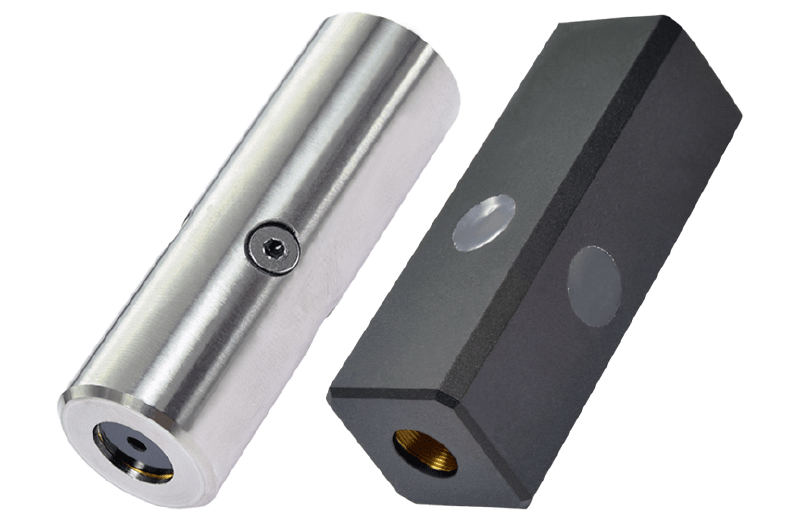

Concentricity Laser Module / Precision Laser Module

For 1mm error at 30 meters
For all kind of alignment task
