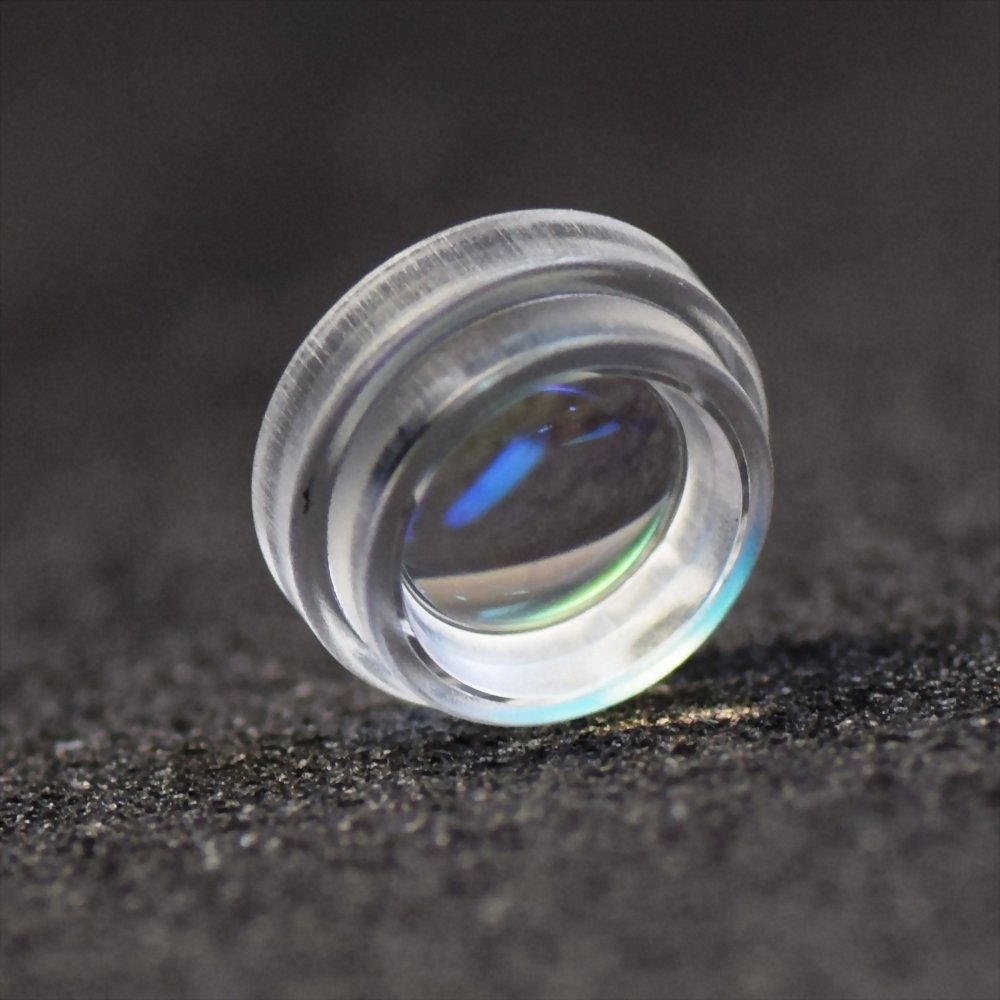

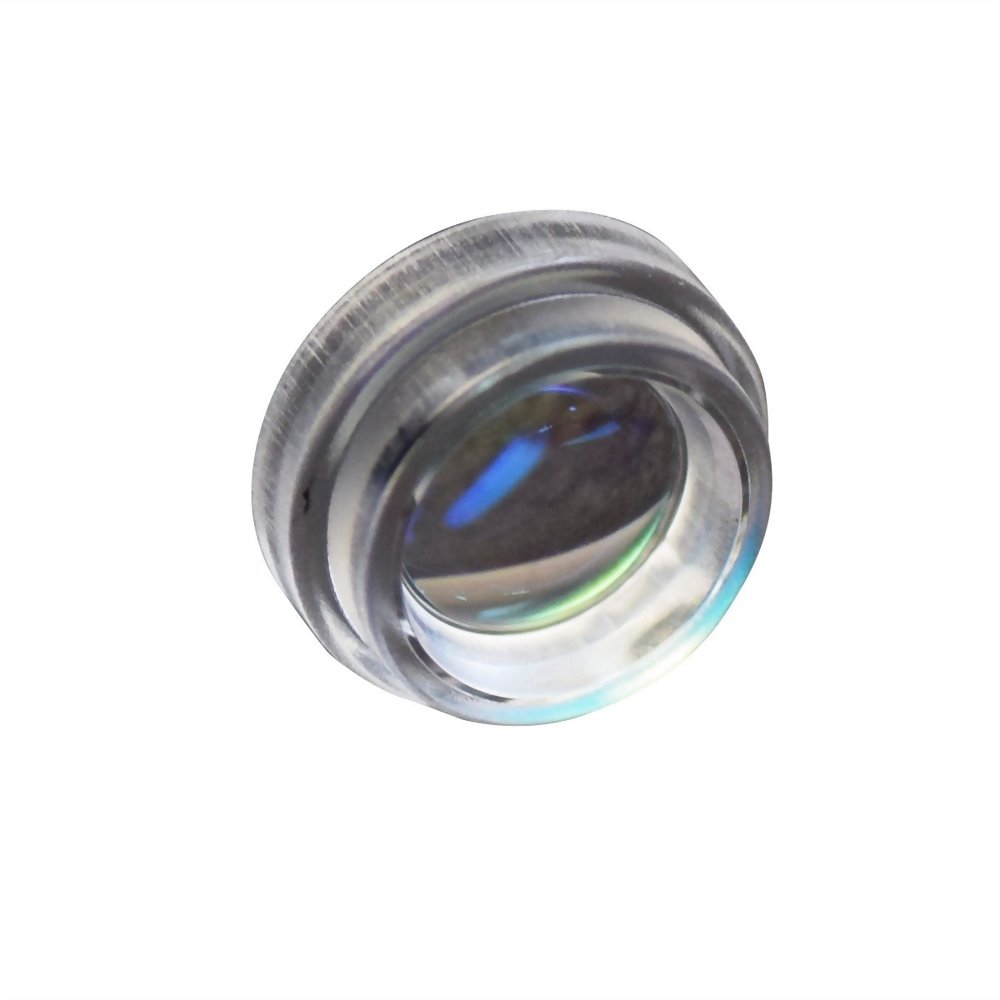

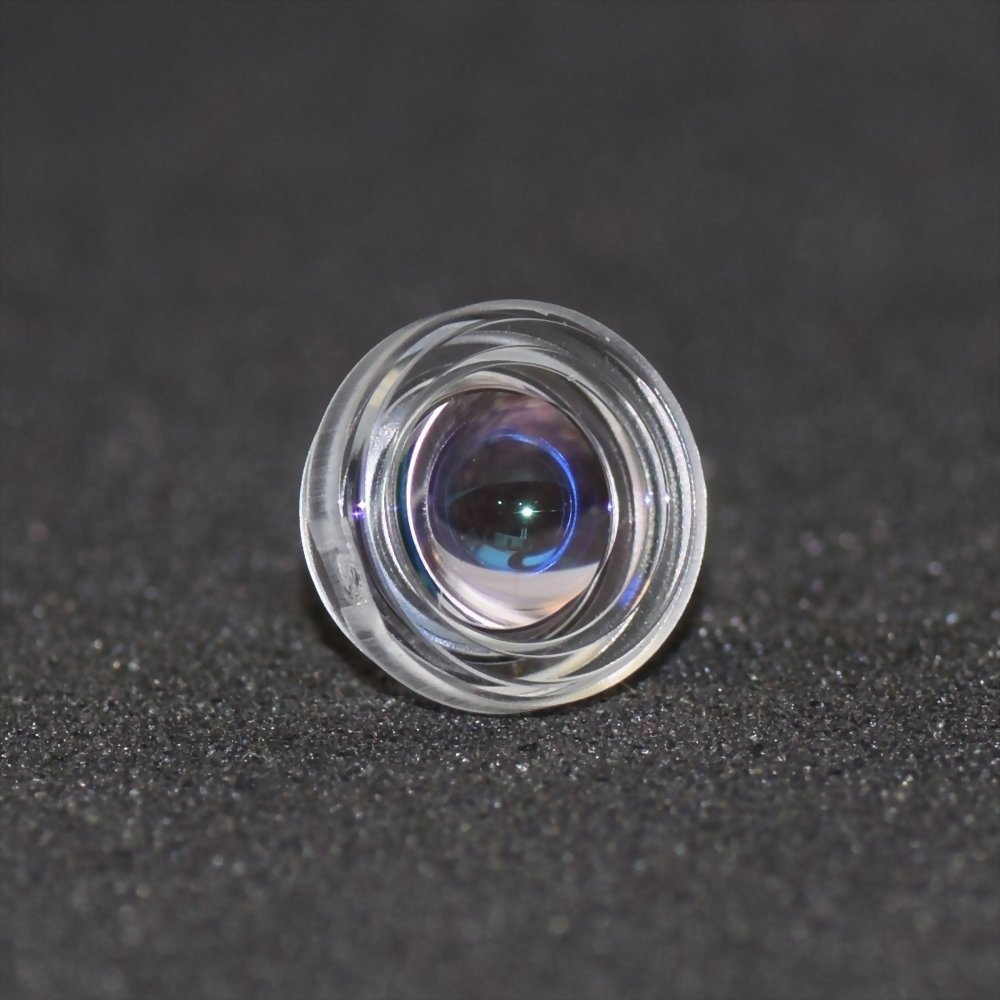

Ø7.4mm Collimator Lens
1. CAY046 is the most popular bi-aspheric plastic laser collimating lens which is nearly the diffraction limited.
2. CAY046 is specified for use as a collimator in combination with a diode laser.
3. CAY046 is designed for making a more fine dot at short distance. The focus is very close.
4. AR coating: 400~900nm.
|
Lens Material: |
Acrylic |
|

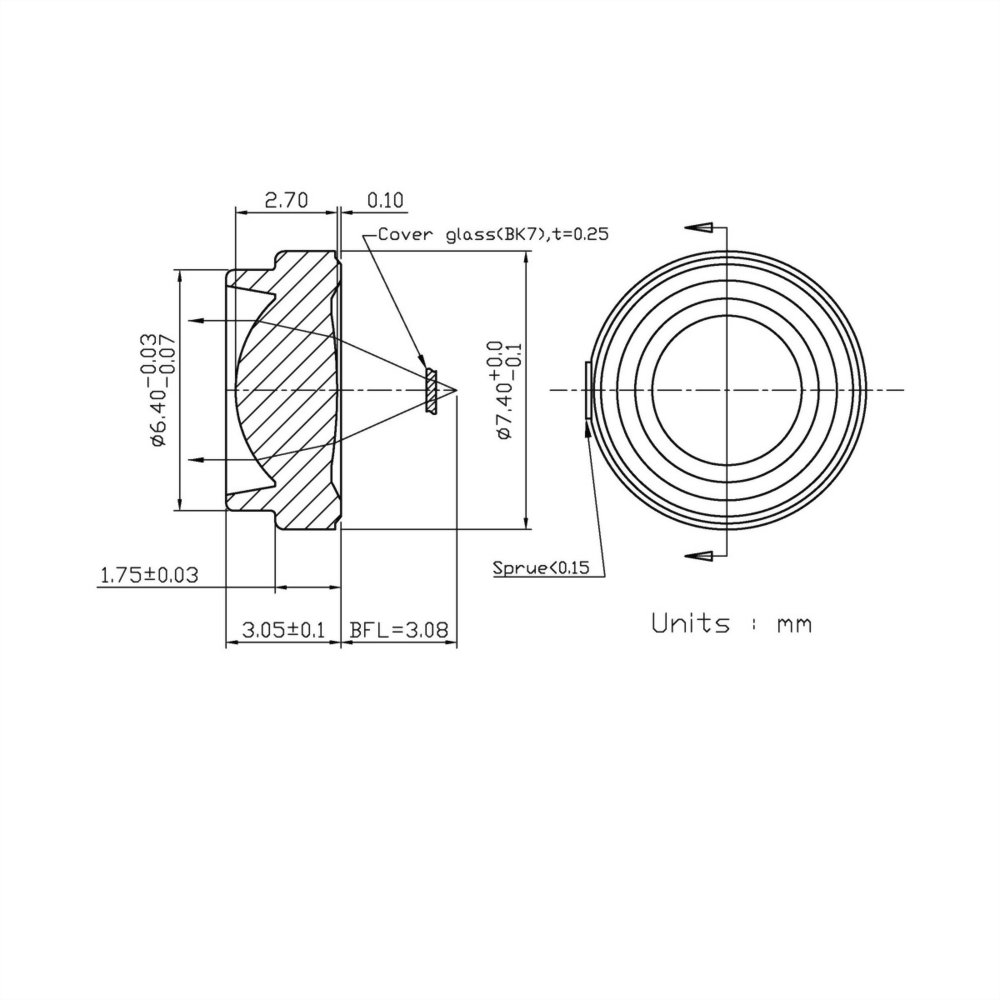

Lens Diameter: |
Ø7.4 mm |
|
Edge Thickness: |
3.05 mm |
|
Design Wavelength: |
670nm |
|
Clear Aperture (CA): |
Ø3.7 mm |
|
Numerical Aperture (NA): |
0.40 |
|
Effective Focal Length (EFL): |
4.60 mm(with BK7 t=0.25mm cover glass) |
|
Back Focal Length (BFL): |
3.08 mm |
|
Axis Wave Front Error (RMS): |
0.040 λ |
|
Field Radius: |
0.1 mm |
|
Transmission(%): |
400~900nm, >95% |
|
Storage Temperature: |
-25 to 70°C |
|
Operating Temperature: |
5 to 65°C |
