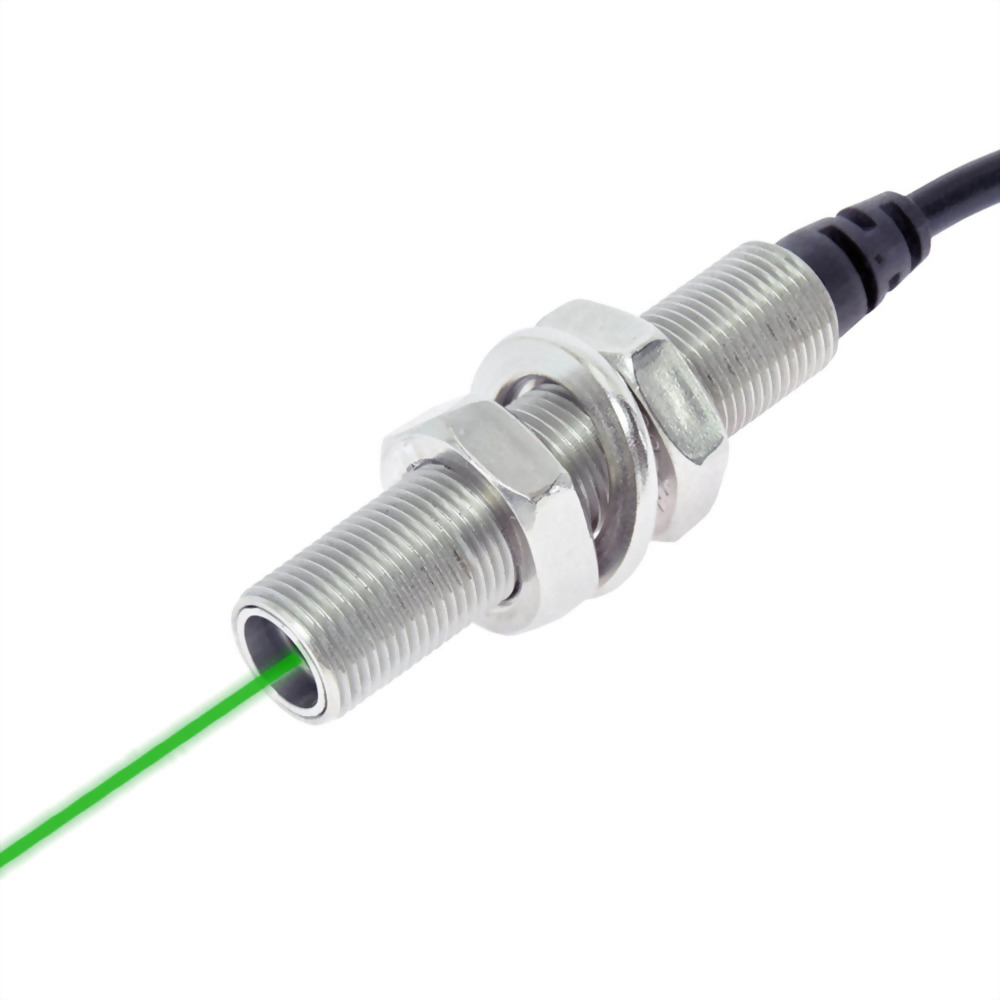

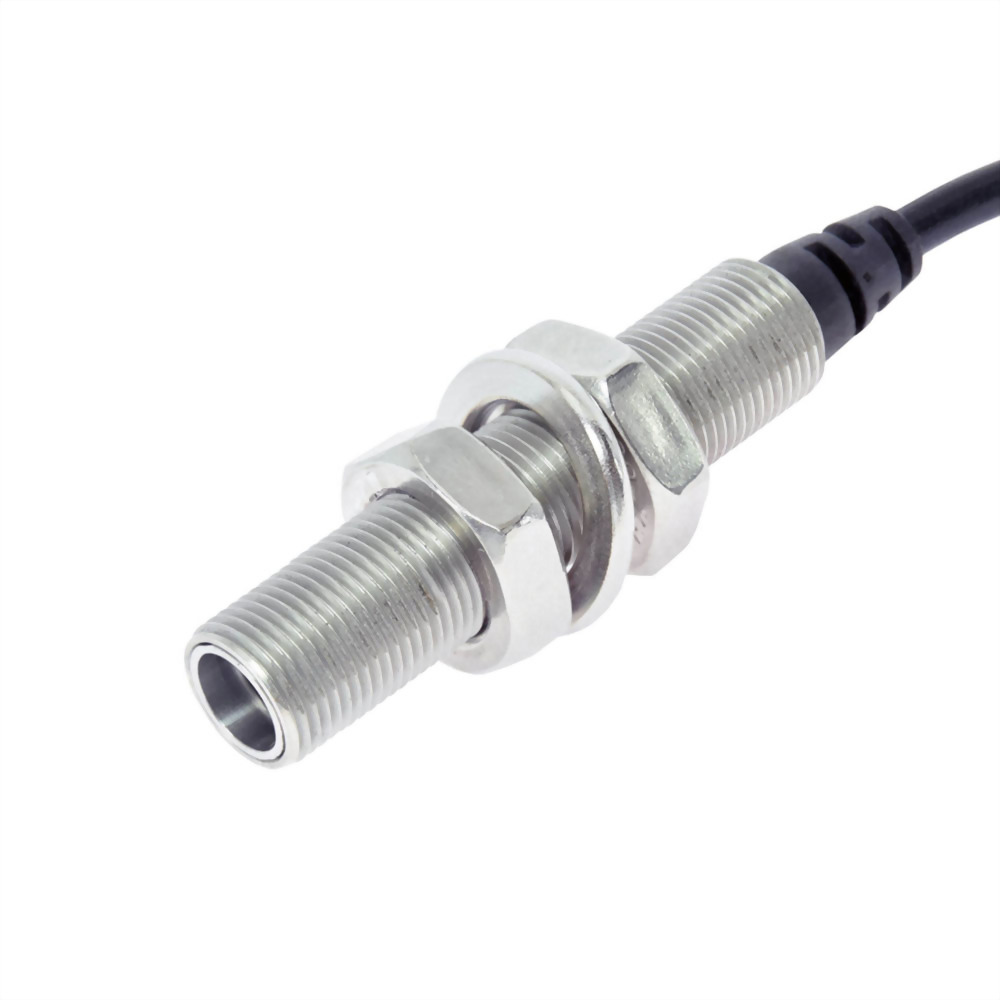

Green Dot Laser Module

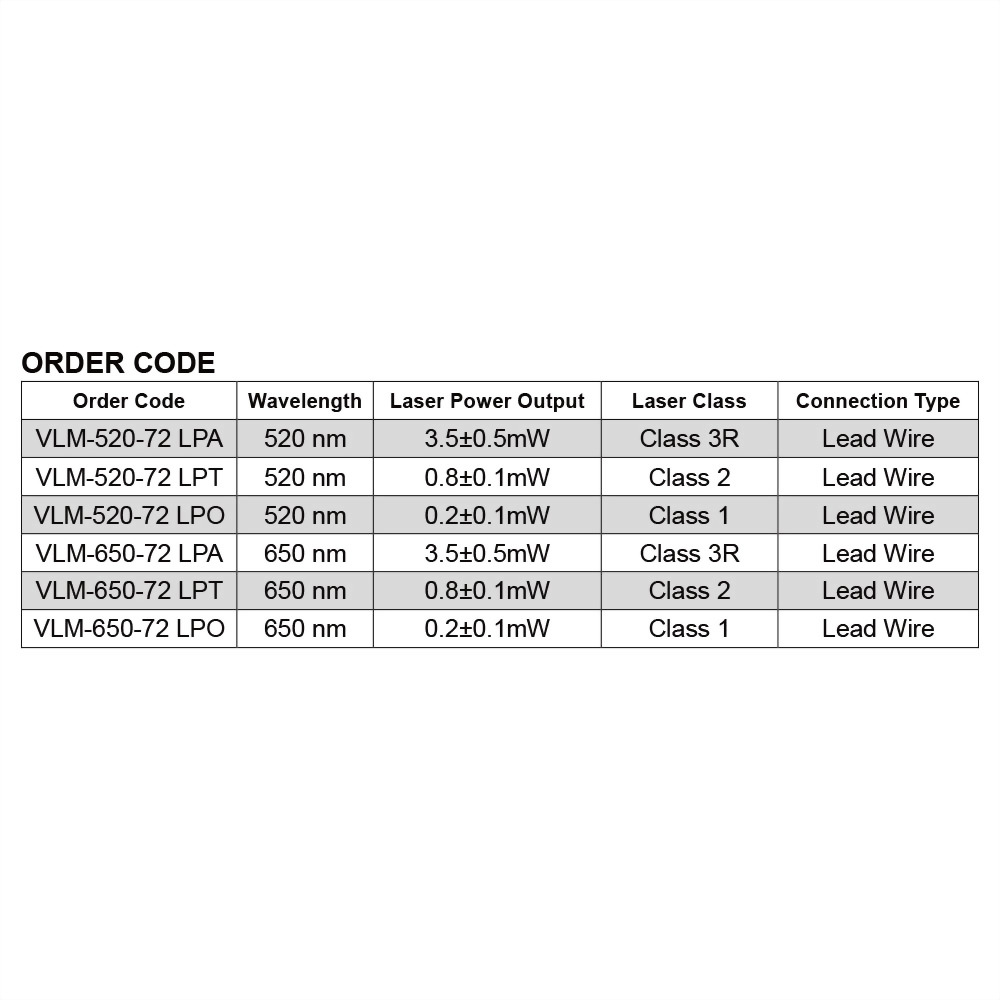

Model : VLM-520-72 LPO / VLM-520-72 LPT / VLM-520-72 LPA
Wide Voltage Compatibility: Operates at 10~36V, covering 12V, 24V, and 30V, meeting industrial standard requirements. Industrial Green Dot Laser Module - for positioning, measuring, pointing and laser sighting device.

FEATURES:

1.  M12 Thread & Wide Voltage Range: Designed with M12 threading for easy installation and supports a 10~36V power supply for versatile integration.

2.  Integrated Optics & Electronics: Built-in APC (Automatic Power Control) driver circuit ensures stable and safe laser output, while an aspherical glass lens provides a precise, tight dot across a wide temperature range.

3.  High-Precision Green Circular Dot: Maintains a dot size of less than 3 mm from 0 to 5 meters, ensuring accurate alignment, positioning, measurement, and guidance.

4.  Robust Construction: Stainless steel housing enhances durability and resistance to environmental factors.

5.  Direct Green Laser Diode module to provide large temperature operation range.



Laser products manufactured by Quarton inc. meet the international safety standards:


USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS


Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.


Where to buy


Comparison sheet

Model Number

Specifications

VLM-520-00 VLM-520-01 series VLM-520-02 series VLM-520-03 LPT VLM-520-04 series VLM-520-17 series VLM-532-42 series VLM-532-43 series VLM-520-51 series VLM-520-52 series VLM-520-53 series VLM-520-60 series VLM-520-61 series (TTL) VLM-520-62 series VLM-520-62T series (TTL) VLM-520-70 series VLM-520-71 series (TTL) VLM-520-72 series VLM-520-72T series (TTL) VLM-520-73 series VLM-520-74 series VLM-520-91 LPB VLM-520-92 LPB VLM-520-96 LPA CLM-520-01 LPO CLM-520-02 LPT CLM-520-11 LPO CLM-520-12 LPT
Dimensions Ø10.52 x 17.2 mm Ø10.5 x 19 mm Ø10.5 x 26 mm Ø7 x 21 mm Ø6.55 x 28.6 mm Ø13 x 62 mm Ø10.5 x 46.5 mm Ø13 x 60 mm Ø8 x 30 mm Ø8.5 x 30.5 mm Ø10.5 x 31 mm Ø10 x 40 mm Ø10 x 40 mm Ø10 x 40 mm Ø10 x 40 mm M12 x 68 mm M12 x 68 mm M12 x 68 mm M12 x 68 mm Ø7 x 26.1 mm Ø6.5 x 26 mm Ø16 x 25 mm Ø27.7 x 95.5 mm Ø16.5 x 72.8 mm Ø19.9 x 60 mm Ø19.9 x 60 mm 20 x 20 x 60 mm 20 x 20 x 60 mm
Operating voltage 6.5~7.5 VDC 7~10 VDC 7~10 VDC 7~10 VDC 3~6 VDC 3~6 VDC 2.7~3.3 VDC 2.7~3.3 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 10~36 VDC 10~36 VDC 10~36 VDC 10~36 VDC 3~6 VDC 3~6 VDC 4~6 VDC 4~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC
Operating current Less than 105mA Less than 80mA / 100mA Less than 80mA / 100mA Less than 80mA Less than 150mA Less than 100mA / 150mA Less than 300mA Less than 300mA Less than 150mA Less than 150mA / 280mA Less than 150mA Less than 60mA / 150mA Less than 60mA / 150mA Less than 80mA / 100mA / 150mA Less than 80mA / 100mA / 150mA Less than 20mA at 24V Less than 20mA at 24V Less than 30mA at 24V Less than 30mA at 24V Less than 150mA / 200mA Less than 150mA / 200mA Less than 500mA Less than 1.5A Less than 120mA Less than 160mA Less than 160mA Less than 160mA Less than 160mA
Laser power output Optical power less than 10mW Less than 1mW / 4mW Less than 1mW / 4mW Less than 1mW Less than 1mW 0.7~0.9mW / 2~3mW / 5~6mW Less than 1mW / 5mW Less than 1mW / 5mW / 10mW Less than 1mW / 4mW Less than 1mW / 4mW / 15mW Less than 1mW / 4mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW 0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW 0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW 0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW 0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW Less than 1mW / 4mW Less than 1mW / 4mW 70mW 400±20mW 0 to 4.25±0.25mW (adjustable) Less than 0.39mW Less than 1mW Less than 0.39mW Less than 1mW
Laser class Class 2 / Class 3R Class 2 / Class 3R Class 2 Class 2 Class 2 / Class 3R / Class 3B Class 2 / Class 3R Class 2 / Class 3R / Class 3B Class 2 / Class 3R Class 2 / Class 3R / Class 3B Class 2 / Class 3R Class 1 / Class 2 Class 1 / Class 2 Class 1 / Class 2 / Class 3R Class 1 / Class 2 / Class 3R Class 1 / Class 2 Class 1 / Class 2 Class 1 / Class 2 / Class 3R Class 1 / Class 2 / Class 3R Class 2 / Class 3R Class 2 / Class 3R Class 3B Class 3B Class 3R Class 1 Class 2 Class 1 Class 2
Wavelength 505~530nm 505~530nm 505~530nm 505~530nm 505~530nm 510~530nm 532nm 532nm 505~530nm 505~530nm 505~530nm 515~530nm 515~530nm 515~530nm 515~530nm 515~530nm 515~530nm 515~530nm 515~530nm 505~530nm 505~530nm 520nm 505~525nm 510~530nm 515~530nm 515~530nm 515~530nm 515~530nm
Collimating lens Plastic lens Plastic lens Plastic lens Plastic lens Plastic lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens
Output aperture 5mm 5mm 4mm 3mm 3mm 8mm 5mm 5mm 5mm 0.6mm 0.6mm 2mm 2mm 0.6mm 0.6mm 2mm 2mm 4.3mm 4.3mm 5mm 12.6mm 5mm 0.8mm 3mm 0.8mm 3mm
Beam shape Ellipse Ellipse Ellipse Ellipse Ellipse Circular Circular Circular Ellipse Ellipse Ellipse Circular Circular Circular Circular Circular Circular Circular Circular Ellipse Ellipse Ellipse Ellipse Ellipse Circular Circular Circular Circular
Spot size Less than 4.5mm at 3M Adjustment focus Less than 4mm at 5M Less than 4mm at 5M Ø5.3 mm at 40M
Ø15 mm at 100M 		6±1mm at 3M 4±1mm at 5M
18±2mm at 30M 		5±1mm at 10M 5±1mm at 10M 5±1mm at 10M Less than 1mm at 0~50cm
Less than 2mm at 50~90cm 		Less than 1mm at 0~50cm
Less than 2mm at 50~90cm 		Less than Ø3mm at 0~5M Less than Ø3mm at 0~5M Less than 1mm at 0~50cm
Less than 2mm at 50~90cm 		Less than 1mm at 0~50cm
Less than 2mm at 50~90cm 		Less than Ø3mm at 0~5M Less than Ø3mm at 0~5M Less than 7mm at 10M Less than 7mm at 10M Less than 15mm at 10M Less than 5±1cm at 100M Less than 0.2mm at 10mm
Less than 8mm at 10M 		Less than 1.2mm at 1M Less than 9mm at 20M Less than 1.2mm at 1M Less than 9mm at 20M
Divergence (Full Angle) 0.5 mRad 0.5 mRad 0.5 mRad 0.6 mRad 0.6 mRad Less than 0.1 mRad 1 mRad 0.3 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.4 mRad Less than 0.6 mRad Less than 0.6 mRad Less than 0.2 mRad Adjustable 0.4 mRad to 12° 0.15 mRad 0.15 mRad 0.15 mRad 0.15 mRad
Beam alignment Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° ±3° Less than 1mm Less than 1mm Less than 1mm Less than 1mm
Operating temp. range +10°C ~+40°C +10°C ~+40°C +10°C ~+40°C +15°C ~+30°C +10°C ~+40°C +10°C ~+50°C +20°C ~+30°C +15°C ~+35°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -10°C ~+60°C -10°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C
Storage temp. range -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C -20°C ~+80°C -20°C ~+65°C -40°C ~+70°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C -40°C ~+85°C -40°C ~+85°C -20°C ~ +85°C -20°C ~ +85°C -20°C ~ +85°C -40°C ~+85°C -40°C ~+85°C -40°C ~+85°C -40°C ~+85°C
Housing material Brass Brass Brass Stainless steel Zinc alloy Aluminum Brass Brass Aluminum Stainless steel Bronze Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Bronze Bronze Aluminum Aluminum Stainless steel Stainless steel Hard anodized aluminum Hard anodized aluminum
Potential of housing VDD(+) VDD(+) VDD(+) VDD(+) VDD(+) Insulated VDD(+) VDD(+) Insulated Insulated VDD(+) Insulated Insulated Insulated Insulated Insulated Insulated Insulated Insulated VDD(+) VDD(+) VDD(+) Insulated Insulated Insulated Insulated Insulated Insulated
Electrostatic discharge (ESD) 30KV 30KV 20KV 20KV 30KV 30KV 30KV 30KV 30KV 30KV 30KV / Arc protection 30KV / Arc protection 30KV / Arc protection 30KV / Arc protection 30KV / Arc protection 30KV / Arc protection 30KV / Arc protection 30KV / Arc protection 30KV 30KV 30KV 30KV 30KV 30KV 30KV 30KV 30KV
Moisture sensitivity level (MSL) Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E.
Wire type 3*PIN from LD 1007-26AWG 1007-26AWG / Spring 1007-26AWG 1007-26AWG / Spring 1007-26AWG 1007-26AWG / Spring 1007-26AWG / Spring 1007-26AWG 1007-26AWG 1007-26AWG / Spring 2464 2-WIRE CABLE 26 AWG 2464 3-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG 2464 3-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG 2464 3-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG 2464 3-WIRE CABLE 26 AWG 1007-26AWG 1007-26AWG 1007-26AWG 2464 2-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG Type C Type C Type C Type C
Cable length 115±15mm 115±15mm / 6.5±1mm 115±15mm 115±15mm / 4±1mm 115±15mm 115±15mm / 7±1mm 115±15mm / 6±1mm 115±15mm 115±15mm 115±15mm / 6.5±1mm 330±30mm 330±30mm 330±30mm 330±30mm 330±30mm 330±30mm 330±30mm 330±30mm 115±15mm 115±15mm 115±15mm 200±10cm 330±30mm
Mean time to failure (MTTF) 25°C 10000hrs 10000hrs 10000hrs 5000hrs 5000hrs 10000hrs 3000hrs 3000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs
Application Lab, without laser driver General purpose Focus adjustable Economic type Economic type Long range application DPPS laser DPPS laser Industrial application Industrial application Industrial application Industrial alignment Industrial alignment with TTL modulation function Industrial application Industrial application with TTL modulation function Industrial alignment Industrial alignment with TTL modulation function Industrial application Industrial application with TTL modulation function Economic industrial application Economic industrial application High power Long-range targeting Laboratory or Medical research and physical-optic experiments. Concentricity Laser Concentricity Laser Concentricity Laser Concentricity Laser
Suggestion work distance 1~30 meters / 3~100 feet 1~30 meters / 3~100 feet 1~10 meters / 3~40 feet 1~10 meters / 3~40 feet 10~500 meters / 40~2000 feet 1~30 meters / 3~100 feet 1~30 meters / 3~100 feet 1~30 meters / 3~100 feet 1~30 meters / 3~100 feet 1~30 meters / 3~100 feet 0~0.9 meters / 0~3 feet 0~0.9 meters / 0~3 feet 0~5 meters / 0~16 feet 0~5 meters / 0~16 feet 0~0.9 meters / 0~3 feet 0~0.9 meters / 0~3 feet 0~5 meters / 0~16 feet 0~5 meters / 0~16 feet 1~30 meters / 3~100 feet 1~30 meters / 3~100 feet 1~30 meters / 3~100 feet 10~1000 meters or above Above 10mm 0~1 meters / 0~3 feet 1~30 meters / 3~100 feet 0~1 meters / 0~3 feet 1~30 meters / 3~100 feet
Datasheet download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download

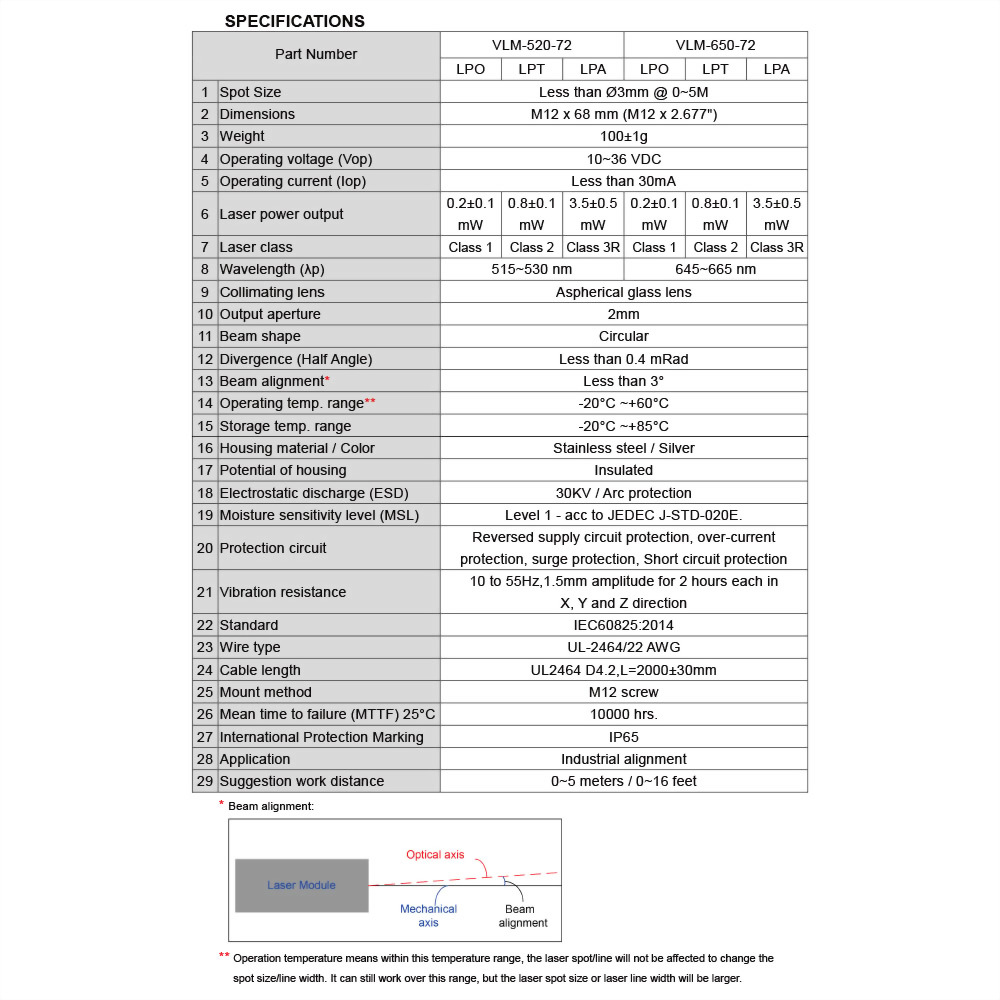

Part Number

VLM-520-72

VLM-650-72

LPO

LPT

LPA

LPO

LPT

LPA

Spot Size

Less than Ø3mm @ 0~5M

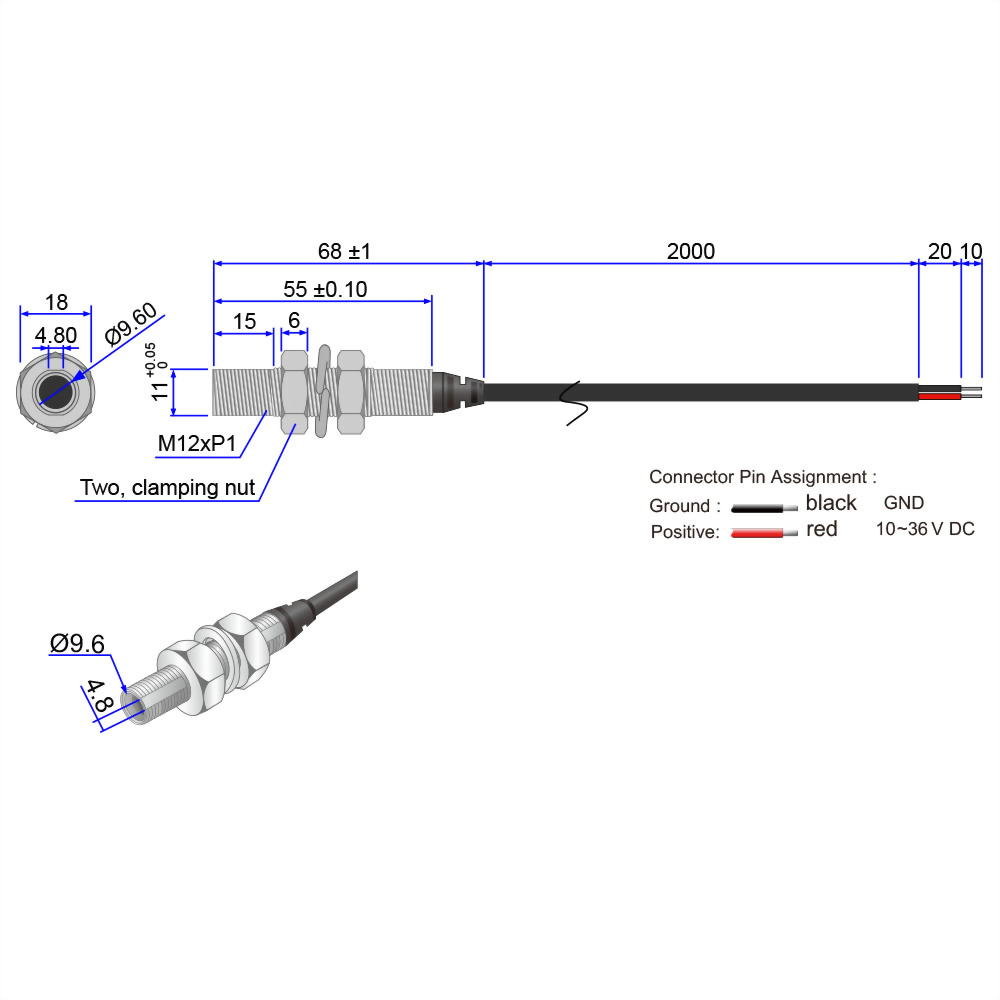

Dimensions

M12 x 68 mm (M12 x 2.677")

Weight

100±1g

Operating voltage (Vop)

10~36 VDC

Operating current (Iop)

Less than 30mA at 24V

Laser power output

0.2±0.1 mW

0.8±0.1 mW

3.5±0.5 mW

0.2±0.1 mW

0.8±0.1 mW

3.5±0.5 mW

Laser class

Class 1

Class 2

Class 3R

Class 1

Class 2

Class 3R

Wavelength (λp)

515~530 nm

645~665 nm

Collimating lens

Aspherical glass lens

Output aperture

2mm

Beam shape

Circular

Divergence (Half Angle)

Less than 0.4 mRad

Beam alignment*

Less than 3°

Operating temp. range**

-20°C ~+60°C

Storage temp. range

-20°C ~+85°C

Housing material / Color

Stainless steel / Silver

Potential of housing

Insulated

Electrostatic discharge (ESD)

30KV / Arc protection

Moisture sensitivity level (MSL)

Level 1 - acc to JEDEC J-STD-020E.

Protection circuit

Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection

Vibration resistance

10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction

Standard

IEC60825:2014

Wire type

UL-2464/22 AWG

Cable length

UL2464 D4.2,L=2000±30mm

Mount method

M12 screw

Mean time to failure (MTTF) 25°C

10000 hrs

International Protection Marking

IP65

Application

Industrial alignment

Suggestion work distance

0~5 meters / 0~16 feet

* Beam alignment:

** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
