Red Line Laser Module

Model : VLM-635-57-5° Series

Red Line Laser Module Fan Angle 5° Uniform Line with TTL function. Ideal for machine vision, automation industry, image processing, medical & Science, scanning, precision 3D scanner, counting, measurement...etc.

Q'ty :

Description

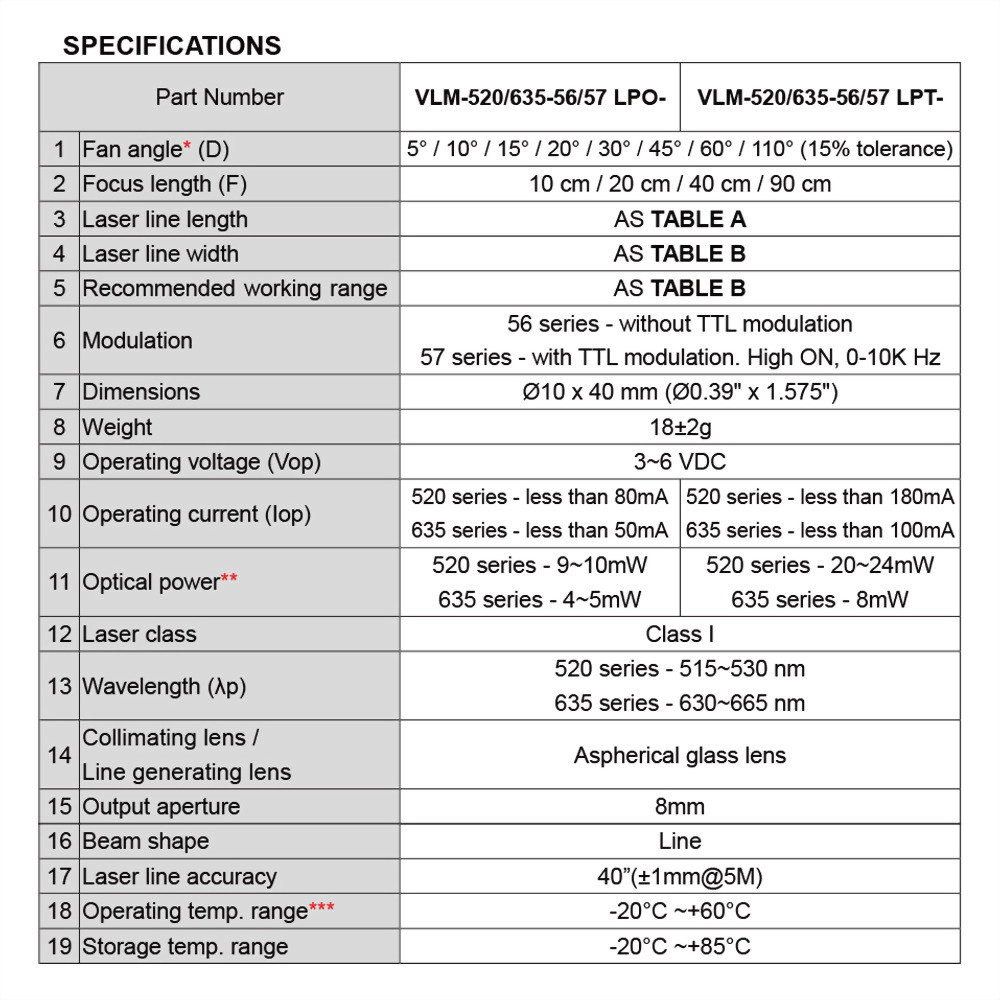

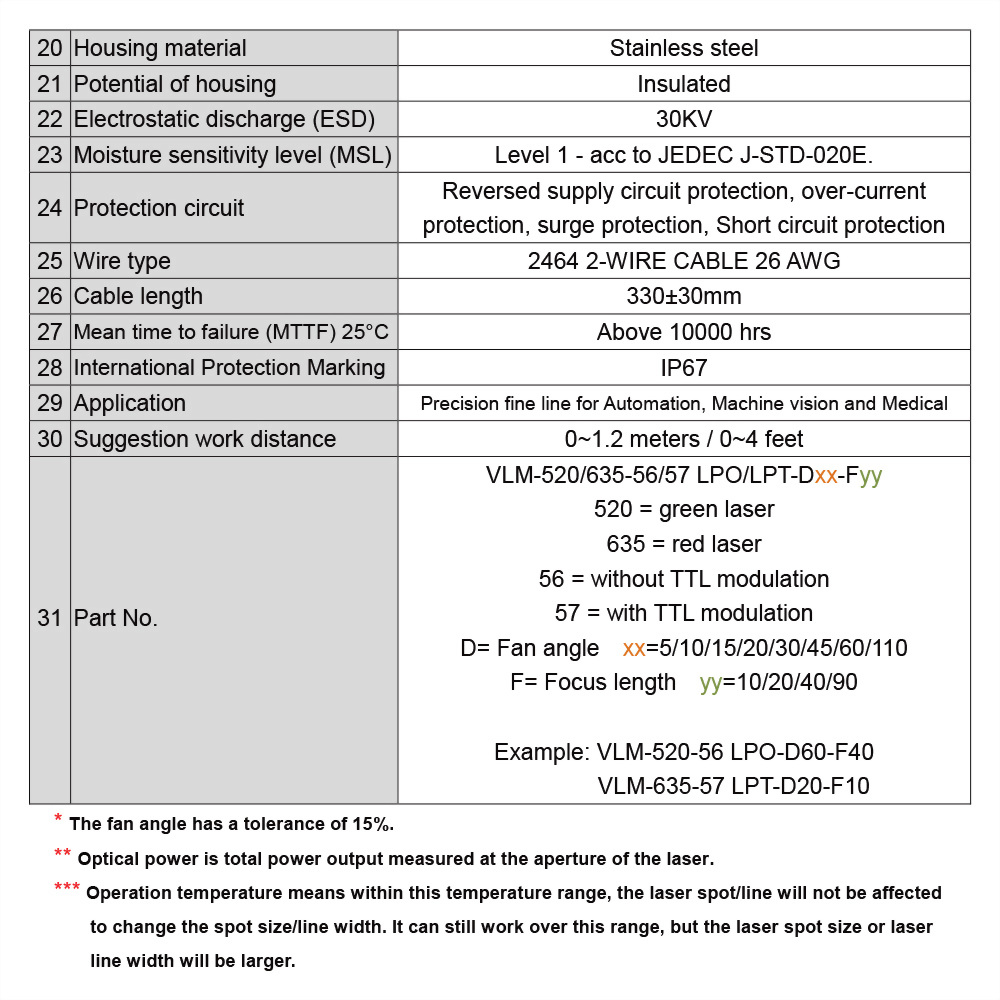

Specifications

The newly developed glass line lens come with various fan angles and they produce high quality uniform laser line in a robust stainless housing, ideal for automation, machine vision, image processing, digital data acquisition, counting, precision 3D scanner and science & medical application. They are all come with TTL function to allow up to 10K Hz modulation frequency. They are available at 10 cm, 20 cm, 40 cm and 90 cm focus length and red & green wavelength to cover within 1 meter range task. For customized focus length, wavelength and laser power output, please contact us.

FEATURES:

1. Built with high precision glass line lens and glass laser collimating lens.

2. Fan Angle : 5°

3. CW to 10K HZ stable power output for demanding power and speed are of important.

Laser line demonstration :

Selection Guide:

The new series of line and crosshair laser modules are for those applications that need super fine line and super fine crosshair.

Ideal for machine version, automation, imagine processing, medical, science, precision 3D scanning, measurement, counting and precision alignment.

Laser products manufactured by Quarton inc. meet the international safety standards:

USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS

Where to buy

Comparison sheet

Model Number Specifications	VLM-650-23 LPO	VLM-635-27 series VLM-650-27 series	VLM-650-28 LPT	VLM-650-30 series	VLM-635-37 series VLM-650-37 series	VLM-650-41 series	VLM-635-55 series	VLM-635-56 series	VLM-635-57 series	VLM-650-66 series	VLM-650-67 series	VLM-POWELL series

Dimensions	Ø5 x 22.8 mm	Ø12.5 x 30 mm	Ø9 x 26 mm	Ø10 x 27.1 mm	(W)14 x (H)14 x (L)26 mm	Ø10 x 26 mm	Ø10 x 38 mm	Ø10 x 40 mm	Ø10 x 40 mm	M12 x 68 mm	M12 x 68 mm	Ø10 x 68 mm
Operating voltage	3~6 VDC	2.6~6 VDC	2.6~6 VDC	3~6 VDC	2.6~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	10~36 VDC	10~36 VDC	3~6 VDC 10~36 VDC
Operating current	Less than 50mA	Less than 50mA / 55mA Less than 35mA / 100mA	Less than 35mA	Less than 40mA / 60mA	Less than 50mA Less than 35mA / 100mA		Less than 80mA / 100mA	Less than 50mA / 100mA	Less than 50mA / 100mA	Less than 20mA at 24V	Less than 20mA at 24V	Less than 55mA
Optical power	Less than 5mW	Less than 2mW / 4~5mW Less than 2mW / 12~15mW	Less than 2mW	Less than 5mW / 20mW	4~5mW / 12~15mW	Less than 2.5mW / 20mW	Less than 4~5mW / 9~10mW	Less than 5mW / 10mW	Less than 5mW / 10mW	Less than 0.39mW / 5~7mW	Less than 0.39mW / 5~7mW	8±0.5mW
Laser class	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I
Wavelength	640~655nm	630~645nm / 645~665nm	645~665nm	635~665nm	630~645nm / 645~665nm	635~665nm	630~645nm	630~665nm	630~665nm	630~665nm	630~665nm	640~665nm
Collimating lens	Glass lens	Plastic lens	Plastic lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Line lens	Glass lens	Plastic lens	Plastic lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Beam shape	Line	Line	Line	Line	Line	Line	Line	Line	Line	Line	Line	Line
Laser Line width	Less than 1.5mm at 2.5 meters	3 ±0.5mm at 5M 6 ±0.5mm at 10M	1.2mm at 1M	Less than 1.6mm at 40CM	2±1mm at 5M 4±1mm at 10M	Less than 1.2mm / 1.5mm	3±0.5mm at 5M 6±0.5mm at 10M	Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm
Laser line accuracy	4/1000(<1.6mm @400mm)	40” (±1mm @5M)	1/100	4/1000(less than 1.6mm @400mm)	20" (± 1mm @10m)	1/100	40”(±1mm@5M)	40”(±1mm@5M)	40”(±1mm@5M)	4/1000(<1.6mm @400mm)	4/1000(<1.6mm @400mm)	4/1000(<1.6mm @400mm)
Emitting angle	50°±5°	More than 90°	More than 60°	60° / 90°	More than 120°	60° / 90°	60°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 15°, 30°, 60°, 110°	5°, 15°, 30°, 60°, 110°	45°±5° / 75°±5°
Operating temp. range	-20°C ~+65°C	+10°C ~+40°C	+15°C ~+30°C	+15°C ~+40°C	-20°C ~+50°C	+15°C ~+40°C	-20°C ~+65°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C
Storage temp. range	-20°C ~+85°C -20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-40°C ~+70°C	-20°C ~+65°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C
Housing material	Aluminum	Brass	Brass	Aluminum	Aluminum	Aluminum	Aluminum	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Aluminum
Potential of housing	Insulated	VDD(+)	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated
Electrostatic discharge (ESD)	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.
Wire type	1007-30AWG	1007-26AWG	1007-26AWG	1007-26AWG	1007-26AWG	1007-26AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	UL-2464/22 AWG	UL-2464/22 AWG	UL-2464/22 AWG
Cable length	115±15mm	115±15mm	115±15mm	250±10mm	115±15mm	115±15mm	330±30mm	330±30mm	330±30mm	UL2464 D4.2,L=2000±30mm	UL2464 D4.2,L=2000±30mm	D4.2,L=2000±30mm
Mean time to failure (MTTF) 25°C	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	5000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs
Application	Alignment tasks in limited space	General industrial alignment	Economic 3D scanner	Precision 3D scanner	Precision industrial alignment	Precision 3D scanner	Precision industrial alignment	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function	Scanning, Image processing, Medical & Science, Automatic industry, Robotic arm
Suggestion work distance	0~2.5 meters / 0~8 feet	Above 2 meters	0.3~1.8 meters / 1~6 feet	20~60 cm / 8"~24"	1~20 meters / 3~60 feet	20~60 cm / 8"~24"	1~20 meters / 3~60 feet	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet	0~5 meters / 0~16 feet	0~5 meters / 0~16 feet
Datasheet download	Download	Download Download	Download	Download	Download Download	Download	Download	Download	Download	Download	Download	Download

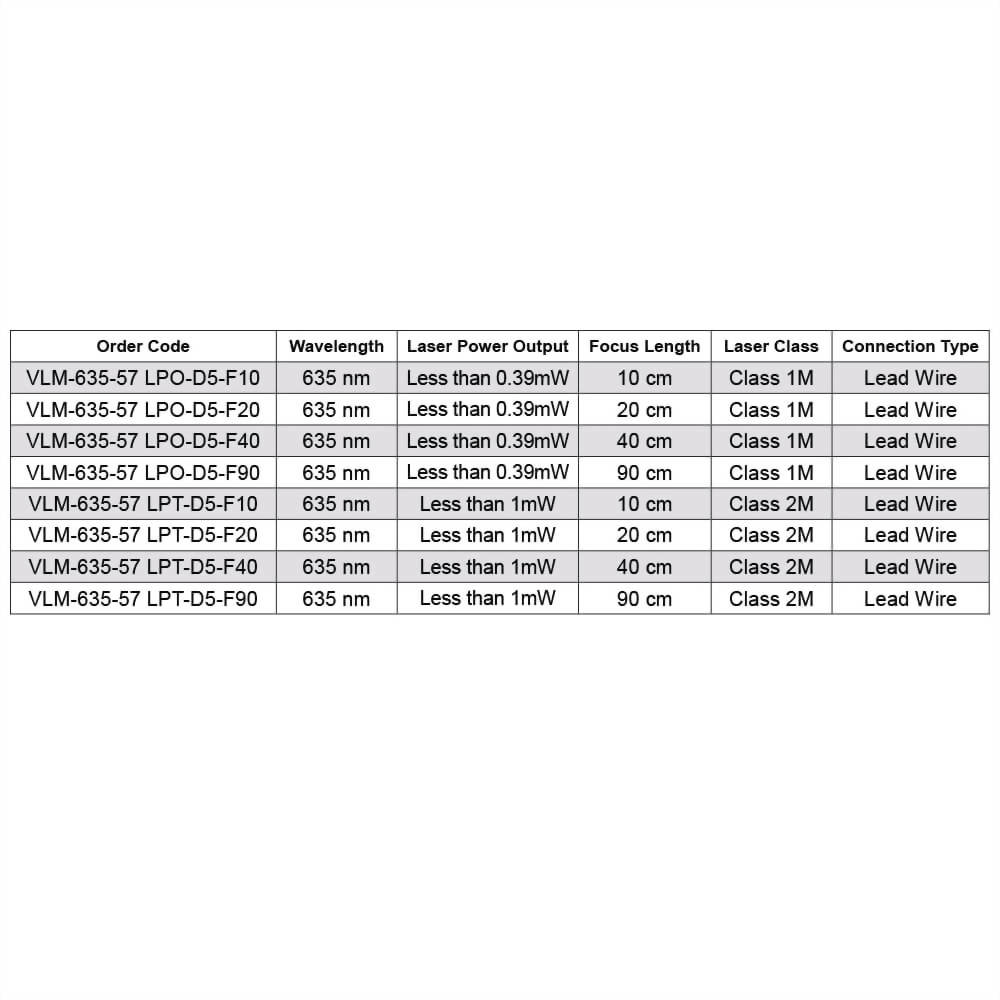

	VLM-635-57 LPO-D5-				VLM-635-57 LPT-D5-
	F10	F20	F40	F90	F10	F20	F40	F90
Focus length	10 cm	20 cm	40 cm	90 cm	10 cm	20 cm	40 cm	90 cm

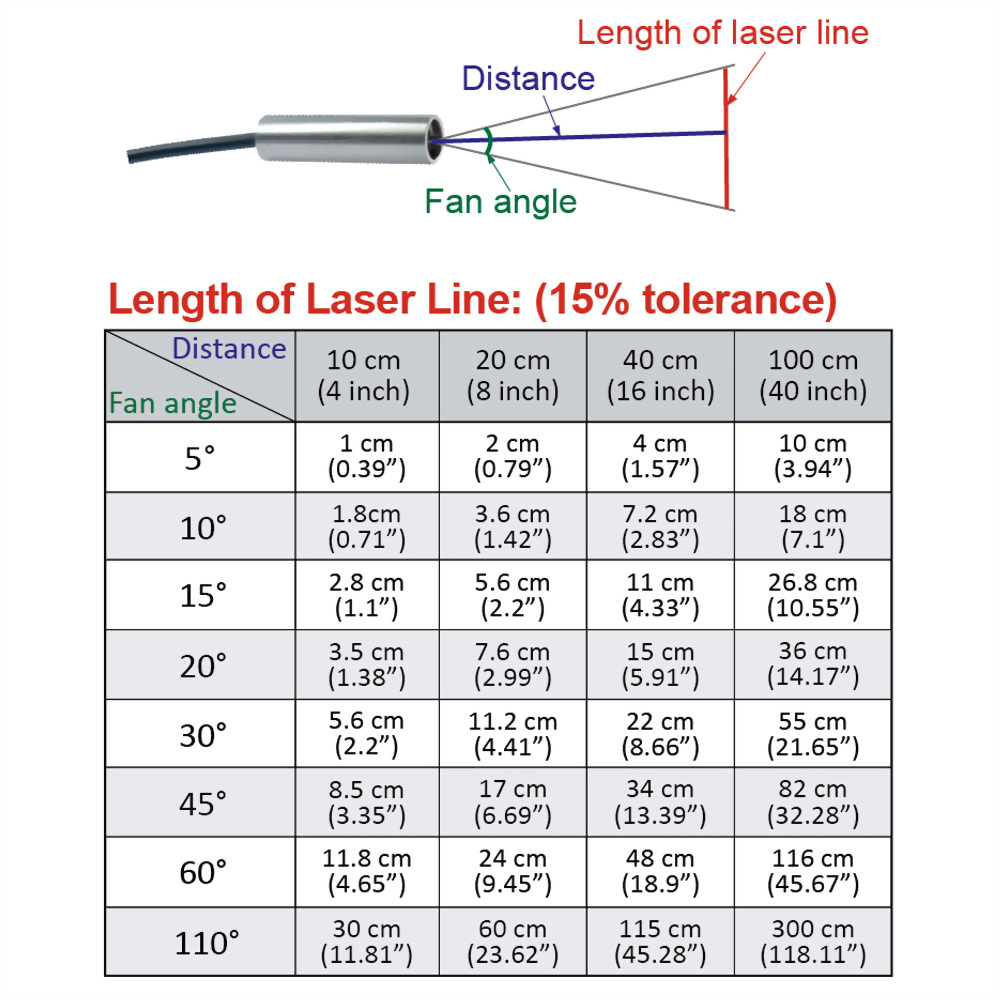

Fan angle / Laser line length	5° / Length of Laser Line as TABLE A (15% tolerance)

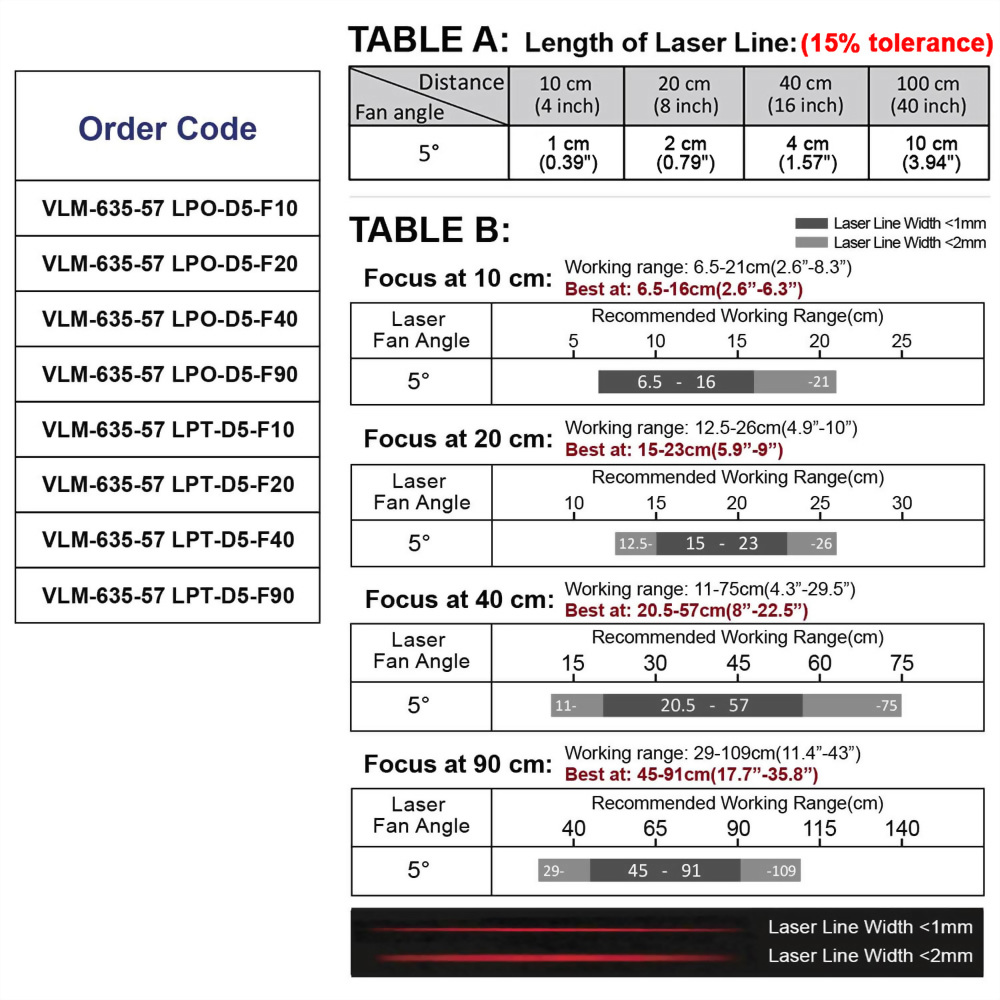

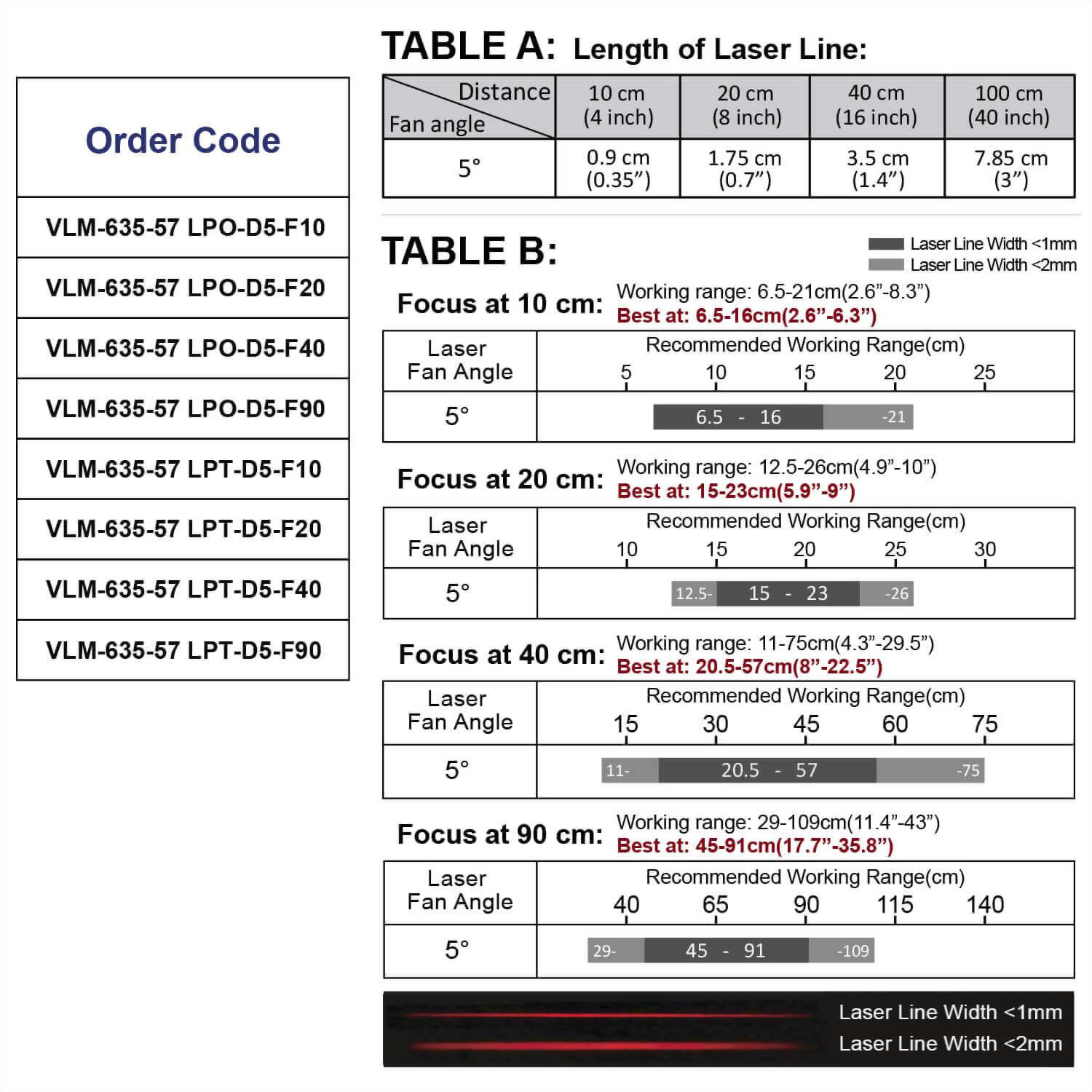

Laser line width	AS TABLE B
Recommended working range	AS TABLE B
TTL modulation frequency	High ON, 0-10K Hz
Dimensions	Ø10 x 40 mm (Ø0.39" x 1.575")
Weight	17±1g
Operating voltage (Vop)	3~6 VDC
Operating current (Iop)	Less than 50mA				Less than 100mA
Optical power*	Less than 5mW				Less than 10mW
Laser class	Class I
Wavelength (λp)	630~645nm
Collimating lens / Line generating lens	Aspherical glass lens
Output aperture	8mm
Beam shape	Line
Laser line accuracy	40”(±1mm@5M)
Operating temp. range**	-20°C ~+60°C
Storage temp. range	-20°C ~+85°C
Housing material	Stainless steel
Potential of housing	Insulated
Electrostatic discharge (ESD)	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.
Wire type	2464 3-WIRE CABLE 26 AWG
Cable length	330±30mm
Mean time to failure (MTTF) 25°C	Above 10000 hrs
International Protection Marking	IP67
Application	Precision fine line for Automation, Machine vision and Medical with modulation function
Suggestion work distance	0~1.2 meters / 0~4 feet

* Optical power is total power output measured at the aperture of the laser.

*** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
