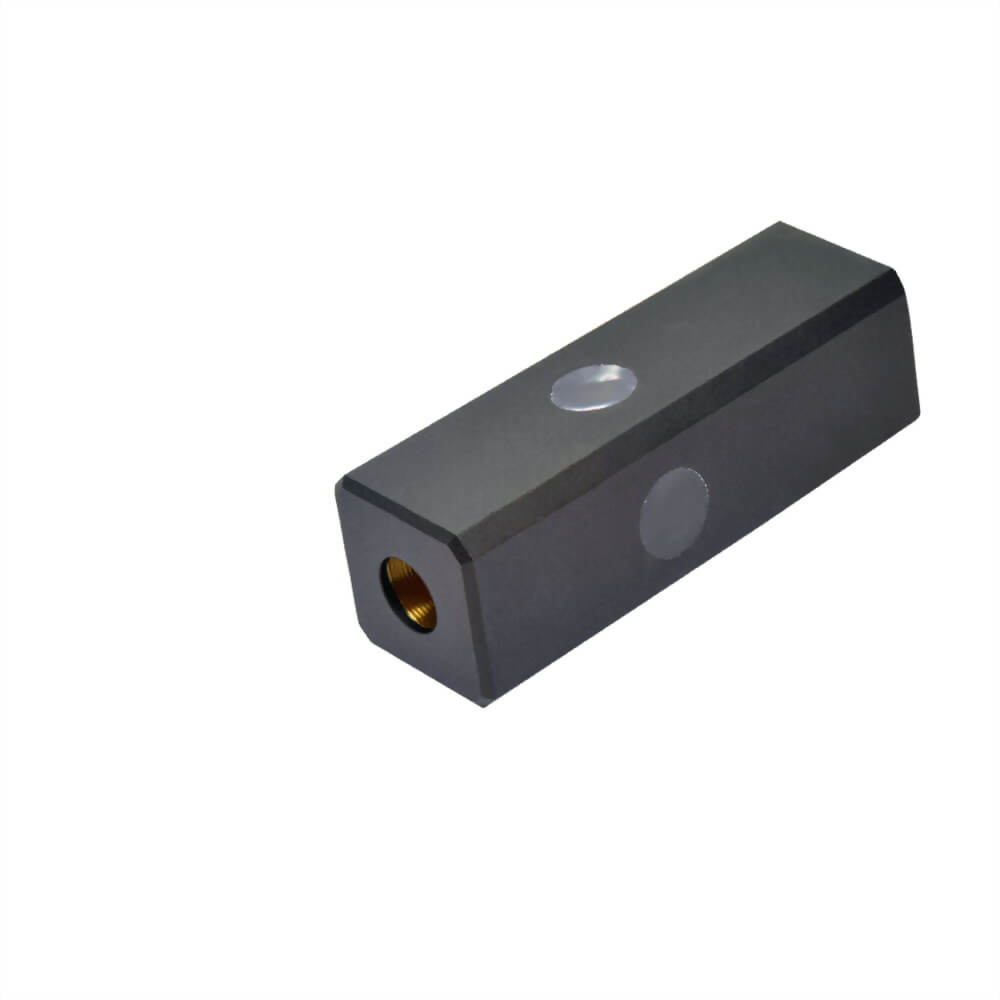

Concentricity Laser Module / Precision Laser Module
FEATURES:
1. Recommended working range 0~1 meter.
2. Concentricity(beam point error): less than 1mm at 30 meters(10 second).
3. Circular beam shape, aspect ratio 1:1.
4. Class I / Class II eye safe laser product.
5. Micro USB power connector.
6. Battery pack, USB cable, USB cable switch included.
7. Plastic carrying case.
8. Aiming or position work.
9. Concentricity test of rotating parts or alignment of machine.
10. Ideal for aiming or position work, concentricity test, carriages, crabs...etc.
Concentricity:
The laser beam error at a distance of 30M is less than 1mm from the mechanical center of the housing.

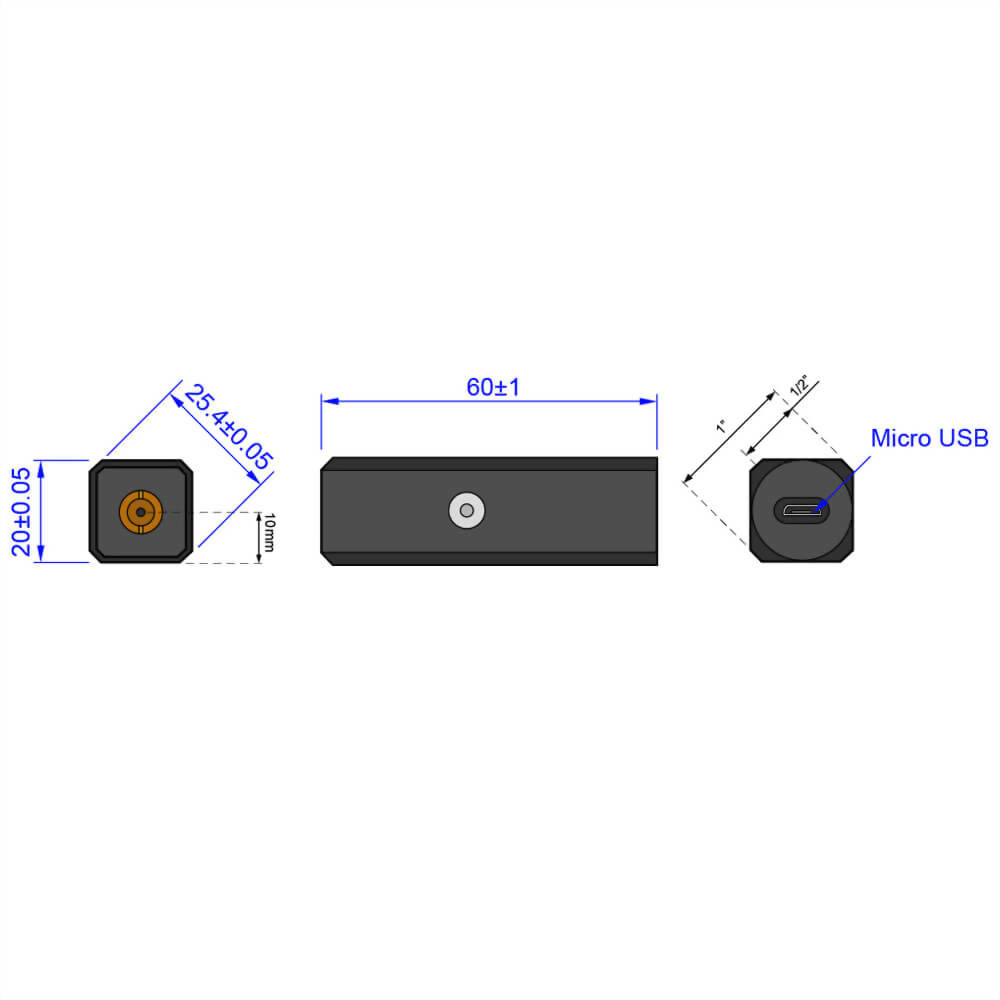

Laser Beam Position:
Laser beam center to the surface of the housing is 10mm.
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
|

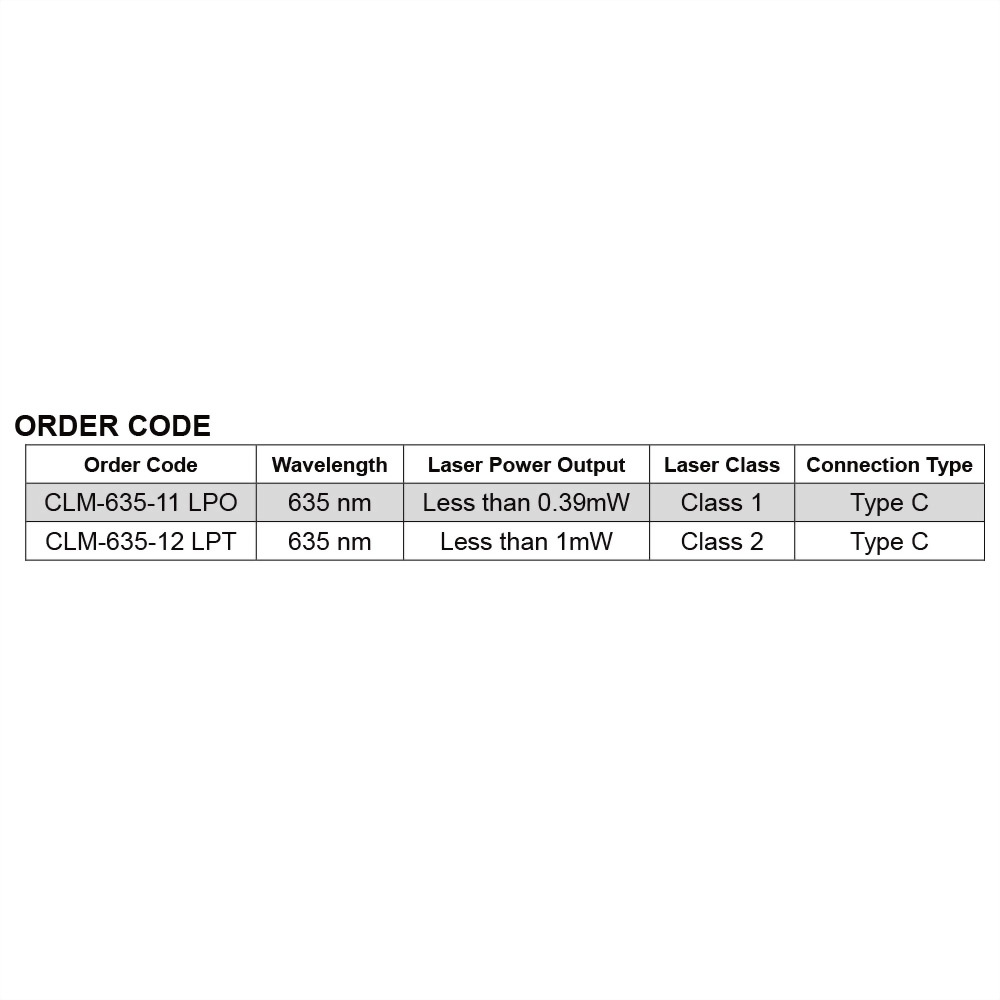

Model Number Specifications |
CLM-520-01 LPO | CLM-520-02 LPT | CLM-520-11 LPO | CLM-520-12 LPT | CLM-635-01 LPO | CLM-635-02 LPT | CLM-635-11 LPO | CLM-635-12 LPT |
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
| Dimensions | Ø20 x 60 mm | Ø20 x 60 mm | 20 x 20 x 60 mm | 20 x 20 x 60 mm | Ø20 x 60 mm | Ø20 x 60 mm | 20 x 20 x 60 mm | 20 x 20 x 60 mm |
| Operating voltage | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC |
| Operating current | Less than 160mA | Less than 160mA | Less than 160mA | Less than 160mA | Less than 50mA | Less than 50mA | Less than 50mA | Less than 50mA |
| Laser power output | Less than 0.39mW | Less than 1mW | Less than 0.39mW | Less than 1mW | Less than 0.39mW | Less than 1mW | Less than 0.39mW | Less than 1mW |
| Laser class | Class I | Class II | Class I | Class II | Class I | Class II | Class I | Class II |
| Wavelength | 515~530nm | 515~530nm | 515~530nm | 515~530nm | 630~645nm | 630~645nm | 630~645nm | 630~645nm |
| Collimating lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens |
| Output aperture | 0.8mm | 3mm | 0.8mm | 3mm | 0.8mm | 3mm | 0.8mm | 3mm |
| Beam shape | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Spot size | Less than 1.2mm at 1M | Less than 9mm at 20M | Less than 1.2mm at 1M | Less than 9mm at 20M | Less than 1.2mm at 1M | Less than 9mm at 20M | Less than 1.2mm at 1M | Less than 9mm at 20M |
| Divergence (Half Angle) | 0.15 mRad | 0.15 mRad | 0.15 mRad | 0.15 mRad | 0.15 mRad | 0.15 mRad | 0.15 mRad | 0.15 mRad |
| Beam alignment | Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm |
| Operating temp. range | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C |
| Storage temp. range | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C |
| Housing material | Stainless steel | Stainless steel | Hard anodized aluminum | Hard anodized aluminum | Stainless steel | Stainless steel | Hard anodized aluminum | Hard anodized aluminum |
| Potential of housing | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Electrostatic discharge (ESD) | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV |
| Moisture sensitivity level (MSL) | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. |
| Wire type | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) |
| Mean time to failure (MTTF) 25°C | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs |
| Application | Concentricity Laser | Concentricity Laser | Concentricity Laser | Concentricity Laser | Concentricity Laser | Concentricity Laser | Concentricity Laser | Concentricity Laser |
| Suggestion work distance | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet |
| Datasheet download | Download | Download | Download | Download | Download | Download | Download | Download |
|
|

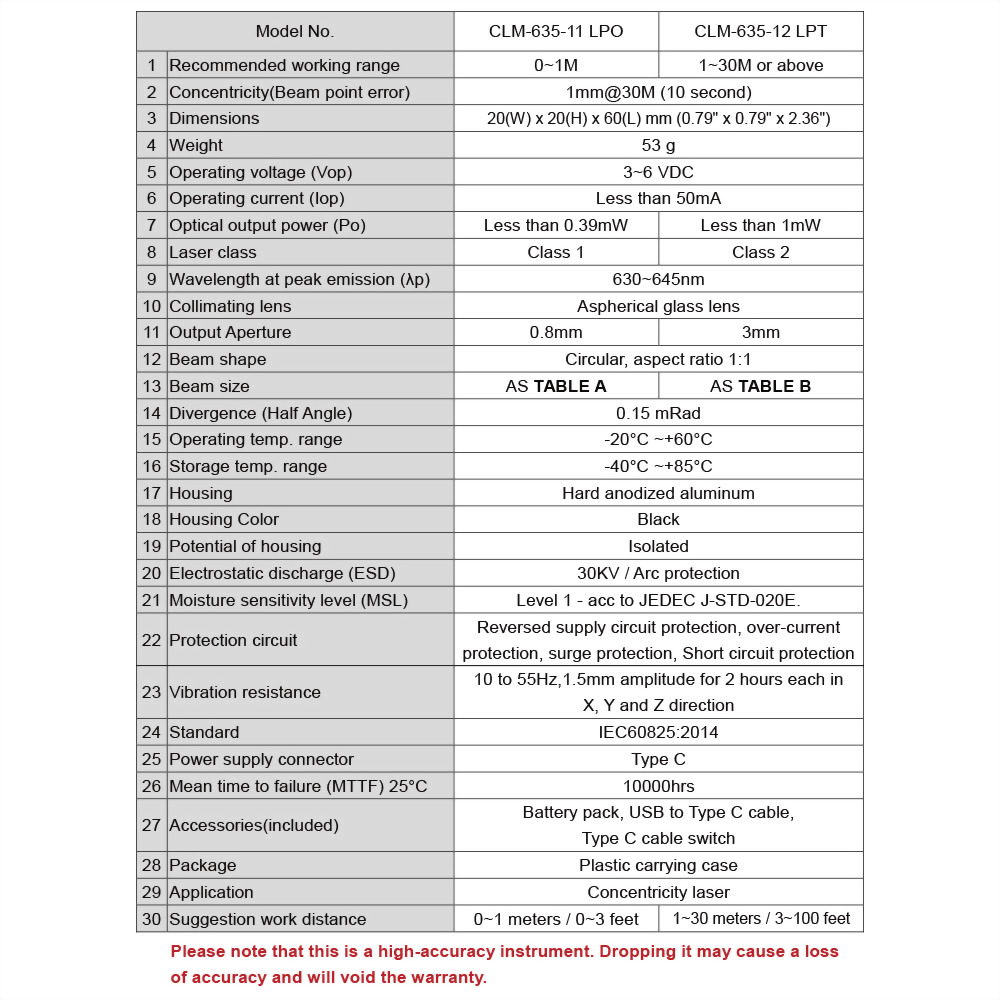

CLM-635-11 LPO |
CLM-635-12 LPT |
|
Recommended working range |
0~1M |
1~30M or above |
|
Concentricity(Beam point error) |
1mm@30M (10 second) |
|
|
Dimensions |
20(W) x 20(H) x 60(L) mm (0.79" x 0.79" x 2.36") |
|
|
Weight |
53 g |
|
|
Operating voltage (Vop) |
3~6 VDC |
|
|
Operating current (Iop) |
Less than 50mA |
|
|
Optical output power (Po) |
Less than 0.39mW |
Less than 1mW |
|
Laser class |
Class I |
Class II |
|
Wavelength (λp) |
630~645nm |
|
|
Collimating lens |
Aspherical glass lens |
|
|
Output Aperture |
0.8mm |
3mm |
|
Beam shape |
Circular, aspect ratio 1:1 |
|
|
Beam size |
AS TABLE A |
AS TABLE B |
|
Divergence (Half Angle) |
0.15 mRad |
|
|
Operating temp. range* |
-20°C ~+60°C |
|
|
Storage temp. range |
-40°C ~+85°C |
|
|
Housing |
Hard anodized aluminum |
|
|
Housing Color |
Black |
|
|
Potential of housing |
Isolated |
|
|
Power supply connector |
Micro USB (5V) |
|
|
Mean time to failure (MTTF) 25°C |
10000hrs |
|
|
Accessories(included) |
Battery pack, USB cable, USB cable switch |
|
|
Package |
Plastic carrying case |
|
* Operation temperature: it means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
