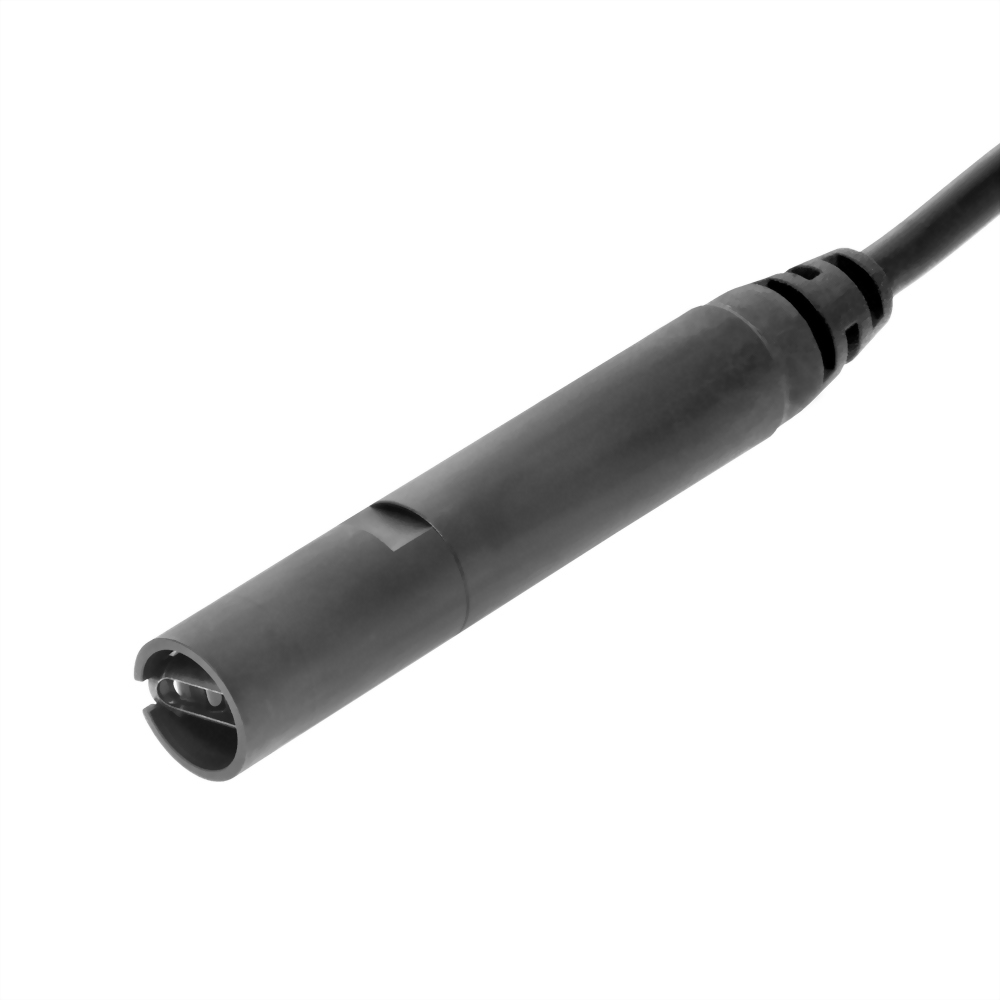

Straight Green Laser Line Module
The 75 Series Laser Line Module is specifically created for individuals requiring an exceptionally refined laser line from 1 to 10 meters or beyond. The standard VLM-520-75 LPO model is a versatile choice suitable for any distance within the specified range, maintaining a consistent laser line thickness of 2mm from 1 to 5 meters.
For those with more specific requirements, the custom model VLM-520-75 LPO-X, for example: VLM-520-75 LPO-3, is precisely tailored for optimal performance at a 3-meter distance, ensuring a laser line thickness of less than 1mm around the 3-meter. Renowned for its precision, this model stands out as the epitome of fine laser line technology among our diverse product range.
Moreover, we offer customization options to focus the laser line from 1 to 4 meters, providing flexibility to meet your unique specifications and ensuring the best possible fine laser line performance tailored to your needs.
FEATURES:
1. The most precise laser line module spanning distances from 1 meter to 10 meters.
2. Industrial use laser modules have 10,000 hours working life.
3. This module has integrated optic, direct green laser diode, and APC driver circuit.
4. APC driver circuit enables the Laser output power safe and constant.
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
Quarton inc. places emphasis on laser safety
About APC (automatic power control) circuit:
The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.
|
Model Number Specifications |
VLM-520-27 series | VLM-520-28 LPT | VLM-520-37 series | VLM-520-55 series | VLM-520-56 series | VLM-520-57 series | VLM-520-66 series | VLM-520-67 series | VLM-520-75 series | VLM-POWELL series |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
| Dimensions | Ø12.5 x 30 mm | Ø9 x 26 mm | (W)14 x (H)14 x (L)26 mm | Ø10 x 38 mm | Ø10 x 40 mm | Ø10 x 40 mm | M12 x 68 mm | M12 x 68 mm | Ø10 x 50 mm | Ø10 x 68 mm |
| Operating voltage | 7~10 VDC | 7~10 VDC | 7~10 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 10~36 VDC | 10~36 VDC | 3~6 VDC |
3~6 VDC 10~36 VDC |
| Operating current | Less than 80mA / 100mA | Less than 100mA | Less than 80mA / 120mA | Less than 200mA | Less than 80mA / 180mA | Less than 80mA / 180mA | Less than 20mA at 24V | Less than 20mA at 24V | Less than 100mA | Less than 55mA |
| Optical power | 4~5mW / 9~10mW | Less than 4.5mW | 4~5mW / 9~10mW | 4~5mW / 9~10mW | Less than 10mW / 30mW | Less than 10mW / 30mW | Less than 0.39mW / 7~9mW | Less than 0.39mW / 7~9mW | Less than 5mW | 8±0.5mW |
| Laser class | Class I | Class I | Class I | Class I | Class I | Class I | Class I | Class I | Class I | Class I |
| Wavelength | 505~530nm | 510~530nm | 505~530nm | 510~530nm | 515~530nm | 515~530nm | 515~530nm | 515~530nm | 505~530nm | 505~535nm |
| Collimating lens | Plastic lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens |
| Line lens | Plastic lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens |
| Beam shape | Line | Line | Line | Line | Line | Line | Line | Line | Line | Line |
| Laser Line width | Less than 3.5mm at 10M | 1.2mm at 1M |
2±1mm at 5M 4±1mm at 10M |
3±0.5mm at 5M 6±0.5mm at 10M |
Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm |
2 mm at 0~5 meters 3 mm at 8 meters |
Less than 1mm |
| Laser line accuracy | 40” (±1mm @5M) | 80” (+/- 2mm @5M) | 20" (± 1mm @10m) | 40”(±1mm@5M) | 40”(±1mm@5M) | 40”(±1mm@5M) | 4/1000(<1.6mm @400mm) | 4/1000(<1.6mm @400mm) | 4/1000(<1.6mm @400mm) | |
| Emitting angle | More than 90° | More than 60° | More than 120° | More than 90° | 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110° | 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110° | 5°, 15°, 30°, 60°, 110° | 5°, 15°, 30°, 60°, 110° | 120° | 45°±5° / 75°±5° |
| Operating temp. range | +15°C ~+30°C | +15°C ~+30°C | -20°C ~+50°C | -20°C ~+65°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+65°C | -20°C ~+60°C |
| Storage temp. range | -20°C ~+65°C | -20°C ~+65°C | -40°C ~+70°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C |
| Housing material | Brass | Brass | Aluminum | Aluminum | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Aluminum | Aluminum |
| Potential of housing | VDD(+) | VDD(+) | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Electrostatic discharge (ESD) | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV |
| Moisture sensitivity level (MSL) | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. |
| Wire type | 1007-26 AWG | 1007-26 AWG | 1007-26 AWG | 1007-26 AWG | 2464 2-WIRE CABLE 26 AWG | 2464 2-WIRE CABLE 26 AWG | UL-2464/22 AWG | UL-2464/22 AWG | UL-2464/22 AWG | UL-2464/22 AWG |
| Cable length | 115±15mm | 115±15mm | 115±15mm | 115±15mm | 330±30mm | 330±30mm | UL2464 D4.2,L=2000±30mm | UL2464 D4.2,L=2000±30mm | D4.2,L=2000±30mm | D4.2,L=2000±30mm |
| Mean time to failure (MTTF) 25°C | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs |
| Application | General industrial alignment | Economic 3D scanner | Precision industrial alignment | Precision industrial alignment | Precision fine line for Automation, Machine vision and Medical | Precision fine line for Automation, Machine vision and Medical with modulation function | Precision fine line for Automation, Machine vision and Medical | Precision fine line for Automation, Machine vision and Medical with modulation function | Wood, metal, stone processing and works that need precision fine laser line | Scanning, Image processing, Medical & Science, Automatic industry, Robotic arm |
| Suggestion work distance | Above 2 meters | 0.3~1.8 meters / 1~6 feet | 1~20 meters / 3~60 feet | 1~20 meters / 3~60 feet | 0~1.2 meters / 0~4 feet | 0~1.2 meters / 0~4 feet | 0~5 meters / 0~16 feet | 0~5 meters / 0~16 feet | 1 to 10 meters or beyond | |
| Datasheet download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download |
|

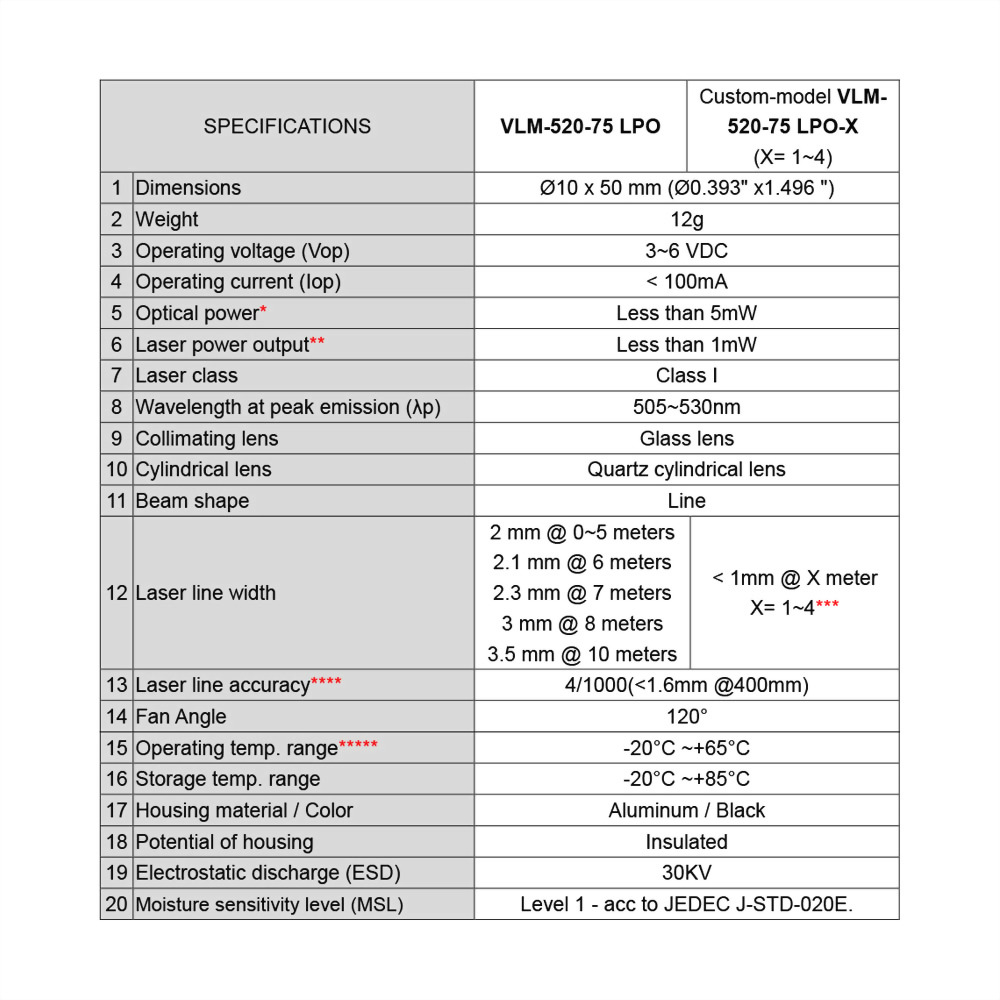

SPECIFICATIONS |
VLM-520-75 LPO |
Custom-model VLM-520-75 LPO-X (X= 1~4) |
|
|
1 |
Dimensions |

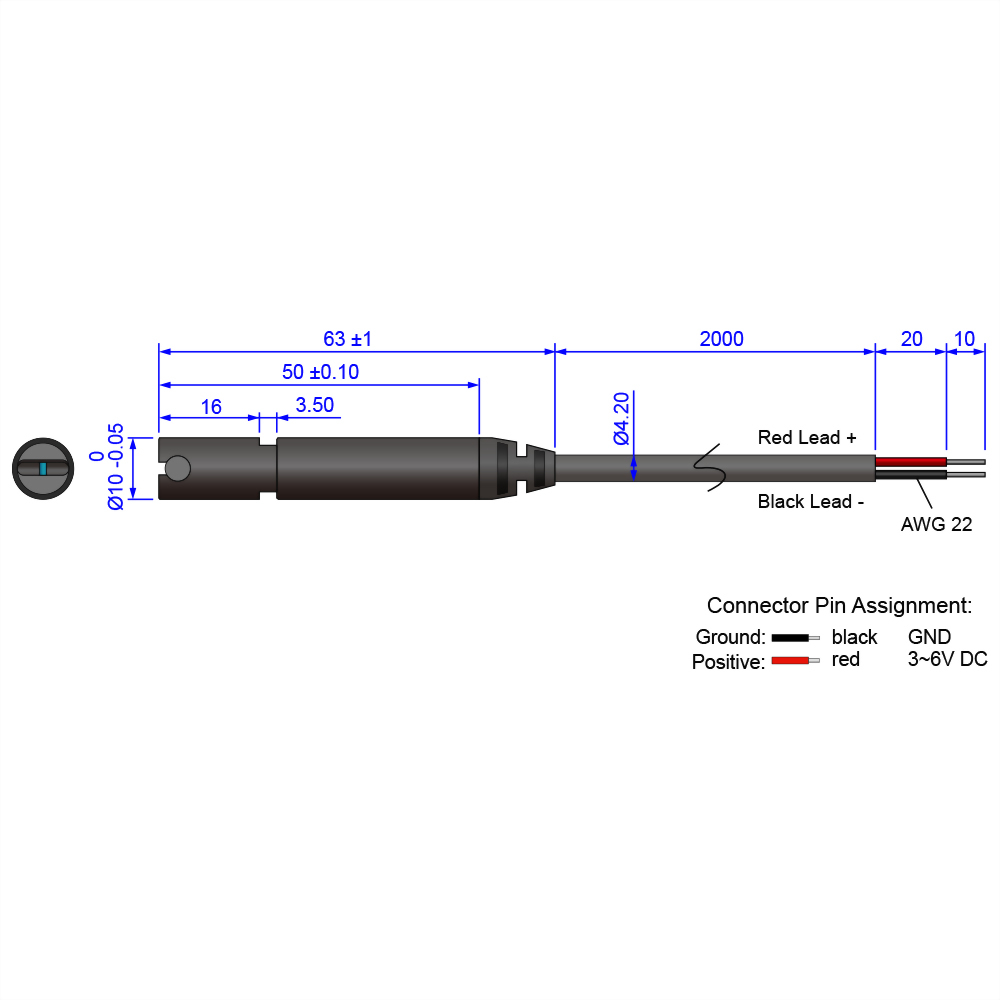

Ø10 x 50 mm (Ø0.393" x1.496 ") |
|
|
2 |
Weight |
12g |
|
|
3 |
Operating voltage (Vop) |
3~6 VDC |
|
|
4 |
Operating current (Iop) |
< 100mA |
|
|
5 |
Optical power* |
Less than 5mW |
|
|
6 |
Laser power output** |
Less than 1mW |
|
|
7 |
Laser class |
Class I |
|
|
8 |
Wavelength at peak emission (λp) |
505~530nm |
|
|
9 |
Collimating lens |
Glass lens |
|
|
10 |
Cylindrical lens |
Quartz cylindrical lens |
|
|
11 |
Beam shape |
Line |
|
|
12 |
Laser line width |
2 mm @ 0~5 meters 2.1 mm @ 6 meters 2.3 mm @ 7 meters 3 mm @ 8 meters 3.5 mm @ 10 meters |
< 1mm @ X meter X= 1~4*** |
|
13 |
Laser line accuracy**** |
4/1000(<1.6mm @400mm) |
|
|
14 |
Fan Angle |
120° |
|
|
15 |
Operating temp. range***** |
-20°C ~+65°C |
|
|
16 |
Storage temp. range |
-20°C ~+85°C |
|
|
17 |
Housing material / Color |
Aluminum / Black |
|
|
18 |
Potential of housing |
Insulated |
|
|
19 |
Electrostatic discharge (ESD) |
30KV |
|
|
20 |
Moisture sensitivity level (MSL) |
Level 1 - acc to JEDEC J-STD-020E. |
|
|

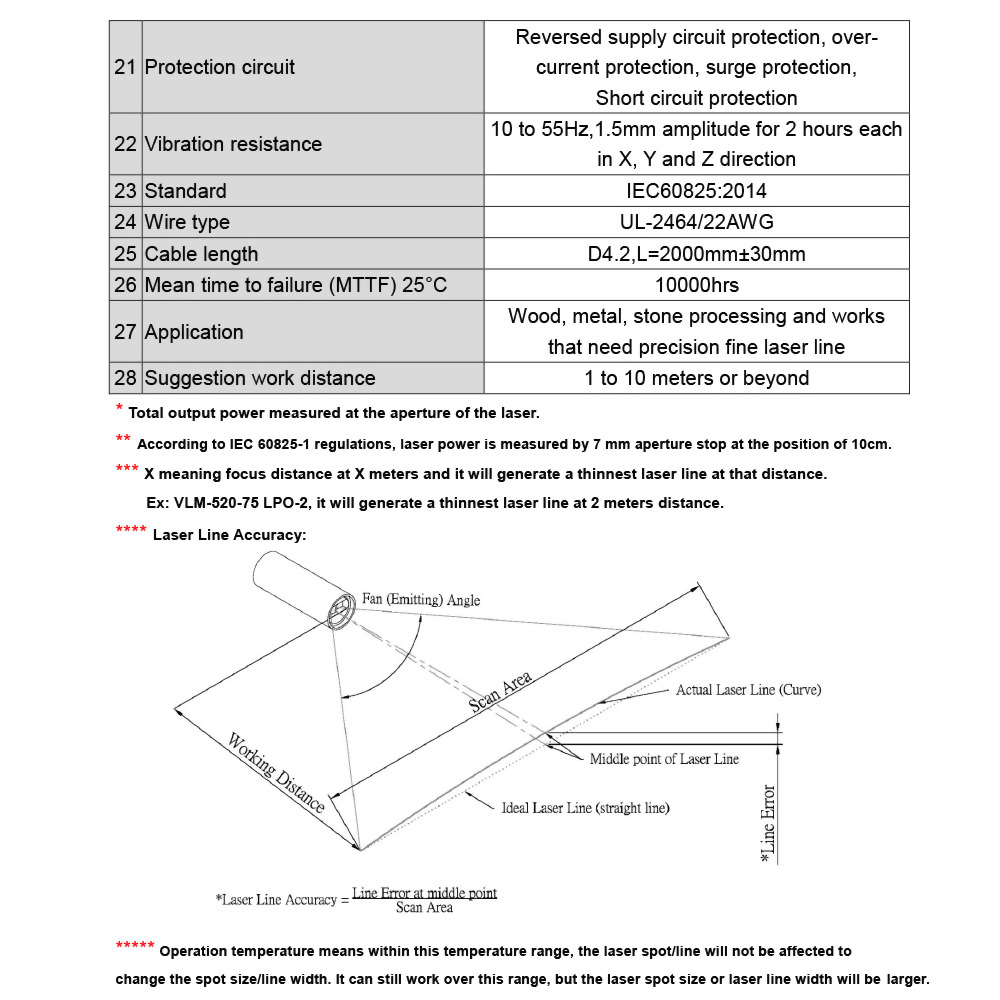

21 |
Protection circuit |
Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection |
|
|
22 |
Vibration resistance |
10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction |
|
|
23 |
Standard |
IEC60825:2014 |
|
|
24 |
Wire type |
UL-2464/22AWG |
|
|
25 |
Cable length |
D4.2,L=2000mm±30mm |
|
|
26 |
Mean time to failure (MTTF) 25°C |
10000hrs |
|
|
27 |
Application |
Wood, metal, stone processing and works that need precision fine laser line |
|
|
28 |
Suggestion work distance |
1 to 10 meters or beyond |
|
* Total output power measured at the aperture of the laser.
** According to IEC 60825-1 regulations, laser power is measured by 7 mm aperture stop at the position of 10cm.
*** X meaning focus distance at X meters and it will generate a thinnest laser line at that distance.
Ex: VLM-520-75 LPO-2, it will generate a thinnest laser line at 2 meters distance.

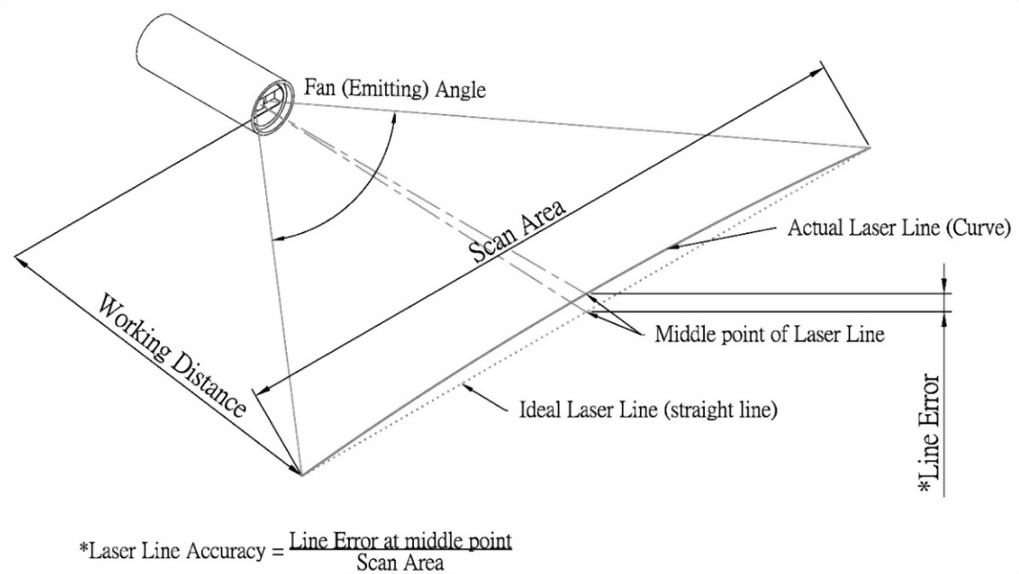

**** Laser Line Accuracy:
***** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
