Prism Lens
Model :
PL1460

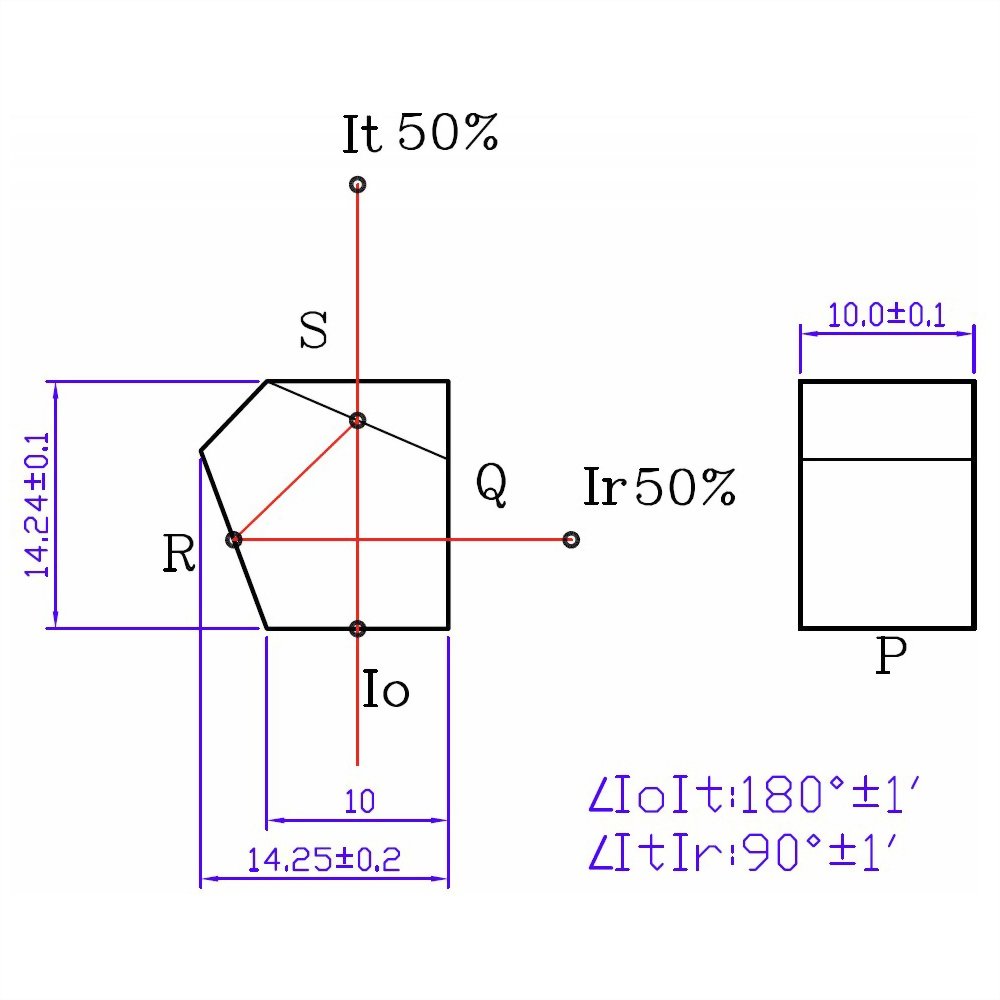

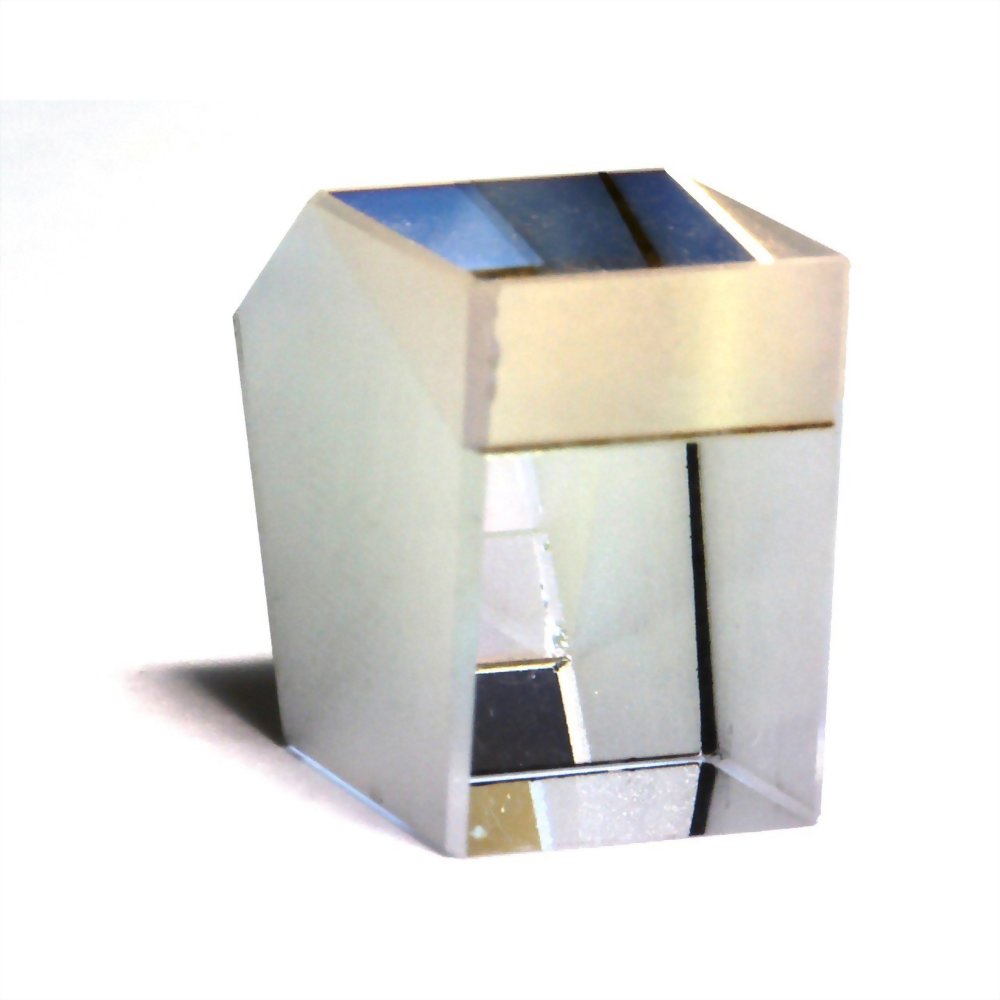

Prism-Quarton Beam Splitter Penta Prism (1')
FEATURES:
1. Beam Splitter Penta prism is a five-sided prism can be used as Beam-splitter that splits one laser beam to two beams.
2. The splitter beam angle: 90°±1'
|
Lens Material: |
K9 |
|
Lens Dimension: |
0.5610" x 0.5606" x 0.3937" (14.25x14.24x10 mm) |
|
Design Wavelength: |
635 nm (It means that this works for red laser only) |
|
Surface Flatness: |
λ/2 |
|
Surface Quality: |
40-20 |
|
Spitted beam angle: |
90° |
|
Beam Angular Deviation: |
1' |
|
Beam splitter Ratio: |
50% / 50% |
