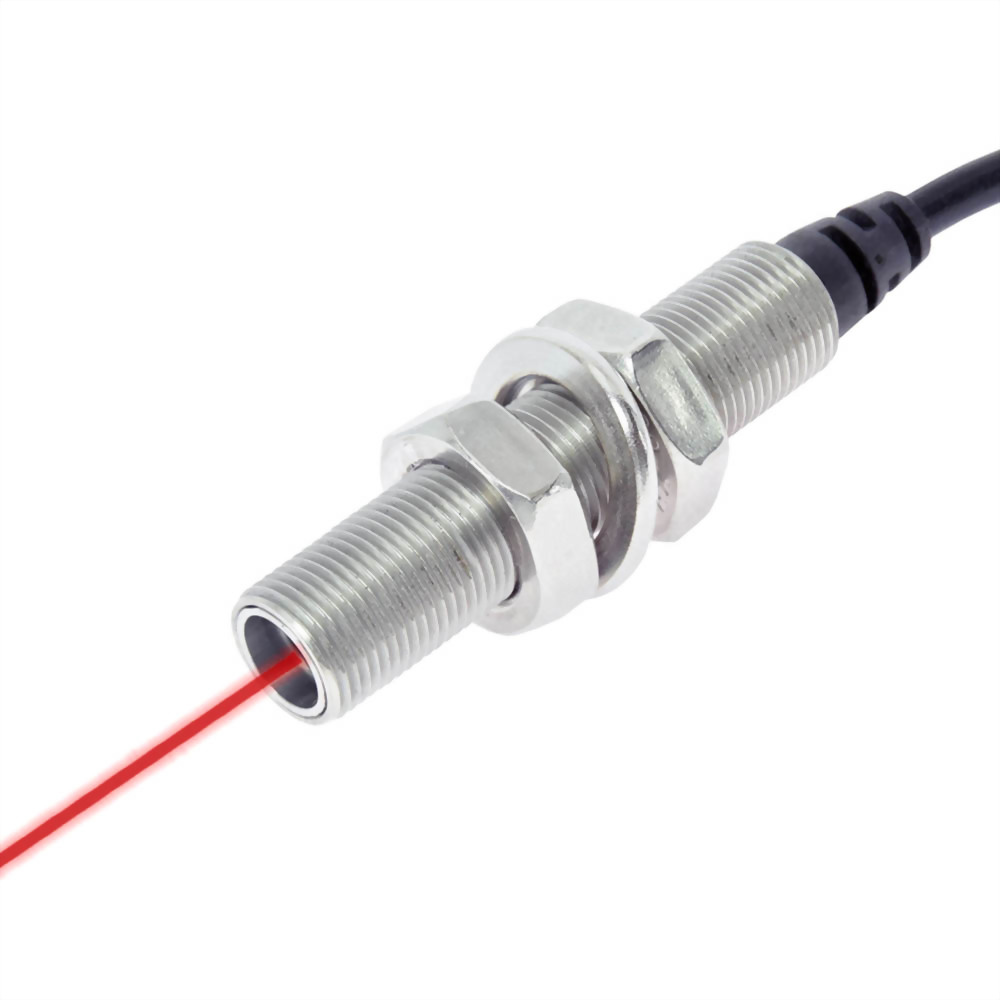

Red Dot Laser Module

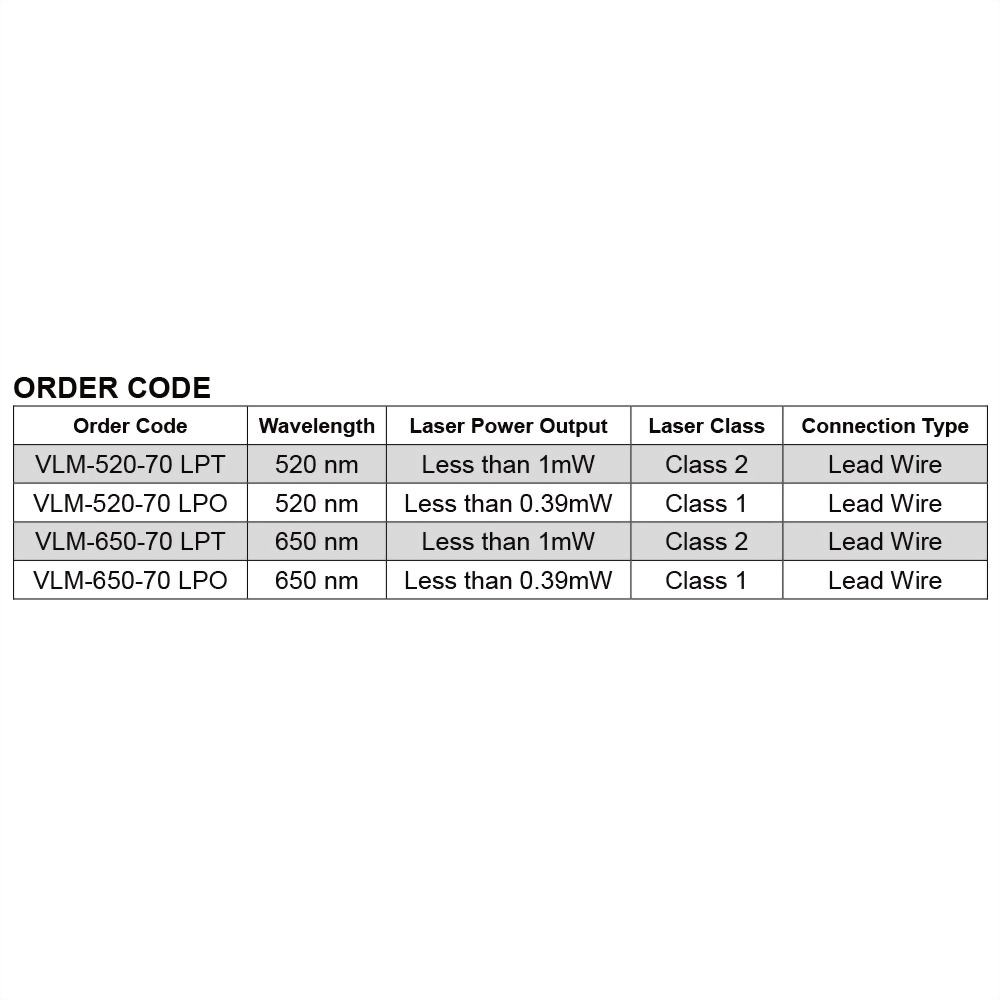

Model : VLM-650-70 LPO / VLM-650-70 LPT

Wide Voltage Compatibility: Operates at 10~36V, covering 12V, 24V, and 30V, meeting industrial standard requirements. Industrial Red Dot Laser Module - for positioning, measuring, pointing and laser sighting device.

Q'ty :

Description
Specifications

FEATURES:

1. M12 Thread & Wide Voltage Range: Designed with M12 threading for easy installation and supports Wide Voltage Compatibility: Operates at 10~36V, covering 12V, 24V, and 30V, meeting industrial standard requirements.

2. Integrated Optics & Electronics: Built-in APC (Automatic Power Control) driver circuit ensures stable and safe laser output, while an aspherical glass lens provides a precise, tight dot across a wide temperature range.

3. Extremely Small Circular Dot: Maintains a sharp, precise dot within 1 meter, making it ideal for high-accuracy applications.

4. Robust Construction: Stainless steel housing enhances durability and resistance to environmental factors.

Laser products manufactured by Quarton inc. meet the international safety standards:

USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS

Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.

Where to buy

Comparison sheet

Model Number Specifications	VLM-635-00 VLM-650-00	VLM-635-01 series VLM-650-01 series	VLM-635-01G series VLM-650-01G series	VLM-635-02 series VLM-650-02 series	VLM-635-02G series VLM-650-02G series	VLM-635-03 series VLM-650-03 series	VLM-635-04 series VLM-650-04 series	VLM-635-11 series VLM-650-11 series	VLM-635-12 series VLM-650-12 series	VLM-635-17 series	VLM-635-18 series VLM-650-18 series	VLM-650-21 series	VLM-650-22 series	VLM-650-25 series	VLM-635-31 Series (TTL)	VLM-635-32 Series (TTL)	VLM-635-60 series	VLM-635-61 series (TTL)	VLM-650-62 series	VLM-650-62T series (TTL)	VLM-635-63 Series	VLM-650-70 series	VLM-650-71 series (TTL)	VLM-650-72 series	VLM-650-72T series (TTL)	VLM-635-91 LPB	VLM-635-96 LPA	CLM-635-01 LPO	CLM-635-02 LPT	CLM-635-11 LPO	CLM-635-12 LPT

Dimensions	Ø10.52 x 17.2 mm	Ø10.5 x 19mm	Ø10.5 x 19mm	Ø10.5 x 26 mm	Ø10.5 x 26 mm	Ø7 x 21 mm	Ø6.55 x 21.1 mm	Ø10.5 x 30 mm	Ø10.5 x 39 mm	Ø13 x 50 mm	Ø13 x 43.5 mm	Ø4 x 15 mm	Ø4 x 15 mm	Ø7 x 21 mm	Ø8 x 27 mm	Ø8.5 x 30.5 mm	Ø10 x 40 mm	Ø10 x 40 mm	Ø10 x 40 mm	Ø10 x 40 mm	Ø10.6 x 12.2 mm	M12 x 68 mm	M12 x 68 mm	M12 x 68 mm	M12 x 68 mm	Ø16 x 25 mm	Ø16.5 x 72.8 mm	Ø19.9 x 60 mm	Ø19.9 x 60 mm	20 x 20 x 60 mm	20 x 20 x 60 mm
Operating voltage	2.2~2.7 VDC / 2.15~2.6 VDC	2.6~6 VDC	2.6~6 VDC	2.6~6 VDC	2.6~6 VDC	2.6~6 VDC	2.6~6 VDC	2.6~6 VDC	2.6~6 VDC	3~6 VDC	2.6~6 VDC	3~6 VDC	3~6 VDC	2.6~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	10~36 VDC	10~36 VDC	10~36 VDC	10~36 VDC	4~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC
Operating current	Less than 45mA / 35mA	Less than 35mA / 50mA	Less than 35mA / 50mA	Less than 35mA / 50mA	Less than 35mA / 50mA	Less than 35mA / 50mA	Less than 35mA / 50mA	Less than 35mA / 50mA	Less than 35mA / 50mA	Less than 60mA / 70mA / 85mA	Less than 35mA / 50mA	Less than 25mA / 30mA	Less than 25mA / 30mA	Less than 30mA	Less than 40mA / 60mA	Less than 40mA / 60mA	Less than 40mA / 80mA	Less than 40mA / 80mA	Less than 80mA / 100mA / 150mA	Less than 80mA / 100mA / 150mA	Less than 40mA	Less than 20mA at 24V	Less than 20mA at 24V	Less than 30mA at 24V	Less than 30mA at 24V	Less than 500mA	Less than 80mA	Less than 50mA	Less than 50mA	Less than 50mA	Less than 50mA
Laser power output	Less than 2.5mW	Less than 1mW / 3mW	Less than 1mW / 2.5mW	Less than 1mW / 3mW	Less than 1mW / 2.5mW	Less than 1mW / 2.5mW	Less than 1mW / 2.5mW	Less than 1mW / 2.5mW	Less than 1mW / 2.5mW	0.7~0.9mW / 2~3mW / 5~6mW	2.5±1mW	0.7±0.2mW / 2±0.5mW	0.7±0.2mW / 3±0.5mW	Less than 1mW	Less than 1mW / 4mW	Less than 1mW / 4mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW	0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW	0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW	150mW	0~4.25±0.25mW (adjustable)	Less than 0.39mW	Less than 1mW	Less than 0.39mW	Less than 1mW
Laser class		Class 2 / Class 3R	Class 2 / Class 3R	Class 2 / Class 3R	Class 2 / Class 3R	Class 2 / Class 3R	Class 2 / Class 3R	Class 2 / Class 3R	Class 2 / Class 3R	Class 2 / Class 3R / Class 3B	Class 3R	Class 2 / Class 3R	Class 2 / Class 3R	Class 2	Class 2 / Class 3R	Class 2 / Class 3R	Class 1 / Class 2	Class 1 / Class 2	Class 1 / Class 2 / Class 3R	Class 1 / Class 2 / Class 3R	Class 1 / Class 2	Class 1 / Class 2	Class 1 / Class 2	Class 1 / Class 2 / Class 3R	Class 1 / Class 2 / Class 3R	Class 3B	Class 3R	Class 1	Class 2	Class 1	Class 2
Wavelength	630~645nm / 650~660nm	630~645nm / 645~665nm	630~645nm / 645~665nm	630~645nm / 645~665nm	630~645nm / 645~665nm	630~645nm / 645~665nm	630~645nm / 645~665nm	630~645nm / 645~665nm	630~645nm / 645~665nm	630~645nm	630~645nm / 645~665nm	645~660nm	645~660nm	645~665nm	630~645nm	630~645nm	630~665nm	630~665nm	645~665nm	645~665nm	630~645 nm	645~665nm	645~665nm	645~665nm	645~665nm	635nm	630~645nm	630~645 nm	630~645 nm	630~645 nm	630~645 nm
Collimating lens	Plastic lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Plastic lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Glass lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Output aperture	5mm	5mm	5mm	4mm	4mm	3mm	3mm	5mm	5mm	8mm	6mm	2.1mm	2.1mm	3mm	5mm	5mm	0.6mm	0.6mm	2mm	2mm	5mm	0.6mm	0.6mm	2mm	2mm	5mm	5mm	0.8mm	3mm	0.8mm	3mm
Beam shape	Ellipse	Ellipse	Ellipse	Ellipse	Ellipse	Ellipse	Ellipse	Circular	Circular	Circular	Circular	Ellipse	Ellipse	Ellipse	Ellipse	Ellipse	Circular	Circular	Circular	Circular	Ellipse	Circular	Circular	Circular	Circular	Ellipse	Ellipse	Circular	Circular	Circular	Circular
Spot size		5±1mm at 5M	4±1mm at 5M	5±1 mm at 5M Adjustment focus	4±1 mm at 5M Adjustment focus	4±1 mm at 5M	6±1 mm at 5M	Less than 16mm at 40M	2.5±0.5 mm at 5M 10±1 mm at 20M	Ø5.3 mm at 40M Ø15 mm at 100M	Less than 16mm at 40M	7±1 mm at 5M	10±1 mm at 5M	Less than 1.1mm at 18~45cm	5±1 mm at 10M	5±1 mm at 10M	Less than 1mm at 0~50cm Less than 2mm at 50~90cm	Less than 1mm at 0~50cm Less than 2mm at 50~90cm	Less than Ø3mm at 0~5M	Less than Ø3mm at 0~5M	Ø0.1~Ø0.5 (1/e2)	Less than 1mm at 0~50cm Less than 2mm at 50~90cm	Less than 1mm at 0~50cm Less than 2mm at 50~90cm	Less than Ø3mm at 0~5M	Less than Ø3mm at 0~5M	Less than 15mm at 10M	Less than 0.2mm at 10mm Less than 8mm at 10M	Less than 1.2mm at 1M	Less than 9mm at 20M	Less than 1.2mm at 1M	Less than 9mm at 20M
Divergence (Full Angle)	0.5 mRad	0.5 mRad	0.4 mRad	0.5 mRad	0.4 mRad	0.6 mRad	0.6 mRad	0.2 mRad	0.25 mRad	Less than 0.1 mRad	0.2 mRad	2.5 mRad	2.5 mRad		Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad		Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad		Adjustable 0.4 mrad to 12°	Less than 0.15 mRad	Less than 0.15 mRad	Less than 0.15 mRad	Less than 0.15 mRad
Beam alignment		Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°		Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm
Operating temp. range	+10°C ~+40°C	+10°C ~+40°C	-20°C ~+50°C	+10°C ~+40°C	-20°C ~+50°C	+15°C ~+30°C	+15°C ~+30°C	-20°C ~+50°C	+10°C ~+40°C	-10°C ~+50°C	-20°C ~+50°C	+15°C ~+30°C	-10°C ~+50°C	+15°C ~+30°C	-20°C ~ +60°C	-20°C ~ +60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-10°C ~+50°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-10°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C
Storage temp. range	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+70°C	-20°C ~+65°C	-20°C ~+80°C	-40°C ~+70°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-40°C ~ +85°C	-40°C ~ +85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+65°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-40°C ~+85°C	-40°C ~+85°C	-40°C ~+85°C	-40°C ~+85°C
Housing material	Brass	Brass	Brass	Brass	Brass	Steel	Zinc alloy	Bronze	Bronze	Aluminum	Brass	Brass	Brass	Steel	Aluminum	Steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Bronze	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Bronze	Aluminum	Stainless steel	Stainless steel	Hard anodized aluminum	Hard anodized aluminum
Potential of housing	VDD(+)	VDD(+)	VDD(+)	VDD(+)	VDD(+)	VDD(+)	VDD(+)	VDD(+)	VDD(+)	Insulated	VDD(+)	VDD(+)	VDD(+)	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	VDD(+)	Insulated	Insulated	Insulated	Insulated	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated
Electrostatic discharge (ESD)		30KV	30KV	30KV	30KV	20KV	20KV	30KV	30KV	30KV	30KV	20KV	20KV	20KV	30KV	30KV	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV	30KV	30KV	30KV	30KV	30KV
Moisture sensitivity level (MSL)		Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.
Wire type	3*PIN from LD	1007-26AWG / Spring	1007-26AWG / Spring	1007-26AWG / Spring	1007-26AWG / Spring	1007-26AWG / 2509 connector	1007-26AWG / Spring	1007-26AWG / Spring	1007-26AWG / Spring	1007-26AWG	1007-26AWG	1007-26AWG	1007-26AWG	1007-26AWG / 2509 connector	1007-26AWG	1007-26AWG	2464 2-WIRE CABLE 26 AWG	2464 3-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	2464 3-WIRE CABLE 26 AWG	1007-26AWG	2464 2-WIRE CABLE 26 AWG	2464 3-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	2464 3-WIRE CABLE 26 AWG	1007-26AWG	2464 2-WIRE CABLE 26 AWG	Type C	Type C	Type C	Type C
Cable length		115±15mm / 8±1mm	115±15mm / 8±1mm	115±15mm / 6.5±1mm	115±15mm / 6.5±1mm	115±15mm / 90mm	115±15mm / 4±1mm	115±15mm / 8±1mm	115±15mm / 4.2±1mm	115±15mm	115±15mm	115±15mm	115±15mm	115±15mm / 90mm	115±15mm	115±15mm	330±30mm	330±30mm	330±30mm	330±30mm	115±15mm	330±30mm	330±30mm	330±30mm	330±30mm	115±15mm	330±30mm
Mean time to failure (MTTF) 25°C	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	5000hrs	5000hrs	10000hrs	5000hrs / 10000hrs	10000hrs	5000hrs / 10000hrs	5000hrs	5000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs
Application	Lab, without laser driver	General purpose	General purpose	Focus adjustable	Focus adjustable	Economic type	Economic type	Long range application	Long range application	Long range application	Long range application	Small size	Small size	Laser engrave machine pilot laser	Modulation	Modulation	Industrial alignment	Industrial alignment with TTL modulation function	Industrial alignment	Industrial alignment with TTL modulation function	Micro dot size	Industrial alignment	Industrial alignment with TTL modulation function	Industrial alignment	Industrial alignment with TTL modulation function	High power	Laboratory or Medical research and physical-optic experiments	Concentricity Laser	Concentricity Laser	Concentricity Laser	Concentricity Laser
Suggestion work distance		1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	1~10 meters / 3~40 feet	1~10 meters / 3~40 feet	10~100 meters / 30~300 feet	10~100 meters / 30~300 feet	10~500 meters / 40~2000 feet	10~200 meters / 30~600 feet	1~10 meters / 3~40 feet	1~10 meters / 3~40 feet	18~45 cm / 6"~18"	1~10 meters / 3~40 feet	1~10 meters / 3~40 feet	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet	0~5 meters / 0~16 feet	0~5 meters / 0~16 feet	1~25 cm / 1/2"~10"	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet	0~5 meters / 0~16 feet	0~5 meters / 0~16 feet	1~30 meters / 3~100 feet	Above 10mm	0~1 meters / 0~3 feet	1~30 meters / 3~100 feet	0~1 meters / 0~3 feet	1~30 meters / 3~100 feet
Datasheet download	Download Download	Download Download	Download Download	Download Download	Download Download	Download Download	Download Download	Download Download	Download Download	Download	Download Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download

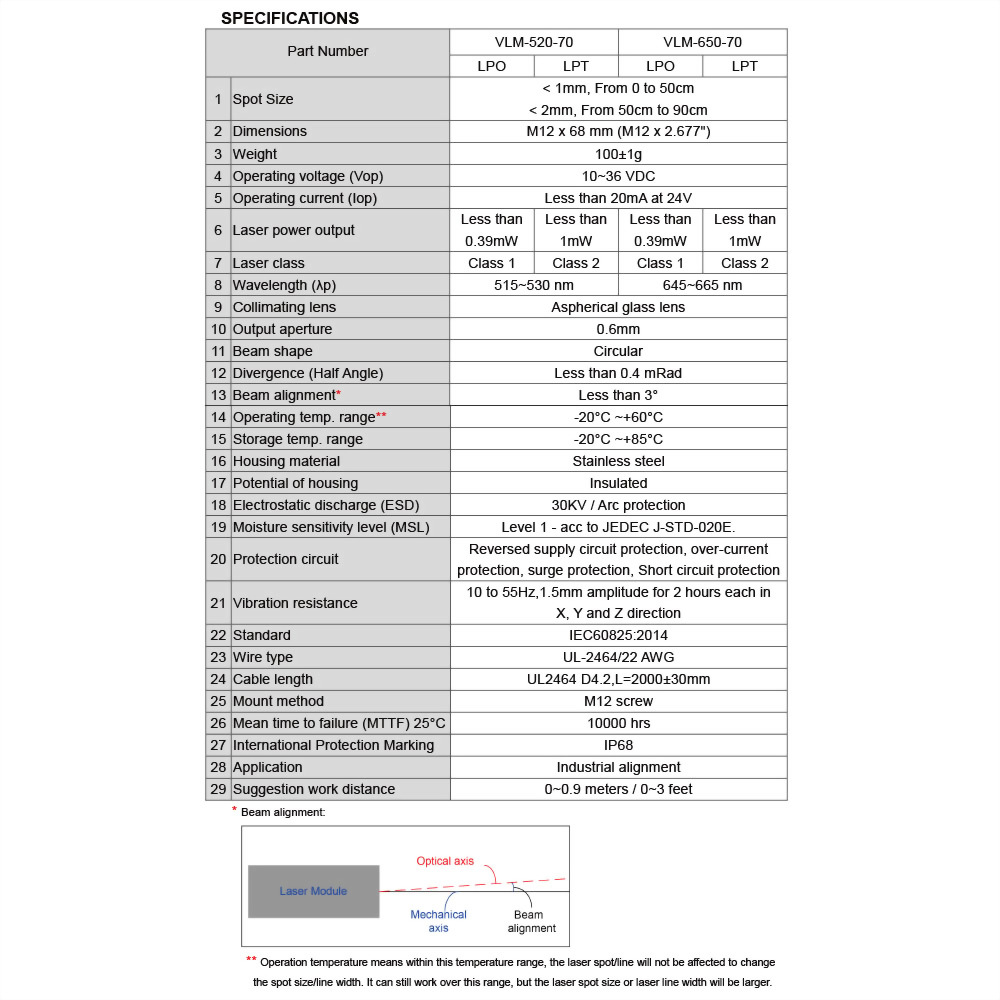

Part Number	VLM-520-70		VLM-650-70
	LPO	LPT	LPO		LPT
Spot Size	< 1mm, From 0 to 50cm < 2mm, From 50cm to 90cm

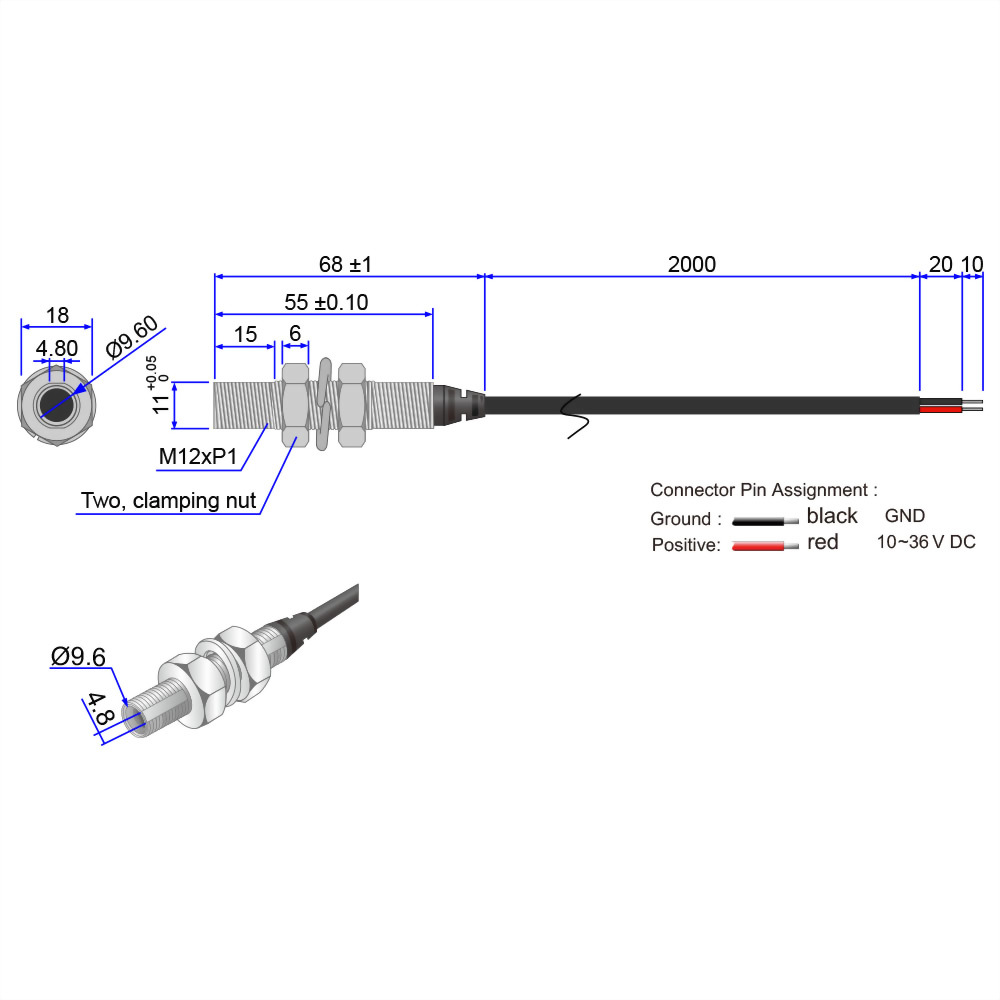

Dimensions	M12 x 68 mm (M12 x 2.677")
Weight	100±1g
Operating voltage (Vop)	10~36 VDC
Operating current (Iop)	Less than 20mA at 24V
Laser power output	Less than 0.39mW	Less than 1mW		Less than 0.39mW	Less than 1mW
Laser class	Class 1	Class 2		Class 1	Class 2
Wavelength (λp)	515~530 nm			645~665 nm
Collimating lens	Aspherical glass lens
Output aperture	0.6mm
Beam shape	Circular
Divergence (Half Angle)	Less than 0.4 mRad
Beam alignment	Less than 3°
Operating temp. range*	-20°C ~+60°C
Storage temp. range	-20°C ~+85°C
Housing material	Stainless steel
Potential of housing	Insulated
Electrostatic discharge (ESD)	30KV / Arc protection
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.
Protection circuit	Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection
Vibration resistance	10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction
Standard	IEC60825:2014
Wire type	UL-2464/22 AWG
Cable length	UL2464 D4.2,L=2000±30mm
Mount method	M12 screw
Mean time to failure (MTTF) 25°C	10000 hrs
International Protection Marking	IP68
Application	Industrial alignment
Suggestion work distance	0~0.9 meters / 0~3 feet

* Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
