Green Laser Line Generator

Model : ML-400
Maximum visibility under direct sunlight for large scale alignment. Used as a guideline for use in alignment, machine vision systems, construction, and process control and is ideal for most large-field cutting applications, even under a bright surrounding condition outdoor and at extreme temperatures. Built-in tempered glass window and waterproof feature to be protected under all weather and sawdust damage from sawmill.

FEATURES:

1.  Maximum visibility under direct sunlight for large scale alignment.

2.  Used as a guideline for use in alignment, machine vision systems, construction, and process control and is ideal for most large-field cutting applications, even under a bright surrounding condition outdoor and at extreme temperatures. Built-in tempered glass window and waterproof feature to be protected under all weather and sawdust damage from sawmill.

3.  Operating Temperature Range: -4 °F to 140 °F (-20 °C to +60 °C). Waterproof feature to allow outdoor work.

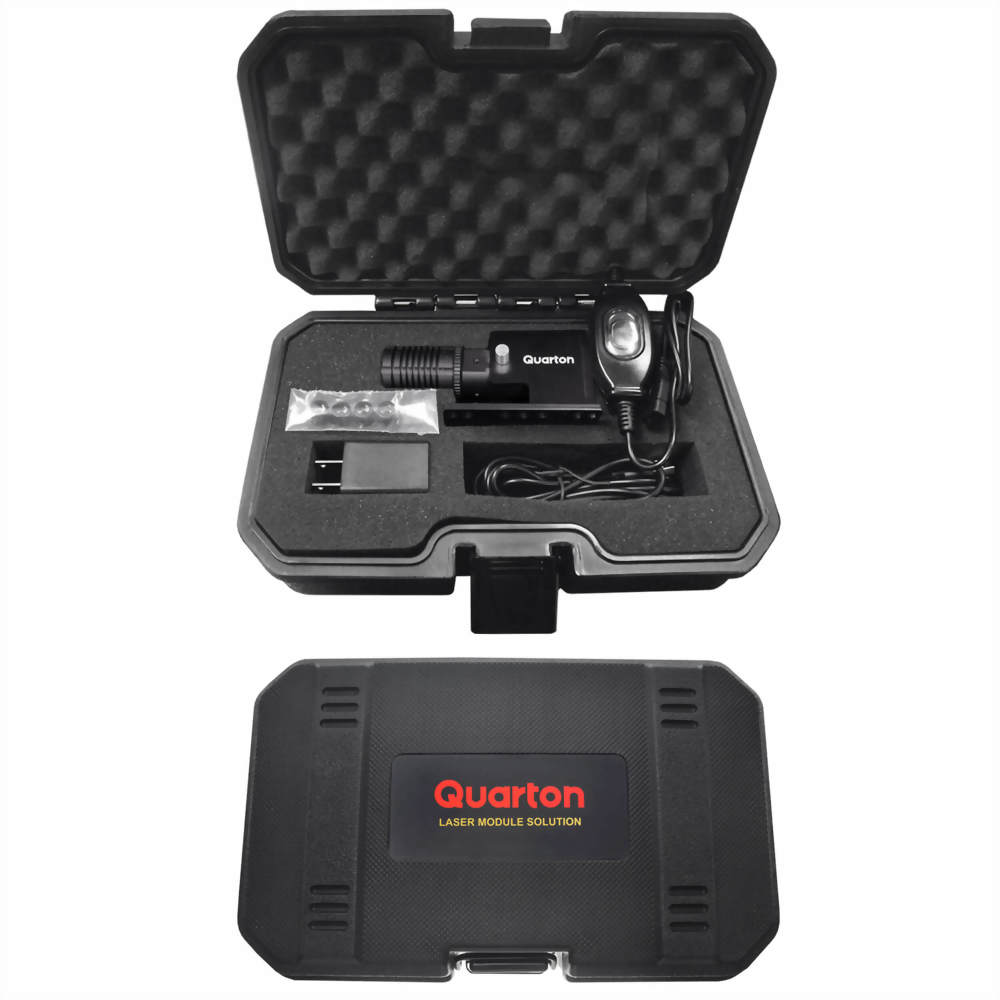

4.  Dimensions: 4.92"(L) x 2.16" (W) x 2.36" (H) ( 125 x 55 x 60 mm ). Weight: 10.58 ±0.17 ounces (300±5g). Type C connector. 100~240V AC to DC adaptor and USB Type C cable included. Compatible with cell phone charger.

5.  When in heavy shock/vibration environments, users can place the rubber buffer between bottom chassis and surface. Laser line Width: less than 3mm at 5 meters. Emitting angle: more than 120°.

6.  Integrated quartz cylindrical lens, collimating lens, industrial grade green laser diode, and APC driver circuit. APC Driver Circuit enables the Laser output power safe and constant. Therefore, the ML-400 can operate all day 7 days a week. ML-400 Green Laser Line Generator – ideal for large scale cutting and alignment work. Include stone, lumber, textile cutting and press brake, surface grinder, big pipe connections and tire manufacturing alignment.


The ML-400 features ultra-bright green laser line up to 120 degrees, excellent stability even at extreme temperatures, and a flexible adjustable housing. Built-in tempered glass window and waterproof feature to be protected under all weather and sawdust damage from sawmill. It projects a visible green guide line up to 100 feet long (at the distance of 29 feet) - suitable for large outdoor work surfaces.

It can be used as a guideline for use in alignment, machine vision systems, construction, and process control and is ideal for most large-field cutting applications, even under a bright surrounding condition outdoor and at extreme temperatures! The ML-400 will increase your accuracy for many applications, such as wood cutting, stone cutting, and textile cutting.

Direct Green Laser Diode: new revolution in green laser technology
The new revolution in green laser technology provides excellent stability even at extreme temperatures!
A laser line generator is only as good as the lines it produces in any application, any time. In the past, the bad news for green laser products is that they are more sensitive to extreme temperatures than red lasers, but not anymore. If you try this ML-400, you will find out that our green lasers have excellent stability even at extreme temperatures.
Built-in revolutionary direct green laser diode makes the output power of its laser steady. The operating temperature range of the ML-400 is from -4 °F (-20 °C) to 140 °F (60 °C), which is a huge spread.


Where to buy


Comparison sheet

Model Number

Specifications

ML-100 ML-200 ML-300 ML-400
Visibility Best fit for all indoor work Visible under direct sunlight Crosshairs mark for all indoor and outdoor work Maximum visibility under direct sunlight for large scale alignment
Dimensions 4.60”x2.13”x2.32”
(11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.60”x2.13”x2.32”
(11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.60”x2.13”x2.32”
(11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.92”x2.16”x2.36”
(12.5cm X 5.5cm X 6cm)
Switch cable : 67.5±1cm
Weight 200±5g / 7.05±0.17 oz. 200±5g / 7.05±0.17 oz. 200±5g / 7.05±0.17 oz. 300±5g / 10.58±0.17 oz.
Power Type C (adapter included) Type C (adapter included) Type C (adapter included) Type C (adapter included)
Laser power output CL II CW mode CL II CW mode CL II CW mode CL II CW mode
Wavelength 635 nm (Red) 520 nm (Green) 520 nm (Green) 520 nm (Green)
Width of laser line Less than 2mm at 4M Less than 3mm at 5M Less than 3mm at 5M Less than 3mm at 5M
Emitting angle More than 120° More than 120° More than 80° More than 120°
Operating temp range -20°C ~+60°C/
-4°F ~+140°F
-20°C ~+60°C/
-4°F ~+140°F
-20°C ~+60°C/
-4°F ~+140°F
-20°C ~+60°C/
-4°F ~+140°F
Housing Metal / Black anodized Metal / Black anodized Metal / Black anodized Metal / Black anodized
Datasheet download Download Download Download Download

Model name

ML-400

Dimension(L X W X H)

4.92”x2.16”x2.36” (12.5 cm X 5.5 cm X 6 cm)

Switch cable : 2.65” (67.5±1cm)

Weight

300±5g / 10.58±0.17 oz.

Wavelength

520 nm (Green)

Width of laser line

<3mm at 5M

Laser class

Class 2M CW mode

Operating temp range

-20°C ~ 60°C / -4°F ~ 140°F

Emitting angle

>120

Housing

Metal

Finishing

Black anodized

Power

Type C (adapter included)
