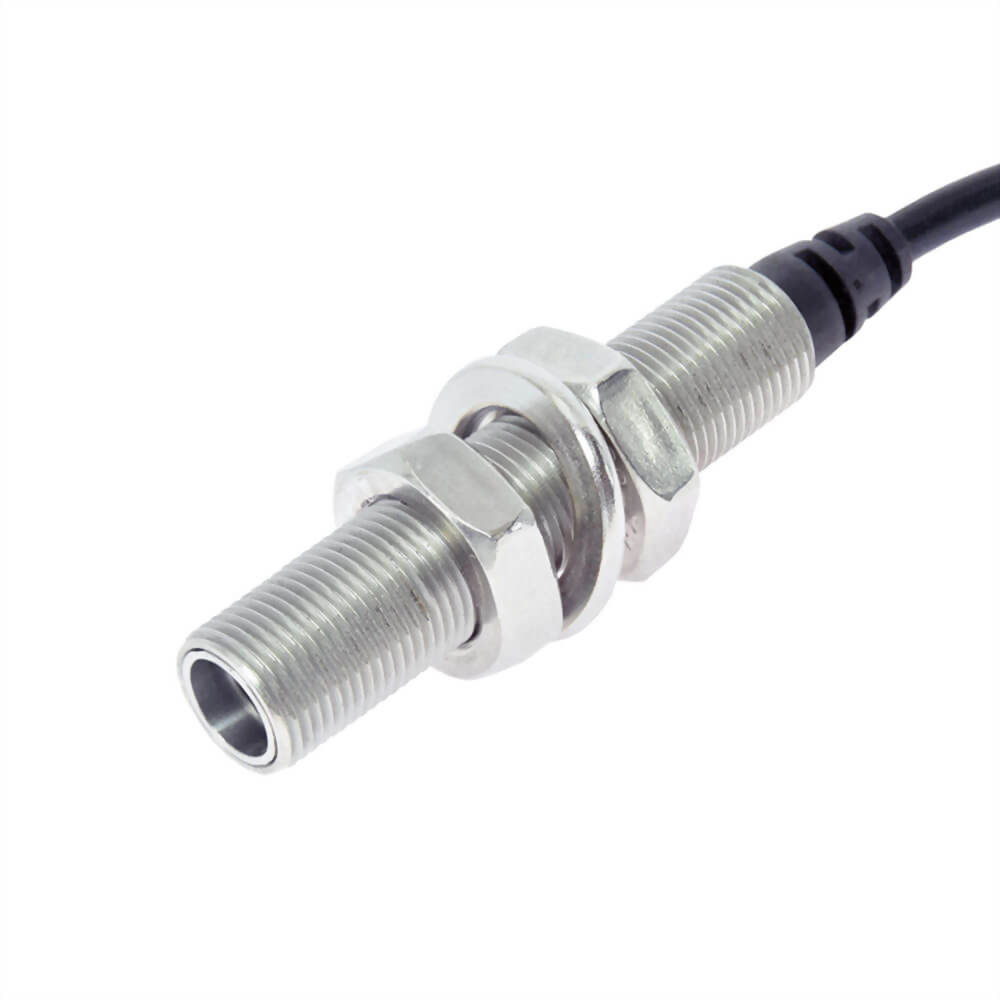

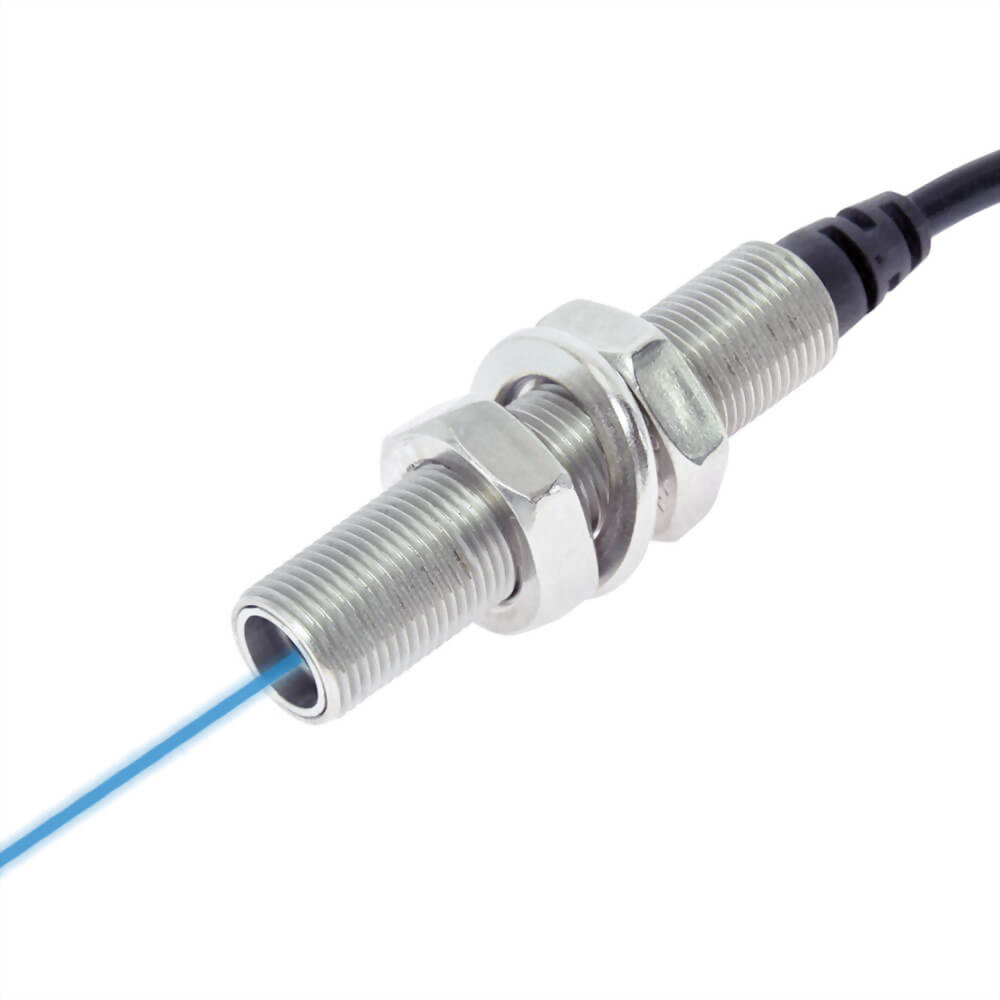

Blue Dot Laser Module with TTL Modulation Function
FEATURES:
1. M12 Thread & Wide Voltage Range: Designed with M12 threading for easy installation and supports Wide Voltage Compatibility: Operates at 10~36V, covering 12V, 24V, and 30V, meeting industrial standard requirements.
2. Integrated Optics & Electronics: Built-in APC (Automatic Power Control) driver circuit ensures stable and safe laser output, while an aspherical glass lens provides a precise, tight dot across a wide temperature range.
3. Extremely Small Circular Dot: Maintains a sharp, precise dot within 1 meter, making it ideal for high-accuracy applications.
4. CW to 10K HZ stable power output for demanding power and speed are of important.
5. Robust Construction: Stainless steel housing enhances durability and resistance to environmental factors.
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
Quarton inc. places emphasis on laser safety
About APC (automatic power control) circuit:
The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.
|

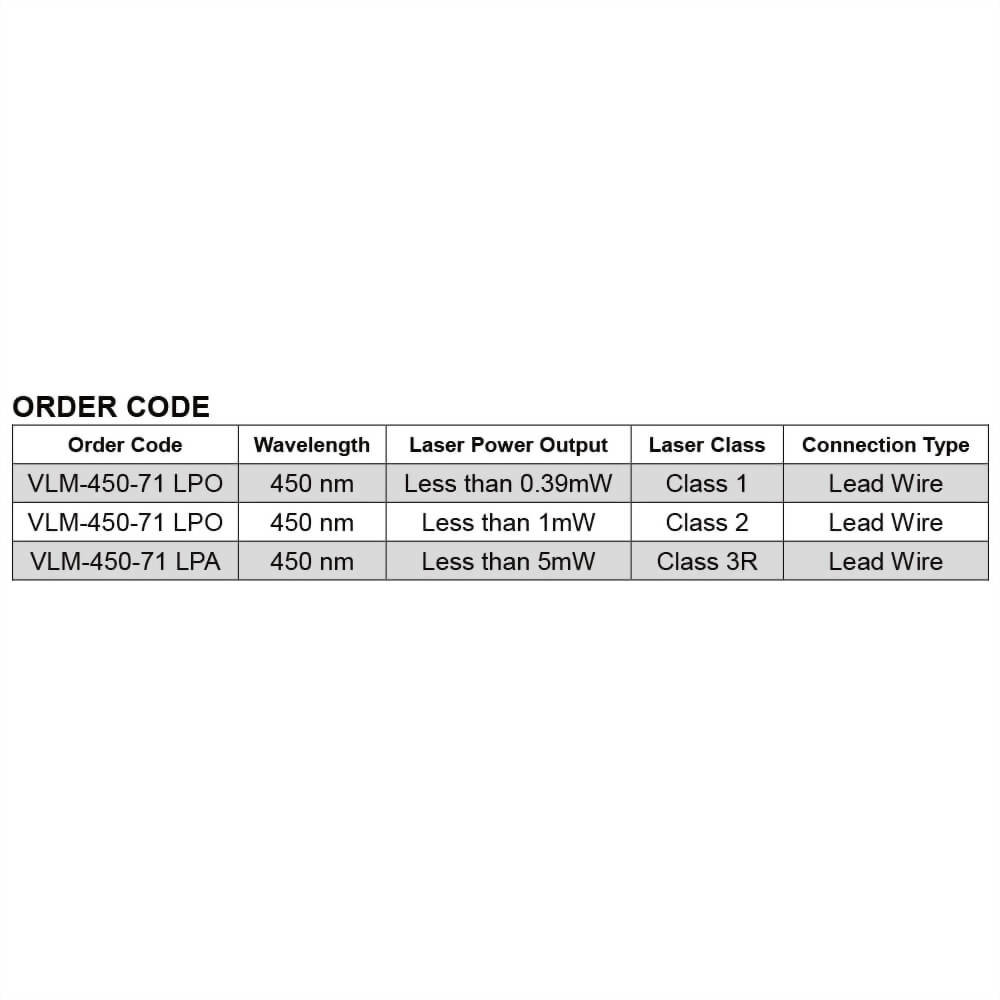

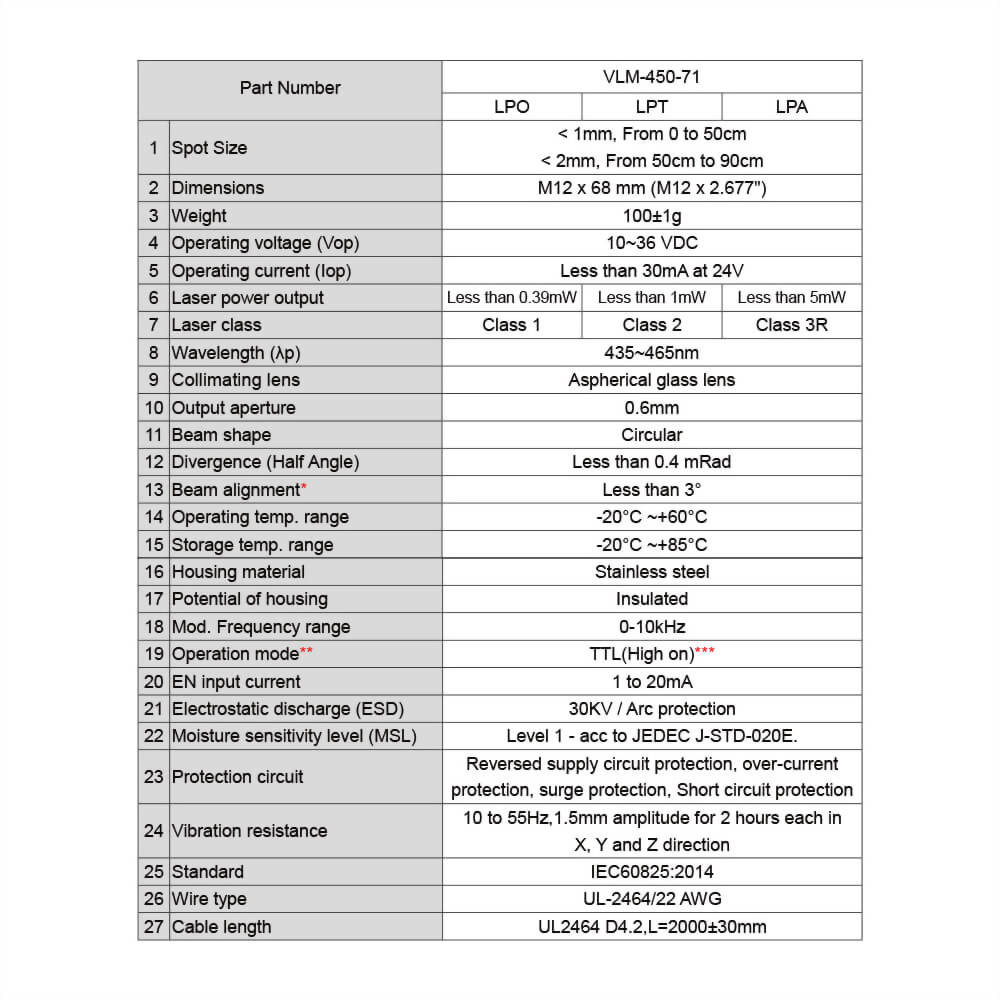

Part Number |
VLM-450-71 |
||
|
LPO |
LPT |
LPA |
|
|
Spot Size |
< 1mm, From 0 to 50cm < 2mm, From 50cm to 90cm |
||
|

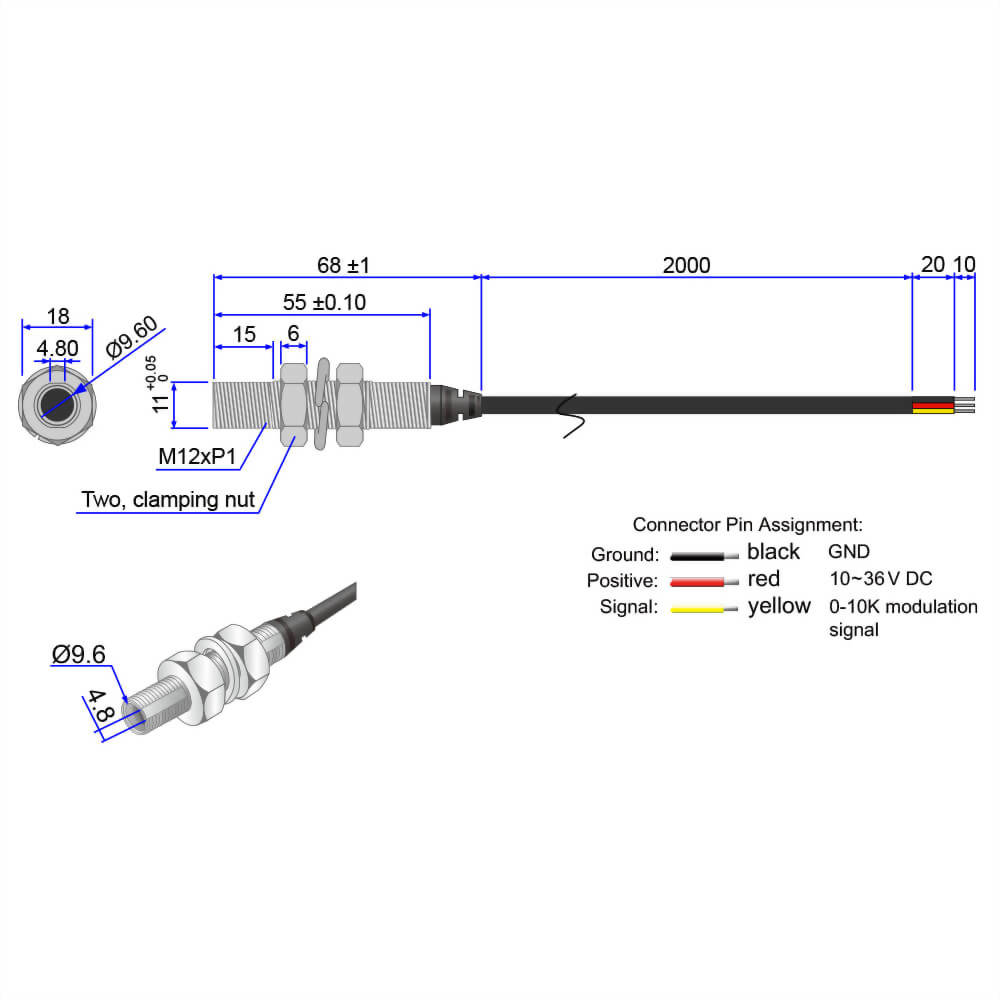

Dimensions |
M12 x 68 mm (M12 x 2.677") |
||
|
Weight |
100±1g |
||
|
Operating voltage (Vop) |
10~36 VDC |
||
|
Operating current (Iop) |
Less than 30mA at 24V |
||
|
Laser power output |
Less than 0.39mW |
Less than 1mW |
Less than 5mW |
|
Laser class |
Class 1 |
Class 2 |
Class 3R |
|
Wavelength (λp) |
435~465nm |
||
|
Collimating lens |
Aspherical glass lens |
||
|
Output aperture |
0.6mm |
||
|
Beam shape |
Circular |
||
|
Divergence (Half Angle) |
Less than 0.4 mRad |
||
|
Beam alignment* |
Less than 3° |
||
|
Operating temp. range |
-20°C ~+60°C |
||
|
Storage temp. range |
-20°C ~+85°C |
||
|
Housing material |
Stainless steel |
||
|
Potential of housing |
Insulated |
||
|
Mod. Frequency range |
0-10kHz |
||
|
Operation mode** |
TTL(High on)*** |
||
|
EN input current |
1 to 20mA |
||
|
Electrostatic discharge (ESD) |
30KV / Arc protection |
||
|
Moisture sensitivity level (MSL) |
Level 1 - acc to JEDEC J-STD-020E. |
||
|
Protection circuit |
Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection |
||
|
Vibration resistance |
10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction |
||
|
Standard |
IEC60825:2014 |
||
|
Wire type |
UL-2464/22 AWG |
||
|
Cable length |
UL2464 D4.2,L=2000±30mm |
||
|
Mount method |
M12 screw |
||
|
Mean time to failure (MTTF) 25°C |
10000 hrs |
||
|
International Protection Marking |
IP68 |
||
|
Application |
Industrial alignment with modulation function |
||
|
Suggestion work distance |
0~0.9 meters / 0~3 feet |
||

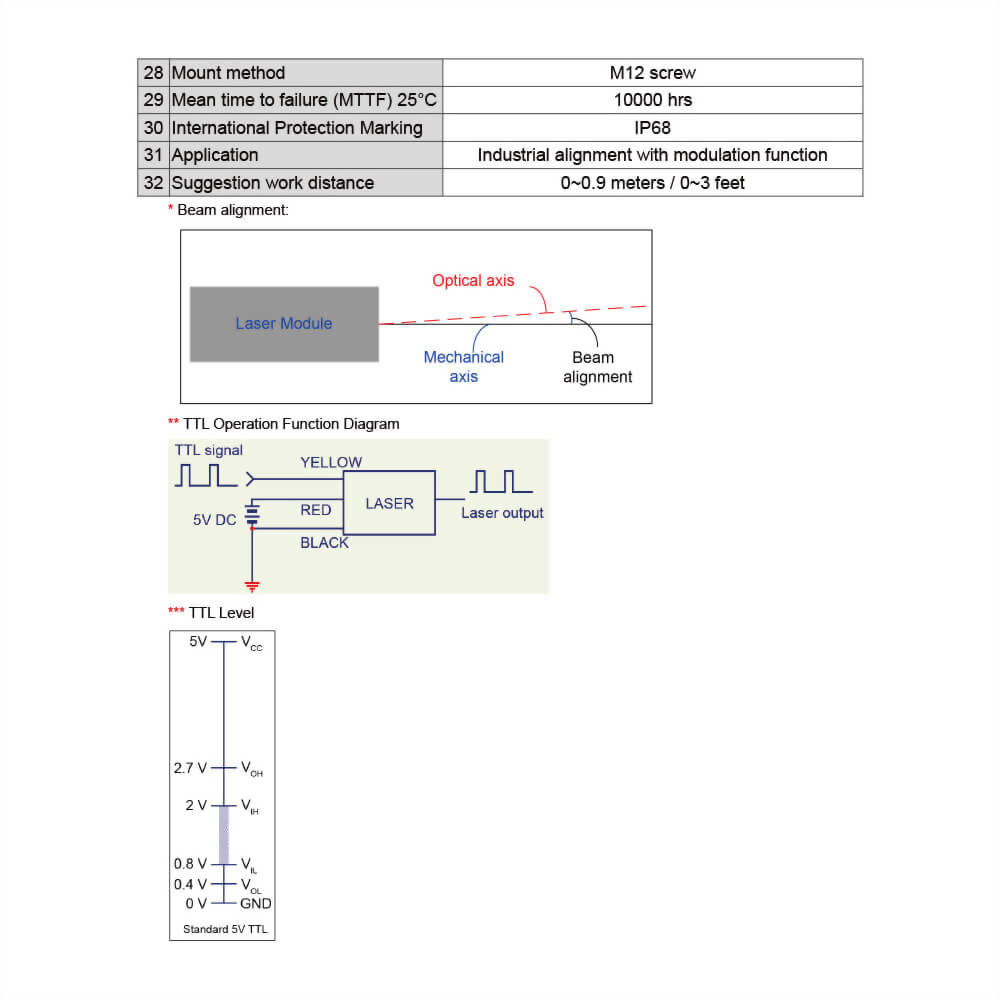

* Beam alignment:
** TTL Operation Function Diagram
*** TTL
Level
