Economical Laser Module
FEATURES:
1. Economical Red Dot Laser.
2. Ideal for economical Laser Pointer solution.
3. This module has integrated optic, laser diode, and APC driver circuit.
4. APC Driver Circuit enables the Laser output power safe and constant.
5. Aspherical plastic lens provides Dot Laser.
Laser module demonstration video:
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
Quarton inc. places emphasis on laser safety
About APC (automatic power control) circuit:
The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.
Model Number Specifications |
VLM-635-00 VLM-650-00 |
VLM-635-01 series VLM-650-01 series |
VLM-635-01G series VLM-650-01G series |
VLM-635-02 series VLM-650-02 series |
VLM-635-02G series VLM-650-02G series |
VLM-635-03 series VLM-650-03 series |
VLM-635-04 series VLM-650-04 series |
VLM-635-11 series VLM-650-11 series |
VLM-635-12 series VLM-650-12 series |
VLM-635-17 series |
VLM-635-18 series VLM-650-18 series |
VLM-650-21 series | VLM-650-22 series | VLM-635-25 series | VLM-635-31 Series (TTL) | VLM-635-32 Series (TTL) | VLM-635-60 series | VLM-635-61 series (TTL) | VLM-635-63 Series | VLM-635-91 LPB | VLM-635-96 LPA | CLM-635-01 LPO | CLM-635-02 LPT | CLM-635-11 LPO | CLM-635-12 LPT |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Dimensions | Ø10.52 x 17.2 mm | Ø10.4 x 18.4mm | Ø10.4 x 18.4mm | Ø10.5 x 26 mm | Ø10.5 x 26 mm | Ø7 x 21 mm | Ø6.55 x 21.1 mm | Ø10.5 x 30 mm | Ø10.5 x 39 mm | Ø13 x 50 mm | Ø13 x 43.5 mm | Ø4 x 15 mm | Ø4 x 15 mm | Ø7 x 21 mm | Ø8 x 27 mm | Ø8.5 x 30.5 mm | Ø10 x 40 mm | Ø10 x 40 mm | Ø10.6 x 12.2 mm | Ø16 x 25 mm | Ø16.5 x 72.8 mm | Ø20 x 60 mm | Ø20 x 60 mm | 20 x 20 x 60 mm | 20 x 20 x 60 mm |
Operating voltage |
2.2~2.7 VDC / 2.15~2.6 VDC |
2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 3~6 VDC | 2.6~6 VDC | 3~6 VDC | 3~6 VDC | 2.6~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 4~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC |
Operating current | Less than 45mA / 35mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 60mA / 70mA / 85mA | Less than 35mA / 50mA | Less than 25mA / 30mA | Less than 25mA / 30mA | Less than 30mA | Less than 40mA / 60mA | Less than 40mA / 60mA | Less than 40mA / 80mA | Less than 40mA / 80mA | Less than 40mA | Less than 500mA | Less than 80mA | Less than 50mA | Less than 50mA | Less than 50mA | Less than 50mA |
Laser power output | Less than 2.5mW | Less than 1mW / 3mW | Less than 1mW / 2.5mW | Less than 1mW / 3mW | Less than 1mW / 2.5mW | Less than 1mW / 2.5mW | Less than 1mW / 2.5mW | Less than 1mW / 2.5mW | Less than 1mW / 2.5mW | 0.7~0.9mW / 2~3mW / 5~6mW | 2.5±1mW | 0.7±0.2mW / 2±0.5mW | 0.7±0.2mW / 3±0.5mW | Less than 1mW | Less than 1mW / 4mW | Less than 1mW / 4mW | Less than 0.39mW / 1mW | Less than 0.39mW / 1mW | Less than 0.39mW / 1mW | 150mW | 0~4.25±0.25mW (adjustable) | Less than 0.39mW | Less than 1mW | Less than 0.39mW | Less than 1mW |
Laser class | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa / Class IIIb | Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II | Class II / Class IIIa | Class II / Class IIIa | Class I / Class II | Class I / Class II | Class I / Class II | Class IIIb | Class IIIa | Class I | Class II | Class I | Class II | |
Wavelength | 630~645nm / 650~660nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm | 630~645nm / 645~665nm | 645~660nm | 645~660nm | 630~645nm | 630~645nm | 630~645nm | 630~645nm | 630~645nm | 630~645 nm | 635nm | 630~645nm | 630~645 nm | 630~645 nm | 630~645 nm | 630~645 nm |
Collimating lens | Plastic lens | Plastic lens | Glass lens | Plastic lens | Glass lens | Plastic lens | Plastic lens | Glass lens | Plastic lens | Glass lens | Glass lens | Plastic lens | Glass lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens |
Output aperture | 5mm | 5mm | 5mm | 4mm | 4mm | 3mm | 3mm | 5mm | 5mm | 8mm | 6mm | 2.1mm | 2.1mm | 3mm | 5mm | 5mm | 0.6mm | 0.6mm | 5mm | 2.5mm | 5mm | 0.8mm | 3mm | 0.8mm | 3mm |
Beam shape | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Circular | Circular | Circular | Circular | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Circular | Circular | Ellipse | Ellipse | Ellipse | Circular | Circular | Circular | Circular |
Spot size | 5±1mm at 5M | 4±1mm at 5M |
5±1 mm at 5M Adjustment focus |
4±1 mm at 5M Adjustment focus |
4±1 mm at 5M | 6±1 mm at 5M | Less than 16mm at 40M |
2.5±0.5 mm at 5M 10±1 mm at 20M |
Less than 9 mm at 40M Less than 22 mm at 100M |
Less than 16mm at 40M | 7±1 mm at 5M | 10±1 mm at 5M | Less than 1.1mm at 18~45cm | 5±1 mm at 10M | 5±1 mm at 10M |
Less than 1mm at 0~50cm Less than 2mm at 50~90cm |
Less than 1mm at 0~50cm Less than 2mm at 50~90cm |
Ø0.1~Ø0.5 (1/e2) | Less than 15mm at 10M |
Less than 0.2mm at 10mm Less than 8mm at 10M |
Less than 1.2mm at 1M | Less than 9mm at 20M | Less than 1.2mm at 1M | Less than 9mm at 20M | |
Divergence (Half Angle) | 0.5 mRad | 0.5 mRad | 0.4 mRad | 0.5 mRad | 0.4 mRad | 0.6 mRad | 0.6 mRad | 0.2 mRad | 0.25 mRad | Less than 0.1 mRad | 0.2 mRad | 2.5 mRad | 2.5 mRad | Less than 0.4mRad | Less than 0.4mRad | Less than 0.4 mRad | Less than 0.4 mRad | Adjustable 0.4 mrad to 12° | Less than 0.15 mRad | Less than 0.15 mRad | Less than 0.15 mRad | Less than 0.15 mRad | |||
Beam alignment | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm | ||
Operating temp. range | +10°C ~+40°C | +10°C ~+40°C | -20°C ~+50°C | +10°C ~+40°C | -20°C ~+50°C | +15°C ~+30°C | +15°C ~+30°C | -20°C ~+50°C | +10°C ~+40°C | -10°C ~+50°C | -20°C ~+50°C | +15°C ~+30°C | -10°C ~+50°C | +15°C ~+30°C | -20°C ~ +60°C | -20°C ~ +60°C | -20°C ~+60°C | -20°C ~+60°C | -10°C ~+50°C | -20°C ~+60°C | -10°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C |
Storage temp. range | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+70°C | -20°C ~+65°C | -20°C ~+80°C | -40°C ~+70°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -40°C ~ +85°C | -40°C ~ +85°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+65°C | -20°C ~+85°C | -20°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C |
Housing material | Brass | Brass | Brass | Brass | Brass | Steel | Zinc alloy | Bronze | Bronze | Aluminum | Brass | Brass | Brass | Steel | Aluminum | Steel | Stainless steel | Stainless steel | Bronze | Bronze | Aluminum | Stainless steel | Stainless steel | Hard anodized aluminum | Hard anodized aluminum |
Potential of housing | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | Insulated | VDD(+) | VDD(+) | VDD(+) | VDD(+) | Insulated | Insulated | Insulated | Insulated | VDD(+) | VDD(+) | Insulated | Insulated | Insulated | Insulated | Insulated |
Electrostatic discharge (ESD) | 30KV | 30KV | 30KV | 30KV | 20KV | 20KV | 30KV | 30KV | 30KV | 30KV | 20KV | 20KV | 20KV | 30KV | 30KV | 30KV / Arc protection | 30KV / Arc protection | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | |
Moisture sensitivity level (MSL) | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | |
Wire type | 3*PIN from LD | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG / 2509 connector | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG | 1007-26AWG | 1007-26AWG | 1007-26AWG | 1007-26AWG / 2509 connector | 1007-26AWG | 1007-26AWG | 2464 2-WIRE CABLE 26 AWG | 2464 3-WIRE CABLE 26 AWG | 1007-26AWG | 1007-26AWG | 2464 2-WIRE CABLE 26 AWG | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) |
Cable length | 115±15mm / 8±1mm | 115±15mm / 8±1mm | 115±15mm / 6.5±1mm | 115±15mm / 6.5±1mm | 115±15mm / 90mm | 115±15mm / 4±1mm | 115±15mm / 8±1mm | 115±15mm / 4.2±1mm | 115±15mm | 115±15mm | 115±15mm | 115±15mm | 115±15mm / 90mm | 115±15mm | 115±15mm | 330±30mm | 330±30mm | 115±15mm | 115±15mm | 330±30mm | |||||
Mean time to failure (MTTF) 25°C | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 5000hrs | 5000hrs | 10000hrs | 5000hrs / 10000hrs | 10000hrs | 5000hrs / 10000hrs | 5000hrs | 5000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs |
Application | Lab, without laser driver | General purpose | General purpose | Focus adjustable | Focus adjustable | Economic type | Economic type | Long range application | Long range application | Long range application | Long range application | Small size | Small size | Laser engrave machine pilot laser | Modulation | Modulation | Industrial alignment | Industrial alignment with TTL modulation function | Micro dot size | High power | Laboratory or Medical research and physical-optic experiments. | Concentricity Laser | Concentricity Laser | Concentricity Laser | Concentricity Laser |
Suggestion work distance | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~10 meters / 3~40 feet | 1~10 meters / 3~40 feet | 10~100 meters / 30~300 feet | 10~100 meters / 30~300 feet | 10~500 meters / 40~2000 feet | 10~200 meters / 30~600 feet | 1~10 meters / 3~40 feet | 1~10 meters / 3~40 feet | 18~45 cm / 6"~18" | 1~10 meters / 3~40 feet | 1~10 meters / 3~40 feet | 0~1.2 meters / 0~4 feet | 0~1.2 meters / 0~4 feet | 1~25 cm / 1/2"~10" | 1~30 meters / 3~100 feet | Above 10mm | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | |
Datasheet download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download |
Download Download |
Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download |
|

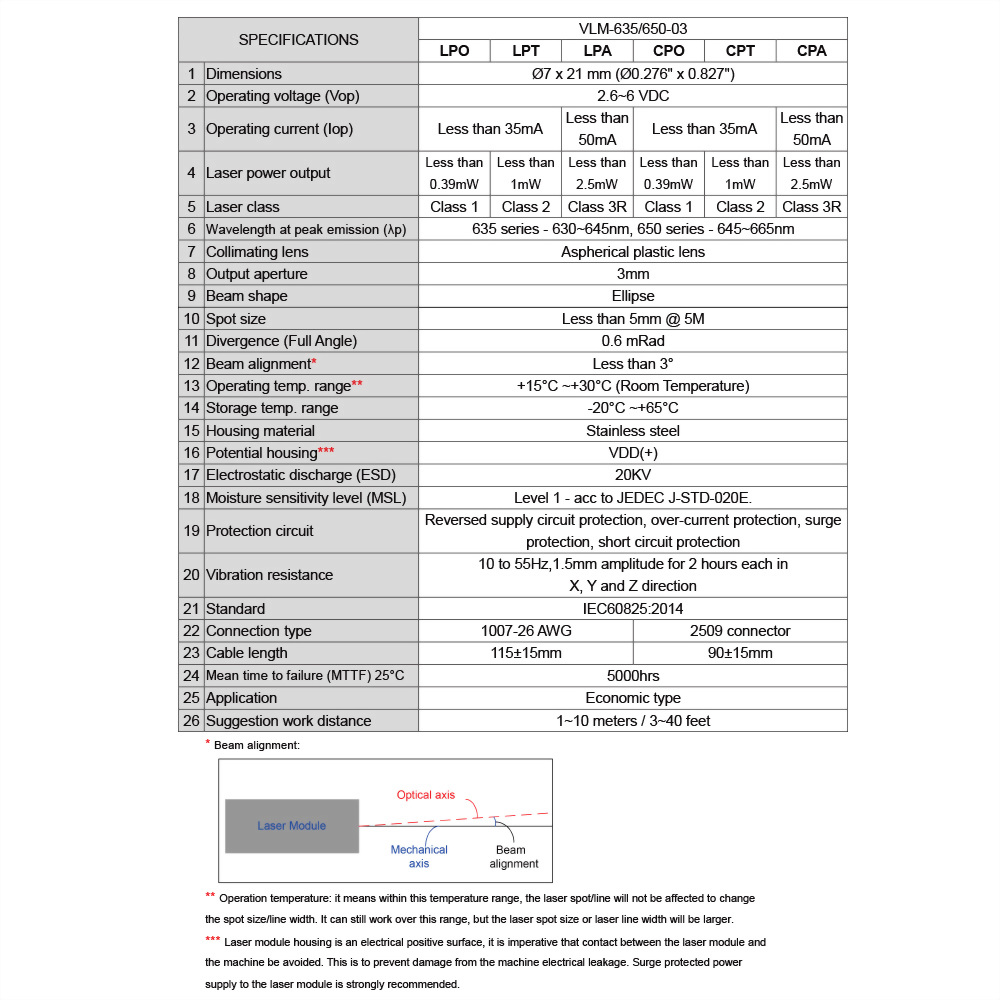

VLM-650-03 |
|||
LPT |
LPA |
CPT |
CPA |
|

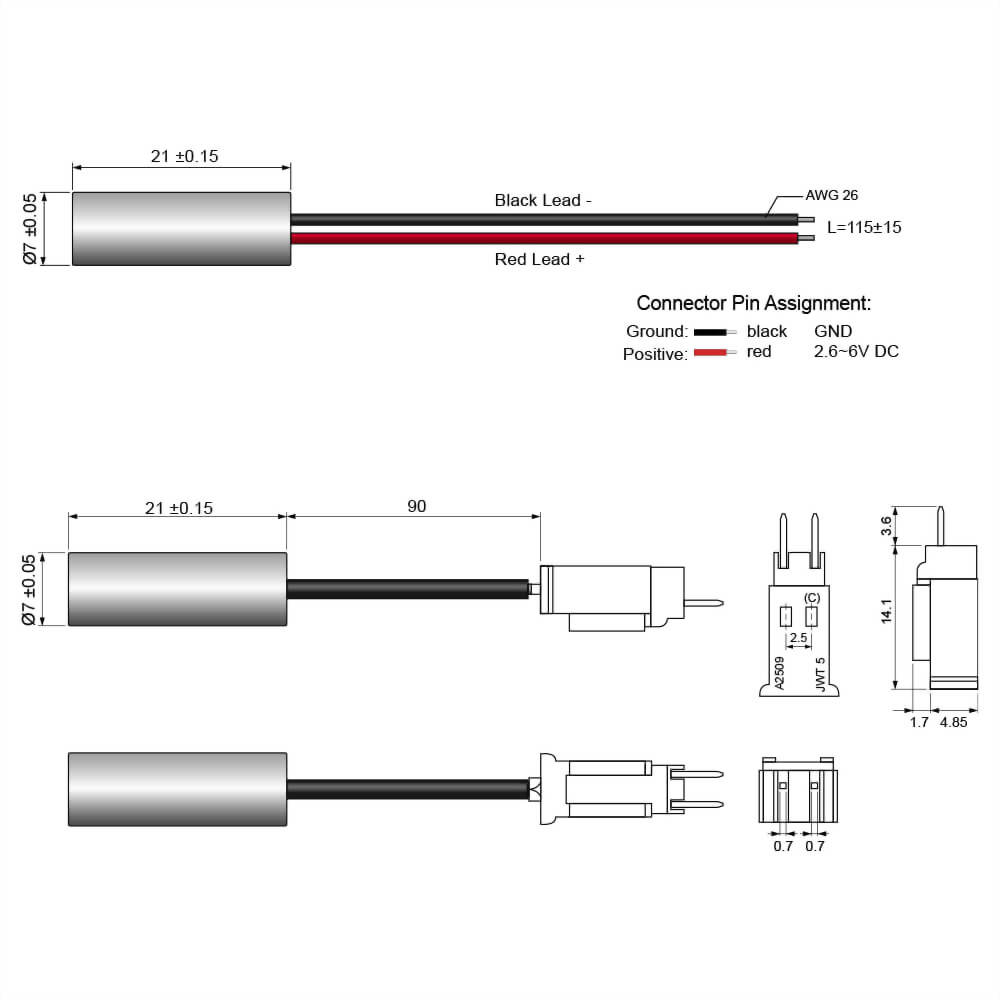

Dimensions |
Ø7 x 21 mm (Ø0.276" x 0.827") |
|||
Operating voltage (Vop) |
2.6~6 VDC |
|||
Operating current (Iop) |
Less than 35mA |
Less than 50mA |
Less than 35mA |
Less than 50mA |
Laser power output |
Less than 1mW |
Less than 2.5mW |
Less than 1mW |
Less than 2.5mW |
Laser class |
Class II |
Class IIIa |
Class II |
Class IIIa |
Wavelength (λp) |
645~665nm |
|||
Collimating lens |
Aspherical plastic lens |
|||
Output aperture |
3mm |
|||
Beam shape |
Ellipse |
|||
Spot size at 5M |
4±1 mm |
|||
Divergence (Half Angle) |
0.6 mRad |
|||
Beam alignment |
Less than 3° |
|||
Operating temp. range* |
+15°C ~+30°C (Room Temperature) |
|||
Storage temp. range |
-20°C ~+65°C |
|||
Housing material |
Steel |
|||
Potential housing** |
VDD(+) |
|||
Electrostatic discharge (ESD) |
20KV |
|||
Moisture sensitivity level (MSL) |
Level 1 - acc to JEDEC J-STD-020E. |
|||

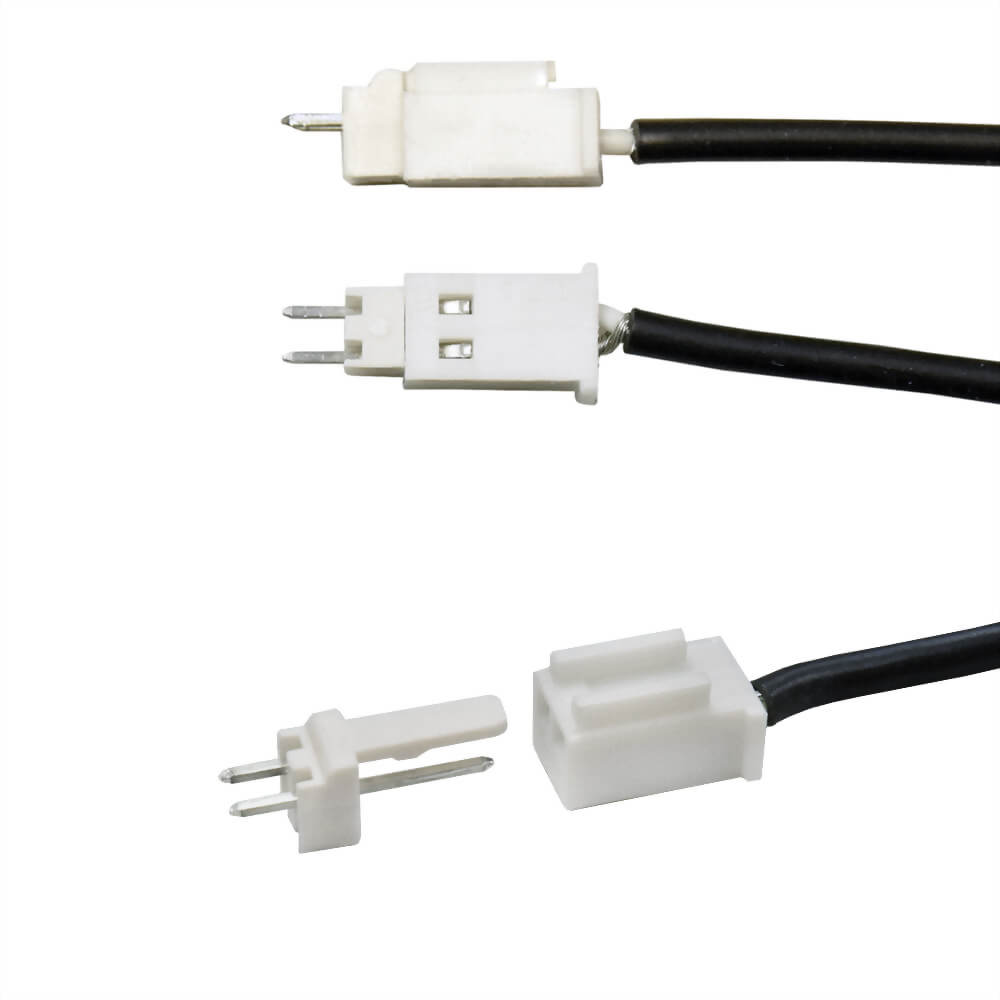

Connection type |
1007-26 AWG |
2509 connector |
||
Cable length |
115±15mm |
90±15mm |
||
Mean time to failure (MTTF) 25°C |
5000hrs |
|||
Application |
Economic type |
|||
Suggestion work distance |
1~10 meters / 3~40 feet |
* Operation temperature: it means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
** Laser module housing is an electrical positive surface, it is imperative that contact between the laser module and the machine be avoided. This is to prevent damage from the machine electrical leakage. Surge protected power supply to the laser module is strongly recommended.
