Red Line Laser Module

Model : VLM-635-57-45° Series
Red Line Laser Module Fan Angle 45° Uniform Line with TTL function. Ideal for machine vision, automation industry, image processing, medical & Science, scanning, precision 3D scanner, counting, measurement...etc.

The newly developed glass line lens come with various fan angles and they produce high quality uniform laser line in a robust stainless housing, ideal for automation, machine vision, image processing, digital data acquisition, counting, precision 3D scanner and science & medical application. They are all come with TTL function to allow up to 10K Hz modulation frequency. They are available at 10 cm, 20 cm, 40 cm and 90 cm focus length, red & green wavelength, Class 1M and Class 2M laser class to cover within 1 meter range task. For customized focus length, wavelength and laser power output, please contact us.

FEATURES:

1.  Built with high precision glass line lens and glass laser collimating lens.

2.  Fan Angle : 45°

3.  CW to 10K HZ stable power output for demanding power and speed are of important.


Laser line demonstration :


Selection Guide:

The new series of line and crosshair laser modules are for those applications that need super fine line and super fine crosshair.

Ideal for machine version, automation, imagine processing, medical, science, precision 3D scanning, measurement, counting and precision alignment.



Laser products manufactured by Quarton inc. meet the international safety standards:


USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS



Where to buy


Comparison sheet

Model Number

Specifications

VLM-635-27 series
VLM-650-27 series
VLM-650-28 LPT VLM-650-30 series VLM-635-37 series
VLM-650-37 series
VLM-650-41 series VLM-635-56 series VLM-635-57 series
Dimensions Ø12.5 x 30 mm Ø9 x 26 mm Ø10 x 27.1 mm (W)14 x (H)14 x (L)26 mm Ø10 x 26 mm Ø10 x 40 mm Ø10 x 40 mm
Operating voltage 2.6~6 VDC 2.6~6 VDC 3~6 VDC 2.6~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC
Operating current Less than 50mA / 55mA
Less than 35mA / 100mA
Less than 35mA Less than 40mA / 60mA Less than 50mA
Less than 35mA / 100mA
Less than 50mA / 100mA Less than 50mA / 100mA
Optical power Less than 2mW / 4~5mW
Less than 2mW / 12~15mW
Less than 2mW Less than 5mW / 20mW 4~5mW / 12~15mW Less than 2.5mW / 20mW Less than 5mW / 10mW Less than 5mW / 10mW
Laser power output Less than 0.39mW / 1mW Less than 0.39mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW
Laser class Class 1M / Class 2M Class 1M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M
Wavelength 630~645nm / 645~665nm 645~665nm 635~665nm 630~645nm / 645~665nm 635~665nm 630~645nm 630~645nm
Collimating lens Plastic lens Plastic lens Plastic lens Glass lens Plastic lens Glass lens Glass lens
Line lens Plastic lens Plastic lens Plastic lens Glass lens Plastic lens Glass lens Glass lens
Beam shape Line Line Line Line Line Line Line
Laser Line width 3 ±0.5mm at 5M
6 ±0.5mm at 10M
1.2mm at 1M Less than 1.6mm at 40CM 2±1mm at 5M
4±1mm at 10M
Less than 1.2mm / 1.5mm Less than 1mm Less than 1mm
Laser line accuracy 40” (±1mm @5M) 1/100 4/1000(less than 1.6mm @400mm) 20" (± 1mm @10m) 1/100 40”(±1mm@5M) 40”(±1mm@5M)
Emitting angle More than 90° More than 60° 60° / 90° More than 120° 60° / 90° 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110° 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°
Operating temp. range +10°C ~+40°C +15°C ~+30°C +15°C ~+40°C -20°C ~+50°C +15°C ~+40°C -20°C ~+60°C -20°C ~+60°C
Storage temp. range -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C -40°C ~+70°C -20°C ~+65°C -20°C ~+85°C -20°C ~+85°C
Housing material Brass Brass Aluminum Aluminum Aluminum Stainless steel Stainless steel
Potential of housing VDD(+) VDD(+) Insulated Insulated Insulated Insulated Insulated
Electrostatic discharge (ESD) 30KV 30KV 30KV 30KV 30KV 30KV 30KV
Moisture sensitivity level (MSL) Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E.
Wire type 1007-26AWG 1007-26AWG 1007-26AWG 1007-26AWG 1007-26AWG 2464 2-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG
Cable length 115±15mm 115±15mm 250±10mm 115±15mm 115±15mm 330±30mm 330±30mm
Mean time to failure (MTTF) 25°C 10000hrs 10000hrs 10000hrs 10000hrs 5000hrs 10000hrs 10000hrs
Application General industrial alignment Economic 3D scanner Precision 3D scanner Precision industrial alignment Precision 3D scanner Precision fine line for Automation, Machine vision and Medical Precision fine line for Automation, Machine vision and Medical with modulation function
Suggestion work distance Above 2 meters 0.3~1.8 meters / 1~6 feet 20~60 cm / 8"~24" 1~20 meters / 3~60 feet 20~60 cm / 8"~24" 0~1.2 meters / 0~4 feet 0~1.2 meters / 0~4 feet
Datasheet download Download
Download
Download Download Download
Download
Download Download Download

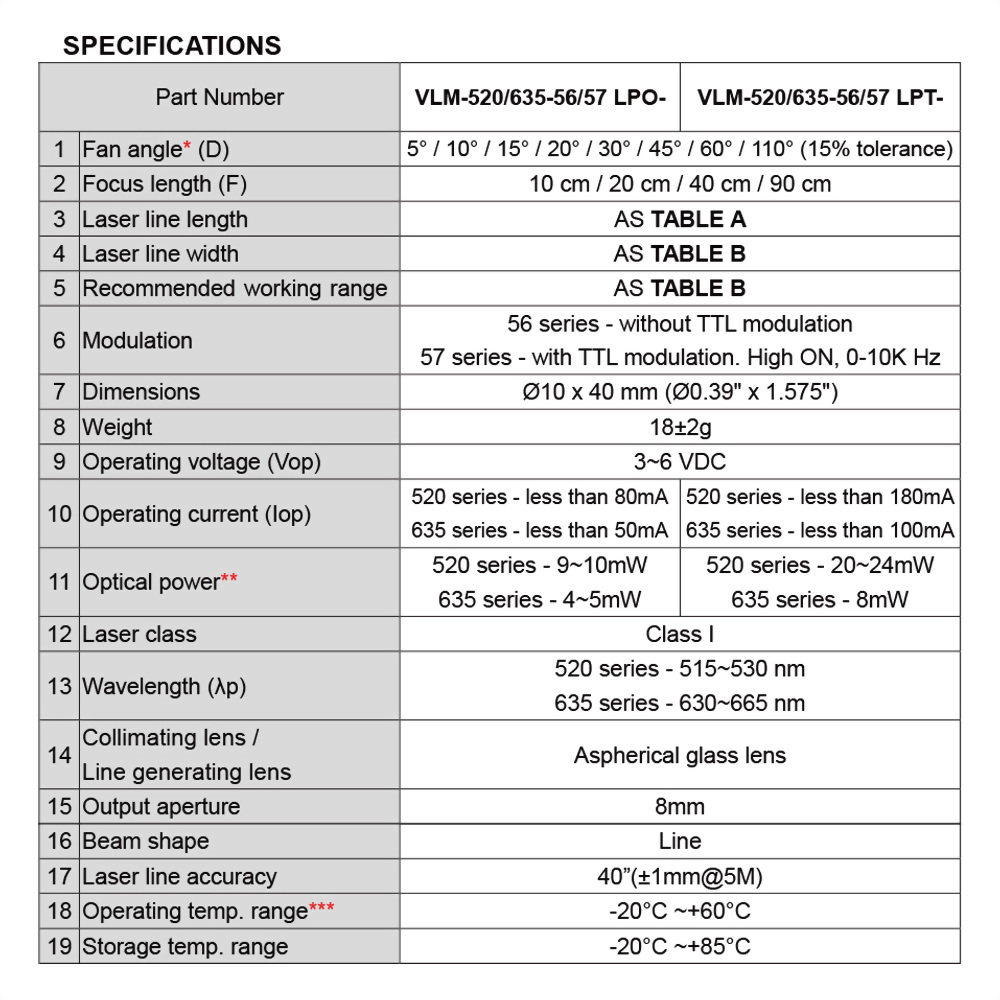

VLM-635-57 LPO-D45-

VLM-635-57 LPT-D45-

F10

F20

F40

F90

F10

F20

F40

F90

Focus length

10 cm

20 cm

40 cm

90 cm

10 cm

20 cm

40 cm

90 cm

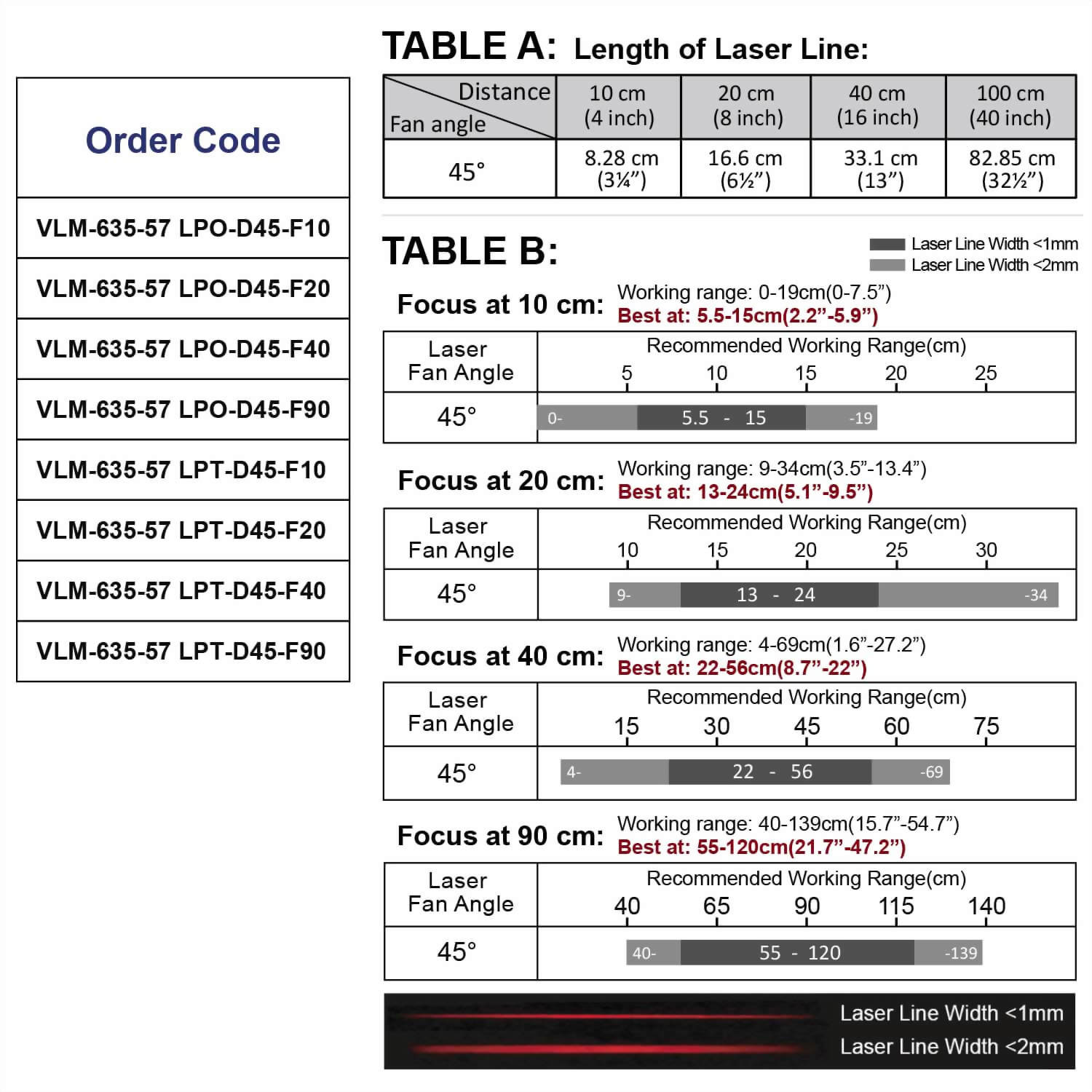

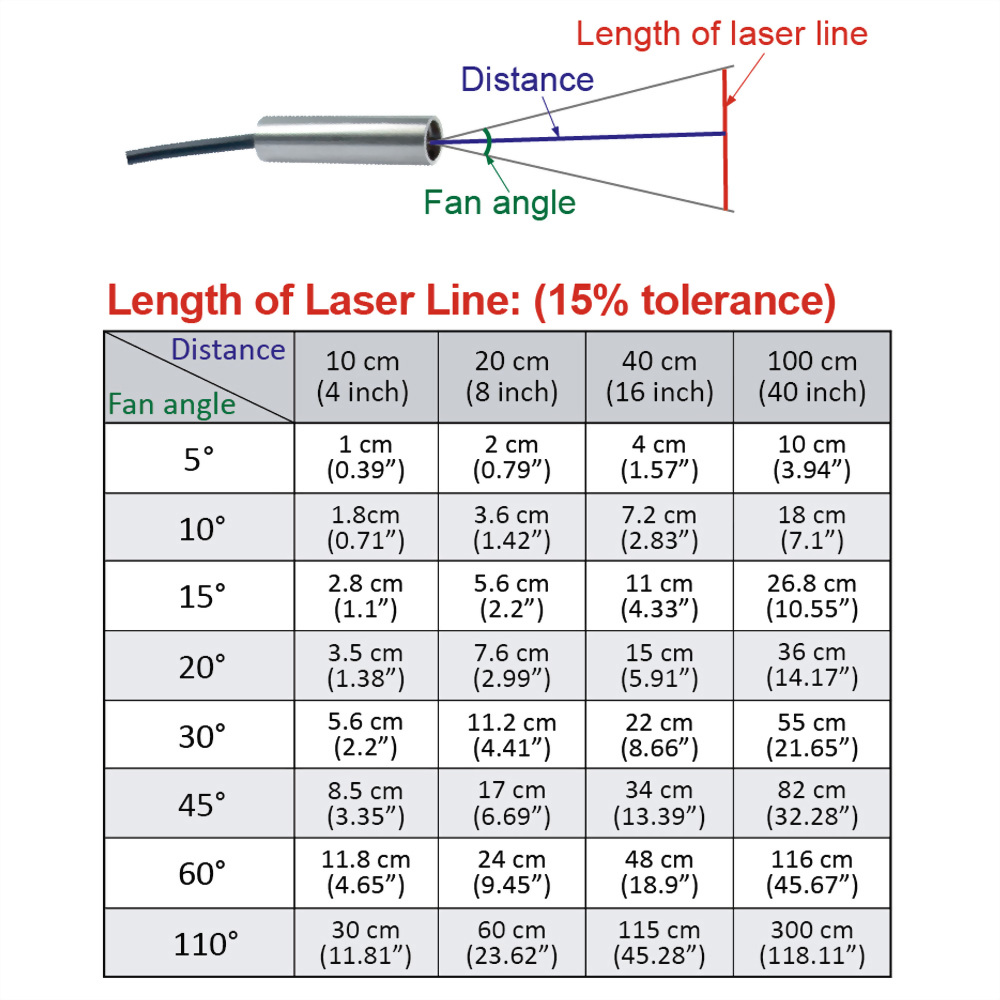

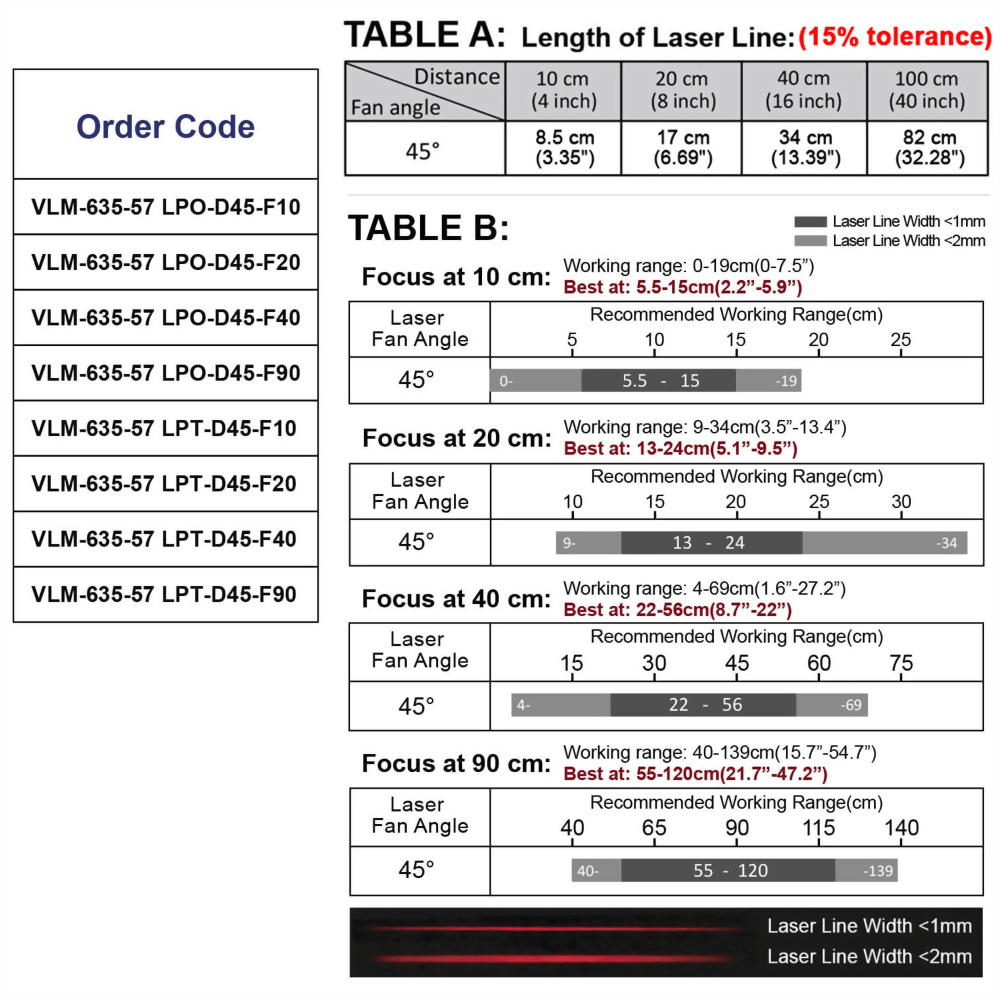

Fan angle / Laser line length

45° / Length of Laser Line as TABLE A

Laser line width

AS TABLE B

Recommended working range

AS TABLE B

TTL modulation frequency

High ON, 0-10K Hz

Dimensions

Ø10 x 40 mm (Ø0.39" x 1.575")

Weight

17±1g

Operating voltage (Vop)

3~6 VDC

Operating current (Iop)

Less than 50mA

Less than 100mA

Optical power*

Less than 5mW

Less than 10mW

Laser power output**

Less than 0.39mW

Less than 1mW

Laser class

Class 1M

Class 2M

Wavelength (λp)

630~645nm

Collimating lens / Line generating lens

Aspherical glass lens

Output aperture

8mm

Beam shape

Line

Laser line accuracy

40”(±1mm@5M)

Operating temp. range***

-20°C ~+60°C

Storage temp. range

-20°C ~+85°C

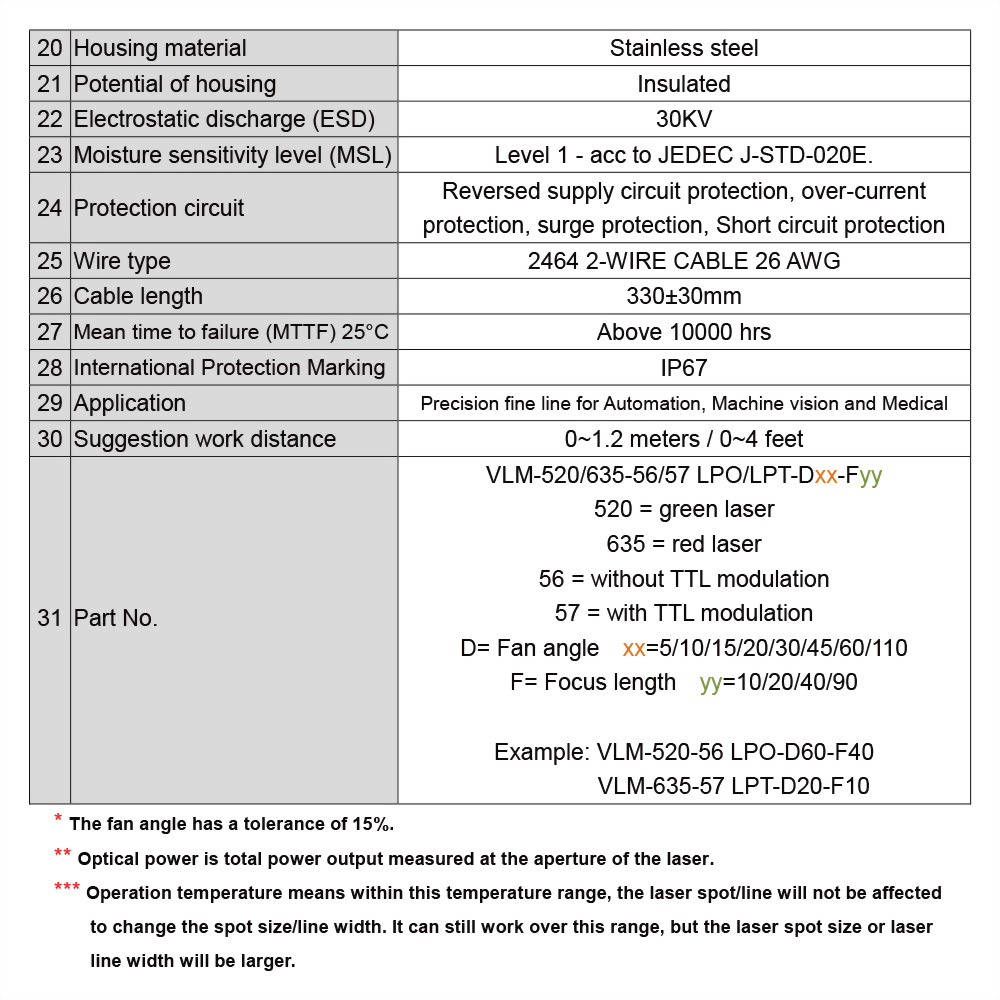

Housing material

Stainless steel

Potential of housing

Insulated

Electrostatic discharge (ESD)

30KV

Moisture sensitivity level (MSL)

Level 1 - acc to JEDEC J-STD-020E.

Wire type

2464 3-WIRE CABLE 26 AWG

Cable length

330±30mm

Mean time to failure (MTTF) 25°C

Above 10000 hrs

International Protection Marking

IP67

Application

Precision fine line for Automation, Machine vision and Medical with modulation function

Suggestion work distance

0~1.2 meters / 0~4 feet

* Optical power is total power output measured at the aperture of the laser.

** According to FDA 1040.10 & IEC 60825-1 regulations, laser power output is measured by 7mm aperture stop from a 10 cm distance of the laser.

*** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
