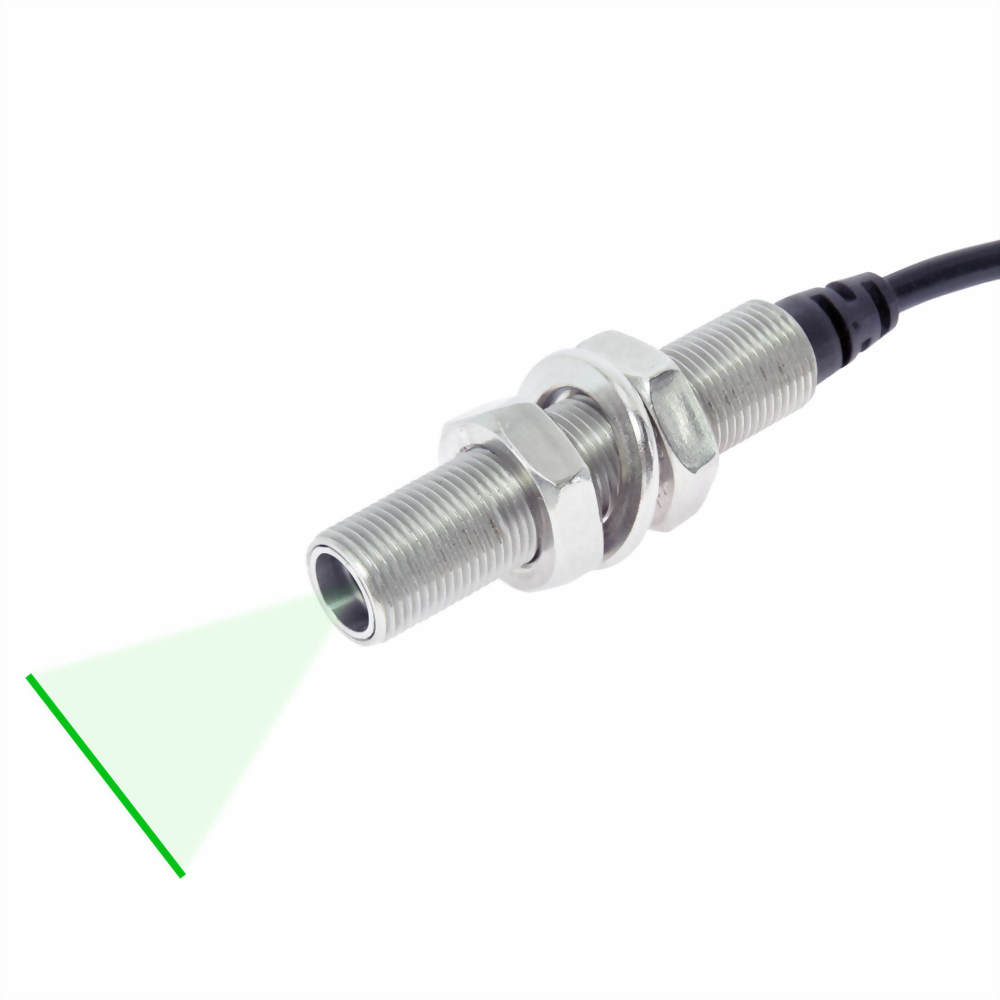

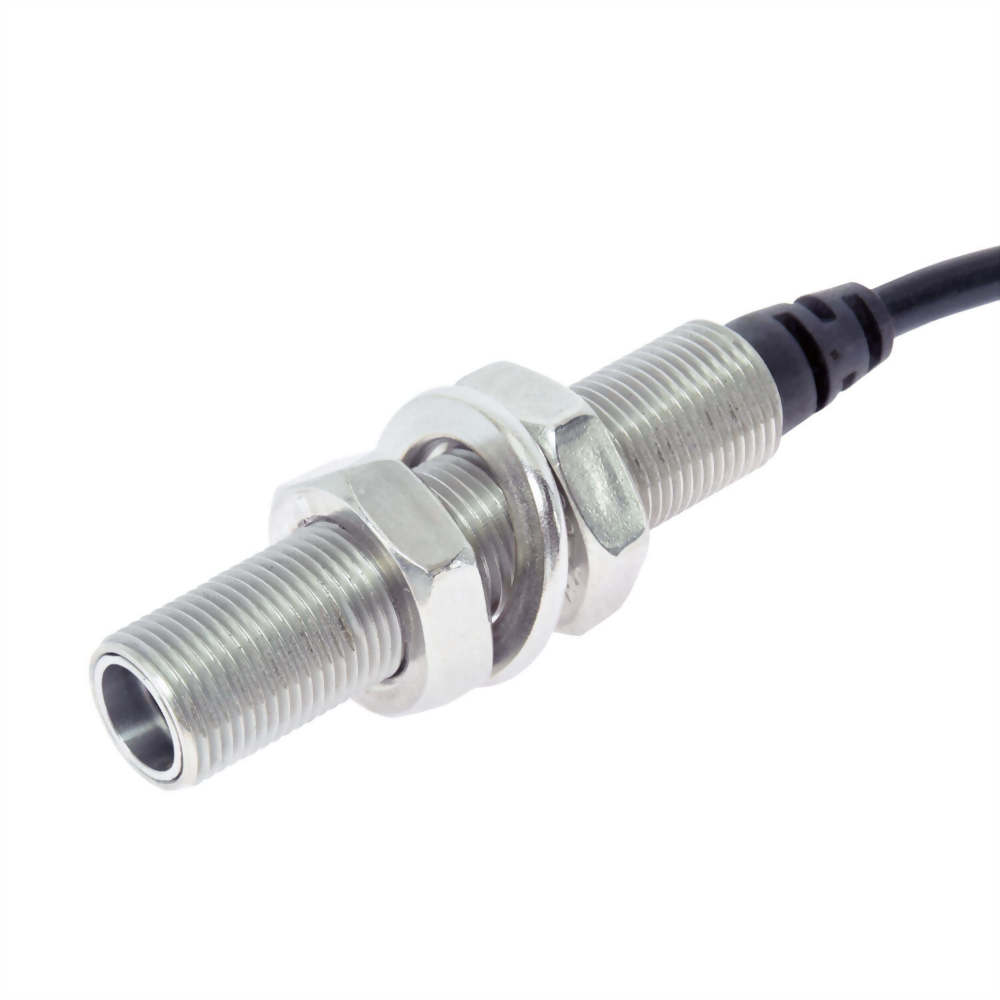

Uniform Green Line Laser Module

Model : VLM-520-66 Series

Uniform Green Line Laser Module with wide Voltage Compatibility: Operates at 10~36V, covering 12V, 24V, and 30V, meeting industrial standard requirements. Ideal for machine vision, automation industry, image processing, medical & Science application, scanning, precision 3D scanner, measurement...etc.

Q'ty :

Description
Specifications

Description

The newly developed glass line lens come with various fan angles and they produce high quality uniform laser line in a robust stainless housing, ideal for automation, machine vision, image processing, digital data acquisition, counting, precision 3D scanner and science & medical application. They are available at 20 cm, 1 meter and 5 meters focus length, red & green wavelength to cover various task. For customized focus length or wavelength, please contact us.

Features

1. Built with high precision glass line lens and glass laser collimating lens.

2. 10~36V Laser Module, it could be used as a 12V / 24V / 30V laser module while using 12V / 24V / 30V industrial current.

3. Fan Angle: 5°, 15°, 30°, 60°, 110° (15% tolerance)

4. Focus range: 20 cm(Only for D5), 1 meter, 5 meters.

5. Customized focus or length are available, please direct contact us.

Selection Guide:

The new series of line laser modules are for those applications that need uniform fine line in 10~36 VDC industrial.

Ideal for machine version, automation, imagine processing, medical, science, precision 3D scanning, measurement, counting and precision alignment.

International Certifications:

Laser products manufactured by Quarton inc. meet the international safety standards:

USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS

Where to buy

Comparison sheet

Model Number Specifications	VLM-520-27 series	VLM-520-28 LPT	VLM-520-37 series	VLM-520-55 series	VLM-520-56 series	VLM-520-57 series	VLM-520-66 series	VLM-520-67 series	VLM-520-75 series	VLM-POWELL series

Dimensions	Ø12.5 x 30 mm	Ø9 x 26 mm	(W)14 x (H)14 x (L)26 mm	Ø10 x 38 mm	Ø10 x 40 mm	Ø10 x 40 mm	M12 x 68 mm	M12 x 68 mm	Ø10 x 50 mm	Ø10 x 68 mm
Operating voltage	7~10 VDC	7~10 VDC	7~10 VDC	3~6 VDC	3~6 VDC	3~6 VDC	10~36 VDC	10~36 VDC	3~6 VDC	3~6 VDC 10~36 VDC
Operating current	Less than 80mA / 100mA	Less than 100mA	Less than 80mA / 120mA	Less than 200mA	Less than 80mA / 180mA	Less than 80mA / 180mA	Less than 20mA at 24V	Less than 20mA at 24V	Less than 100mA	Less than 55mA
Optical power	4~5mW / 9~10mW	Less than 4.5mW	4~5mW / 9~10mW	4~5mW / 9~10mW	Less than 10mW / 30mW	Less than 10mW / 30mW	Less than 0.39mW / 7~9mW	Less than 0.39mW / 7~9mW	Less than 5mW	8±0.5mW
Laser class	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I
Wavelength	505~530nm	510~530nm	505~530nm	510~530nm	515~530nm	515~530nm	515~530nm	515~530nm	505~530nm	505~535nm
Collimating lens	Plastic lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Line lens	Plastic lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Beam shape	Line	Line	Line	Line	Line	Line	Line	Line	Line	Line
Laser Line width	Less than 3.5mm at 10M	1.2mm at 1M	2±1mm at 5M 4±1mm at 10M	3±0.5mm at 5M 6±0.5mm at 10M	Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm	2 mm at 0~5 meters 3 mm at 8 meters	Less than 1mm
Laser line accuracy	40” (±1mm @5M)	80” (+/- 2mm @5M)	20" (± 1mm @10m)	40”(±1mm@5M)	40”(±1mm@5M)	40”(±1mm@5M)	4/1000(<1.6mm @400mm)	4/1000(<1.6mm @400mm)		4/1000(<1.6mm @400mm)
Emitting angle	More than 90°	More than 60°	More than 120°	More than 90°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 15°, 30°, 60°, 110°	5°, 15°, 30°, 60°, 110°	120°	45°±5° / 75°±5°
Operating temp. range	+15°C ~+30°C	+15°C ~+30°C	-20°C ~+50°C	-20°C ~+65°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+65°C	-20°C ~+60°C
Storage temp. range	-20°C ~+65°C	-20°C ~+65°C	-40°C ~+70°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C
Housing material	Brass	Brass	Aluminum	Aluminum	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Aluminum	Aluminum
Potential of housing	VDD(+)	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated
Electrostatic discharge (ESD)	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.
Wire type	1007-26 AWG	1007-26 AWG	1007-26 AWG	1007-26 AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	UL-2464/22 AWG	UL-2464/22 AWG	UL-2464/22 AWG	UL-2464/22 AWG
Cable length	115±15mm	115±15mm	115±15mm	115±15mm	330±30mm	330±30mm	UL2464 D4.2,L=2000±30mm	UL2464 D4.2,L=2000±30mm	D4.2,L=2000±30mm	D4.2,L=2000±30mm
Mean time to failure (MTTF) 25°C	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs
Application	General industrial alignment	Economic 3D scanner	Precision industrial alignment	Precision industrial alignment	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function	Wood, metal, stone processing and works that need precision fine laser line	Scanning, Image processing, Medical & Science, Automatic industry, Robotic arm
Suggestion work distance	Above 2 meters	0.3~1.8 meters / 1~6 feet	1~20 meters / 3~60 feet	1~20 meters / 3~60 feet	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet	0~5 meters / 0~16 feet	0~5 meters / 0~16 feet	1 to 10 meters or beyond
Datasheet download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download

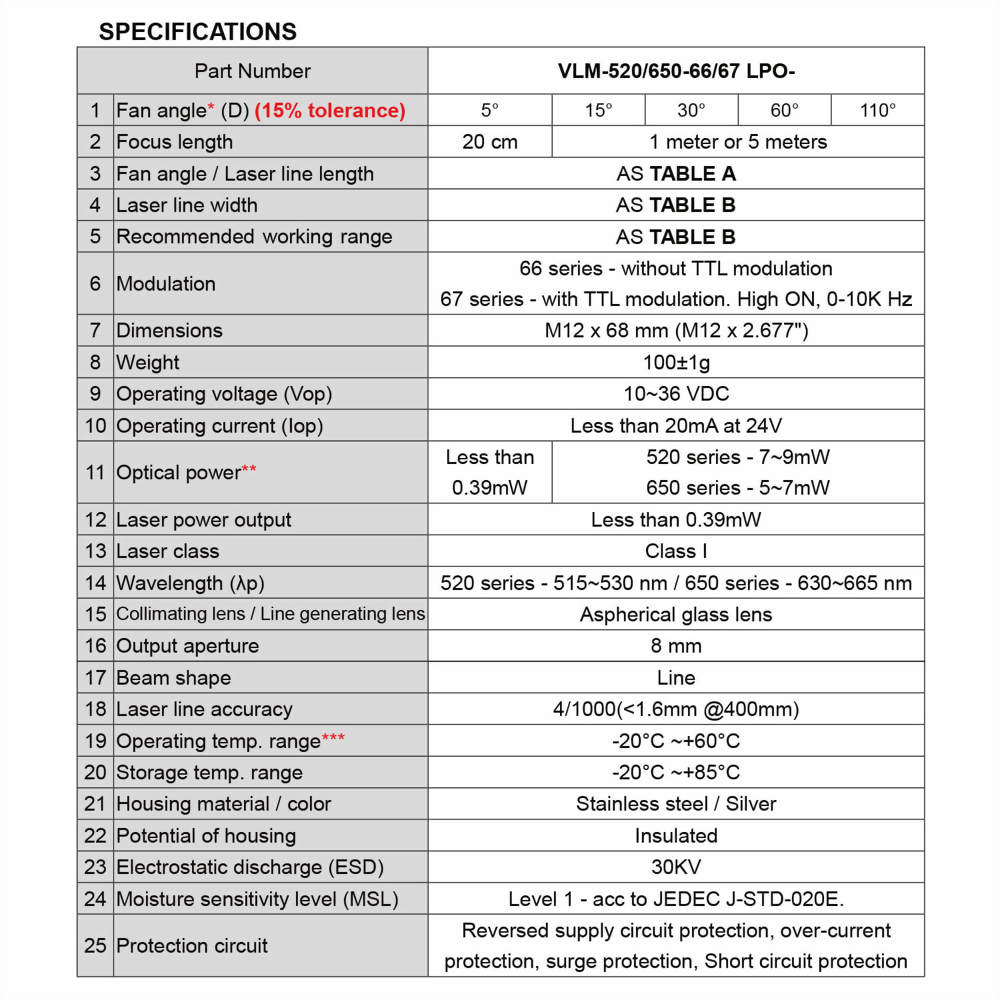

Part Number	VLM-520/650-66/67 LPO-
Fan angle* (D) (15% tolerance)	5°	15°	30°	60°	110°
Focus length	20 cm	1 meter or 5 meters

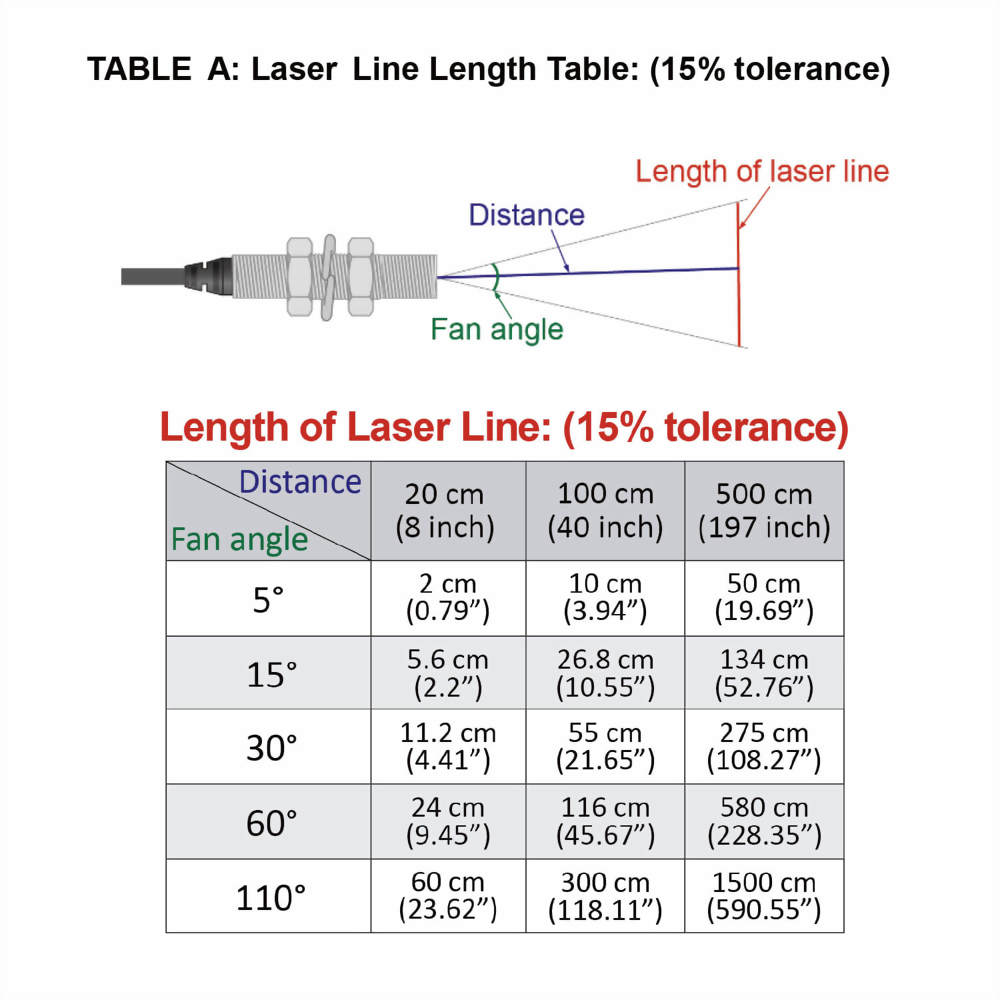

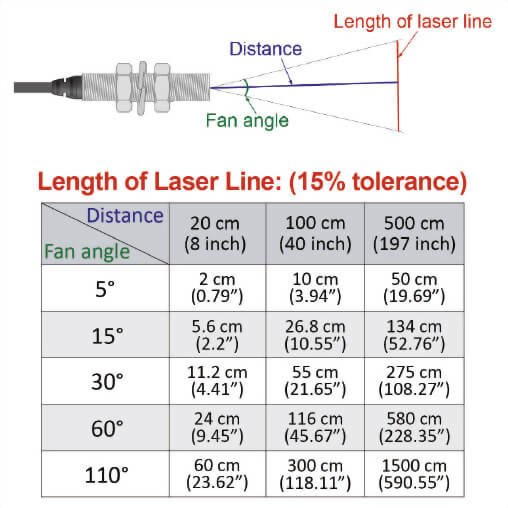

Fan angle / Laser line length	AS TABLE A
Laser line width	AS TABLE B

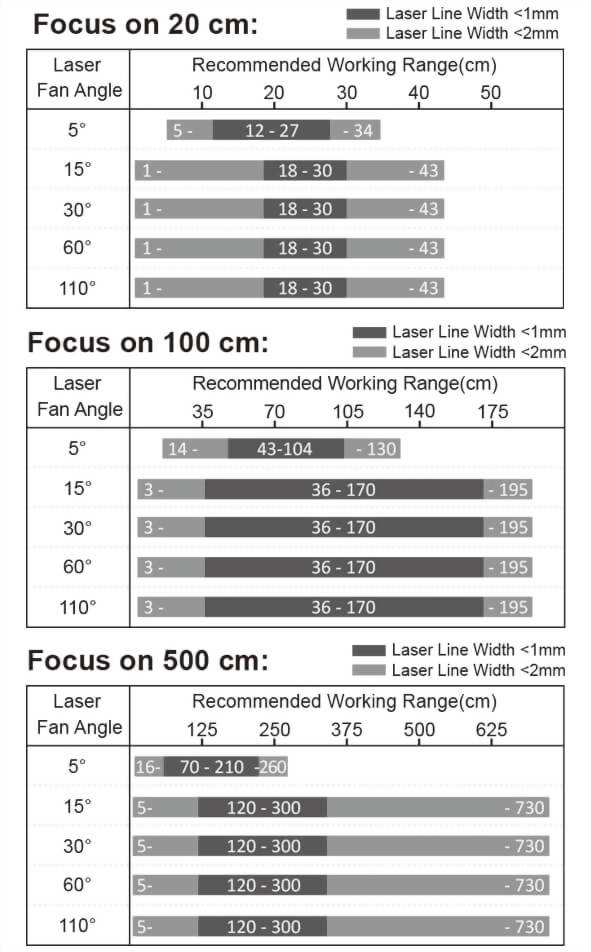

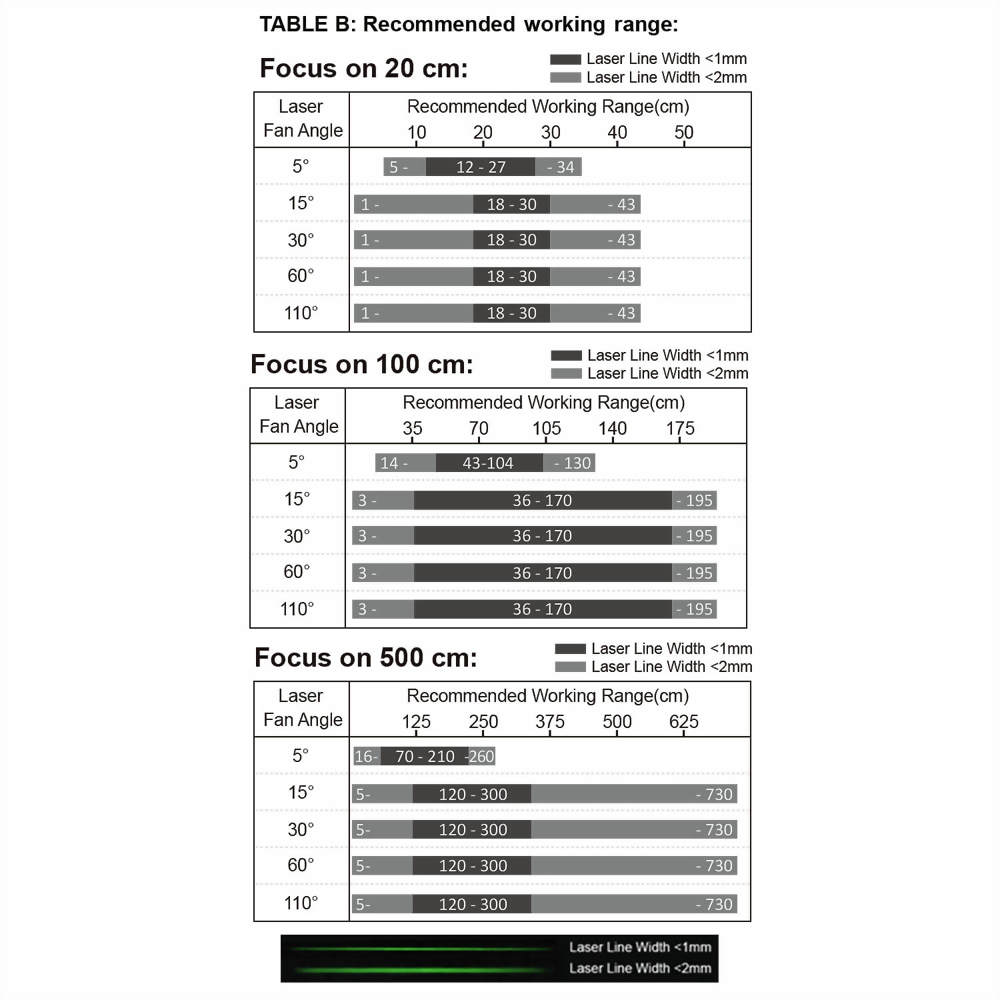

Recommended working range	AS TABLE B
Modulation	66 series - without TTL modulation 67 series - with TTL modulation. High ON, 0-10K Hz
Dimensions	M12 x 68 mm (M12 x 2.677")
Weight	100±1g
Operating voltage (Vop)	10~36 VDC
Operating current (Iop)	Less than 20mA at 24V
Optical power**	Less than 0.39mW	520 series - 7~9mW 650 series - 5~7mW
Laser power output	Less than 0.39mW
Laser class	Class I
Wavelength (λp)	520 series - 515~530 nm / 650 series - 630~665 nm
Collimating lens / Line generating lens	Aspherical glass lens
Output aperture	8 mm
Beam shape	Line
Laser line accuracy	4/1000(<1.6mm @400mm)
Operating temp. range***	-20°C ~+60°C
Storage temp. range	-20°C ~+85°C
Housing material / color	Stainless steel / Silver
Potential of housing	Insulated
Electrostatic discharge (ESD)	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.
Protection circuit	Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection

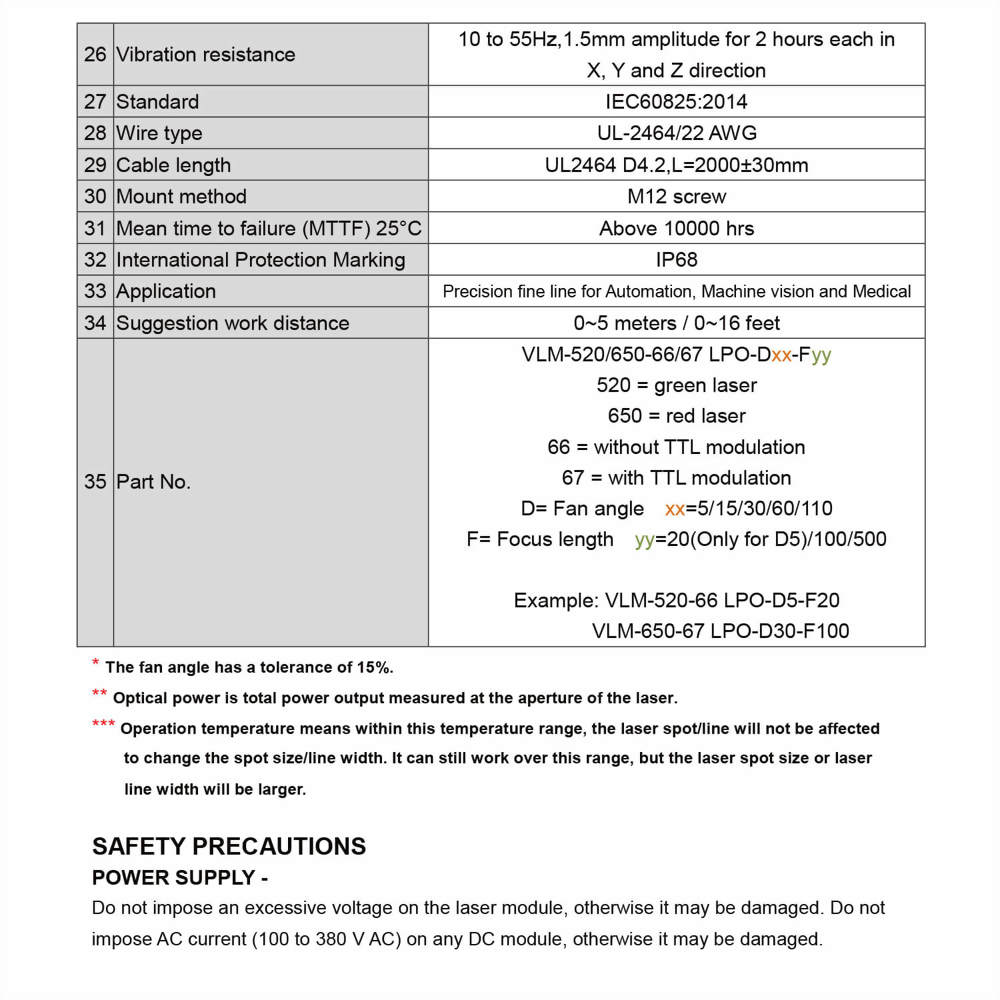

Vibration resistance	10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction
Standard	IEC60825:2014
Wire type	UL-2464/22 AWG
Cable length	UL2464 D4.2,L=2000±30mm

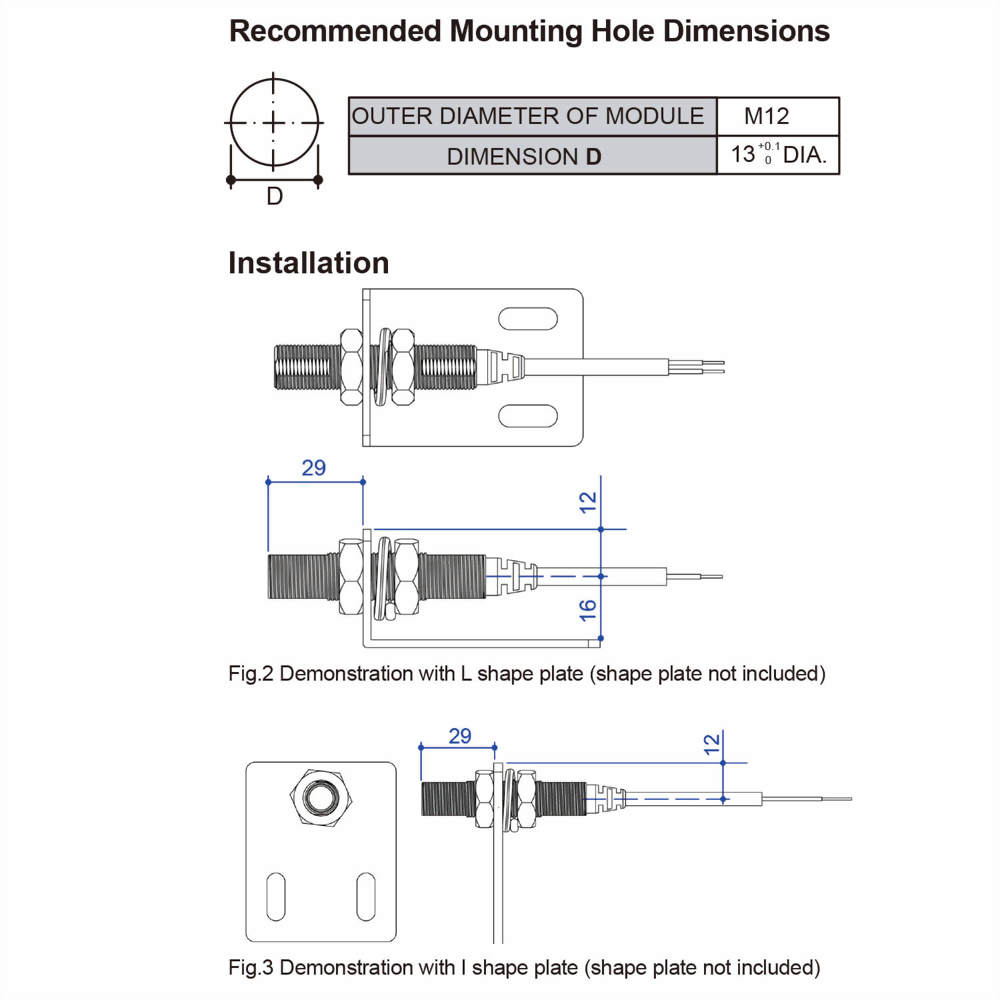

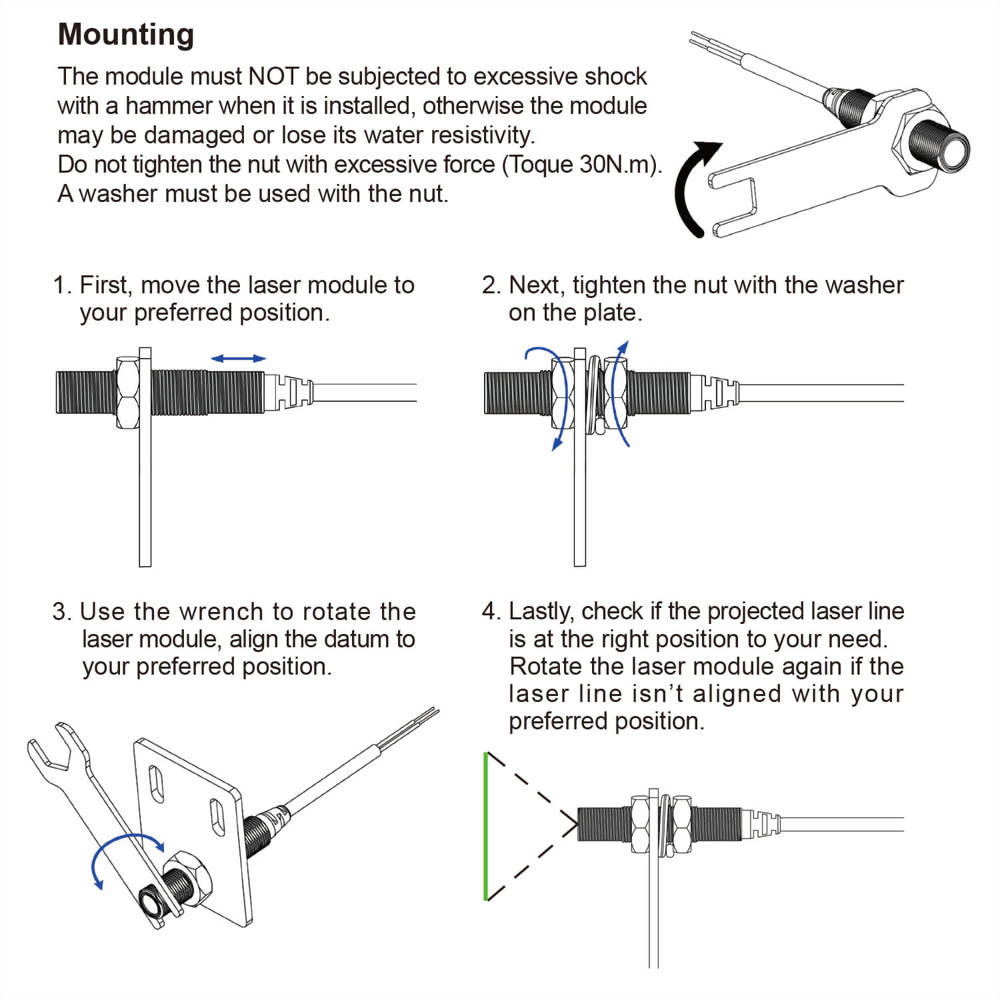

Mount method	M12 screw
Mean time to failure (MTTF) 25°C	Above 10000 hrs
International Protection Marking	IP68
Application	Precision fine line for Automation, Machine vision and Medical
Suggestion work distance	0~5 meters / 0~16 feet
Part No.	VLM-520/650-66/67 LPO-Dxx-Fyy 520 = green laser 650 = red laser 66 = without TTL modulation 67 = with TTL modulation D= Fan angle xx=5/15/30/60/110 F= Focus length yy=20(Only for D5)/100/500 Example: VLM-520-66 LPO-D5-F20 VLM-650-67 LPO-D30-F100

* The fan angle has a tolerance of 15%.
** Optical power is total power output measured at the aperture of the laser.
*** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
