Multi-function Laser Module Power Supply Board
FEATURES:

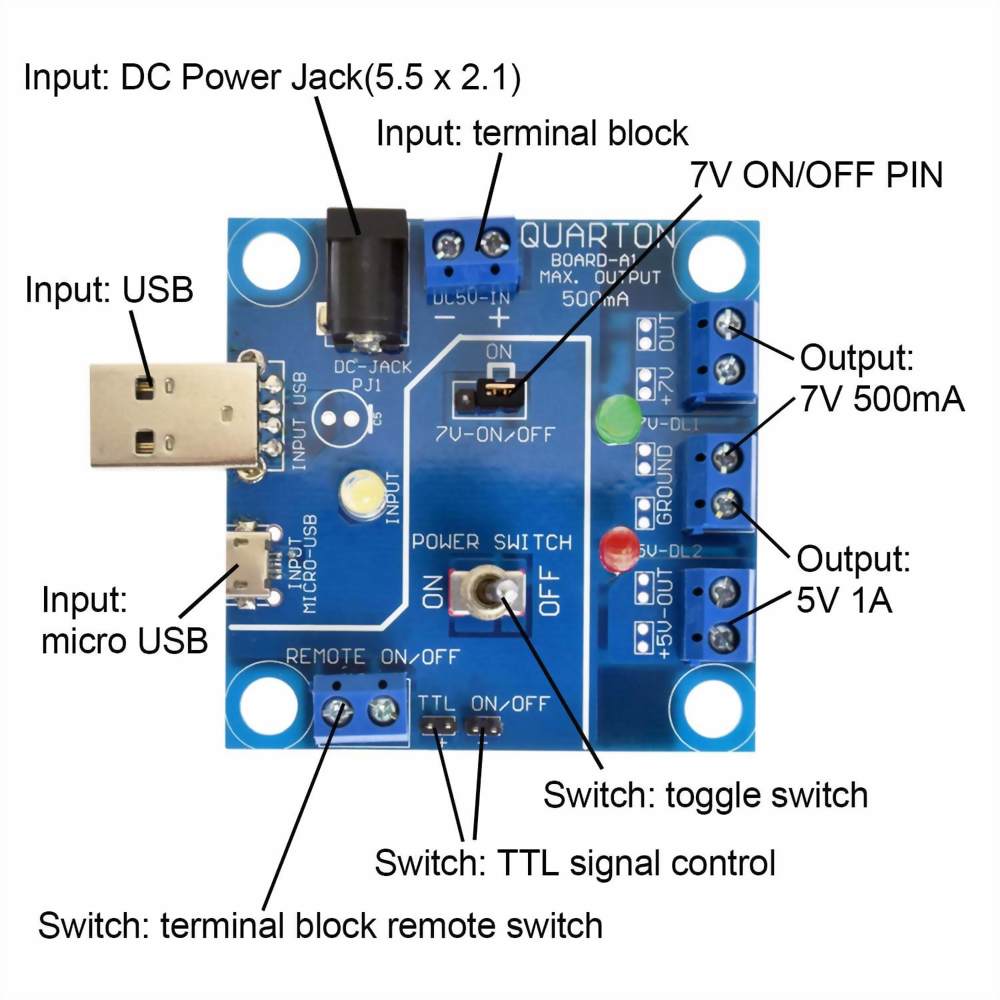

1. Allow four kinds of power input: USB, micro USB, DC Power Jack(5.5x2.1) and terminal block.
2. Two Channel output: 7 VDC 500mA and 5 VDC 1A.
3. Built-in three switches: toggle switch, terminal block remote switch and TTL signal switch by on-board connect point.
4. 7 VDC output work for all Quarton Laser Modules with 7-12 V operation Voltage (Vop).
5. 5 VDC output work for all Quarton Laser Modules with 3-6 V operation Voltage (Vop).

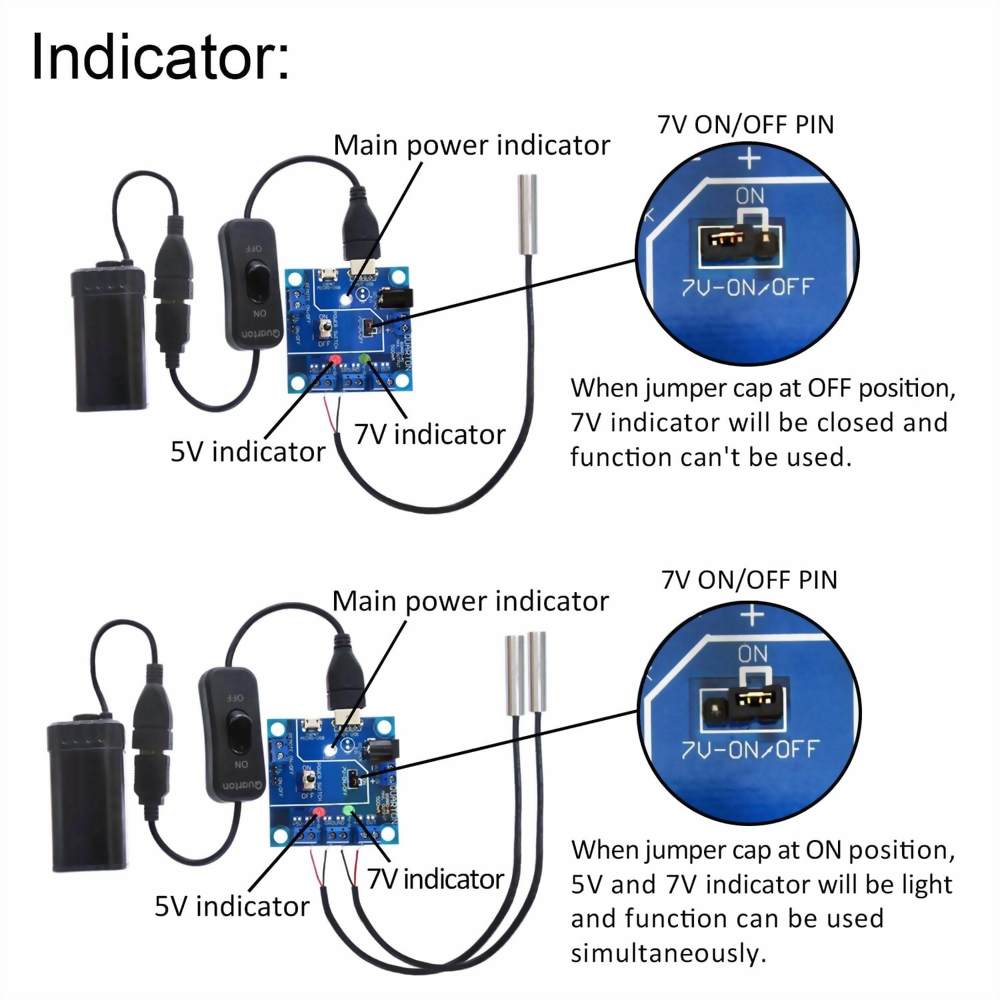

6. Three LED indicators: Input power indicator, 7V output indicator and 5V output indicator.
|
|
LMPS-MP1 |
|
Dimensions |
L60 x W70 x H23mm (2.36" x 2.76" x 0.9") |
|
Weight |
24.5±0.5g |
|
Input |
DC Power Jack(5.5 x 2.1), 3 - 6V |
|
Terminal Block, 3 - 6V |
|
|
USB, 5V |
|
|
Micro USB, 5V |
|
|
Output |
5 VDC, 1A |
|
7 VDC, 500mA |
|
|
Switch |
Toggle switch |
|
Terminal block remote switch |
|
|
TTL signal control |
