Straight Green Line Laser

Model : VLM-520-55 Series
Straight Green Line from Direct Green Laser Diode. Ideal for wood processing, metal processing, stone processing, textile industry, medical science...etc.

FEATURES:

1.  Direct Green Laser Diode for large temperature operation range.

2.  High quality straight green line laser, ideal for industrial application.

3.  Laser beam is focused at 10 meters to generate best thin laser line from 5 meters to 20 meters.

4.  Industrial use laser modules have 10,000 hours working life.

5.  This module has integrated optic, direct green laser diode, and APC driver circuit.

6.  APC driver circuit enables the Laser output power safe and constant.



Laser products manufactured by Quarton inc. meet the international safety standards:


USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS


Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.


Where to buy


Comparison sheet

Model Number

Specifications

VLM-520-27 series VLM-520-28 LPT VLM-520-37 series VLM-520-55 series VLM-520-56 series VLM-520-57 series
Dimensions Ø12.5 x 30 mm Ø9 x 33 mm (W)14 x (H)14 x (L)26 mm Ø10 x 38 mm Ø10 x 40 mm Ø10 x 40 mm
Operating voltage 7~10 VDC 7~10 VDC 7~10 VDC 3~6 VDC 3~6 VDC 3~6 VDC
Operating current Less than 80mA / 100mA Less than 100mA Less than 80mA / 120mA Less than 200mA Less than 80mA / 180mA Less than 80mA / 180mA
Optical power 4~5mW / 9~10mW Less than 4.5mW 4~5mW / 9~10mW 4~5mW / 9~10mW Less than 10mW / 30mW Less than 10mW / 30mW
Laser power output Less than 0.39mW / 1mW Less than 0.39mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW
Laser class Class 1M / Class 2M Class 1M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M
Wavelength 505~530nm 510~530nm 505~530nm 510~530nm 515~530nm 515~530nm
Collimating lens Plastic lens Plastic lens Glass lens Glass lens Glass lens Glass lens
Line lens Plastic lens Plastic lens Glass lens Glass lens Glass lens Glass lens
Beam shape Line Line Line Line Line Line
Laser Line width Less than 3.5mm at 10M 1.2mm at 1M 2±1mm at 5M
4±1mm at 10M
3±0.5mm at 5M
6±0.5mm at 10M
Less than 1mm Less than 1mm
Laser line accuracy 40” (±1mm @5M) 80” (+/- 2mm @5M) 20" (± 1mm @10m) 40”(±1mm@5M) 40”(±1mm@5M) 40”(±1mm@5M)
Emitting angle More than 90° More than 60° More than 120° More than 90° 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110° 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°
Operating temp. range +15°C ~+30°C +15°C ~+30°C -20°C ~+50°C -20°C ~+65°C -20°C ~+60°C -20°C ~+60°C
Storage temp. range -20°C ~+65°C -20°C ~+65°C -40°C ~+70°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C
Housing material Brass Brass Aluminum Aluminum Stainless steel Stainless steel
Potential of housing VDD(+) VDD(+) Insulated Insulated Insulated Insulated
Electrostatic discharge (ESD) 30KV 30KV 30KV 30KV 30KV 30KV
Moisture sensitivity level (MSL) Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E.
Wire type 1007-26AWG 1007-26AWG 1007-26AWG 1007-26AWG 2464 2-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG
Cable length 115±15mm 115±15mm 115±15mm 115±15mm 330±30mm 330±30mm
Mean time to failure (MTTF) 25°C 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs
Application General industrial alignment Economic 3D scanner Precision industrial alignment Precision industrial alignment Precision fine line for Automation, Machine vision and Medical Precision fine line for Automation, Machine vision and Medical with modulation function
Suggestion work distance Above 2 meters 0.3~1.8 meters / 1~6 feet 1~20 meters / 3~60 feet 1~20 meters / 3~60 feet 0~1.2 meters / 0~4 feet 0~1.2 meters / 0~4 feet
Datasheet download Download Download Download Download Download Download

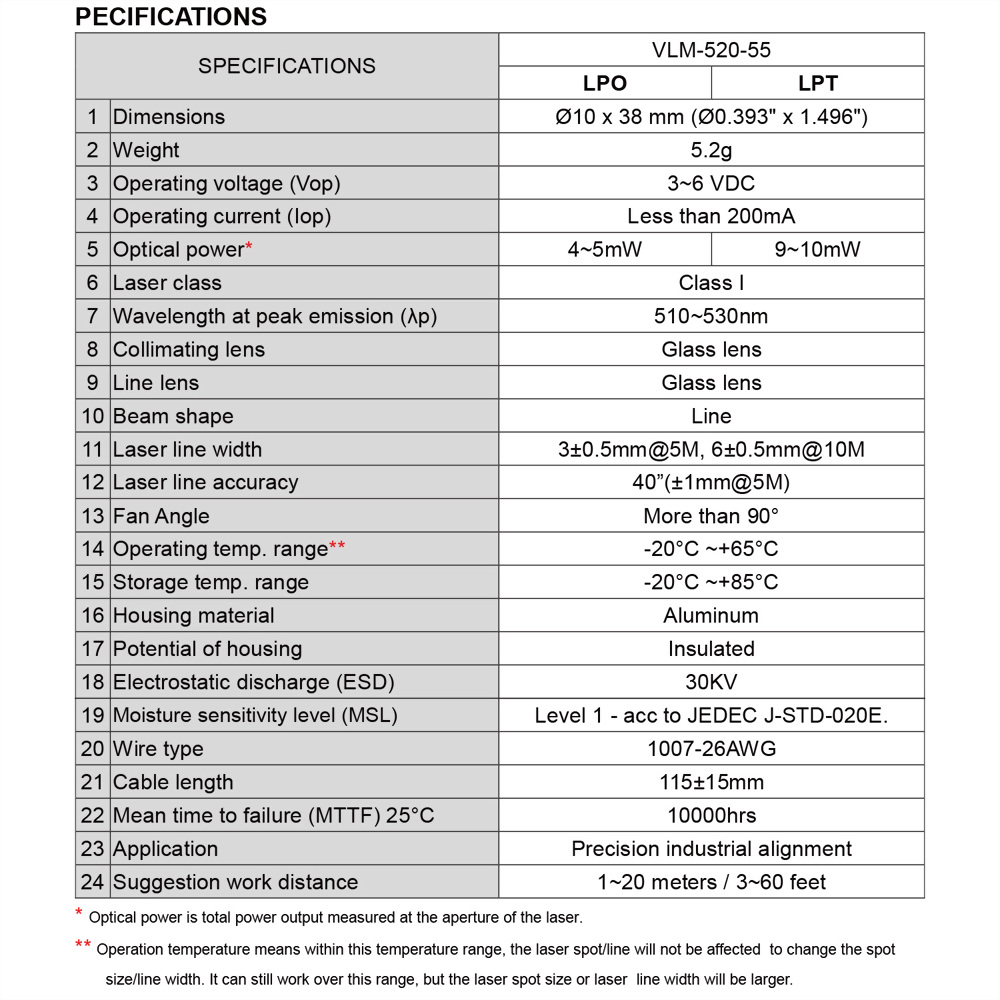

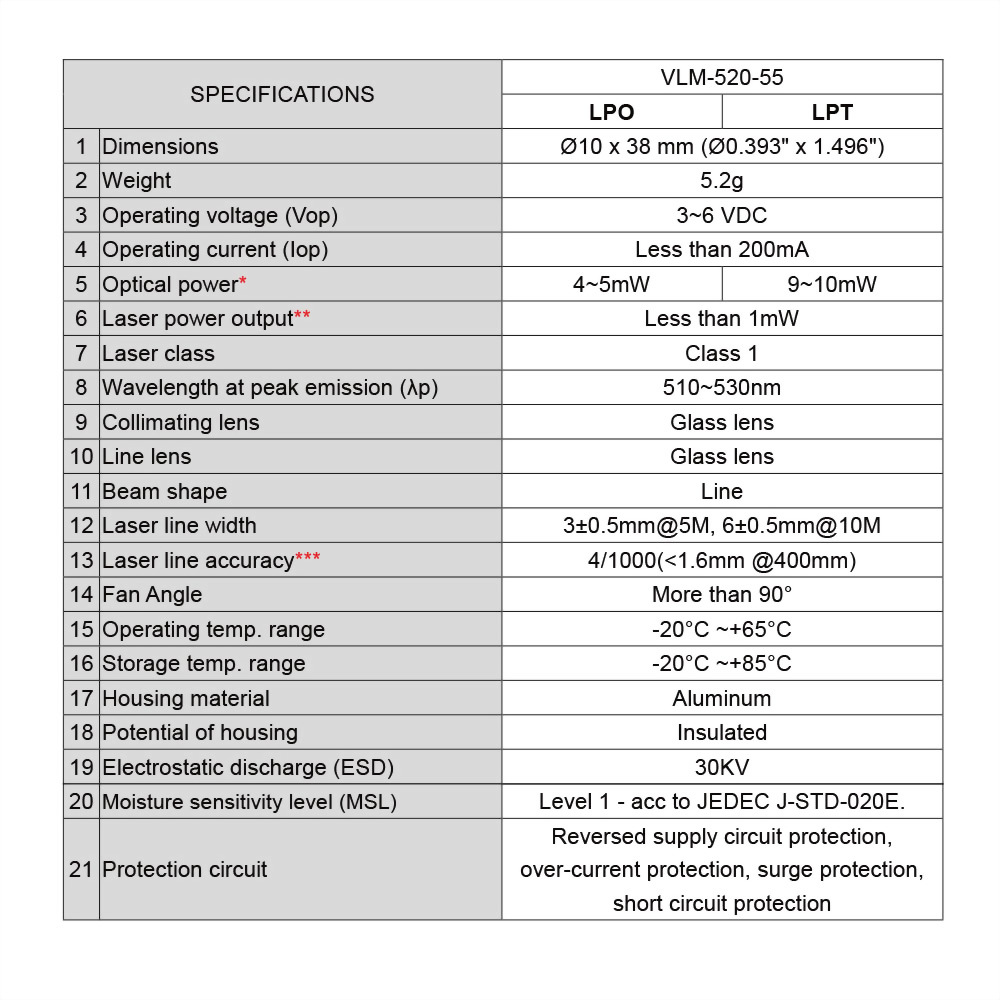

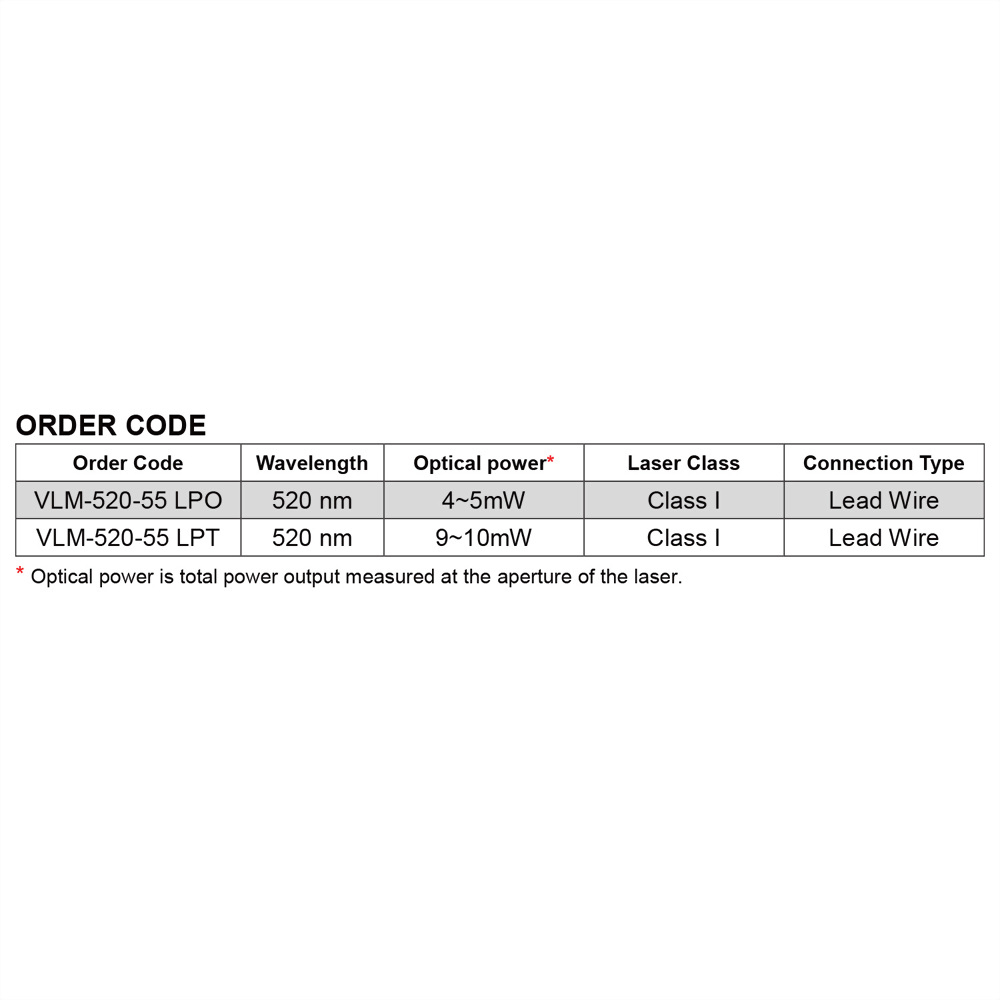

VLM-520-55

LPO

LPT

Dimensions

Ø10 x 38 mm (Ø0.393" x 1.496")

Weight

5.2g

Operating voltage (Vop)

3~6 VDC

Operating current (Iop)

Less than 200mA

Optical power*

4~5mW

9~10mW

Laser power output**

Less than 0.39mW

Less than 1mW

Laser class

Class 1M

Class 2M

Wavelength (λp)

510~530nm

Collimating lens

Glass lens

Line lens

Glass lens

Beam shape

Line

Laser line width

3±0.5mm@5M, 6±0.5mm@10M

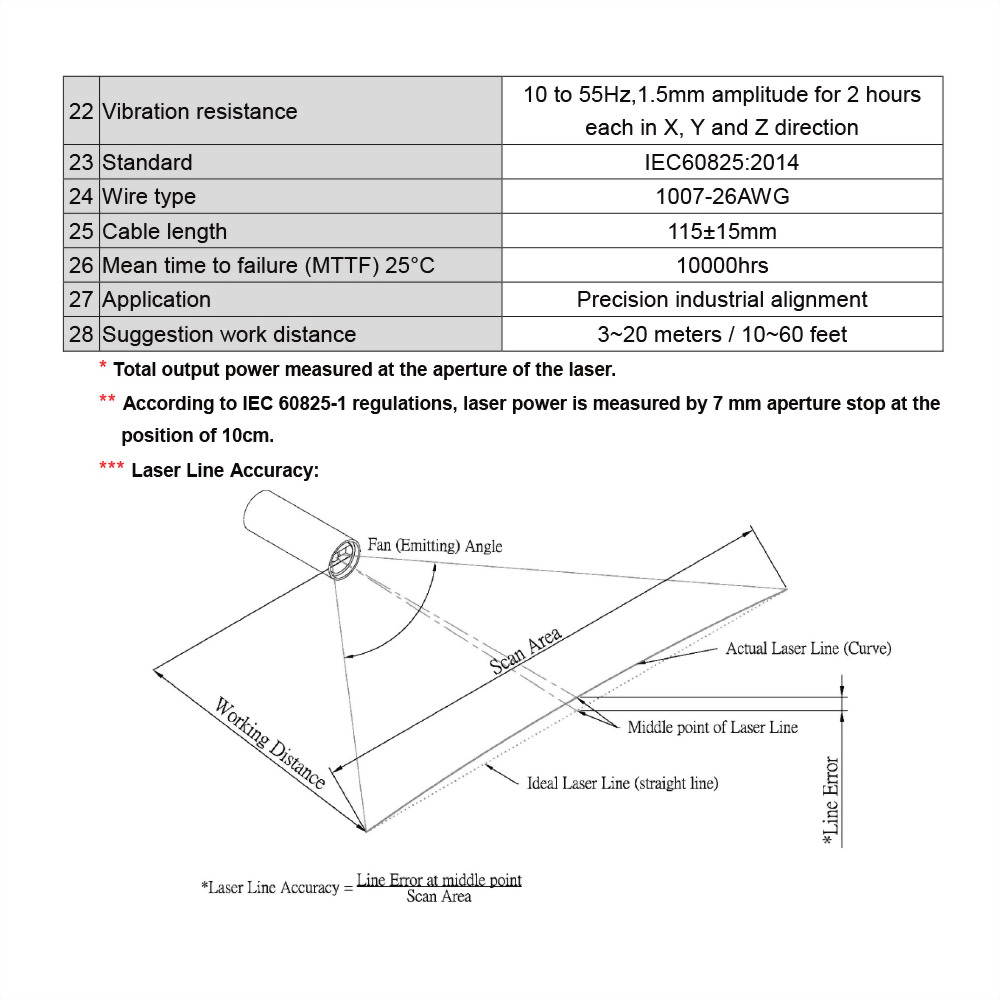

Laser line accuracy

40”(±1mm@5M)

Fan Angle

More than 90°

Operating temp. range***

-20°C ~+65°C

Storage temp. range

-20°C ~+85°C

Housing material

Aluminum

Potential of housing

Insulated

Electrostatic discharge (ESD)

30KV

Moisture sensitivity level (MSL)

Level 1 - acc to JEDEC J-STD-020E.

Wire type

1007-26AWG

Cable length

115±15mm

Mean time to failure (MTTF) 25°C

10000hrs

Application

Precision industrial alignment

Suggestion work distance

1~20 meters / 3~60 feet

* Optical power is total power output measured at the aperture of the laser.

** According to FDA 1040.10 & IEC 60825-1 regulations, laser power output is measured by 7mm aperture stop from a 10 cm distance of the laser.

*** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
