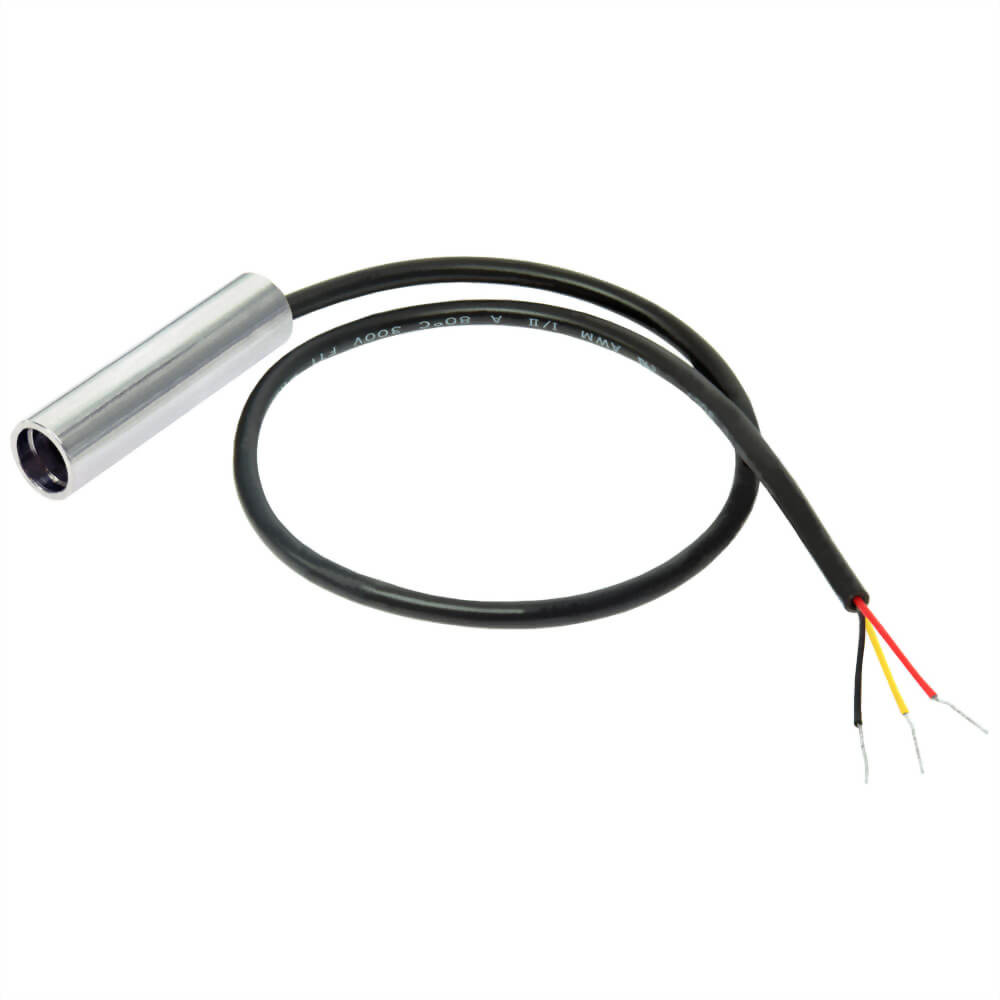

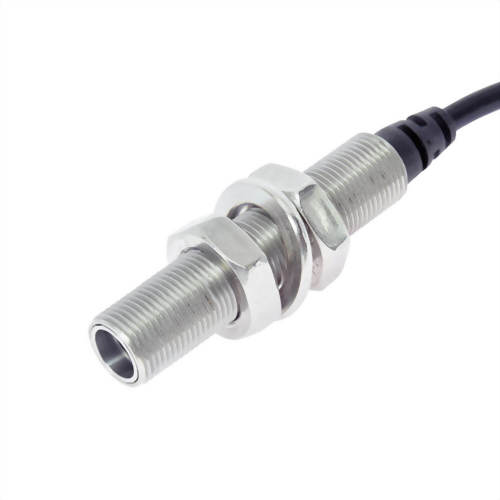

IR Dot Laser Module with TTL Modulation Function
FEATURES:
1. High-Quality Manufacturing: Designed and manufactured in Taiwan, ensuring superior durability and long-lasting performance.
2. TTL Modulation Function: Supports Continuous Wave (CW) to 10 kHz modulation, enabling high-speed operation, improved power efficiency, and enhanced precision and control.

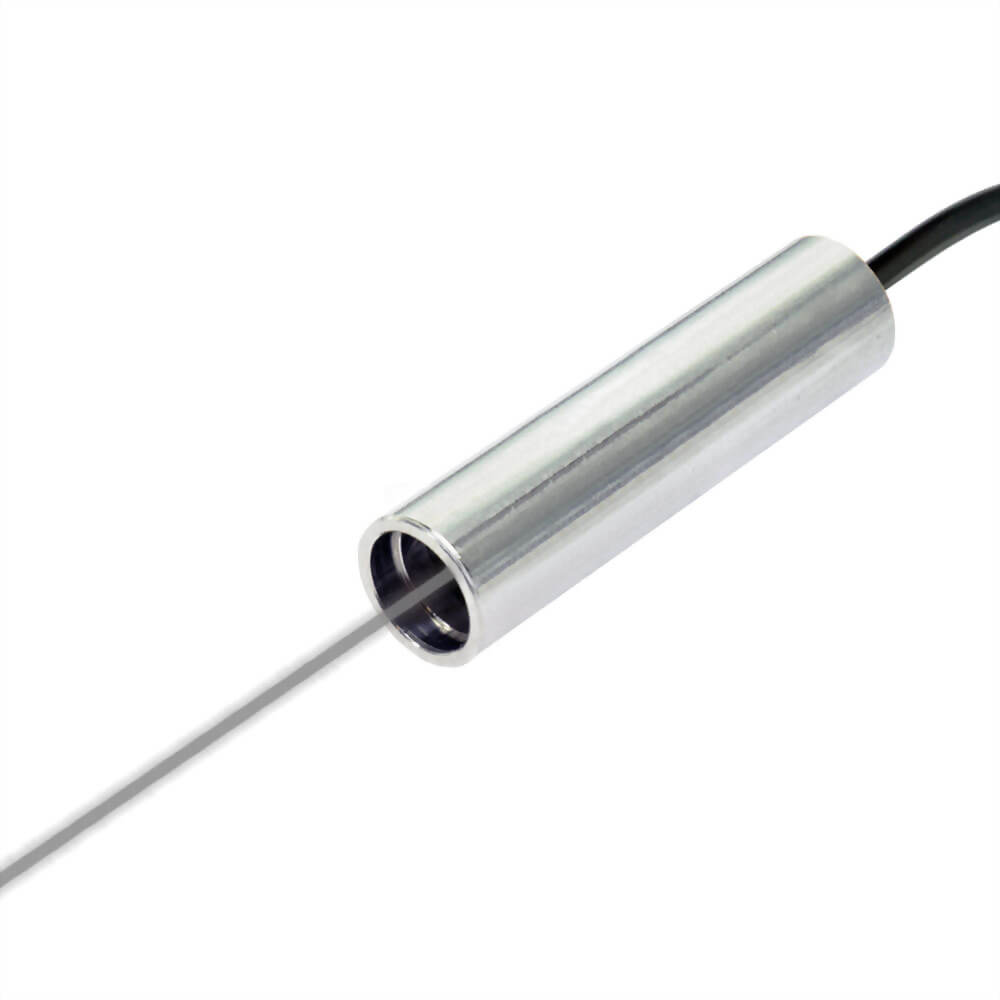

3. Delivers a precise dot less than 3 mm from 0 to 5 meters, ensuring high-accuracy alignment, positioning, measurement, and guidance.
4. CW to 10K HZ stable power output for demanding power and speed are of important.

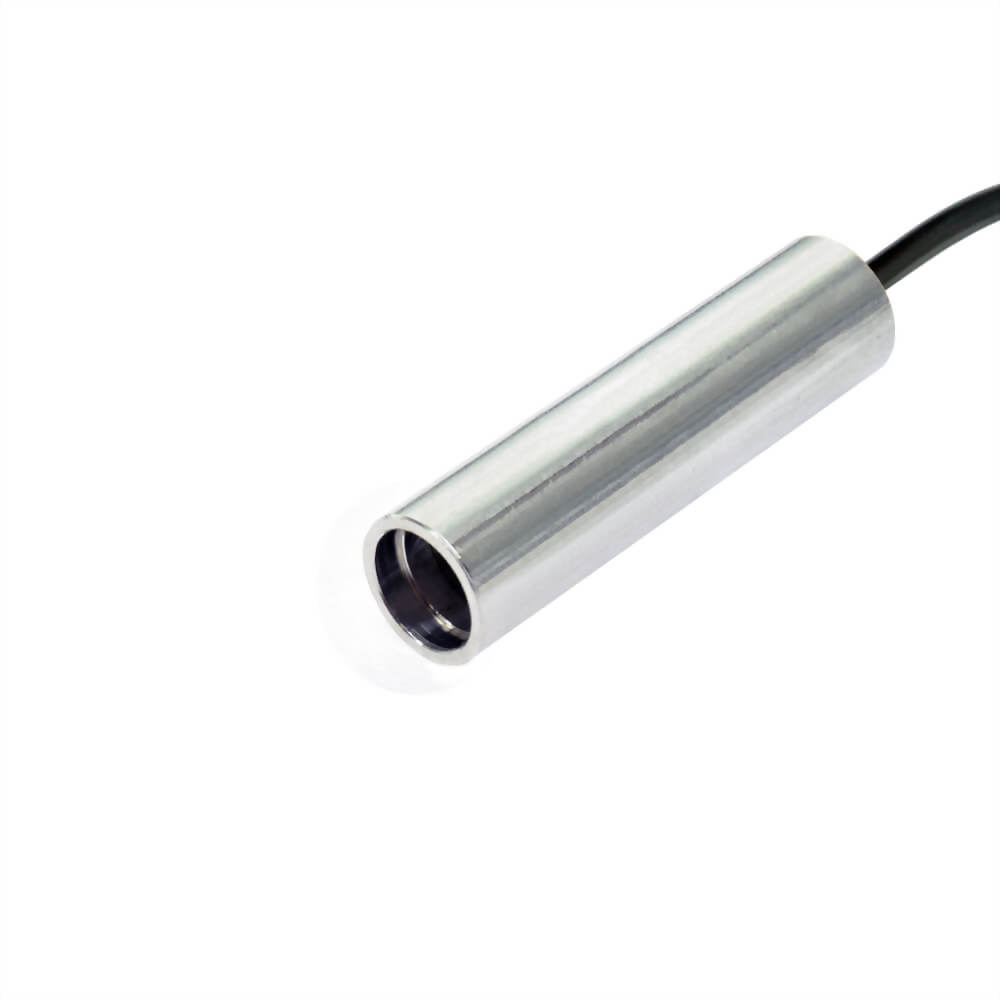

5. Robust Construction: Stainless steel housing enhances durability and environmental resistance, while a high-precision glass lens ensures optical clarity.
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
Quarton inc. places emphasis on laser safety
About APC (automatic power control) circuit:
The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.
|

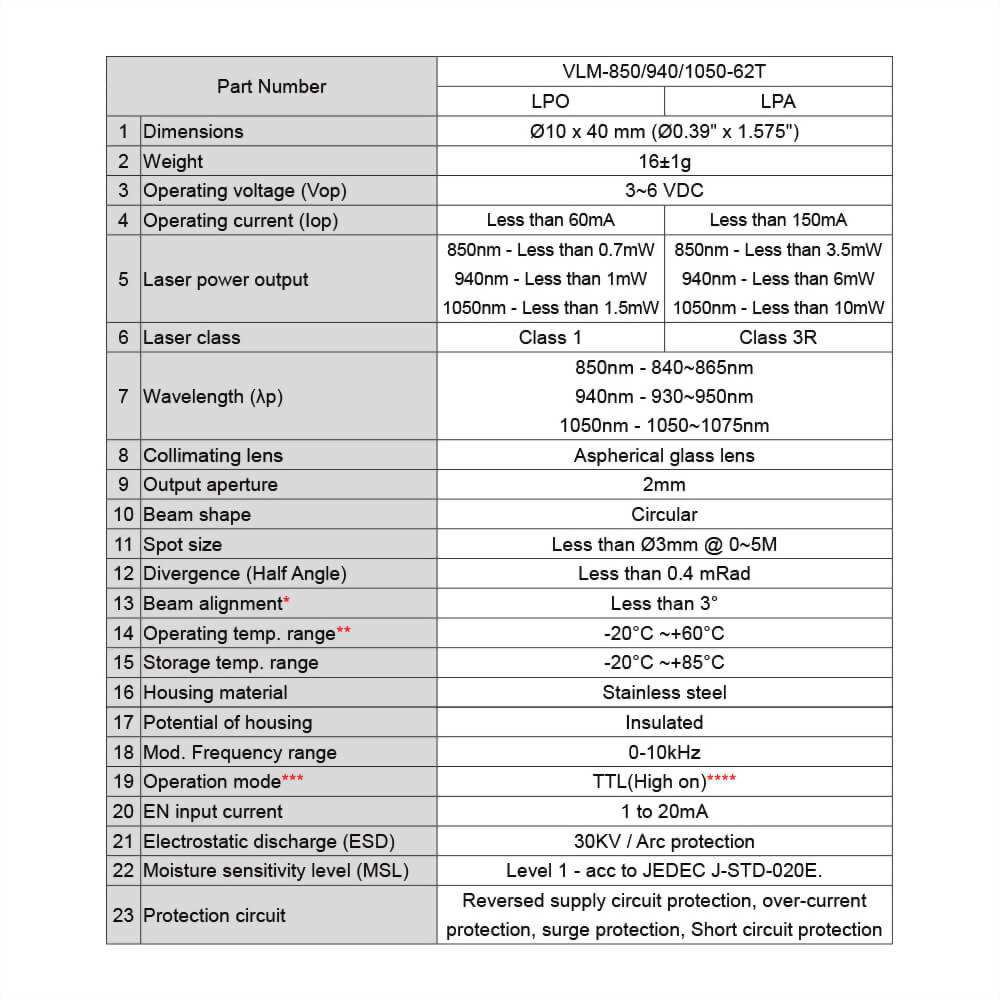

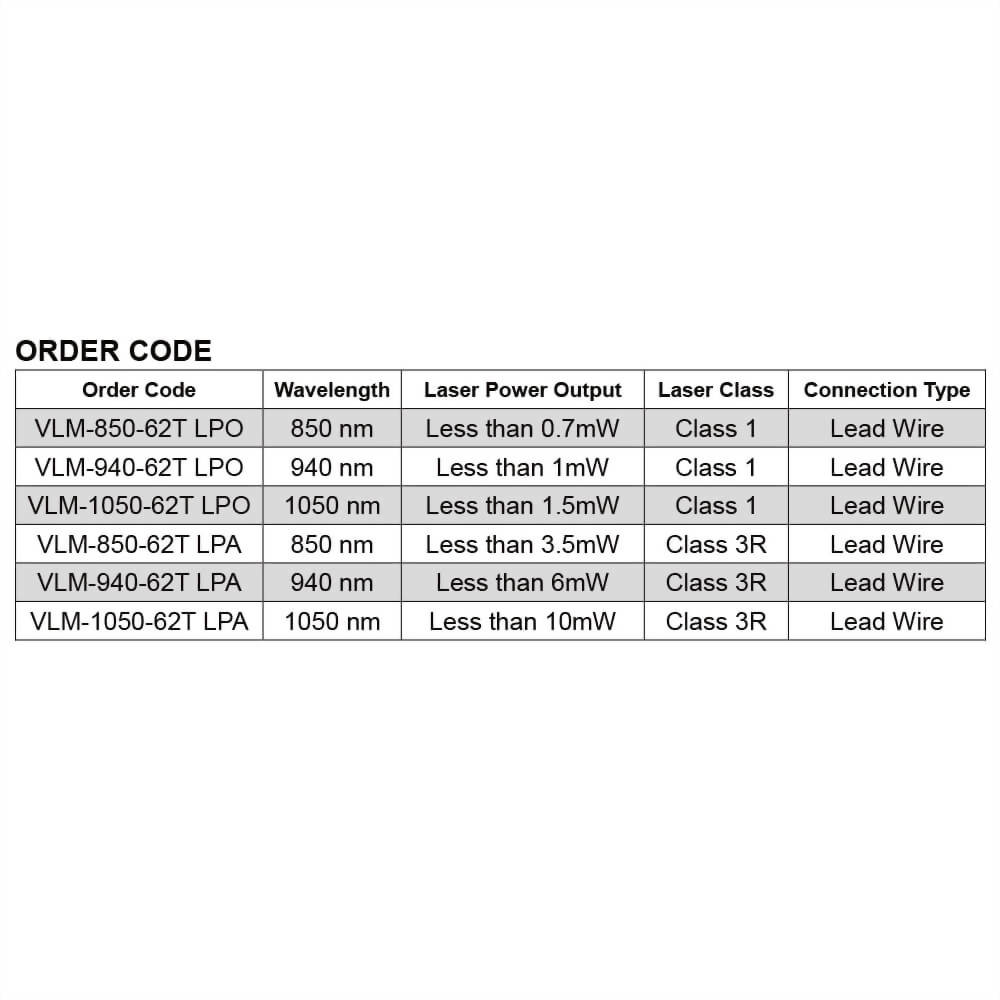

Part Number |
VLM-850/940/1050-62T |
|
|
LPO |
LPA |
|
|

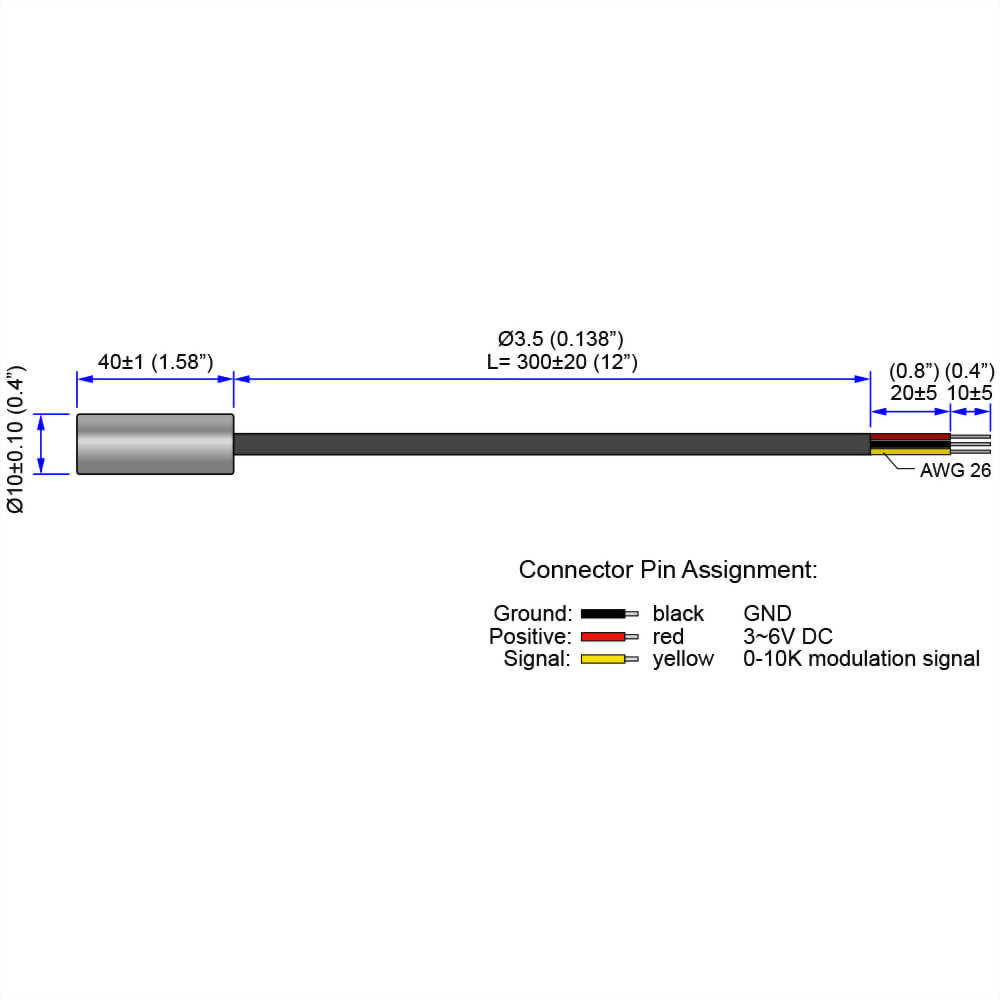

Dimensions |
Ø10 x 40 mm (Ø0.39" x 1.575") |
|
|
Weight |
16±1g |
|
|
Operating voltage (Vop) |
3~6 VDC |
|
|
Operating current (Iop) |
Less than 60mA |
Less than 150mA |
|
Laser power output |
850nm - Less than 0.7mW 940nm - Less than 1mW 1050nm - Less than 1.5mW |
850nm - Less than 3.5mW 940nm - Less than 6mW 1050nm - Less than 10mW |
|
Laser class |
Class 1 |
Class 3R |
|
Wavelength (λp) |
850nm - 840~865nm 940nm - 930~950nm 1050nm - 1050~1075nm |
|
|
Collimating lens |
Aspherical glass lens |
|
|
Output aperture |
2mm |
|
|
Beam shape |
Circular |
|
|
Spot size |
Less than Ø3mm @ 0~5M |
|
|
Divergence (Half Angle) |
Less than 0.4 mRad |
|
|
Beam alignment* |
Less than 3° |
|
|
Operating temp. range |
-20°C ~+60°C |
|
|
Storage temp. range |
-20°C ~+85°C |
|
|
Housing material |
Stainless steel |
|
|
Potential of housing |
Insulated |
|
|
Mod. Frequency range |
0-10kHz |
|
|
Operation mode*** |
TTL(High on)**** |
|
|
EN input current |
1 to 20mA |
|
|
Electrostatic discharge (ESD) |
30KV / Arc protection |
|
|
Moisture sensitivity level (MSL) |
Level 1 - acc to JEDEC J-STD-020E. |
|
|
Protection circuit |
Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection |
|
|
Vibration resistance |
10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction |
|
|
Standard |
IEC60825:2014 |
|
|
Wire type |
2464 3-WIRE CABLE 26 AWG |
|
|
Cable length |
330±30mm |
|
|
Mean time to failure (MTTF) 25°C |
10000 hrs |
|
|
International Protection Marking |
IP65 |
|
|
Application |
Industrial application with modulation function |
|
|
Suggestion work distance |
0~5 meters / 0~16 feet |
|

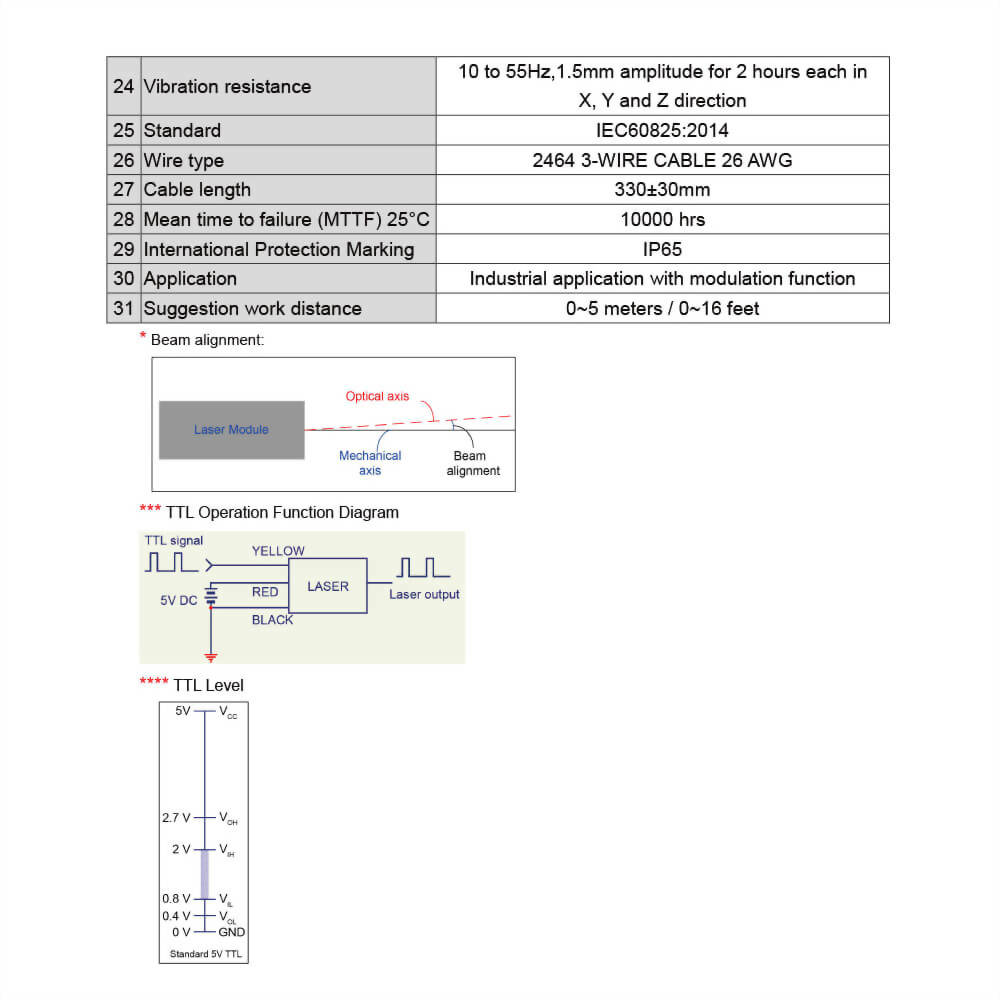

* Beam alignment:
*** TTL Operation Function Diagram
**** TTL Level
