IR Economical Laser

Model : VLM-780-03 Series
Invisible IR Dot Laser - for positioning, measuring, pointing and laser sighting device.

FEATURES:

1.  Economical Infrared Dot Laser.

2.  Economical solution for invisible IR Laser application.

3.  This module has integrated optic, laser diode, and APC driver circuit.

4.  APC Driver Circuit enables the Laser output power safe and constant.

5.  Aspherical plastic lens provides Dot Laser.



Laser products manufactured by Quarton inc. meet the international safety standards:


USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS


Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.


Where to buy


Comparison sheet

Model Number

Specifications

VLM-780-01 series
VLM-850-01 series
VLM-780-03 series
VLM-850-03 series
VLM-780-04 series VLM-850-81 series VLM-850-82 series VLM-850-83 series
Dimensions Ø10.5 x 19 mm Ø7 x 21mm Ø6.55 x 21.1mm Ø16 x 17.5 mm Ø16 x 29 mm Ø22 x 27 mm
Operating voltage 2.6~6 VDC 2.6~6 VDC 2.6~6 VDC 4~6 VDC 9~36 VDC 4~6 VDC
Operating current Less than 40mA Less than 40mA / 30mA Less than 40mA Less than 300mA Less than 600mA Less than 600mA
Laser power output Less than 0.7mW / 3mW Less than 0.7mW / 3mW Less than 0.7mW / 3mW
Laser class Class I / Class IIIb Class I / Class IIIb Class I / Class IIIb Class I, Eye safe Class I, Eye safe Class I, Eye safe
Wavelength 770~795nm / 840~865nm 770~795nm / 840~865nm 770~795nm 850nm 850nm 850nm
Collimating lens Plastic lens Plastic lens Plastic lens Glass lens Glass lens Glass lens
Output aperture 7mm 5mm 5mm 5mm 5mm 12.6mm
Beam shape Ellipse Ellipse Ellipse Round Round Round
Spot size 5±1mm at 5M 6±1mm at 5M 6±1mm at 5M 15°: 2.4M at 10M
30°: 4M at 10M
15°: 2.4M at 10M
30°: 4M at 10M
Less than 2M at 10M
Divergence (Half Angle) 0.5 mRad 0.6 mRad 0.6 mRad 15° / 30° 15° / 30°
Beam alignment Less than 3° Less than 3° Less than 3° Less than 3° Less than 3° Less than 3°
Operating temp. range +10°C ~+40°C +15°C ~+30°C +15°C ~+30°C -10°C ~+50°C -10°C ~+50°C -10°C ~+50°C
Storage temp. range -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C
Housing material Brass Steel Zinc alloy Bronze Bronze Bronze
Potential of housing VDD(+) VDD(+) VDD(+) VDD(+) VDD(+) VDD(+)
Electrostatic discharge (ESD) 30KV 20KV 20KV 30KV 30KV 30KV
Moisture sensitivity level (MSL) Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E.
Wire type 1007-26AWG / Spring 1007-26AWG 1007-26AWG / Spring 1007-26AWG 1007-26AWG 1007-26AWG
Cable length 115±15mm / 8±1mm 115±15mm 115±15mm / 4±1mm 115±15mm 115±15mm 115±15mm
Mean time to failure (MTTF) 25°C 5000hrs 5000hrs 5000hrs 10000hrs 10000hrs 10000hrs
Application General purpose Economic type Economic type IR high power illumination IR high power illumination IR high power illumination
Suggestion work distance 1~30 meters / 3~100 feet 1~10 meters / 3~40 feet 1~10 meters / 3~40 feet 10~100 meters / 40~300 feet 10~100 meters / 40~300 feet 50~200 meters / 150~600 feet
Datasheet download Download
Download
Download
Download
Download Download Download Download

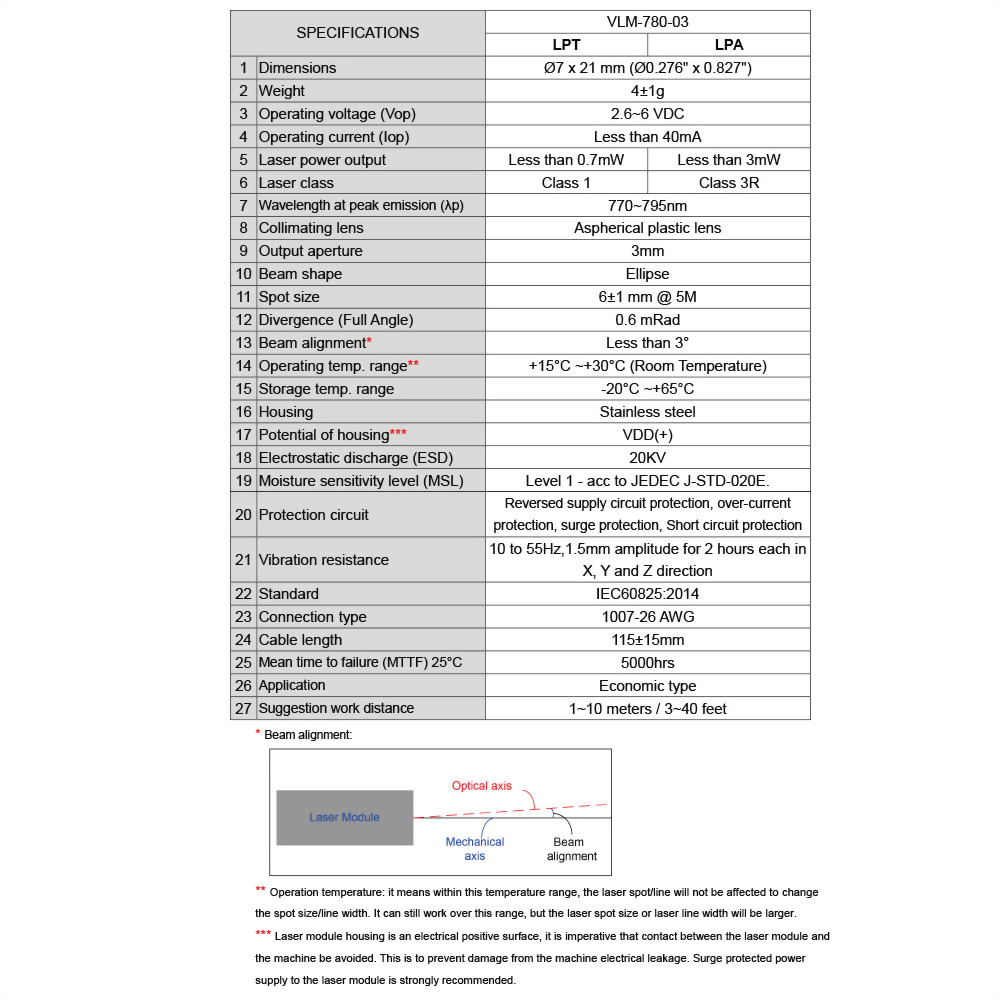

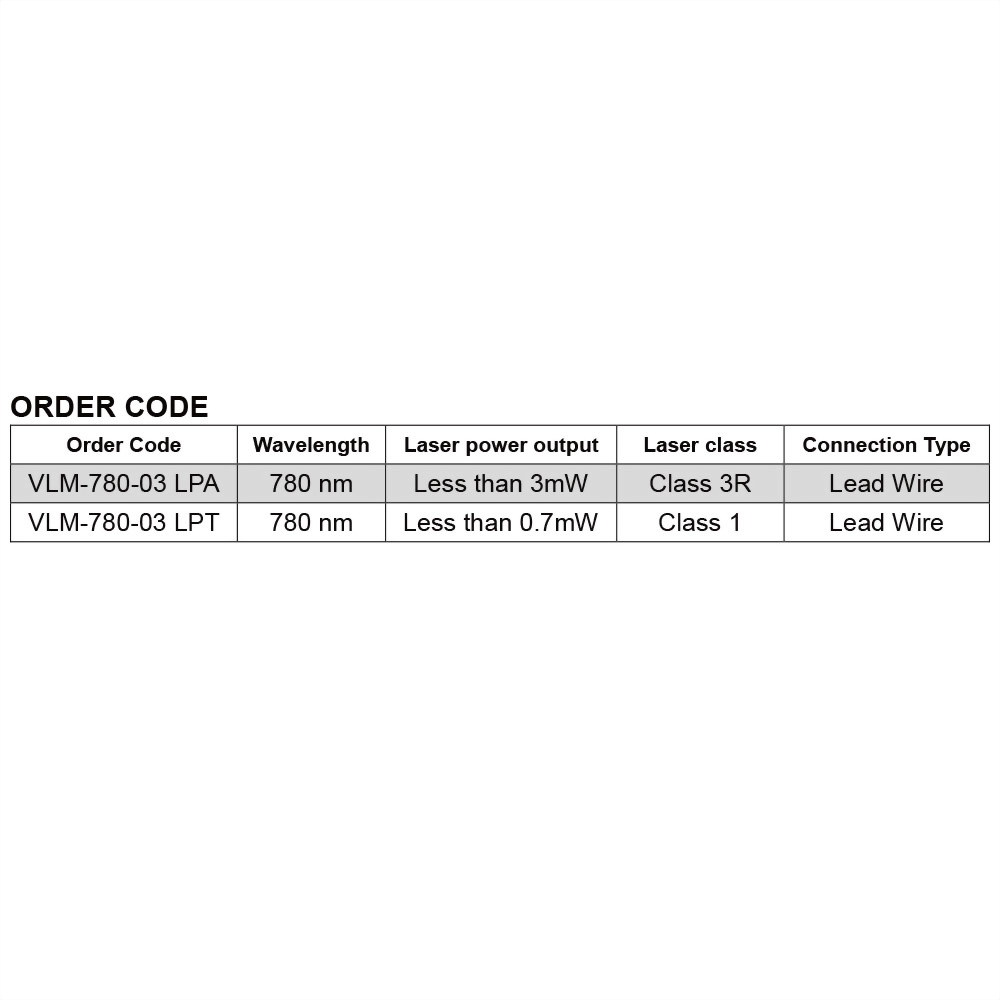

VLM-780-03

LPT

LPA

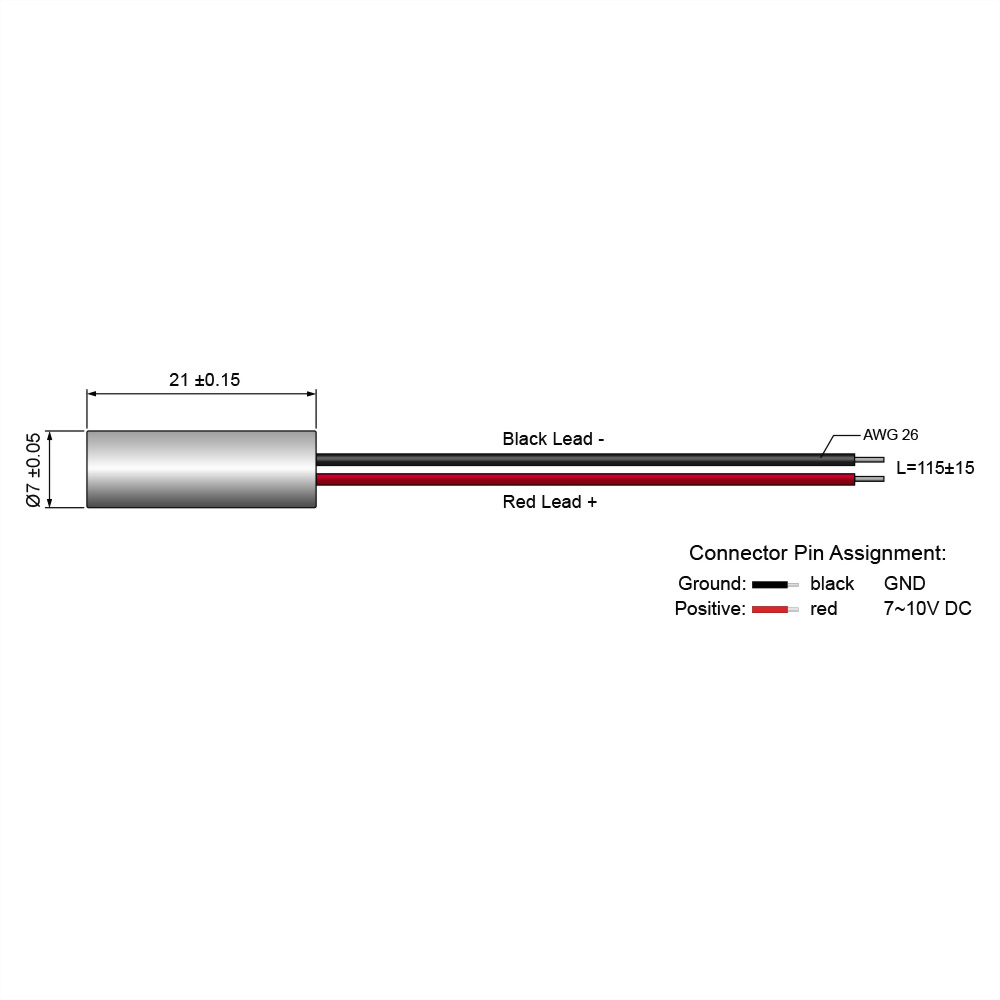

Dimensions

Ø7 x 21 mm (Ø0.276" x 0.827")

Operating voltage (Vop)

2.6~6 VDC

Operating current (Iop)

Less than 40mA

Laser power output

Less than 0.7mW

Less than 3mW

Laser class

Class I

Class IIIb

Wavelength (λp)

770~795nm

Collimating lens

Aspherical plastic lens

Output aperture

3mm

Beam shape

Ellipse

Spot size at 5M

6±1 mm

Divergence (Half Angle)

0.6 mRad

Operating temp. range*

+15°C ~+30°C (Room Temperature)

Storage temp. range

-20°C ~+65°C

Housing

Steel

Potential of housing**

VDD(+)

Electrostatic discharge (ESD)

20KV

Moisture sensitivity level (MSL)

Level 1 - acc to JEDEC J-STD-020E.

Connection type

1007-26 AWG

Cable length

115±15mm

Mean time to failure (MTTF) 25°C

5000hrs

Application

Economic type

Suggestion work distance

1~10 meters / 3~40 feet

* Operation temperature: it means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.

** Laser module housing is an electrical positive surface, it is imperative that contact between the laser module and the machine be avoided. This is to prevent damage from the machine electrical leakage. Surge protected power supply to the laser module is strongly recommended.

Related Products

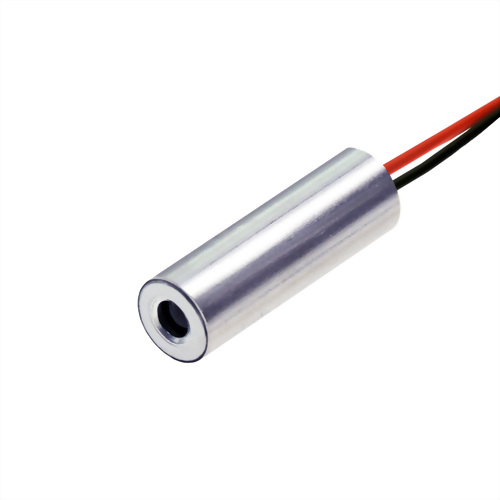

IR Economical Laser

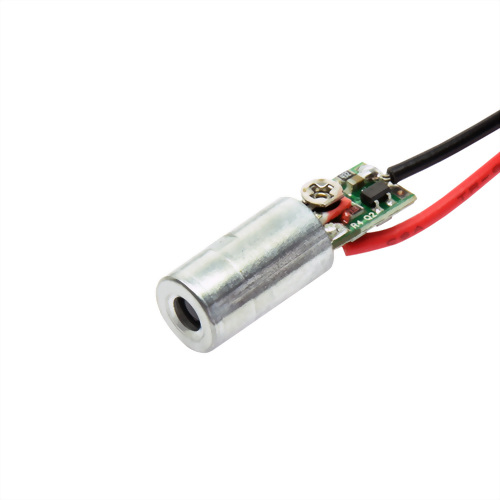

IR Economical Laser
