Green Cross-Line Laser

Model : VLM-520-29 Series
Green Cross-Line Laser Module, Line-width optimize at short distance for consumer grade barcode reader, leveling, alignment, adjusting, positioning, measuring, targeting and sighting device.

FEATURES:

1.  Direct Green Laser Diode for large temperature operation range.

2.  Line-width optimize at short distance(40cm) for consumer grade Laser Cross-Line generator applications.

3.  This module has integrated wavy lens, collimating lens, laser diode, and APC driver circuit.

4.  APC driver circuit enables the laser power output safe and constant.

5.  Includes patented solid brass structure for the best shock resistance and better heat transfer consideration.

6.  Aspherical Plastic Lens and Plastic Wavy Lens provides tight Cross-Line Laser.



Laser products manufactured by Quarton inc. meet the international safety standards:


USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS


Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.


Where to buy


Comparison sheet

Model Number

Specifications

VLM-520-29 series VLM-520-58 series VLM-520-59 series VLM-650-29 LPT VLM-635-58 series VLM-635-59 series
Dimensions Ø9 x 26 mm Ø10 x 40 mm Ø10 x 40 mm Ø9 x 26 mm Ø10 x 40 mm Ø10 x 40 mm
Operating voltage 7~10 VDC 3~6 VDC 3~6 VDC 2.6~6 VDC 3~6 VDC 3~6 VDC
Operating current Less than 80mA / 100mA Less than 80mA / 180mA Less than 80mA / 180mA Less than 35mA Less than 50mA / 100mA Less than 50mA / 100mA
Optical power 4~5mW / 9~10mW Less than 10mW / 30mW Less than 10mW / 30mW Less than 2mW Less than 5mW / 10mW Less than 5mW / 10mW
Laser power output Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW
Laser class Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M Class 1M Class 1M / Class 2M Class 1M / Class 2M
Wavelength 505~530nm 510~530nm 510~530nm 645~665nm 630~645nm 630~645nm
Collimating lens Plastic lens Glass lens Glass lens Plastic lens Glass lens Glass lens
Line lens Plastic lens Glass lens Glass lens Plastic lens Glass lens Glass lens
Beam shape Crosshairs Crosshairs Crosshairs Crosshairs Crosshairs Crosshairs
Laser Line width 1mm at 40cm Less than 1mm Less than 1mm 1mm at 40cm Less than 1mm Less than 1mm
Laser line accuracy 80” (± 2mm @5M) 40”(±1mm@5M) 40”(±1mm@5M) 80” (± 2mm @5M) 40”(±1mm@5M) 40”(±1mm@5M)
Emitting angle More than 60° 10°, 15°, 20°, 30°, 60°, 110° 10°, 15°, 20°, 30°, 60°, 110° More than 60° 10°, 15°, 20°, 30°, 60°, 110° 10°, 15°, 20°, 30°, 60°, 110°
Operating temp. range +15°C ~+30°C -20°C ~+60°C -20°C ~+60°C +15°C ~+30°C -20°C ~+60°C -20°C ~+60°C
Storage temp. range -20°C ~+65°C -20°C ~+85°C -20°C ~+85°C -20°C ~+65°C -20°C ~+85°C -20°C ~+85°C
Housing material Brass Stainless steel Stainless steel Brass Stainless steel Stainless steel
Potential of housing VDD(+) Insulated Insulated VDD(+) Insulated Insulated
Electrostatic discharge (ESD) 30KV 30KV 30KV 30KV 30KV 30KV
Moisture sensitivity level (MSL) Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E.
Wire type 1007-26AWG 2464 2-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG 1007-26AWG 2464 2-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG
Cable length 115±15mm 330±30mm 330±30mm 115±15mm 330±30mm 330±30mm
Mean time to failure (MTTF) 25°C 5000hrs 10000hrs 10000hrs 5000hrs 10000hrs 10000hrs
Application Economic application Precision fine crosshairs for Machine vision, CNC and Medical Precision fine crosshairs for Machine vision, CNC and Medical with modulation function Economic application Precision fine crosshairs for Machine vision, CNC and Medical Precision fine crosshairs for Machine vision, CNC and Medical with modulation function
Suggestion work distance 0~1 meter / 0~3 feet 0~1.2 meters / 0~4 feet 0~1.2 meters / 0~4 feet 0~1 meter / 0~3 feet 0~1.2 meters / 0~4 feet 0~1.2 meters / 0~4 feet
Datasheet download Download Download Download Download Download Download

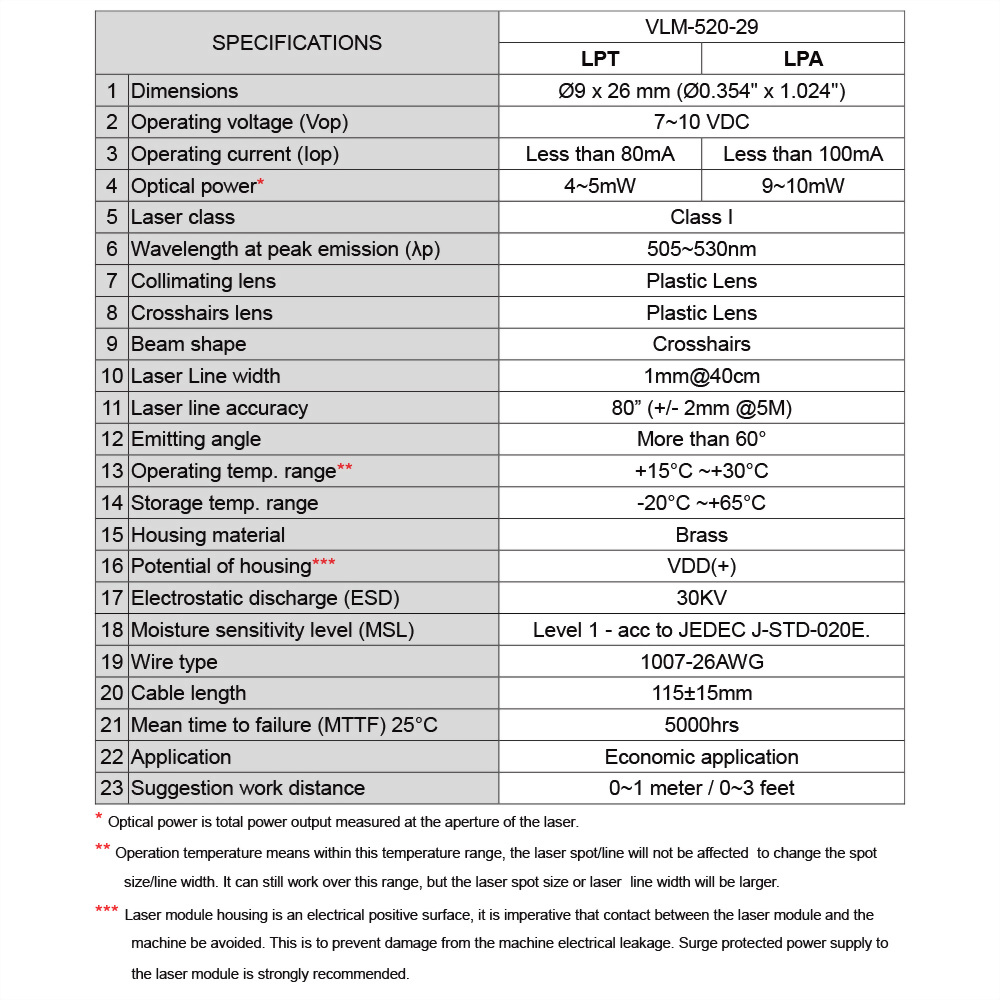

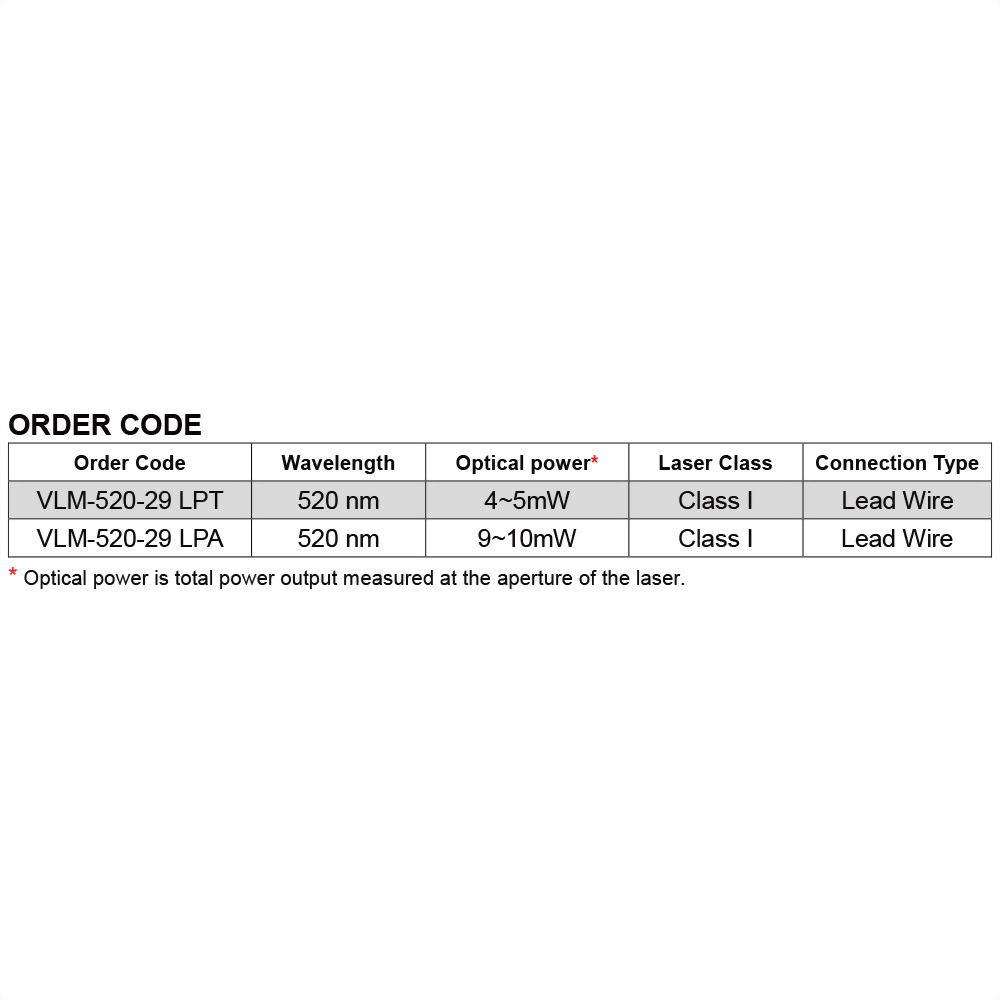

VLM-520-29

LPT

LPA

Dimensions

Ø9 x 26 mm (Ø0.354" x 1.024")

Operating voltage (Vop)

7~10 VDC

Operating current (Iop)

Less than 80mA

Less than 100mA

Optical power*

4~5mW

9~10mW

Laser power output**

Less than 0.39mW

Less than 1mW

Laser class

Class 1M

Class 2M

Wavelength (λp)

505~530nm

Collimating lens

Plastic Lens

Crosshairs lens

Plastic Lens

Beam shape

Crosshairs

Laser Line width

1mm@40cm

Laser line accuracy

80” (+/- 2mm @5M)

Emitting angle

More than 60°

Operating temp. range***

+15°C ~+30°C

Storage temp. range

-20°C ~+65°C

Housing material

Brass

Potential of housing****

VDD(+)

Electrostatic discharge (ESD)

30KV

Moisture sensitivity level (MSL)

Level 1 - acc to JEDEC J-STD-020E.

Wire type

1007-26AWG

Cable length

115±15mm

Mean time to failure (MTTF) 25°C

5000hrs

Application

Economic application

Suggestion work distance

0~1 meter / 0~3 feet

* Optical power is total power output measured at the aperture of the laser.

** According to FDA 1040.10 & IEC 60825-1 regulations, laser power output is measured by 7mm aperture stop from a 10 cm distance of the laser.

*** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.

**** Laser module housing is an electrical positive surface, it is imperative that contact between the laser module and the machine be avoided. This is to prevent damage from the machine electrical leakage. Surge protected power supply to the laser module is strongly recommended.
