Green Circular Dot Laser Module with TTL Modulation Function
FEATURES:
1. Extremely small circular laser dot within 1 meter.
2. Robust stainless steel housing.
3. Built with high precision glass lens.
4. CW to 10K HZ stable power output for demanding power and speed are of important.
5. Customized focus within 1 meter available please direct contact us.
Laser line demonstration :
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
Quarton inc. places emphasis on laser safety
About APC (automatic power control) circuit:
The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.
Model Number Specifications |
VLM-520-00 | VLM-520-01 series | VLM-520-02 series | VLM-520-03 LPT | VLM-520-04 series | VLM-520-17 series | VLM-532-42 series | VLM-532-43 series | VLM-520-51 series | VLM-520-52 series | VLM-520-53 series | VLM-520-60 series | VLM-520-61 series (TTL) | VLM-520-73 series | VLM-520-74 series | VLM-520-91 LPB | VLM-520-96 LPA | CLM-520-01 LPO | CLM-520-02 LPT | CLM-520-11 LPO | CLM-520-12 LPT |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Dimensions | Ø10.52 x 17.2 mm | Ø10.4 x 18.4 mm | Ø10.5 x 26 mm | Ø7 x 21 mm | Ø6.55 x 28.6 mm | Ø13 x 62 mm | Ø10.5 x 46.5 mm | Ø13 x 60 mm | Ø8 x 30 mm | Ø8.5 x 30.5 mm | Ø10.5 x 31 mm | Ø10 x 40 mm | Ø10 x 40 mm | Ø7 x 26.1 mm | Ø6.5 x 26 mm | Ø16 x 25 mm | Ø16.5 x 72.8 mm | Ø20 x 60 mm | Ø20 x 60 mm | 20 x 20 x 60 mm | 20 x 20 x 60 mm |
Operating voltage | 6.5~7.5 VDC | 7~10 VDC | 7~10 VDC | 7~10 VDC | 3~6 VDC | 3~6 VDC | 2.7~3.3 VDC | 2.7~3.3 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 4~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC |
Operating current | Less than 105mA | Less than 80mA / 100mA | Less than 80mA / 100mA | Less than 80mA | Less than 150mA | Less than 100mA / 150mA | Less than 300mA | Less than 300mA | Less than 150mA | Less than 150mA / 280mA | Less than 150mA | Less than 60mA / 150mA | Less than 60mA / 150mA | Less than 150mA / 200mA | Less than 150mA / 200mA | Less than 500mA | Less than 120mA | Less than 160mA | Less than 160mA | Less than 160mA | Less than 160mA |
Laser power output | Optical power less than 10mW | Less than 1mW / 4mW | Less than 1mW / 4mW | Less than 1mW | Less than 1mW | 0.7~0.9mW / 2~3mW / 5~6mW | Less than 1mW / 5mW | Less than 1mW / 5mW / 10mW | Less than 1mW / 4mW | Less than 1mW / 4mW / 15mW | Less than 1mW / 4mW | Less than 0.39mW / 1mW | Less than 0.39mW / 1mW | Less than 1mW / 4mW | Less than 1mW / 4mW | 100mW | 0 to 4.25±0.25mW (adjustable) | Less than 0.39mW | Less than 1mW | Less than 0.39mW | Less than 1mW |
Laser class | Class II / Class IIIa | Class II / Class IIIa | Class II | Class II | Class II / Class IIIa / Class IIIb | Class II / Class IIIa | Class II / Class IIIa / Class IIIb | Class II / Class IIIa | Class II / Class IIIa / Class IIIb | Class II / Class IIIa | Class I / Class II | Class I / Class II | Class II / Class IIIa | Class II / Class IIIa | Class IIIb | Class IIIa | Class I | Class II | Class I | Class II | |
Wavelength | 505~530nm | 505~530nm | 505~530nm | 505~530nm | 505~530nm | 510~530nm | 532nm | 532nm | 505~530nm | 505~530nm | 505~530nm | 515~530nm | 515~530nm | 505~530nm | 505~530nm | 520nm | 510~530nm | 515~530nm | 515~530nm | 515~530nm | 515~530nm |
Collimating lens | Plastic lens | Plastic lens | Plastic lens | Plastic lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens |
Output aperture | 5mm | 5mm | 4mm | 3mm | 3mm | 8mm | 5mm | 5mm | 5mm | 0.6mm | 0.6mm | 4.3mm | 4.3mm | 2.5mm | 5mm | 0.8mm | 3mm | 0.8mm | 3mm | ||
Beam shape | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Circular | Circular | Circular | Ellipse | Ellipse | Ellipse | Circular | Circular | Ellipse | Ellipse | Ellipse | Ellipse | Circular | Circular | Circular | Circular |
Spot size | Less than 4.5mm at 3M | Adjustment focus | Less than 4mm at 5M | Less than 4mm at 5M |
Less than 9mm at 40M Less than 22mm at 100M |
6±1 mm at 3M |
4±1mm at 5M 18±2mm at 30M |
5±1 mm at 10M | 5±1 mm at 10M | 5±1 mm at 10M |
Less than 1mm at 0~50cm Less than 2mm at 50~90cm |
Less than 1mm at 0~50cm Less than 2mm at 50~90cm |
Less than 7mm at 10M | Less than 7mm at 10M | Less than 15mm at 10M |
Less than 0.2mm at 10mm Less than 8mm at 10M |
Less than 1.2mm at 1M | Less than 9mm at 20M | Less than 1.2mm at 1M | Less than 9mm at 20M | |
Divergence (Half Angle) | 0.5 mRad | 0.5 mRad | 0.5 mRad | 0.6 mRad | 0.6 mRad | Less than 0.1 mRad | 1 mRad | 0.3 mRad | Less than 0.4 mRad | Less than 0.4 mRad | Less than 0.4 mRad | Less than 0.4 mRad | Less than 0.4 mRad | Less than 0.6 mRad | Less than 0.6 mRad | Adjustable 0.4 mRad to 12° | 0.15 mRad | 0.15 mRad | 0.15 mRad | 0.15 mRad | |
Beam alignment | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm | ||
Operating temp. range | +10°C ~+40°C | +10°C ~+40°C | +10°C ~+40°C | +15°C ~+30°C | +10°C ~+40°C | +10°C ~+50°C | +20°C ~+30°C | +15°C ~+35°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -10°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C |
Storage temp. range | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+80°C | -20°C ~+65°C | -40°C ~+70°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -20°C ~ +85°C | -20°C ~ +85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C |
Housing material | Brass | Brass | Brass | Stainless steel | Zinc alloy | Aluminum | Brass | Brass | Aluminum | Stainless steel | Bronze | Stainless steel | Stainless steel | Stainless steel | Bronze | Bronze | Aluminum | Stainless steel | Stainless steel | Hard anodized aluminum | Hard anodized aluminum |
Potential of housing | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | Insulated | VDD(+) | VDD(+) | Insulated | Insulated | VDD(+) | Insulated | Insulated | VDD(+) | VDD(+) | VDD(+) | Insulated | Insulated | Insulated | Insulated | Insulated |
Electrostatic discharge (ESD) | 30KV | 30KV | 20KV | 20KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV / Arc protection | 30KV / Arc protection | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | |
Moisture sensitivity level (MSL) | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | |
Wire type | 3*PIN from LD | 1007-26AWG | 1007-26AWG / Spring | 1007-26AWG | 1007-26AWG / Spring | 1007-26AWG | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG | 1007-26AWG | 1007-26AWG / Spring | 2464 2-WIRE CABLE 26 AWG | 2464 3-WIRE CABLE 26 AWG | 1007-26AWG | 1007-26AWG | 1007-26AWG | 2464 2-WIRE CABLE 26 AWG | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) |
Cable length | 115±15mm | 115±15mm / 6.5±1mm | 115±15mm | 115±15mm / 4±1mm | 115±15mm | 115±15mm / 7±1mm | 115±15mm / 6±1mm | 115±15mm | 115±15mm | 115±15mm / 6.5±1mm | 330±30mm | 330±30mm | 115±15mm | 115±15mm | 115±15mm | 330±30mm | |||||
Mean time to failure (MTTF) 25°C | 10000hrs | 10000hrs | 10000hrs | 5000hrs | 5000hrs | 10000hrs | 3000hrs | 3000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs |
Application | Lab, without laser driver | General purpose | Focus adjustable | Economic type | Economic type | Long range application | DPPS laser | DPPS laser | Industrial application | Industrial application | Industrial application | Industrial alignment | Industrial alignment with TTL modulation function | Economic industrial application | Economic industrial application | High power | Laboratory or Medical research and physical-optic experiments. | Concentricity Laser | Concentricity Laser | Concentricity Laser | Concentricity Laser |
Suggestion work distance | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~10 meters / 3~40 feet | 1~10 meters / 3~40 feet | 10~500 meters / 40~2000 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 0~0.9 meters / 0~3 feet | 0~0.9 meters / 0~3 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | Above 10mm | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | |
Datasheet download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download |

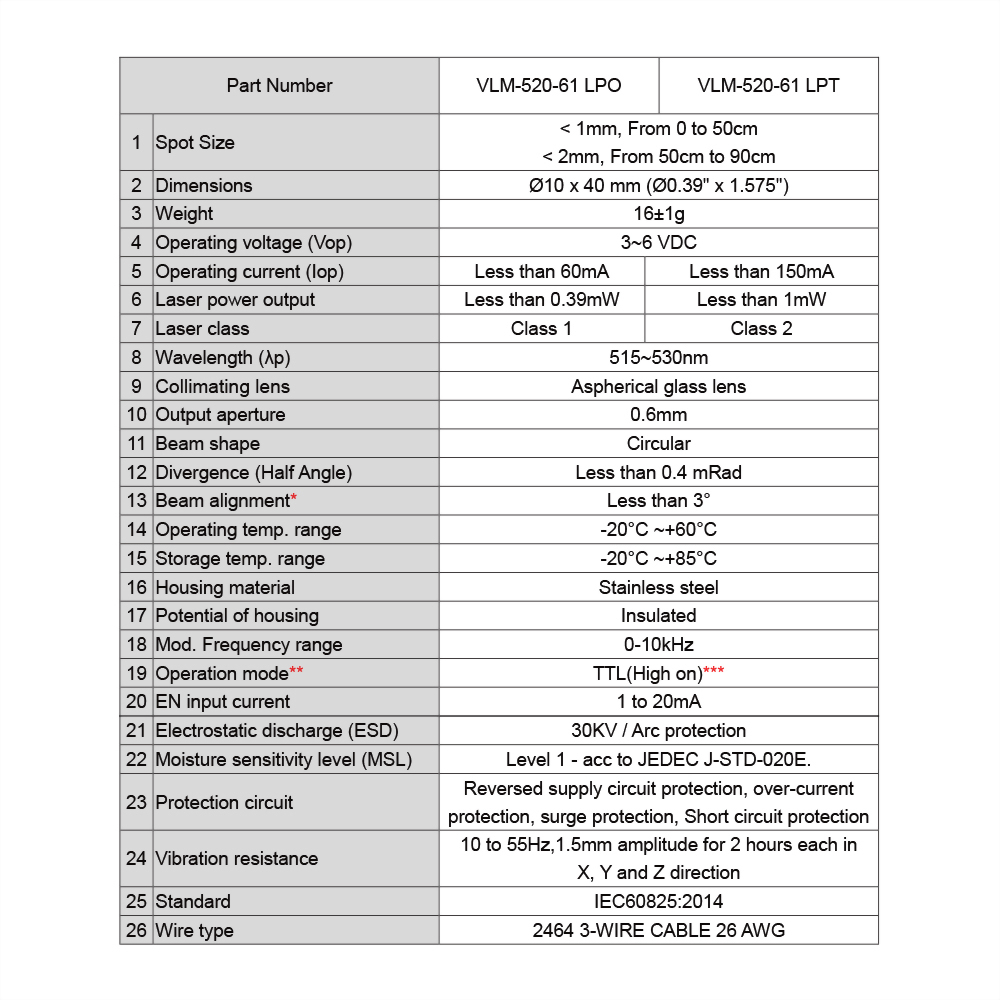

Part Number
VLM-520-61
LPO
VLM-520-61
LPT
Spot Size
<
1mm, From 0 to 50cm
< 2mm,
From 50cm to 90cm

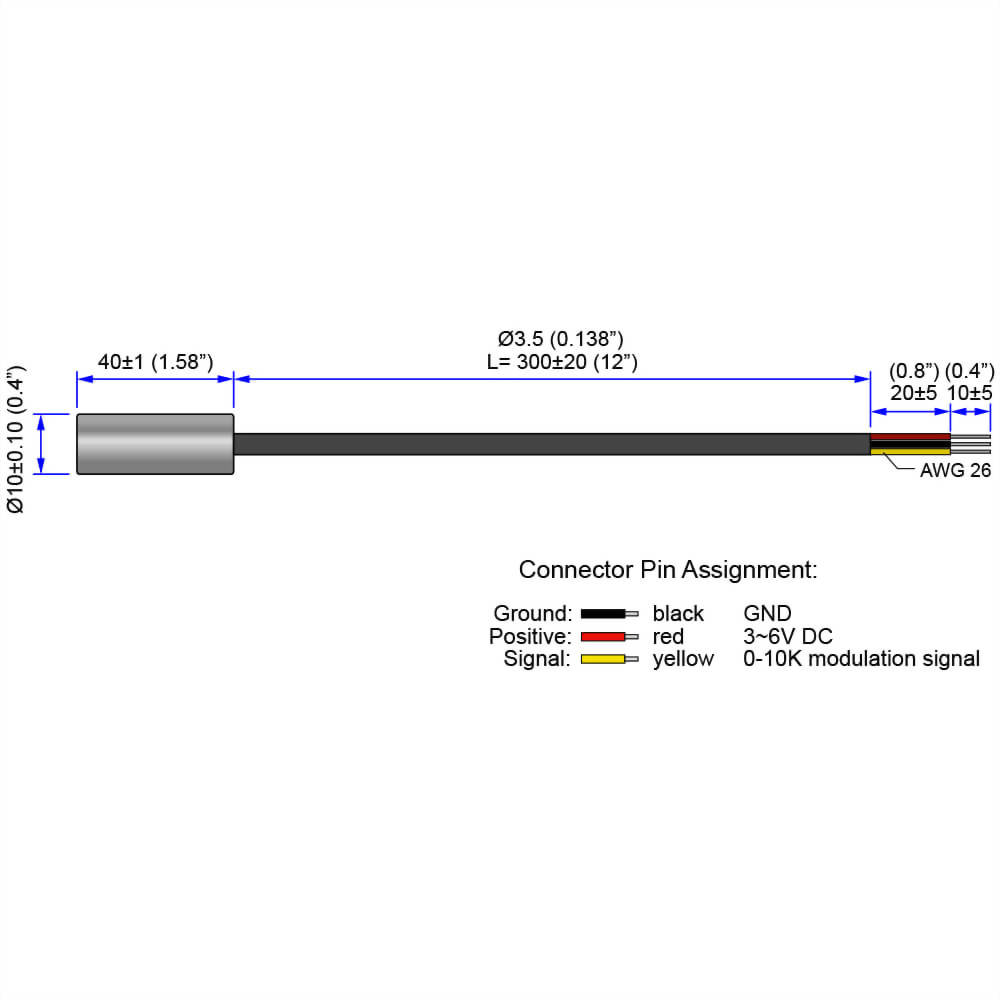

Dimensions
Ø10
x 40 mm (Ø0.39" x 1.575")
Weight
16±1g
Operating voltage (Vop)
3~6
VDC
Operating current (Iop)
Less
than 60mA
Less
than 150mA
Laser power output
Less
than 0.39mW
Less
than 1mW
Laser class
Class
I
Class
II
Wavelength (λp)
515~530nm
Collimating lens
Aspherical
glass lens
Output aperture
0.6mm
Beam shape
Circular
Divergence (Half Angle)
Less than 0.4 mRad
Beam alignment
Less
than 3°
Operating temp. range*
-20°C
~+60°C
Storage temp. range
-20°C
~+85°C
Housing material
Stainless
steel
Potential of housing
Insulated
Mod.
Frequency range
0-10kHz
Operation mode**
TTL(High on)***
EN input
current
1 to 20mA
Electrostatic discharge (ESD)
30KV
/ Arc protection
Moisture
sensitivity level (MSL)
Level
1 - acc to JEDEC J-STD-020E.
Wire type
2464
3-WIRE CABLE 26 AWG
Cable length
330±30mm
Mean time to failure (MTTF) 25°C
10000
hrs
International Protection Marking
IP67
Application
Industrial
alignment with modulation function
Suggestion work distance
0~0.9
meters / 0~3 feet
* Operation temperature means within this
temperature range, the laser spot/line will not be affected to change the
spot size/line width. It can still work over this range, but the laser spot
size or laser line width
will be larger.

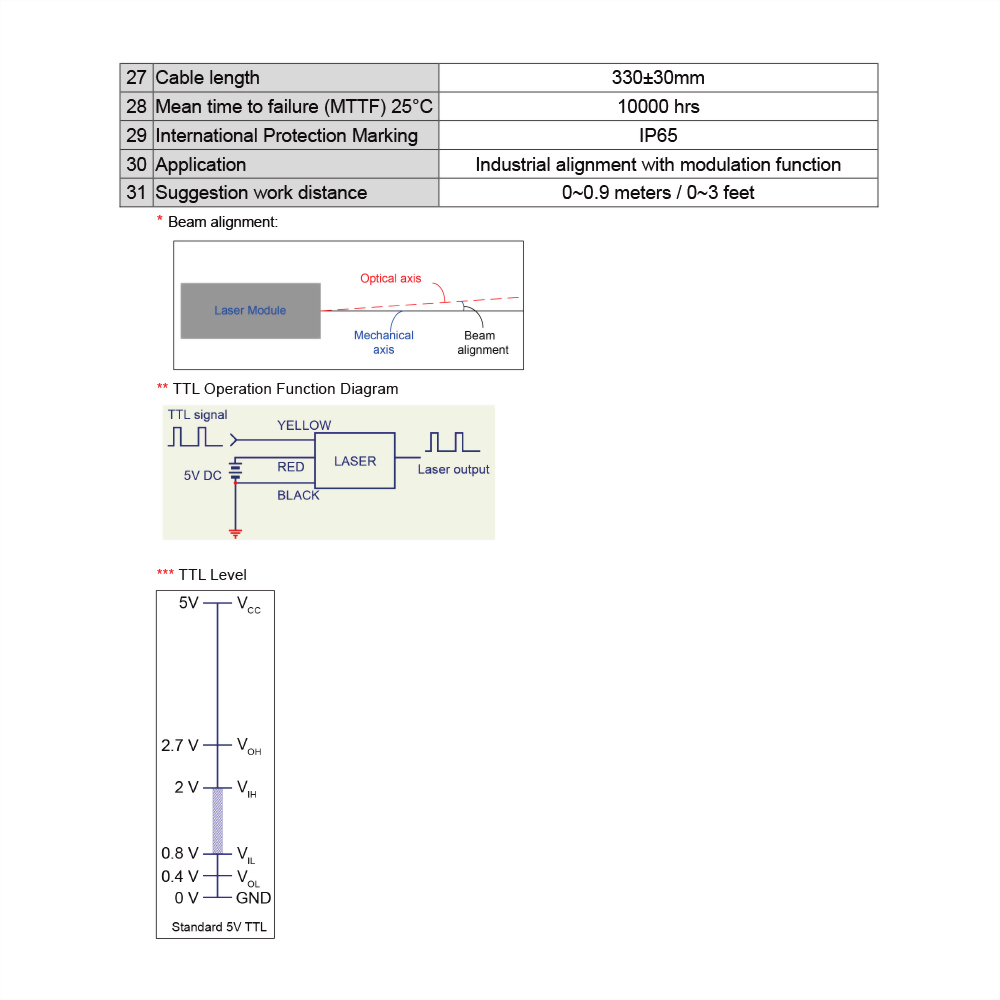

** TTL Operation Function Diagram:

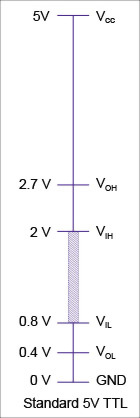

*** TTL Level:
