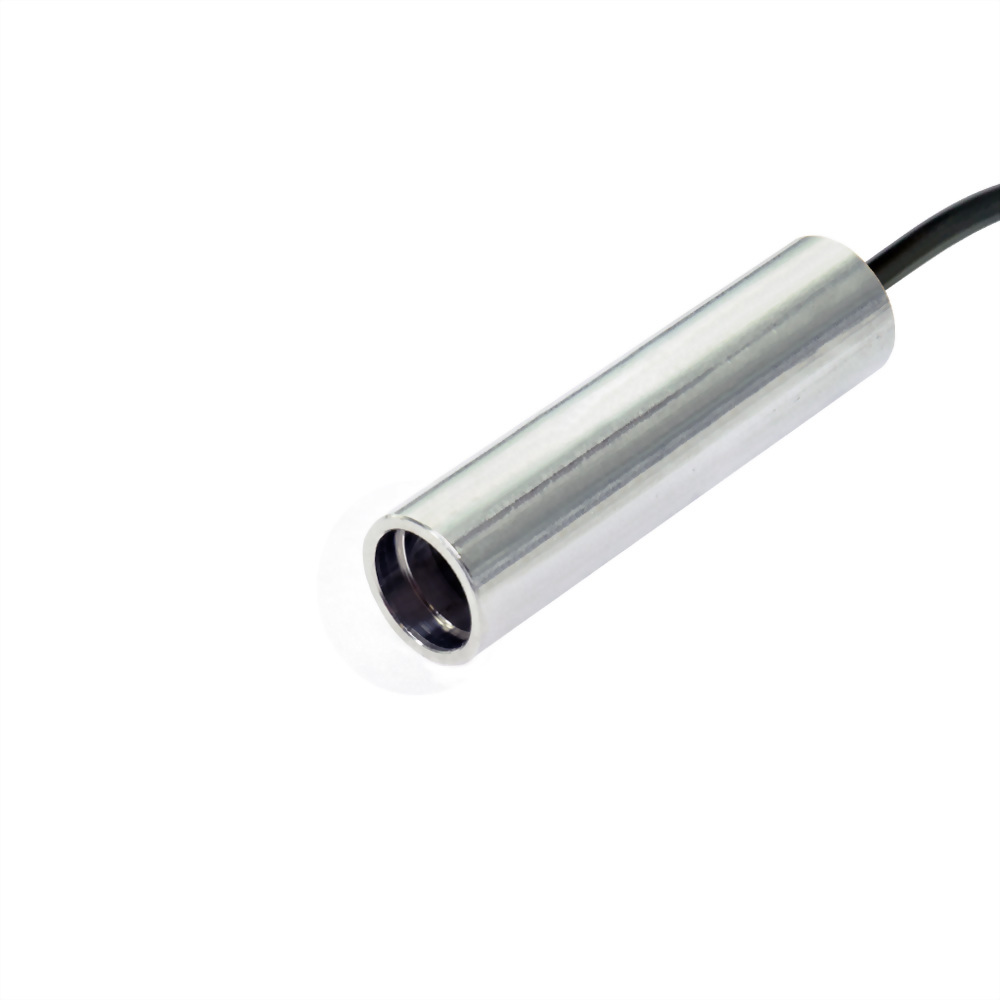

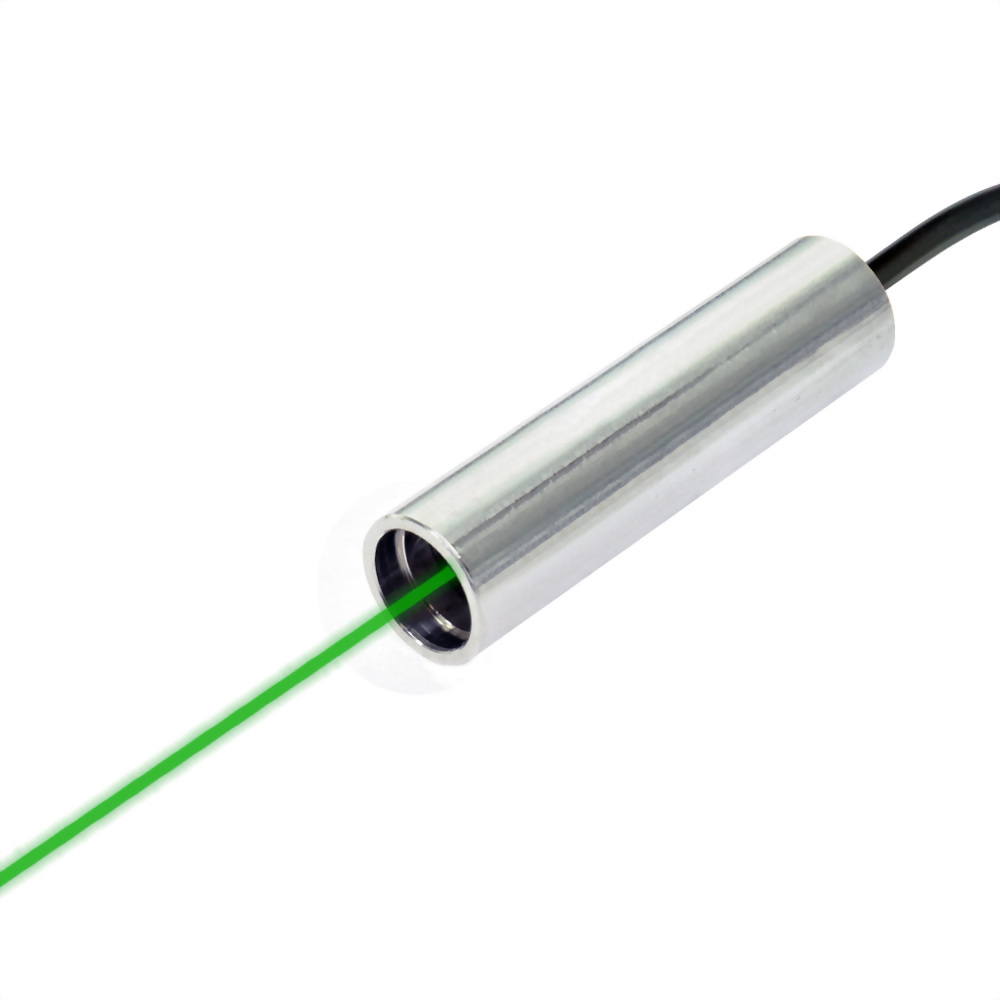

Green Dot Laser Module with TTL Modulation Function

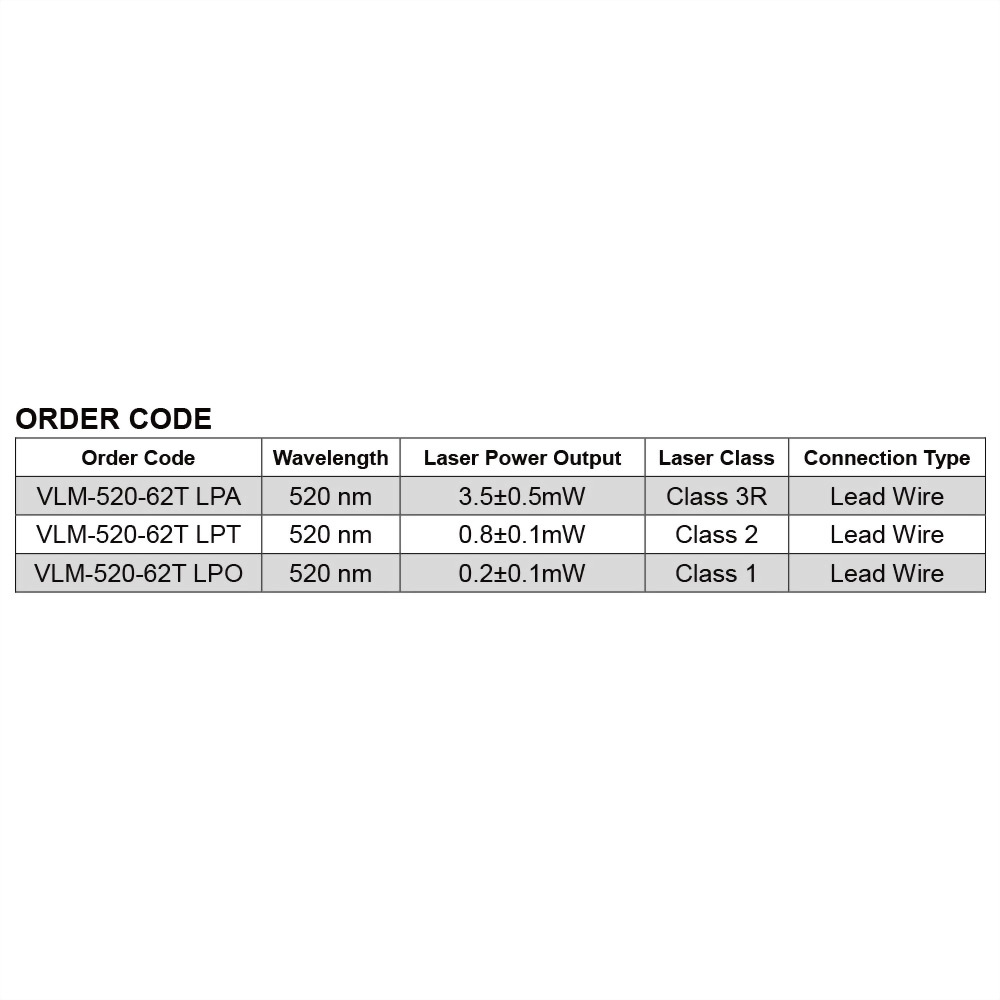

Model : VLM-520-62T LPO / VLM-520-62T LPT / VLM-520-62T LPA

The Green Circular Dot Laser Module features TTL modulation within 5 meters, supporting Continuous Wave (CW) to 10 kHz for high-speed operation, improved power efficiency, and enhanced precision.

Q'ty :

Description
Specifications

FEATURES:

1. High-Quality Manufacturing: Designed and manufactured in Taiwan, ensuring superior durability and long-lasting performance.

2. TTL Modulation Function: Supports Continuous Wave (CW) to 10 kHz modulation, enabling high-speed operation, improved power efficiency, and enhanced precision and control.

3. Green Circular Dot Laser: Delivers a precise dot less than 3 mm from 0 to 5 meters, ensuring high-accuracy alignment, positioning, measurement, and guidance. Green lasers are significantly brighter than red lasers, making them ideal for industrial, scientific, and commercial applications.

4. CW to 10K HZ stable power output for demanding power and speed are of important.

5. Robust Construction: Stainless steel housing enhances durability and environmental resistance, while a high-precision glass lens ensures optical clarity.

Laser products manufactured by Quarton inc. meet the international safety standards:

USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS

Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.

Where to buy

Comparison sheet

Model Number Specifications	VLM-520-00	VLM-520-01 series	VLM-520-02 series	VLM-520-03 LPT	VLM-520-04 series	VLM-520-17 series	VLM-532-42 series	VLM-532-43 series	VLM-520-51 series	VLM-520-52 series	VLM-520-53 series	VLM-520-60 series	VLM-520-61 series (TTL)	VLM-520-62 series	VLM-520-62T series (TTL)	VLM-520-70 series	VLM-520-71 series (TTL)	VLM-520-72 series	VLM-520-72T series (TTL)	VLM-520-73 series	VLM-520-74 series	VLM-520-91 LPB	VLM-520-92 LPB	VLM-520-96 LPA	CLM-520-01 LPO	CLM-520-02 LPT	CLM-520-11 LPO	CLM-520-12 LPT

Dimensions	Ø10.52 x 17.2 mm	Ø10.5 x 19 mm	Ø10.5 x 26 mm	Ø7 x 21 mm	Ø6.55 x 28.6 mm	Ø13 x 62 mm	Ø10.5 x 46.5 mm	Ø13 x 60 mm	Ø8 x 30 mm	Ø8.5 x 30.5 mm	Ø10.5 x 31 mm	Ø10 x 40 mm	Ø10 x 40 mm	Ø10 x 40 mm	Ø10 x 40 mm	M12 x 68 mm	M12 x 68 mm	M12 x 68 mm	M12 x 68 mm	Ø7 x 26.1 mm	Ø6.5 x 26 mm	Ø16 x 25 mm	Ø27.7 x 95.5 mm	Ø16.5 x 72.8 mm	Ø19.9 x 60 mm	Ø19.9 x 60 mm	20 x 20 x 60 mm	20 x 20 x 60 mm
Operating voltage	6.5~7.5 VDC	7~10 VDC	7~10 VDC	7~10 VDC	3~6 VDC	3~6 VDC	2.7~3.3 VDC	2.7~3.3 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	10~36 VDC	10~36 VDC	10~36 VDC	10~36 VDC	3~6 VDC	3~6 VDC	4~6 VDC	4~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC
Operating current	Less than 105mA	Less than 80mA / 100mA	Less than 80mA / 100mA	Less than 80mA	Less than 150mA	Less than 100mA / 150mA	Less than 300mA	Less than 300mA	Less than 150mA	Less than 150mA / 280mA	Less than 150mA	Less than 60mA / 150mA	Less than 60mA / 150mA	Less than 80mA / 100mA / 150mA	Less than 80mA / 100mA / 150mA	Less than 20mA at 24V	Less than 20mA at 24V	Less than 30mA at 24V	Less than 30mA at 24V	Less than 150mA / 200mA	Less than 150mA / 200mA	Less than 500mA	Less than 1.5A	Less than 120mA	Less than 160mA	Less than 160mA	Less than 160mA	Less than 160mA
Laser power output	Optical power less than 10mW	Less than 1mW / 4mW	Less than 1mW / 4mW	Less than 1mW	Less than 1mW	0.7~0.9mW / 2~3mW / 5~6mW	Less than 1mW / 5mW	Less than 1mW / 5mW / 10mW	Less than 1mW / 4mW	Less than 1mW / 4mW / 15mW	Less than 1mW / 4mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW	0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW	0.2±0.1mW / 0.8±0.1mW / 3.5±0.5mW	Less than 1mW / 4mW	Less than 1mW / 4mW	70mW	400±20mW	0 to 4.25±0.25mW (adjustable)	Less than 0.39mW	Less than 1mW	Less than 0.39mW	Less than 1mW
Laser class		Class 2 / Class 3R	Class 2 / Class 3R	Class 2	Class 2	Class 2 / Class 3R / Class 3B	Class 2 / Class 3R	Class 2 / Class 3R / Class 3B	Class 2 / Class 3R	Class 2 / Class 3R / Class 3B	Class 2 / Class 3R	Class 1 / Class 2	Class 1 / Class 2	Class 1 / Class 2 / Class 3R	Class 1 / Class 2 / Class 3R	Class 1 / Class 2	Class 1 / Class 2	Class 1 / Class 2 / Class 3R	Class 1 / Class 2 / Class 3R	Class 2 / Class 3R	Class 2 / Class 3R	Class 3B	Class 3B	Class 3R	Class 1	Class 2	Class 1	Class 2
Wavelength	505~530nm	505~530nm	505~530nm	505~530nm	505~530nm	510~530nm	532nm	532nm	505~530nm	505~530nm	505~530nm	515~530nm	515~530nm	515~530nm	515~530nm	515~530nm	515~530nm	515~530nm	515~530nm	505~530nm	505~530nm	520nm	505~525nm	510~530nm	515~530nm	515~530nm	515~530nm	515~530nm
Collimating lens	Plastic lens	Plastic lens	Plastic lens	Plastic lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Output aperture	5mm	5mm	4mm	3mm	3mm	8mm			5mm	5mm	5mm	0.6mm	0.6mm	2mm	2mm	0.6mm	0.6mm	2mm	2mm	4.3mm	4.3mm	5mm	12.6mm	5mm	0.8mm	3mm	0.8mm	3mm
Beam shape	Ellipse	Ellipse	Ellipse	Ellipse	Ellipse	Circular	Circular	Circular	Ellipse	Ellipse	Ellipse	Circular	Circular	Circular	Circular	Circular	Circular	Circular	Circular	Ellipse	Ellipse	Ellipse	Ellipse	Ellipse	Circular	Circular	Circular	Circular
Spot size		Less than 4.5mm at 3M	Adjustment focus	Less than 4mm at 5M	Less than 4mm at 5M	Ø5.3 mm at 40M Ø15 mm at 100M	6±1mm at 3M	4±1mm at 5M 18±2mm at 30M	5±1mm at 10M	5±1mm at 10M	5±1mm at 10M	Less than 1mm at 0~50cm Less than 2mm at 50~90cm	Less than 1mm at 0~50cm Less than 2mm at 50~90cm	Less than Ø3mm at 0~5M	Less than Ø3mm at 0~5M	Less than 1mm at 0~50cm Less than 2mm at 50~90cm	Less than 1mm at 0~50cm Less than 2mm at 50~90cm	Less than Ø3mm at 0~5M	Less than Ø3mm at 0~5M	Less than 7mm at 10M	Less than 7mm at 10M	Less than 15mm at 10M	Less than 5±1cm at 100M	Less than 0.2mm at 10mm Less than 8mm at 10M	Less than 1.2mm at 1M	Less than 9mm at 20M	Less than 1.2mm at 1M	Less than 9mm at 20M
Divergence (Full Angle)	0.5 mRad	0.5 mRad	0.5 mRad	0.6 mRad	0.6 mRad	Less than 0.1 mRad	1 mRad	0.3 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.4 mRad	Less than 0.6 mRad	Less than 0.6 mRad		Less than 0.2 mRad	Adjustable 0.4 mRad to 12°	0.15 mRad	0.15 mRad	0.15 mRad	0.15 mRad
Beam alignment		Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	Less than 3°	±3°		Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm
Operating temp. range	+10°C ~+40°C	+10°C ~+40°C	+10°C ~+40°C	+15°C ~+30°C	+10°C ~+40°C	+10°C ~+50°C	+20°C ~+30°C	+15°C ~+35°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-10°C ~+60°C	-10°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C
Storage temp. range	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+80°C	-20°C ~+65°C	-40°C ~+70°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-40°C ~+85°C	-40°C ~+85°C	-20°C ~ +85°C	-20°C ~ +85°C	-20°C ~ +85°C	-40°C ~+85°C	-40°C ~+85°C	-40°C ~+85°C	-40°C ~+85°C
Housing material	Brass	Brass	Brass	Stainless steel	Zinc alloy	Aluminum	Brass	Brass	Aluminum	Stainless steel	Bronze	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Bronze	Bronze	Aluminum	Aluminum	Stainless steel	Stainless steel	Hard anodized aluminum	Hard anodized aluminum
Potential of housing	VDD(+)	VDD(+)	VDD(+)	VDD(+)	VDD(+)	Insulated	VDD(+)	VDD(+)	Insulated	Insulated	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	VDD(+)	VDD(+)	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated
Electrostatic discharge (ESD)		30KV	30KV	20KV	20KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV / Arc protection	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV
Moisture sensitivity level (MSL)		Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.
Wire type	3*PIN from LD	1007-26AWG	1007-26AWG / Spring	1007-26AWG	1007-26AWG / Spring	1007-26AWG	1007-26AWG / Spring	1007-26AWG / Spring	1007-26AWG	1007-26AWG	1007-26AWG / Spring	2464 2-WIRE CABLE 26 AWG	2464 3-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	2464 3-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	2464 3-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	2464 3-WIRE CABLE 26 AWG	1007-26AWG	1007-26AWG	1007-26AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	Type C	Type C	Type C	Type C
Cable length		115±15mm	115±15mm / 6.5±1mm	115±15mm	115±15mm / 4±1mm	115±15mm	115±15mm / 7±1mm	115±15mm / 6±1mm	115±15mm	115±15mm	115±15mm / 6.5±1mm	330±30mm	330±30mm	330±30mm	330±30mm	330±30mm	330±30mm	330±30mm	330±30mm	115±15mm	115±15mm	115±15mm	200±10cm	330±30mm
Mean time to failure (MTTF) 25°C	10000hrs	10000hrs	10000hrs	5000hrs	5000hrs	10000hrs	3000hrs	3000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs
Application	Lab, without laser driver	General purpose	Focus adjustable	Economic type	Economic type	Long range application	DPPS laser	DPPS laser	Industrial application	Industrial application	Industrial application	Industrial alignment	Industrial alignment with TTL modulation function	Industrial application	Industrial application with TTL modulation function	Industrial alignment	Industrial alignment with TTL modulation function	Industrial application	Industrial application with TTL modulation function	Economic industrial application	Economic industrial application	High power	Long-range targeting	Laboratory or Medical research and physical-optic experiments.	Concentricity Laser	Concentricity Laser	Concentricity Laser	Concentricity Laser
Suggestion work distance		1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	1~10 meters / 3~40 feet	1~10 meters / 3~40 feet	10~500 meters / 40~2000 feet	1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	0~0.9 meters / 0~3 feet	0~0.9 meters / 0~3 feet	0~5 meters / 0~16 feet	0~5 meters / 0~16 feet	0~0.9 meters / 0~3 feet	0~0.9 meters / 0~3 feet	0~5 meters / 0~16 feet	0~5 meters / 0~16 feet	1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	1~30 meters / 3~100 feet	10~1000 meters or above	Above 10mm	0~1 meters / 0~3 feet	1~30 meters / 3~100 feet	0~1 meters / 0~3 feet	1~30 meters / 3~100 feet
Datasheet download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download

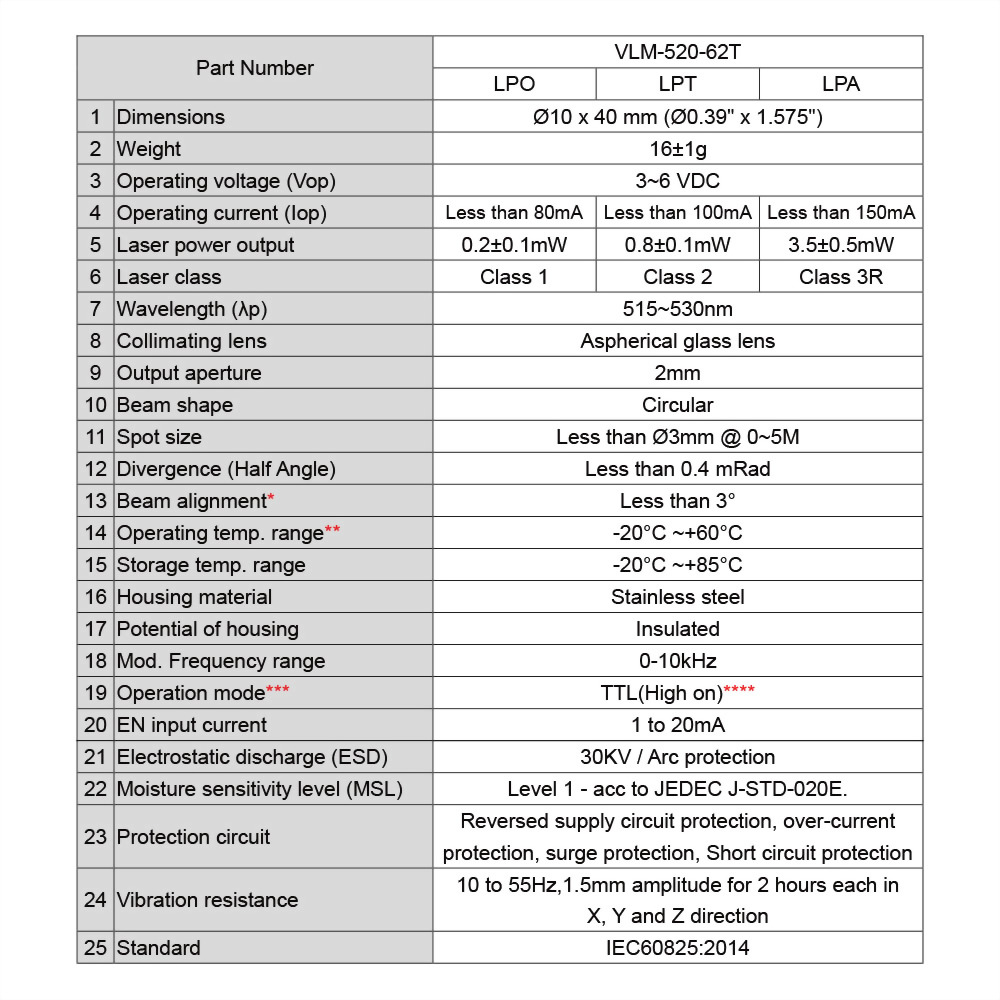

Part Number	VLM-520-62T
	LPO	LPT	LPA

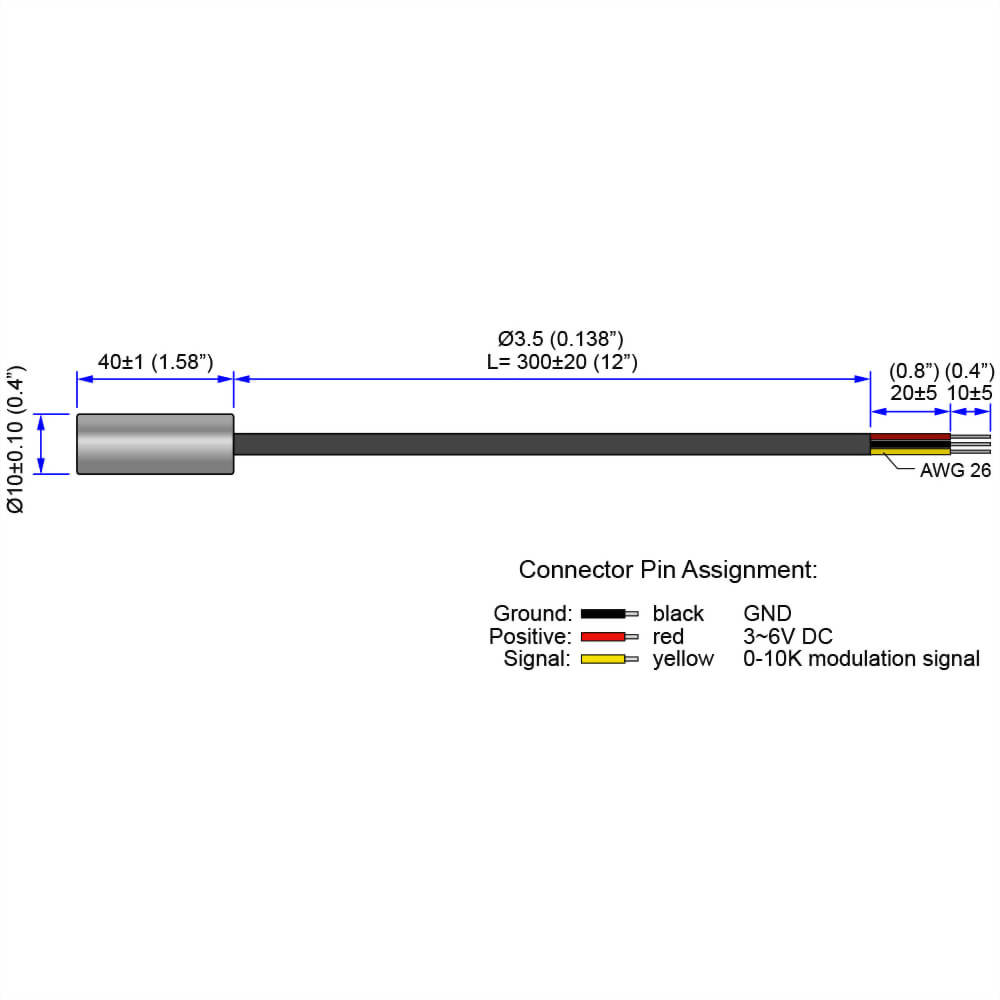

Dimensions	Ø10 x 40 mm (Ø0.39" x 1.575")
Weight	16±1g
Operating voltage (Vop)	3~6 VDC
Operating current (Iop)	Less than 80mA	Less than 100mA	Less than 150mA
Laser power output	0.2±0.1mW	0.8±0.1mW	3.5±0.5mW
Laser class	Class 1	Class 2	Class 3R
Wavelength (λp)	515~530nm
Collimating lens	Aspherical glass lens
Output aperture	2mm
Beam shape	Circular
Spot size	Less than Ø3mm @ 0~5M
Divergence (Half Angle)	Less than 0.4 mRad
Beam alignment*	Less than 3°
Operating temp. range**	-20°C ~+60°C
Storage temp. range	-20°C ~+85°C
Housing material	Stainless steel
Potential of housing	Insulated
Mod. Frequency range	0-10kHz
Operation mode***	TTL(High on)****
EN input current	1 to 20mA
Electrostatic discharge (ESD)	30KV / Arc protection
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.
Protection circuit	Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection
Vibration resistance	10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction
Standard	IEC60825:2014
Wire type	2464 3-WIRE CABLE 26 AWG
Cable length	330±30mm
Mean time to failure (MTTF) 25°C	10000 hrs
International Protection Marking	IP65
Application	Industrial application with modulation function
Suggestion work distance	0~5 meters / 0~16 feet

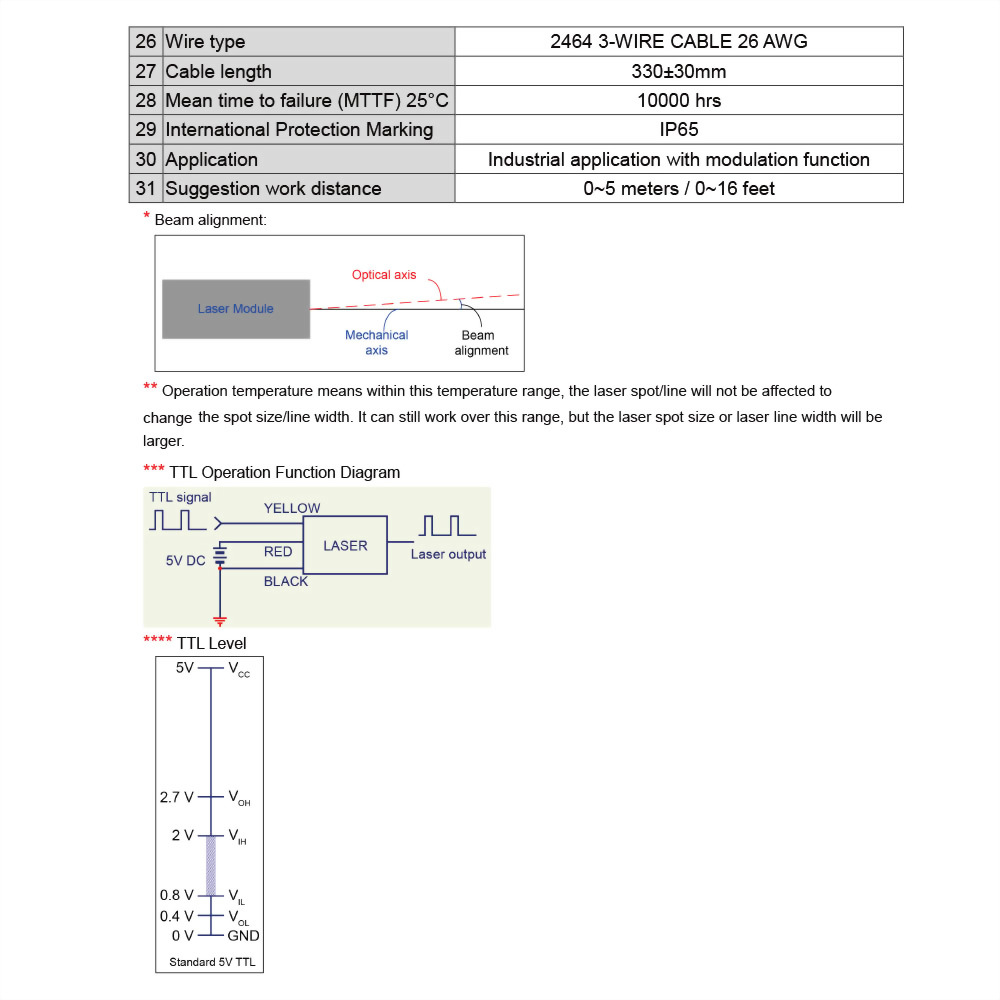

* Beam alignment:

** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.

*** TTL Operation Function Diagram
