Red Laser Line Generator ideal for indoor large alignment task or small table saw

Model : ML-100
Enhance your indoor cutting applications with our Red Laser Cutting Line Generator, a dependable guide for alignment in a variety of tasks such as small table saw use, construction projects, and process control. Featuring an improved design with a built-in tempered glass window and waterproof feature, our product is protected against sawdust and inclement weather damage, ensuring optimal performance in most large-field cutting applications.

FEATURES:

1.  Used as a guideline for use in alignment, small table saw, construction, and process control and is ideal for most large-field cutting or small table saw applications. Improved version with built-in tempered glass window and waterproof feature to be protected under all weather and sawdust damage from sawmill.

2.  Operating Temperature Range: -4 °F to 140 °F (-20 °C to +60 °C). Eye safe laser output.

3.  Dimensions: 4.60"(L) x 2.13" (W) x 2.32" (H) ( 117 x 54 x 59 mm ). Weight: 7.05 ±0.17 ounces (200±5g). Type C connector. 100~240V AC to DC adaptor and USB Type C cable included. Compatible with cell phone charger.

4.  When in heavy shock/vibration environments, users can place the rubber buffer between bottom chassis and surface. Laser line Width: less than 2mm at 4 meters. Emitting angle: more than 120°.

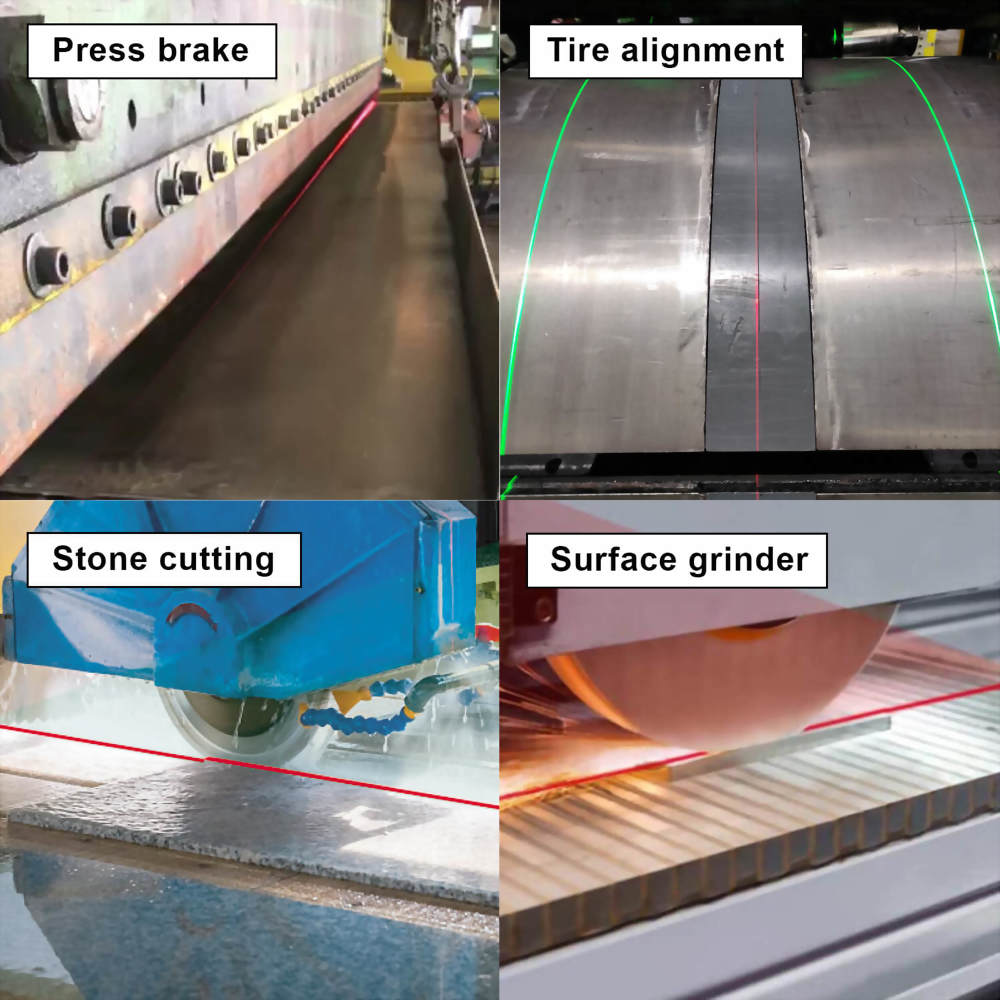

5.  Integrated quartz cylindrical lens, collimating lens, industrial grade laser diode, and APC driver circuit. APC Driver Circuit enables the Laser output power safe and constant. ML-100 Red Laser Line Generator – ideal for large scale cutting, small table saw and alignment work. Include stone, lumber, textile cutting and press brake, surface grinder, big pipe connections and tire manufacturing alignment.


The INFINITER ML-100 is a tool for professionals that enable you to project a visible red laser line, a line up to 100 feet long (at the distance of 29 feet) - suitable for large work surfaces indoor.
It can be used as a guideline in alignment, small table saw, construction and process control and is ideal for most large-field cutting applications. New feature: ML-100 is now waterproof!
ML-100 will save you time and increase your accuracy for many applications, such as wood cutting, stone cutting, and textile cutting.
Compact and lightweight features make it very convenient to mount the ML-100 to a small table saw or a cutting machine - saving you time and money.
The adjustable housing allows for easy mounting and aiming of the highly visible red laser line.
It is easy to adjust the module housing into position so you can project the laser line angle you want.
The US Wall Mount Type Power Adapter is included!

ML-100 & ML-200 Applications video:


ML-100 / ML-200 demonstration:


ML-100 & ML-200 applying to press brake video:



Where to buy


Comparison sheet

Model Number

Specifications

ML-100 ML-200 ML-300 ML-400
Visibility Best fit for all indoor work Visible under direct sunlight Crosshairs mark for all indoor and outdoor work Maximum visibility under direct sunlight for large scale alignment
Dimensions 4.60”x2.13”x2.32”
(11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.60”x2.13”x2.32”
(11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.60”x2.13”x2.32”
(11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.92”x2.16”x2.36”
(12.5cm X 5.5cm X 6cm)
Switch cable : 67.5±1cm
Weight 200±5g / 7.05±0.17 oz. 200±5g / 7.05±0.17 oz. 200±5g / 7.05±0.17 oz. 300±5g / 10.58±0.17 oz.
Power Type C (adapter included) Type C (adapter included) Type C (adapter included) Type C (adapter included)
Laser power output CL II CW mode CL II CW mode CL II CW mode CL II CW mode
Wavelength 635 nm (Red) 520 nm (Green) 520 nm (Green) 520 nm (Green)
Width of laser line Less than 2mm at 4M Less than 3mm at 5M Less than 3mm at 5M Less than 3mm at 5M
Emitting angle More than 120° More than 120° More than 80° More than 120°
Operating temp range -20°C ~+60°C/
-4°F ~+140°F
-20°C ~+60°C/
-4°F ~+140°F
-20°C ~+60°C/
-4°F ~+140°F
-20°C ~+60°C/
-4°F ~+140°F
Housing Metal / Black anodized Metal / Black anodized Metal / Black anodized Metal / Black anodized
Datasheet download Download Download Download Download

Model name

ML-100

ML-200

Dimension(L x W x H)

4.60”x2.13”x2.32” (11.7cm x 5.4cm x 5.9cm)

4.60”x2.13”x2.32” (11.7cm x 5.4cm x 5.9cm)

Weight

200±5g / 7.05±0.17 oz.

200±5g / 7.05±0.17 oz.

Wavelength

635 nm (Red)

520 nm (Green)

Width of laser line

<2mm at 4M

<3mm at 5M

Output power

CL II CW mode

Operating temp range

-20°C ~ 60°C / -4°F ~ 140°F

Emitting angle

>120

Housing

Metal

Finishing

Black anodized

Power

Type C (adapter included)
