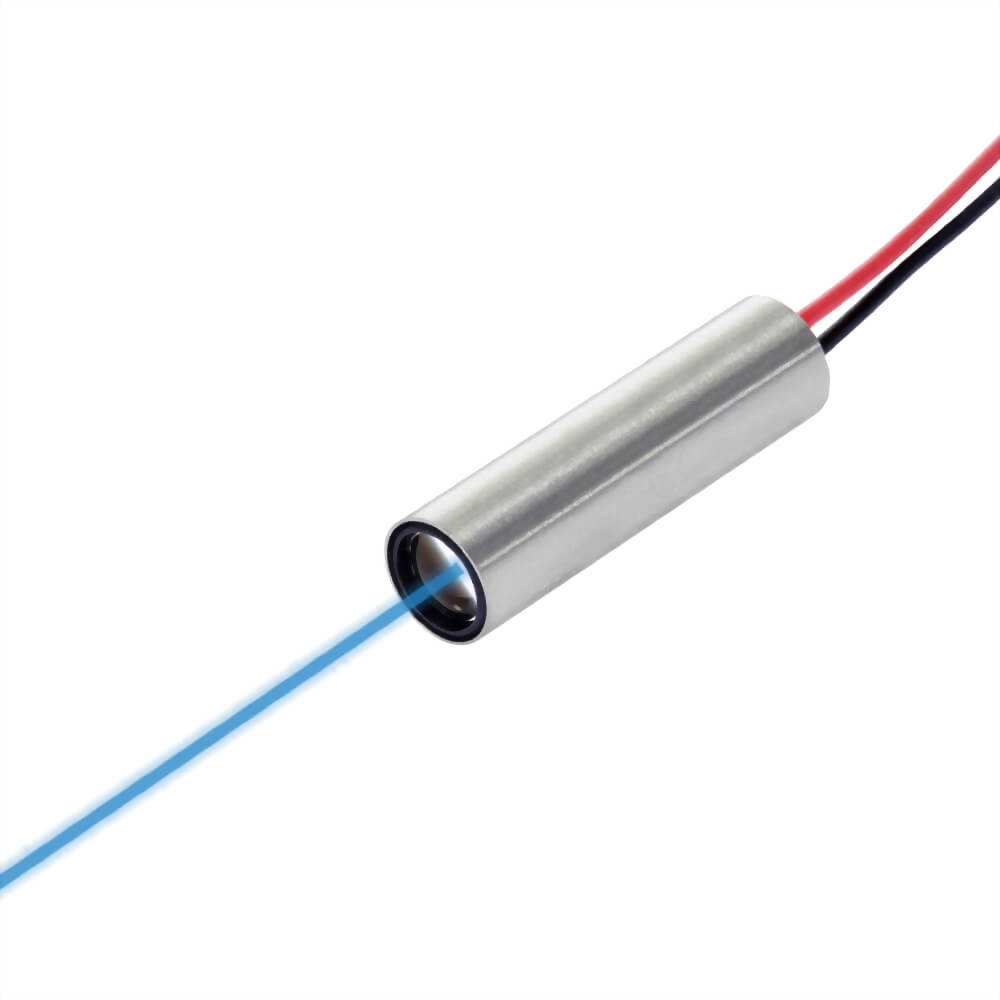

Industrial Blue Dot Laser
FEATURES:
1. Designed and manufactured in Taiwan, ensuring exceptional quality and durability.
2. This module is an industrial-grade product that integrates an aspherical glass collimating lens, a blue laser diode, and an ACC driver circuit into a compact and durable stainless steel housing.
3. Delivers a high-quality laser spot, supports a wide operating temperature range, and offers a 10,000-hours lifespan for reliable performance in diverse environments.
4. Compact design with an integrated Auto-Current-Control (ACC) driver circuit for safe and consistent laser output.
5. A visible blue wavelength producing a sharp, high-contrast beam. Blue lasers are highly visible and effective for projection and fluorescence excitation.
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
Quarton inc. places emphasis on laser safety
About APC (automatic power control) circuit:
The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.
|

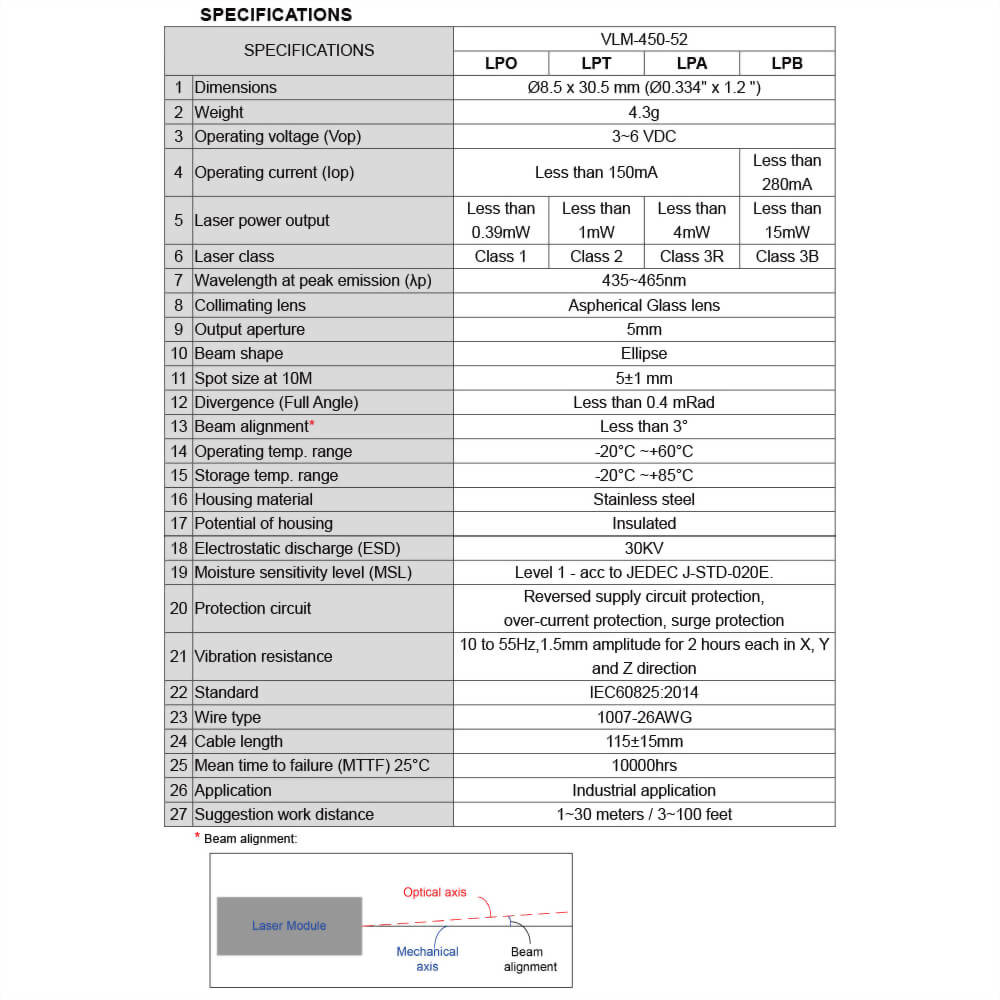

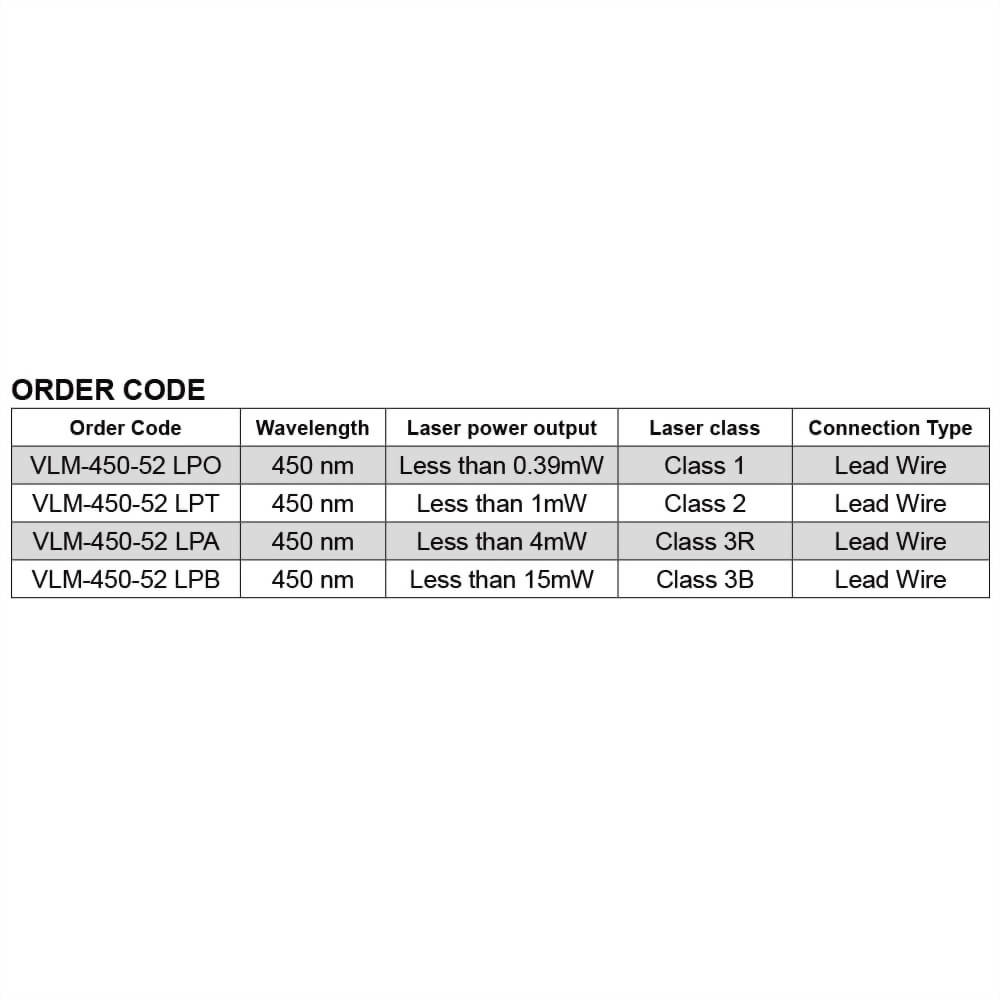

SPECIFICATIONS |
VLM-450-52 |
|||
|
LPO |
LPT |
LPA |
LPB |
|
|

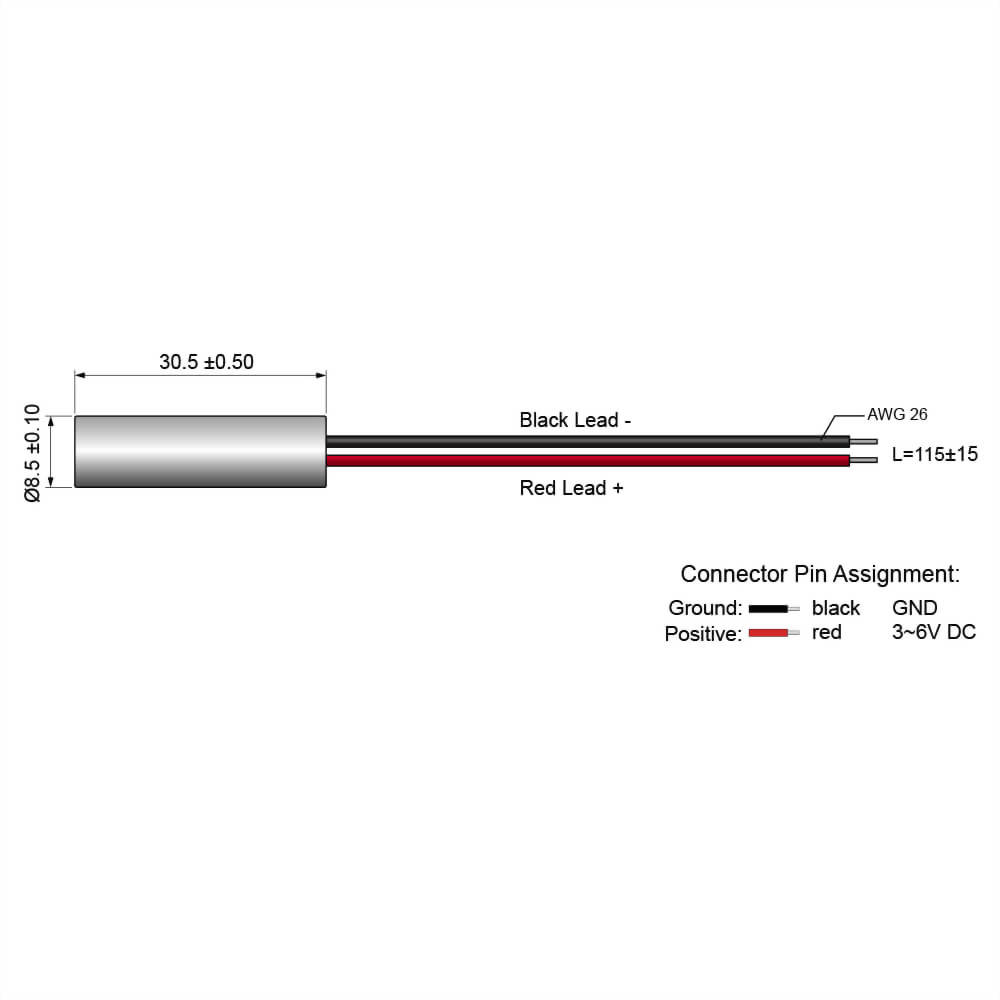

Dimensions |
Ø8.5 x 30.5 mm (Ø0.334" x 1.2 ") |
|||
|
Weight |
4.3g |
|||
|
Operating voltage (Vop) |
3~6 VDC |
|||
|
Operating current (Iop) |
Less than 150mA |
Less than 280mA |
||
|
Laser power output |
Less than 0.39mW |
Less than 1mW |
Less than 4mW |
Less than 15mW |
|
Laser class |
Class 1 |
Class 2 |
Class 3R |
Class 3B |
|
Wavelength at peak emission (λp) |
435~465nm |
|||
|
Collimating lens |
Aspherical Glass lens |
|||
|
Output aperture |
5mm |
|||
|
Beam shape |
Ellipse |
|||
|
Spot size at 10M |
5±1 mm |
|||
|
Divergence (Full Angle) |
Less than 0.4 mRad |
|||
|
Beam alignment* |
Less than 3° |
|||
|
Operating temp. range |
-20°C ~+60°C |
|||
|
Storage temp. range |
-20°C ~+85°C |
|||
|
Housing material |
Stainless steel |
|||
|
Potential of housing |
Insulated |
|||
|
Electrostatic discharge (ESD) |
30KV |
|||
|
Moisture sensitivity level (MSL) |
Level 1 - acc to JEDEC J-STD-020E. |
|||
|
Protection circuit |
Reversed supply circuit protection, over-current protection, surge protection |
|||
|
Vibration resistance |
10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction |
|||
|
Standard |
IEC60825:2014 |
|||
|
Wire type |
1007-26AWG |
|||
|
Cable length |
115±15mm |
|||
|
Mean time to failure (MTTF) 25°C |
10000hrs |
|||
|
Application |
Industrial application |
|||
|
Suggestion work distance |
1~30 meters / 3~100 feet |
|||
* Beam alignment:
