Green Line Laser Module
The newly developed glass line lens come with various fan angles and they produce high quality uniform laser line in a robust stainless housing, ideal for automation, machine vision, image processing, digital data acquisition, counting, precision 3D scanner and science & medical application. They are available at 10 cm, 20 cm, 40 cm and 90 cm focus length, red & green wavelength, Class 1M and Class 2M laser class to cover within 1 meter range task. For customized focus length, wavelength and laser power output, please contact us.
FEATURES:
1. Built with high precision glass line lens and glass laser collimating lens.

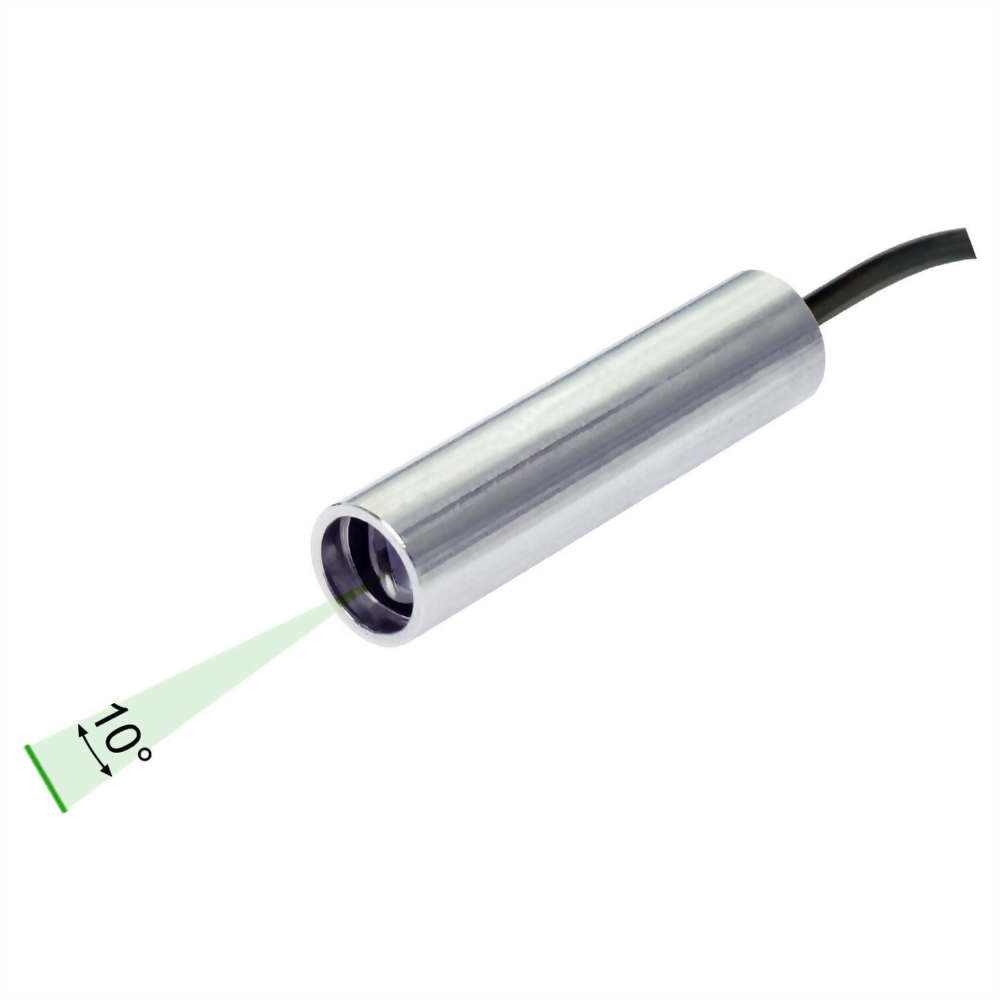

2. Fan Angle : 10°
Laser line demonstration :
Selection Guide:
The new series of line and crosshair laser modules are for those applications that need super fine line and super fine crosshair.
Ideal for machine version, automation, imagine processing, medical, science, precision 3D scanning, measurement, counting and precision alignment.
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
|

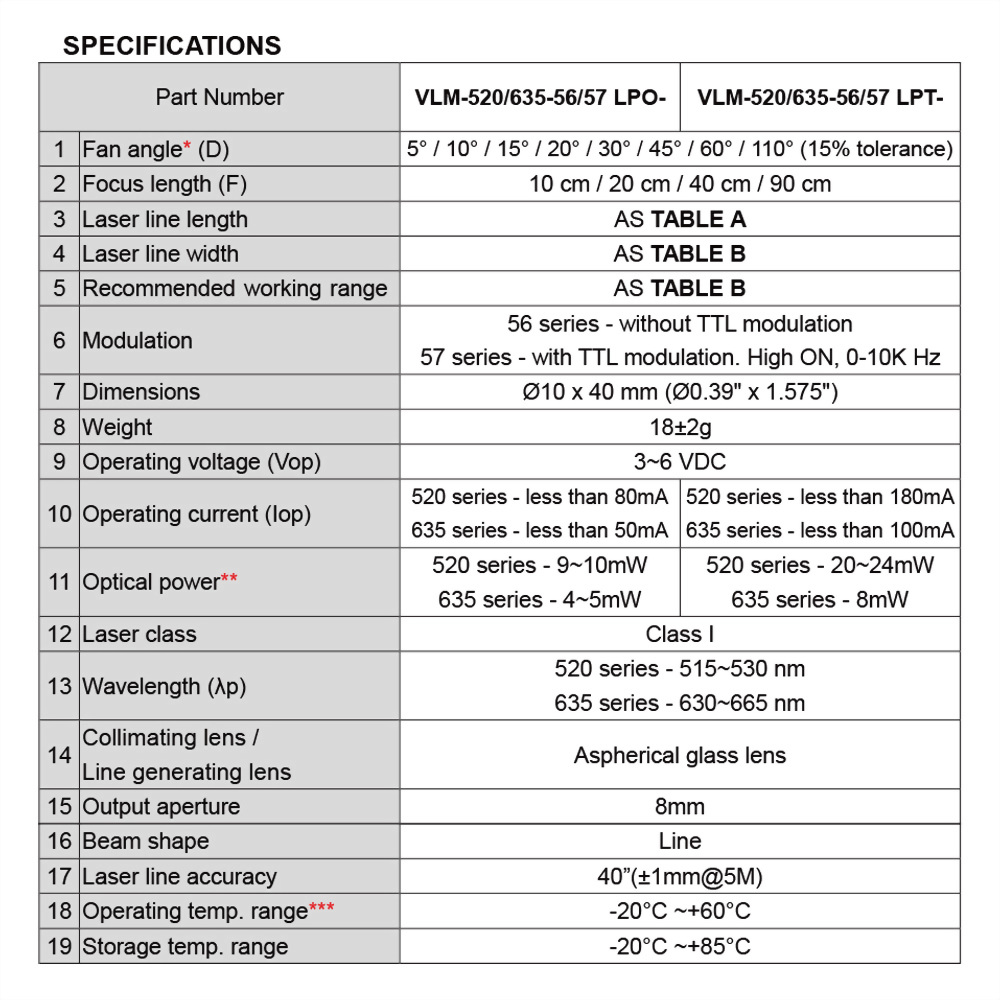

Model Number Specifications |
VLM-520-27 series | VLM-520-28 LPT | VLM-520-37 series | VLM-520-55 series | VLM-520-56 series | VLM-520-57 series |
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
| Dimensions | Ø12.5 x 30 mm | Ø9 x 33 mm | (W)14 x (H)14 x (L)26 mm | Ø10 x 38 mm | Ø10 x 40 mm | Ø10 x 40 mm |
| Operating voltage | 7~10 VDC | 7~10 VDC | 7~10 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC |
| Operating current | Less than 80mA / 100mA | Less than 100mA | Less than 80mA / 120mA | Less than 200mA | Less than 80mA / 180mA | Less than 80mA / 180mA |
| Optical power | 4~5mW / 9~10mW | Less than 4.5mW | 4~5mW / 9~10mW | 4~5mW / 9~10mW | Less than 10mW / 30mW | Less than 10mW / 30mW |
| Laser power output | Less than 0.39mW / 1mW | Less than 0.39mW | Less than 0.39mW / 1mW | Less than 0.39mW / 1mW | Less than 0.39mW / 1mW | Less than 0.39mW / 1mW |
| Laser class | Class 1M / Class 2M | Class 1M | Class 1M / Class 2M | Class 1M / Class 2M | Class 1M / Class 2M | Class 1M / Class 2M |
| Wavelength | 505~530nm | 510~530nm | 505~530nm | 510~530nm | 515~530nm | 515~530nm |
| Collimating lens | Plastic lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens |
| Line lens | Plastic lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens |
| Beam shape | Line | Line | Line | Line | Line | Line |
| Laser Line width | Less than 3.5mm at 10M | 1.2mm at 1M |
2±1mm at 5M 4±1mm at 10M |
3±0.5mm at 5M 6±0.5mm at 10M |
Less than 1mm | Less than 1mm |
| Laser line accuracy | 40” (±1mm @5M) | 80” (+/- 2mm @5M) | 20" (± 1mm @10m) | 40”(±1mm@5M) | 40”(±1mm@5M) | 40”(±1mm@5M) |
| Emitting angle | More than 90° | More than 60° | More than 120° | More than 90° | 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110° | 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110° |
| Operating temp. range | +15°C ~+30°C | +15°C ~+30°C | -20°C ~+50°C | -20°C ~+65°C | -20°C ~+60°C | -20°C ~+60°C |
| Storage temp. range | -20°C ~+65°C | -20°C ~+65°C | -40°C ~+70°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+85°C |
| Housing material | Brass | Brass | Aluminum | Aluminum | Stainless steel | Stainless steel |
| Potential of housing | VDD(+) | VDD(+) | Insulated | Insulated | Insulated | Insulated |
| Electrostatic discharge (ESD) | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV |
| Moisture sensitivity level (MSL) | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. |
| Wire type | 1007-26AWG | 1007-26AWG | 1007-26AWG | 1007-26AWG | 2464 2-WIRE CABLE 26 AWG | 2464 2-WIRE CABLE 26 AWG |
| Cable length | 115±15mm | 115±15mm | 115±15mm | 115±15mm | 330±30mm | 330±30mm |
| Mean time to failure (MTTF) 25°C | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs |
| Application | General industrial alignment | Economic 3D scanner | Precision industrial alignment | Precision industrial alignment | Precision fine line for Automation, Machine vision and Medical | Precision fine line for Automation, Machine vision and Medical with modulation function |
| Suggestion work distance | Above 2 meters | 0.3~1.8 meters / 1~6 feet | 1~20 meters / 3~60 feet | 1~20 meters / 3~60 feet | 0~1.2 meters / 0~4 feet | 0~1.2 meters / 0~4 feet |
| Datasheet download | Download | Download | Download | Download | Download | Download |
|
Part Number |
VLM-520-56 LPO-D10- |
VLM-520-56 LPT-D10- |
||||||
|
F10 |
F20 |
F40 |
F90 |
F10 |
F20 |
F40 |
F90 |
|
|
Focus length |
10 cm |
20 cm |
40 cm |
90 cm |
10 cm |
20 cm |
40 cm |
90 cm |
|

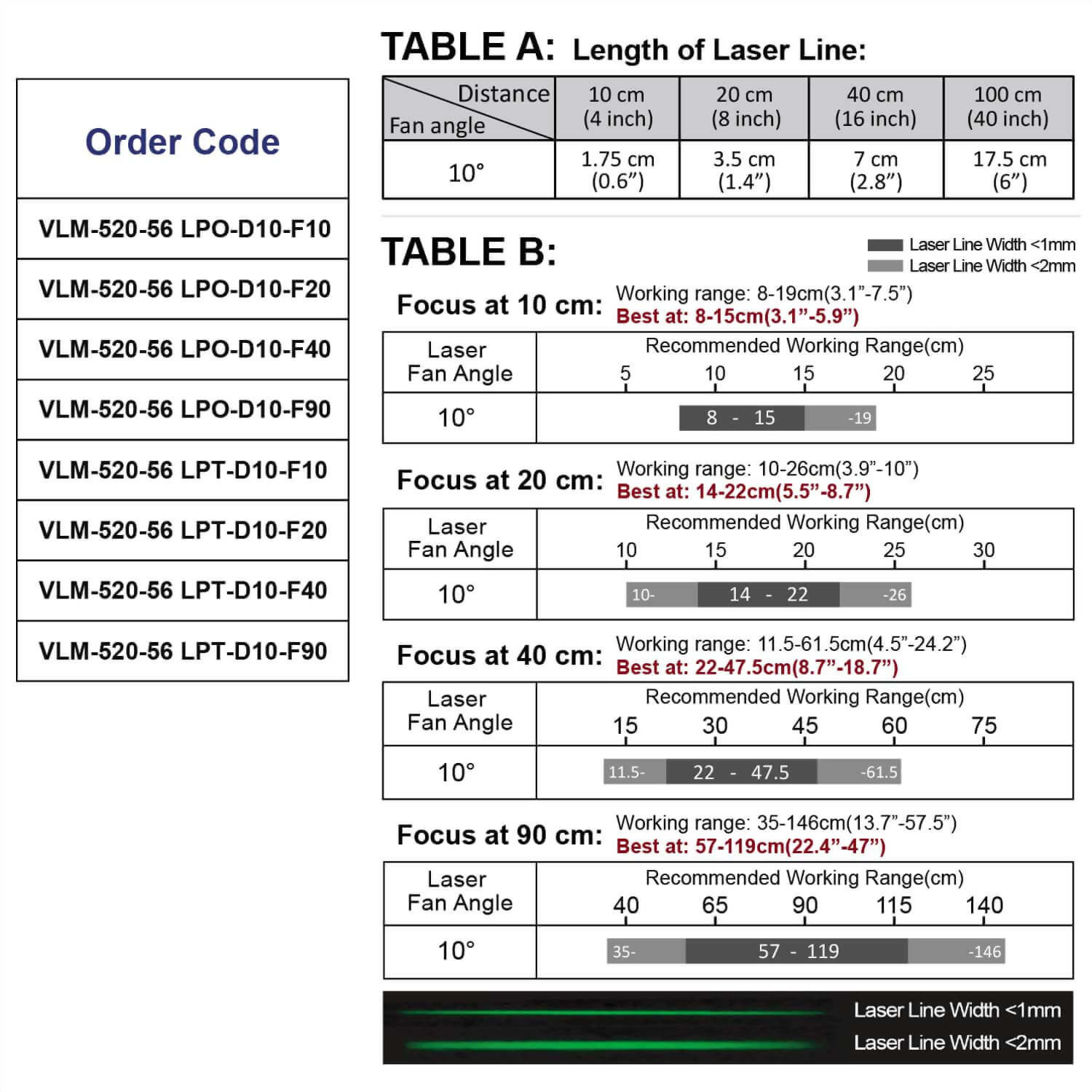

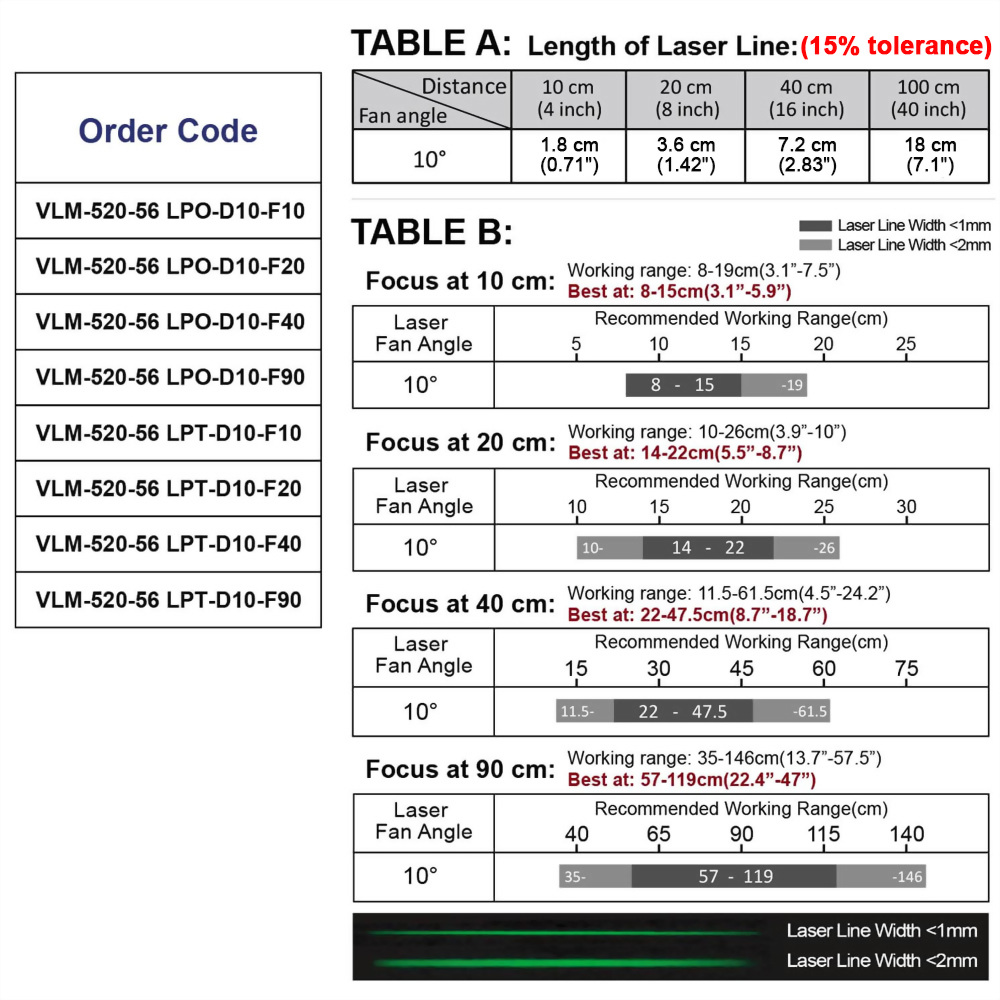

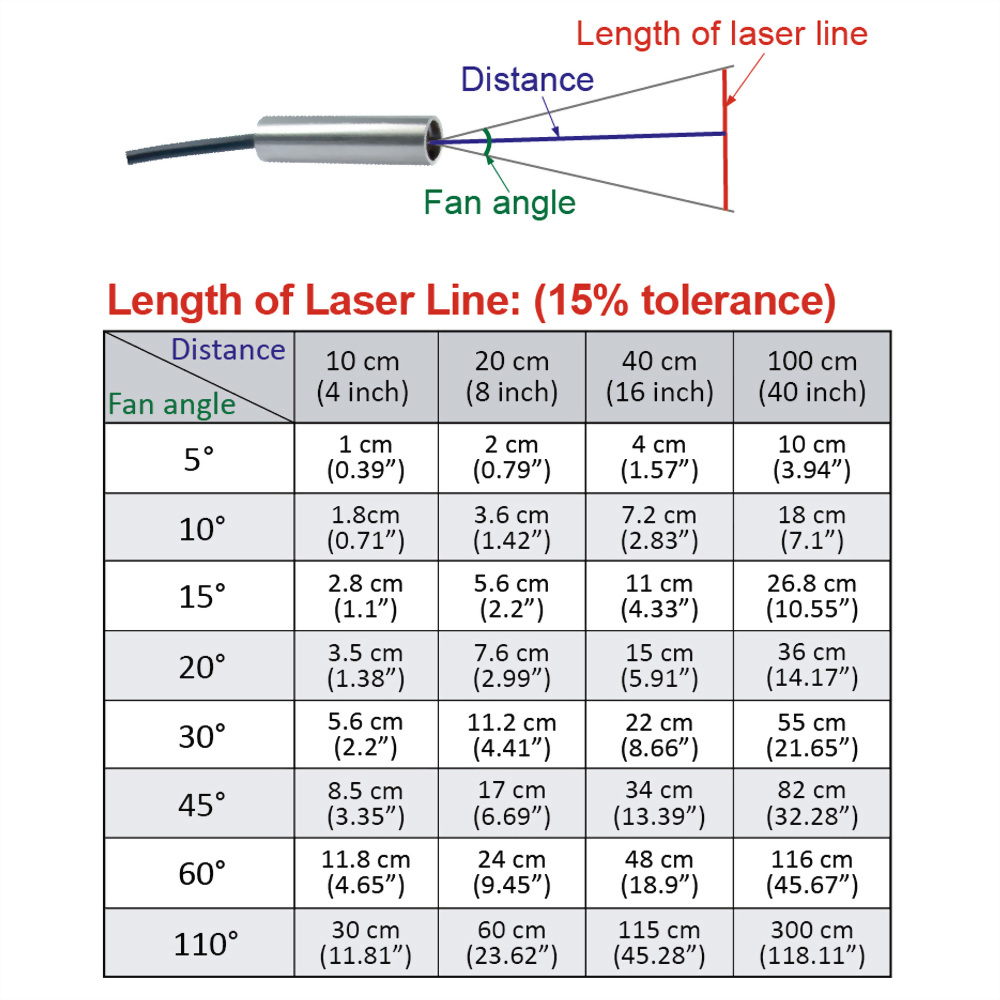

Fan angle / Laser line length |
10° / Length of Laser Line as TABLE A |
|||||||
|
Laser line width |
AS TABLE B |
|||||||
|
Recommended working range |
AS TABLE B |
|||||||
|
Dimensions |
Ø10 x 40 mm (Ø0.39" x 1.575") |
|||||||
|
Weight |
17±1g |
|||||||
|
Operating voltage (Vop) |
3~6 VDC |
|||||||
|
Operating current (Iop) |
Less than 80mA |
Less than 180mA |
||||||
|
Optical power* |
Less than 10mW |
Less than 30mW |
||||||
|
Laser power output** |
Less than 0.39mW |
Less than 1mW |
||||||
|
Laser class |
Class 1M |
Class 2M |
||||||
|
Wavelength (λp) |
515~530nm |
|||||||
|
Collimating lens / Line generating lens |
Aspherical glass lens |
|||||||
|
Output aperture |
8mm |
|||||||
|
Beam shape |
Line |
|||||||
|
Laser line accuracy |
40”(±1mm@5M) |
|||||||
|

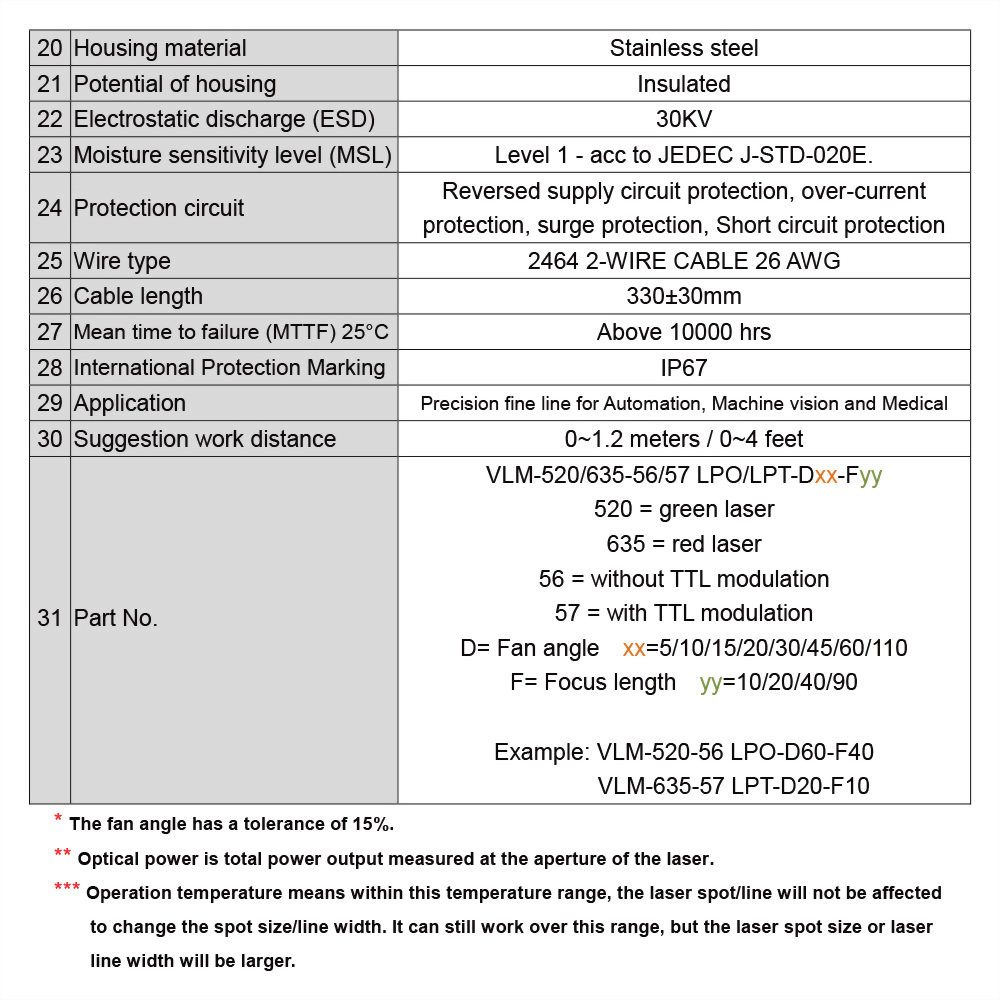

Operating temp. range*** |
-20°C ~+60°C |
|||||||
|
Storage temp. range |
-20°C ~+85°C |
|||||||
|
Housing material |
Stainless steel |
|||||||
|
Potential of housing |
Insulated |
|||||||
|
Electrostatic discharge (ESD) |
30KV |
|||||||
|
Moisture sensitivity level (MSL) |
Level 1 - acc to JEDEC J-STD-020E. |
|||||||
|
Wire type |
2464 2-WIRE CABLE 26 AWG |
|||||||
|
Cable length |
330±30mm |
|||||||
|
Mean time to failure (MTTF) 25°C |
Above 10000 hrs |
|||||||
|
International Protection Marking |
IP67 |
|||||||
|
Application |
Precision fine line for Automation, Machine vision and Medical |
|||||||
|
Suggestion work distance |
0~1.2 meters / 0~4 feet |
|||||||
* Optical power is total power output measured at the aperture of the laser.
** According to FDA 1040.10 & IEC 60825-1 regulations, laser power output is measured by 7mm aperture stop from a 10 cm distance of the laser.
*** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
