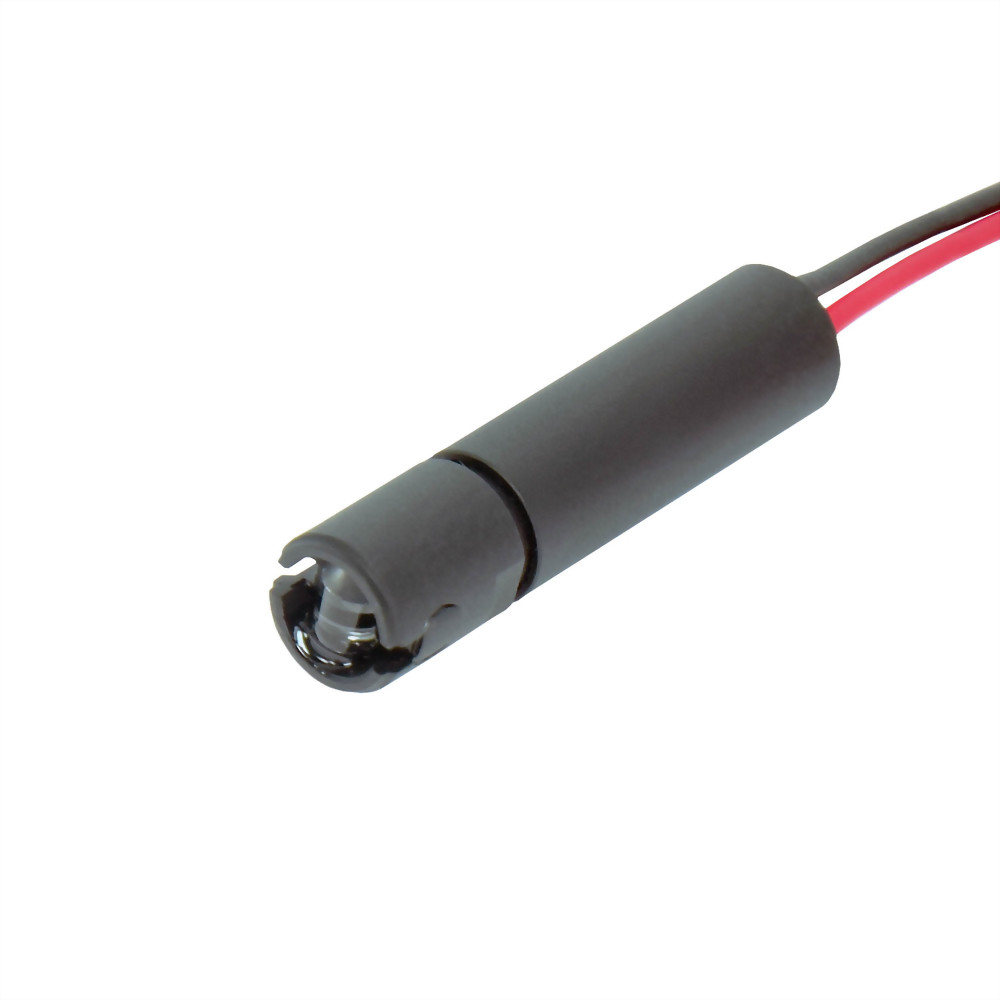

Mini-Size Red Line Laser Module

Model : VLM-650-23 LPO

Mini-Size Red Line Laser module ideal for: Robotic arm, Automotive industry, Alignment work, Medical & Science, Microscope alignment.

Q'ty :

Description
Specifications

FEATURES:

1. The smallest laser line module for alignment tasks in limited spaces, such as robotic arms and micro scopes…etc.

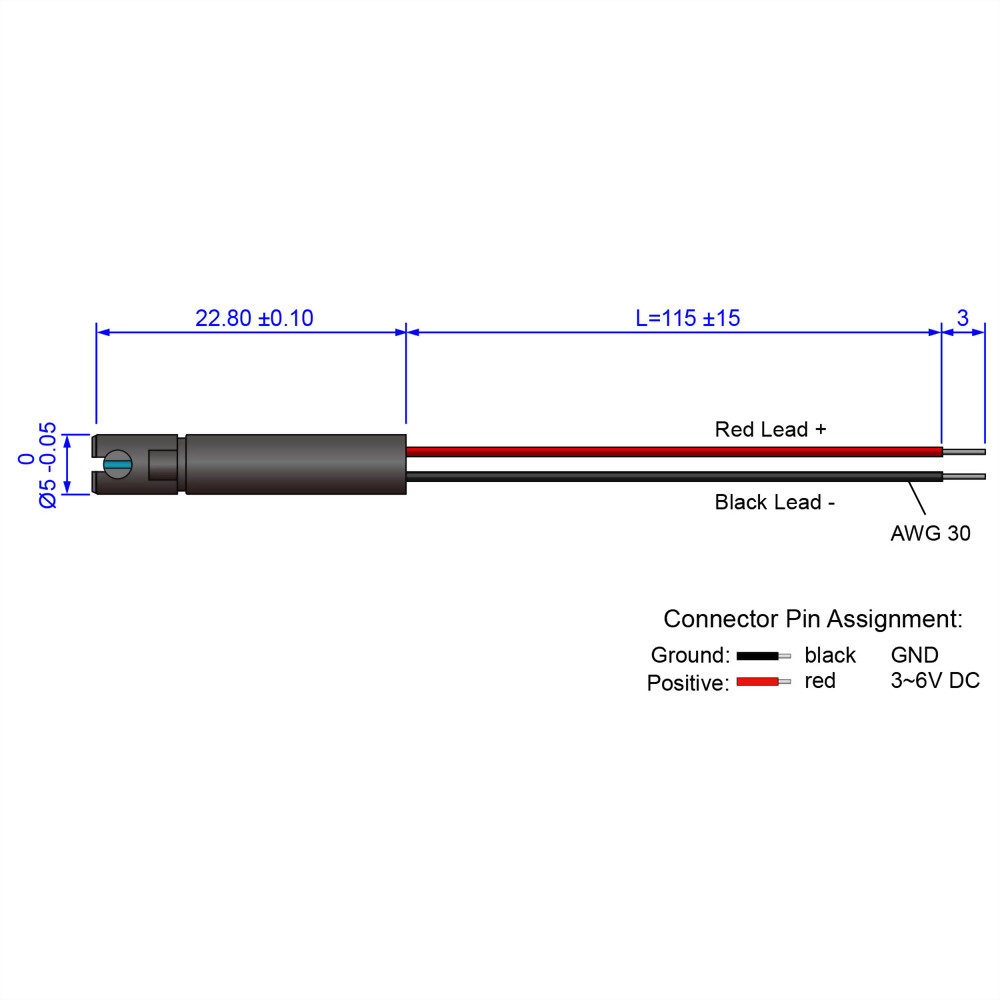

2. Dimensions : Ø5 x 22.8 mm (Ø0.196" x0.89 ")

3. Quartz cylindrical lens provides Line Laser.

4. This module has integrated optic, laser diode, and APC driver circuit.

Laser products manufactured by Quarton inc. meet the international safety standards:

USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS

Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.

Where to buy

Comparison sheet

Model Number Specifications	VLM-650-23 LPO	VLM-635-27 series VLM-650-27 series	VLM-650-28 LPT	VLM-650-30 series	VLM-635-37 series VLM-650-37 series	VLM-650-41 series	VLM-635-55 series	VLM-635-56 series	VLM-635-57 series	VLM-650-66 series	VLM-650-67 series	VLM-POWELL series

Dimensions	Ø5 x 22.8 mm	Ø12.5 x 30 mm	Ø9 x 26 mm	Ø10 x 27.1 mm	(W)14 x (H)14 x (L)26 mm	Ø10 x 26 mm	Ø10 x 38 mm	Ø10 x 40 mm	Ø10 x 40 mm	M12 x 68 mm	M12 x 68 mm	Ø10 x 68 mm
Operating voltage	3~6 VDC	2.6~6 VDC	2.6~6 VDC	3~6 VDC	2.6~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	10~36 VDC	10~36 VDC	3~6 VDC 10~36 VDC
Operating current	Less than 50mA	Less than 50mA / 55mA Less than 35mA / 100mA	Less than 35mA	Less than 40mA / 60mA	Less than 50mA Less than 35mA / 100mA		Less than 80mA / 100mA	Less than 50mA / 100mA	Less than 50mA / 100mA	Less than 20mA at 24V	Less than 20mA at 24V	Less than 55mA
Optical power	Less than 5mW	Less than 2mW / 4~5mW Less than 2mW / 12~15mW	Less than 2mW	Less than 5mW / 20mW	4~5mW / 12~15mW	Less than 2.5mW / 20mW	Less than 4~5mW / 9~10mW	Less than 5mW / 10mW	Less than 5mW / 10mW	Less than 0.39mW / 5~7mW	Less than 0.39mW / 5~7mW	8±0.5mW
Laser class	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I
Wavelength	640~655nm	630~645nm / 645~665nm	645~665nm	635~665nm	630~645nm / 645~665nm	635~665nm	630~645nm	630~665nm	630~665nm	630~665nm	630~665nm	640~665nm
Collimating lens	Glass lens	Plastic lens	Plastic lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Line lens	Glass lens	Plastic lens	Plastic lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Beam shape	Line	Line	Line	Line	Line	Line	Line	Line	Line	Line	Line	Line
Laser Line width	Less than 1.5mm at 2.5 meters	3 ±0.5mm at 5M 6 ±0.5mm at 10M	1.2mm at 1M	Less than 1.6mm at 40CM	2±1mm at 5M 4±1mm at 10M	Less than 1.2mm / 1.5mm	3±0.5mm at 5M 6±0.5mm at 10M	Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm
Laser line accuracy	4/1000(<1.6mm @400mm)	40” (±1mm @5M)	1/100	4/1000(less than 1.6mm @400mm)	20" (± 1mm @10m)	1/100	40”(±1mm@5M)	40”(±1mm@5M)	40”(±1mm@5M)	4/1000(<1.6mm @400mm)	4/1000(<1.6mm @400mm)	4/1000(<1.6mm @400mm)
Emitting angle	50°±5°	More than 90°	More than 60°	60° / 90°	More than 120°	60° / 90°	60°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 15°, 30°, 60°, 110°	5°, 15°, 30°, 60°, 110°	45°±5° / 75°±5°
Operating temp. range	-20°C ~+65°C	+10°C ~+40°C	+15°C ~+30°C	+15°C ~+40°C	-20°C ~+50°C	+15°C ~+40°C	-20°C ~+65°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C
Storage temp. range	-20°C ~+85°C -20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-40°C ~+70°C	-20°C ~+65°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C
Housing material	Aluminum	Brass	Brass	Aluminum	Aluminum	Aluminum	Aluminum	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Aluminum
Potential of housing	Insulated	VDD(+)	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated
Electrostatic discharge (ESD)	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.
Wire type	1007-30AWG	1007-26AWG	1007-26AWG	1007-26AWG	1007-26AWG	1007-26AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	UL-2464/22 AWG	UL-2464/22 AWG	UL-2464/22 AWG
Cable length	115±15mm	115±15mm	115±15mm	250±10mm	115±15mm	115±15mm	330±30mm	330±30mm	330±30mm	UL2464 D4.2,L=2000±30mm	UL2464 D4.2,L=2000±30mm	D4.2,L=2000±30mm
Mean time to failure (MTTF) 25°C	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	5000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs
Application	Alignment tasks in limited space	General industrial alignment	Economic 3D scanner	Precision 3D scanner	Precision industrial alignment	Precision 3D scanner	Precision industrial alignment	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function	Scanning, Image processing, Medical & Science, Automatic industry, Robotic arm
Suggestion work distance	0~2.5 meters / 0~8 feet	Above 2 meters	0.3~1.8 meters / 1~6 feet	20~60 cm / 8"~24"	1~20 meters / 3~60 feet	20~60 cm / 8"~24"	1~20 meters / 3~60 feet	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet	0~5 meters / 0~16 feet	0~5 meters / 0~16 feet
Datasheet download	Download	Download Download	Download	Download	Download Download	Download	Download	Download	Download	Download	Download	Download

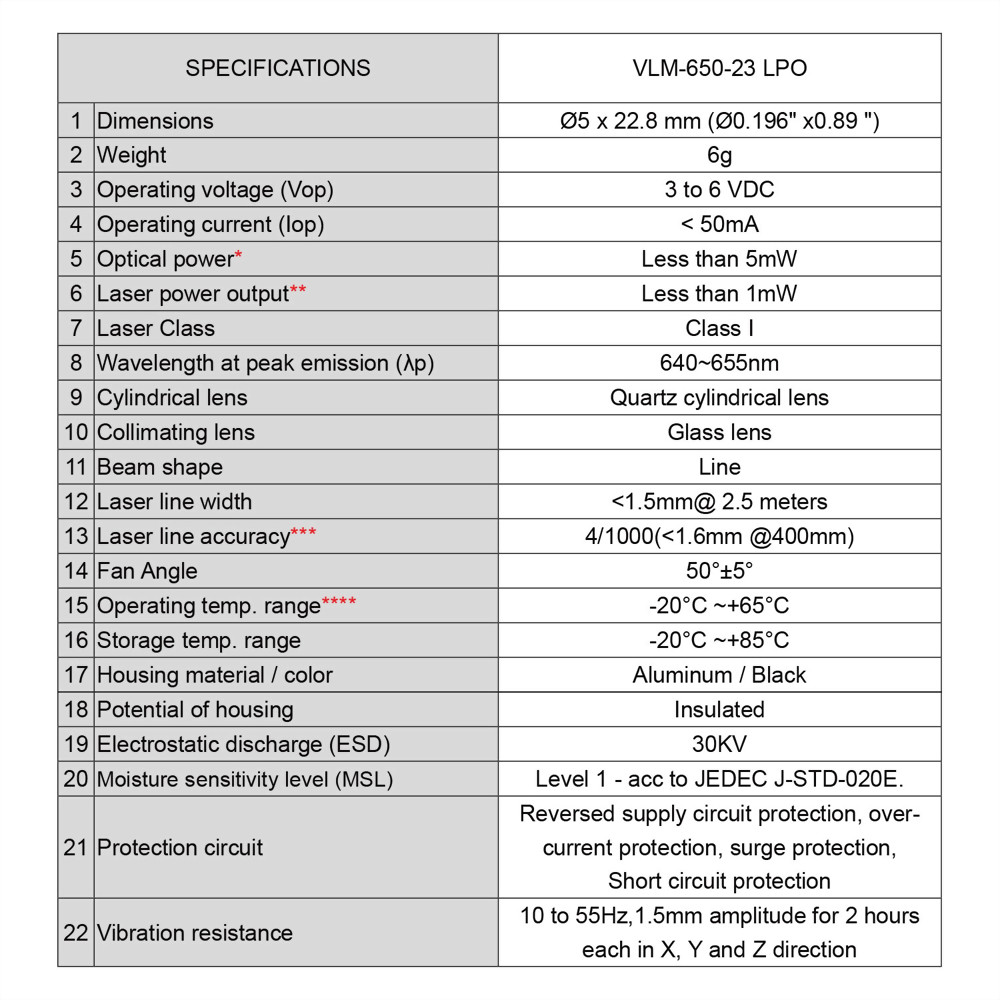

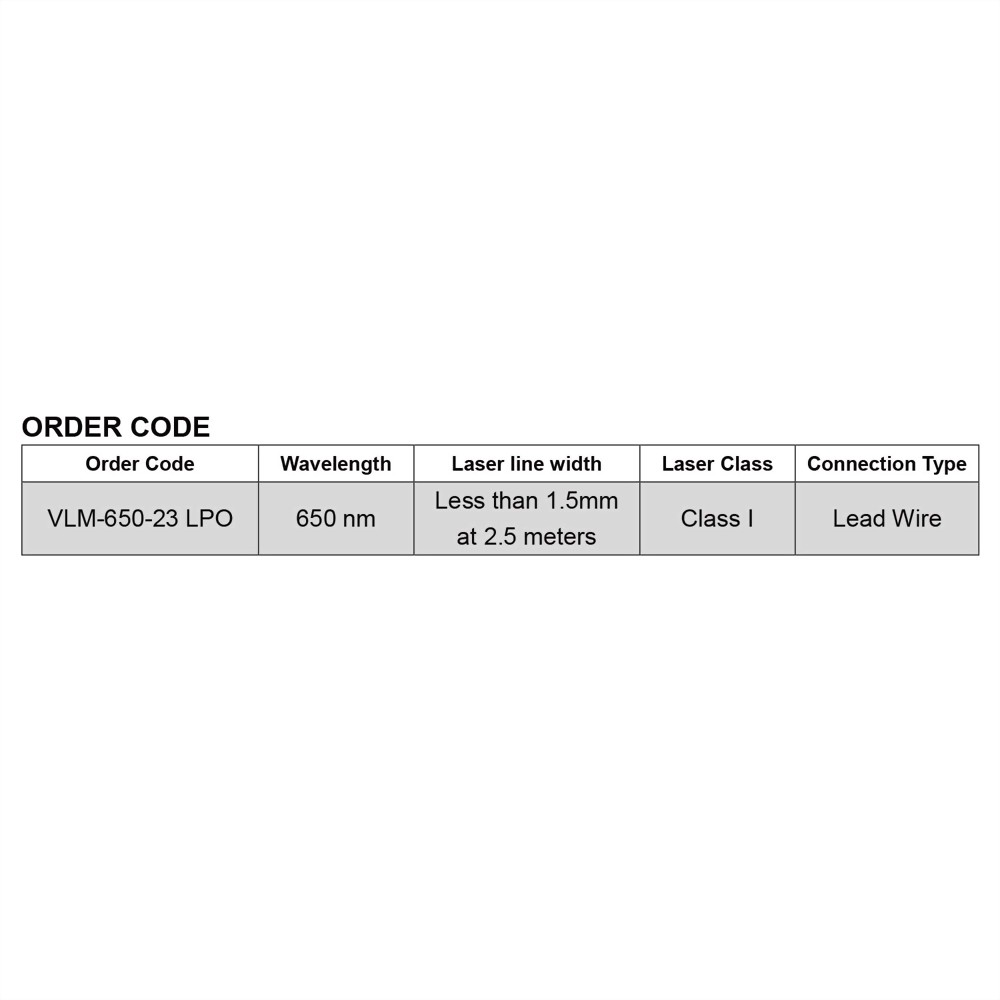

	VLM-650-23 LPO
Dimensions	Ø5 x 22.8 mm (Ø0.196" x0.89 ")
Weight	6g
Operating voltage (Vop)	3 to 6 VDC
Operating current (Iop)	< 50mA
Optical power*	Less than 5mW
Laser power output**	Less than 1mW
Laser Class	Class I
Wavelength at peak emission (λp)	640~655nm
Cylindrical lens	Quartz cylindrical lens
Collimating lens	Glass lens
Beam shape	Line
Laser line width	<1.5mm@ 2.5 meters
Laser line accuracy***	4/1000(<1.6mm @400mm)
Fan Angle	50°±5°
Operating temp. range****	-20°C ~+65°C
Storage temp. range	-20°C ~+85°C
Housing material / color	Aluminum / Black
Potential of housing	Insulated
Electrostatic discharge (ESD)	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.
Protection circuit	Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection
Vibration resistance	10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction

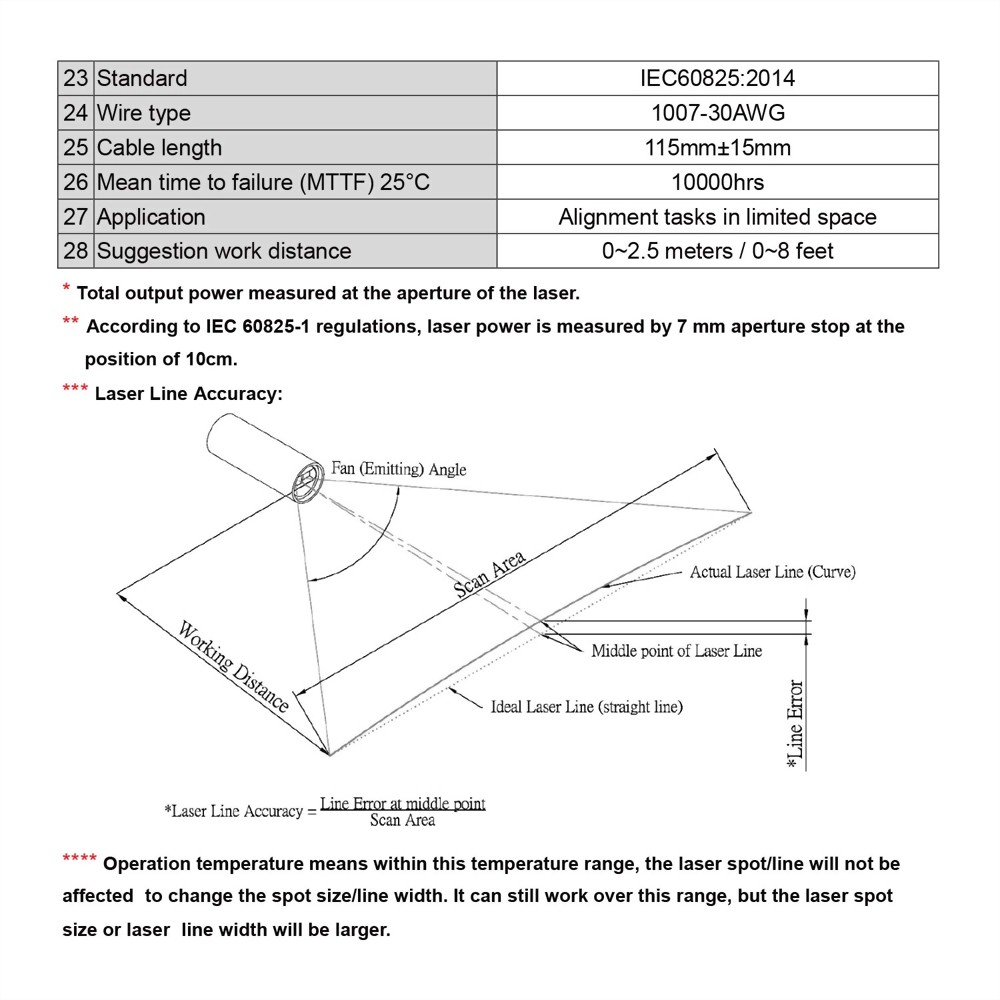

Standard	IEC60825:2014
Wire type	1007-30AWG
Cable length	115mm±15mm
Mean time to failure (MTTF) 25°C	10000hrs
Application	Alignment tasks in limited space
Suggestion work distance	0~2.5 meters / 0~8 feet

* Total output power measured at the aperture of the laser.

** According to IEC 60825-1 regulations, laser power is measured by 7 mm aperture stop at the position of 10cm.

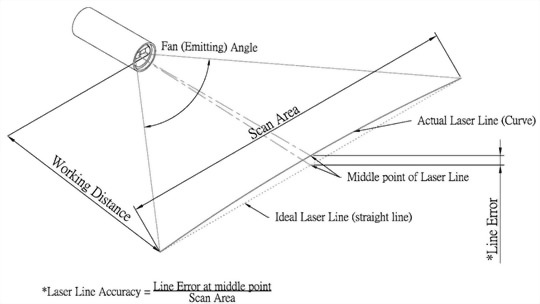

*** Laser Line Accuracy:

**** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
