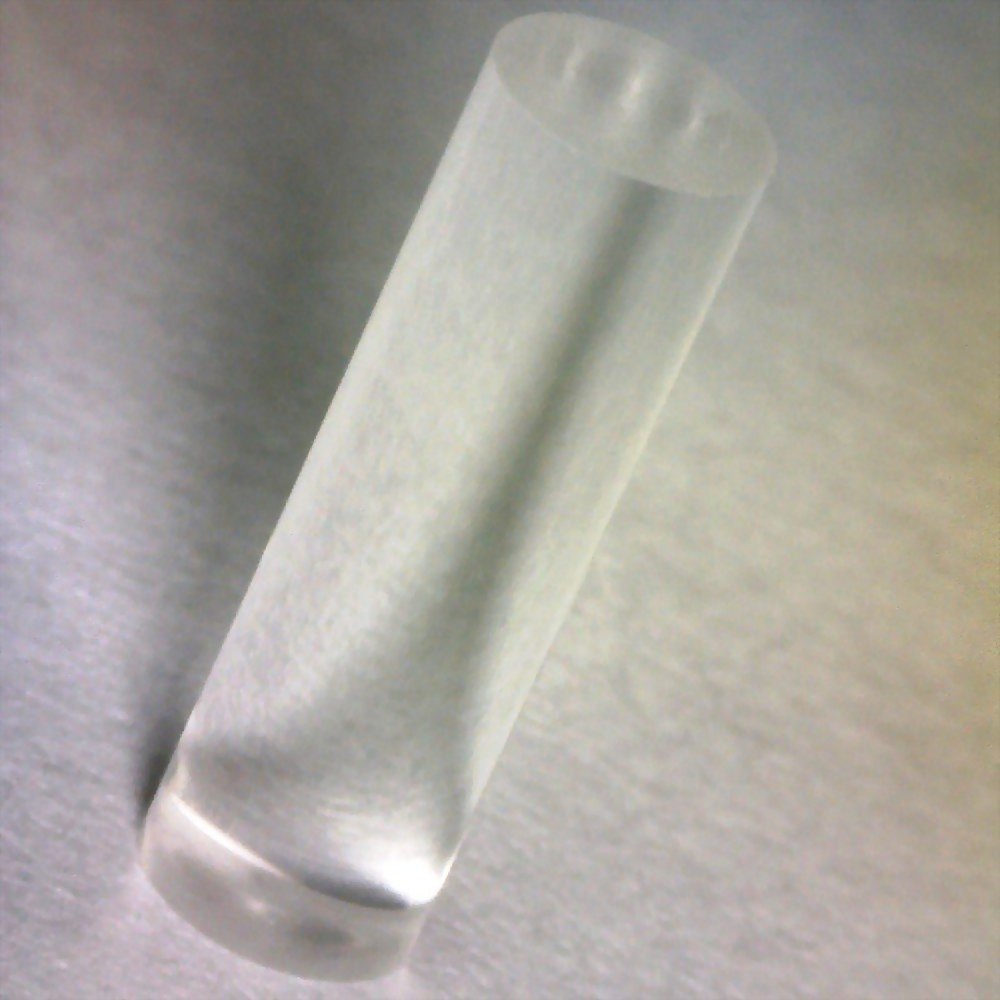

Ø4x13mm Rod Lens
Model :
RL413
Quarton Ø4x13 Laser Diode Rod Lens
FEATURES:
1. The Rod Lens is designed for use in Collimated Laser beam through the rod lens to transform into a Laser line.
2. The typical Laser line emitting angle: >90°
Comparison sheet
|
Model Number Specifications |
RL24 | RL413 | RL58 |
|---|---|---|---|
|
|
|
|
| Lens Material | BK7 | BK7 | BK7 |
| Lens Diameter | Ø2.0 mm | Ø4.0 mm | Ø5.0 mm |
| Lens Length | 4.5 mm | 13.0 mm | 8.5 mm |
| Surface Quality | 40-20 | 40-20 | 40-20 |
| Laser Line Emitting Angle | >150° | >90° | >60° |
| Storage Temperature | -40 to 85°C | -40 to 85°C | -40 to 85°C |
| Operating Temperature | -30 to 85°C | -30 to 85°C | -30 to 85°C |
| Datasheet download | Download | Download | Download |
|
Lens Material: |
BK7 |
|

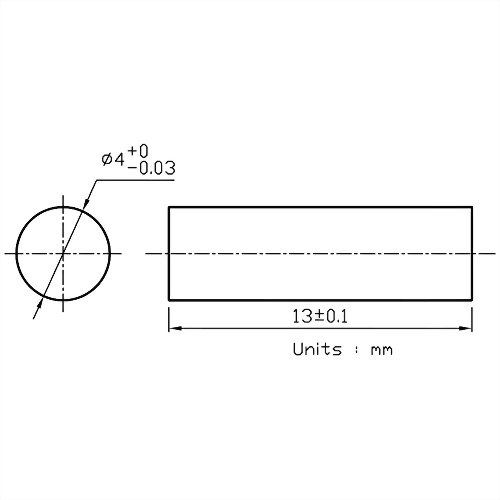

Lens Diameter: |
Ø4.0 mm |
|
Lens Length: |
13.0 mm |
|
Surface Quality: |
40-20 |
|
Laser line emitting angle: |
>90° |
|
Storage Temperature: |
-40 to 85°C |
|
Operating Temperature: |
-30 to 85°C |
