Red Circular Dot Laser Module with TTL Modulation Function
FEATURES:
1. Extremely small circular laser dot within 1 meter.
2. Robust stainless steel housing.
3. Built with high precision glass lens.
4. CW to 10K HZ stable power output for demanding power and speed are of important.
5. Customized focus within 1 meter available please direct contact us.
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
Quarton inc. places emphasis on laser safety
About APC (automatic power control) circuit:
The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.
Model Number Specifications |
VLM-635-00 VLM-650-00 |
VLM-635-01 series VLM-650-01 series |
VLM-635-01G series VLM-650-01G series |
VLM-635-02 series VLM-650-02 series |
VLM-635-02G series VLM-650-02G series |
VLM-635-03 series VLM-650-03 series |
VLM-635-04 series VLM-650-04 series |
VLM-635-11 series VLM-650-11 series |
VLM-635-12 series VLM-650-12 series |
VLM-635-17 series |
VLM-635-18 series VLM-650-18 series |
VLM-650-21 series | VLM-650-22 series | VLM-635-25 series | VLM-635-31 Series (TTL) | VLM-635-32 Series (TTL) | VLM-635-60 series | VLM-635-61 series (TTL) | VLM-635-63 Series | VLM-635-91 LPB | VLM-635-96 LPA | CLM-635-01 LPO | CLM-635-02 LPT | CLM-635-11 LPO | CLM-635-12 LPT |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Dimensions | Ø10.52 x 17.2 mm | Ø10.4 x 18.4mm | Ø10.4 x 18.4mm | Ø10.5 x 26 mm | Ø10.5 x 26 mm | Ø7 x 21 mm | Ø6.55 x 21.1 mm | Ø10.5 x 30 mm | Ø10.5 x 39 mm | Ø13 x 50 mm | Ø13 x 43.5 mm | Ø4 x 15 mm | Ø4 x 15 mm | Ø7 x 21 mm | Ø8 x 27 mm | Ø8.5 x 30.5 mm | Ø10 x 40 mm | Ø10 x 40 mm | Ø10.6 x 12.2 mm | Ø16 x 25 mm | Ø16.5 x 72.8 mm | Ø20 x 60 mm | Ø20 x 60 mm | 20 x 20 x 60 mm | 20 x 20 x 60 mm |
Operating voltage |
2.2~2.7 VDC / 2.15~2.6 VDC |
2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 2.6~6 VDC | 3~6 VDC | 2.6~6 VDC | 3~6 VDC | 3~6 VDC | 2.6~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 4~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC | 3~6 VDC |
Operating current | Less than 45mA / 35mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 35mA / 50mA | Less than 60mA / 70mA / 85mA | Less than 35mA / 50mA | Less than 25mA / 30mA | Less than 25mA / 30mA | Less than 30mA | Less than 40mA / 60mA | Less than 40mA / 60mA | Less than 40mA / 80mA | Less than 40mA / 80mA | Less than 40mA | Less than 500mA | Less than 80mA | Less than 50mA | Less than 50mA | Less than 50mA | Less than 50mA |
Laser power output | Less than 2.5mW | Less than 1mW / 3mW | Less than 1mW / 2.5mW | Less than 1mW / 3mW | Less than 1mW / 2.5mW | Less than 1mW / 2.5mW | Less than 1mW / 2.5mW | Less than 1mW / 2.5mW | Less than 1mW / 2.5mW | 0.7~0.9mW / 2~3mW / 5~6mW | 2.5±1mW | 0.7±0.2mW / 2±0.5mW | 0.7±0.2mW / 3±0.5mW | Less than 1mW | Less than 1mW / 4mW | Less than 1mW / 4mW | Less than 0.39mW / 1mW | Less than 0.39mW / 1mW | Less than 0.39mW / 1mW | 150mW | 0~4.25±0.25mW (adjustable) | Less than 0.39mW | Less than 1mW | Less than 0.39mW | Less than 1mW |
Laser class | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II / Class IIIa / Class IIIb | Class IIIa | Class II / Class IIIa | Class II / Class IIIa | Class II | Class II / Class IIIa | Class II / Class IIIa | Class I / Class II | Class I / Class II | Class I / Class II | Class IIIb | Class IIIa | Class I | Class II | Class I | Class II | |
Wavelength | 630~645nm / 650~660nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm / 645~665nm | 630~645nm | 630~645nm / 645~665nm | 645~660nm | 645~660nm | 630~645nm | 630~645nm | 630~645nm | 630~645nm | 630~645nm | 630~645 nm | 635nm | 630~645nm | 630~645 nm | 630~645 nm | 630~645 nm | 630~645 nm |
Collimating lens | Plastic lens | Plastic lens | Glass lens | Plastic lens | Glass lens | Plastic lens | Plastic lens | Glass lens | Plastic lens | Glass lens | Glass lens | Plastic lens | Glass lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens | Plastic lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens | Glass lens |
Output aperture | 5mm | 5mm | 5mm | 4mm | 4mm | 3mm | 3mm | 5mm | 5mm | 8mm | 6mm | 2.1mm | 2.1mm | 3mm | 5mm | 5mm | 0.6mm | 0.6mm | 5mm | 2.5mm | 5mm | 0.8mm | 3mm | 0.8mm | 3mm |
Beam shape | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Circular | Circular | Circular | Circular | Ellipse | Ellipse | Ellipse | Ellipse | Ellipse | Circular | Circular | Ellipse | Ellipse | Ellipse | Circular | Circular | Circular | Circular |
Spot size | 5±1mm at 5M | 4±1mm at 5M |
5±1 mm at 5M Adjustment focus |
4±1 mm at 5M Adjustment focus |
4±1 mm at 5M | 6±1 mm at 5M | Less than 16mm at 40M |
2.5±0.5 mm at 5M 10±1 mm at 20M |
Less than 9 mm at 40M Less than 22 mm at 100M |
Less than 16mm at 40M | 7±1 mm at 5M | 10±1 mm at 5M | Less than 1.1mm at 18~45cm | 5±1 mm at 10M | 5±1 mm at 10M |
Less than 1mm at 0~50cm Less than 2mm at 50~90cm |
Less than 1mm at 0~50cm Less than 2mm at 50~90cm |
Ø0.1~Ø0.5 (1/e2) | Less than 15mm at 10M |
Less than 0.2mm at 10mm Less than 8mm at 10M |
Less than 1.2mm at 1M | Less than 9mm at 20M | Less than 1.2mm at 1M | Less than 9mm at 20M | |
Divergence (Half Angle) | 0.5 mRad | 0.5 mRad | 0.4 mRad | 0.5 mRad | 0.4 mRad | 0.6 mRad | 0.6 mRad | 0.2 mRad | 0.25 mRad | Less than 0.1 mRad | 0.2 mRad | 2.5 mRad | 2.5 mRad | Less than 0.4mRad | Less than 0.4mRad | Less than 0.4 mRad | Less than 0.4 mRad | Adjustable 0.4 mrad to 12° | Less than 0.15 mRad | Less than 0.15 mRad | Less than 0.15 mRad | Less than 0.15 mRad | |||
Beam alignment | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 3° | Less than 1mm | Less than 1mm | Less than 1mm | Less than 1mm | ||
Operating temp. range | +10°C ~+40°C | +10°C ~+40°C | -20°C ~+50°C | +10°C ~+40°C | -20°C ~+50°C | +15°C ~+30°C | +15°C ~+30°C | -20°C ~+50°C | +10°C ~+40°C | -10°C ~+50°C | -20°C ~+50°C | +15°C ~+30°C | -10°C ~+50°C | +15°C ~+30°C | -20°C ~ +60°C | -20°C ~ +60°C | -20°C ~+60°C | -20°C ~+60°C | -10°C ~+50°C | -20°C ~+60°C | -10°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C | -20°C ~+60°C |
Storage temp. range | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+70°C | -20°C ~+65°C | -20°C ~+80°C | -40°C ~+70°C | -20°C ~+65°C | -20°C ~+65°C | -20°C ~+65°C | -40°C ~ +85°C | -40°C ~ +85°C | -20°C ~+85°C | -20°C ~+85°C | -20°C ~+65°C | -20°C ~+85°C | -20°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C | -40°C ~+85°C |
Housing material | Brass | Brass | Brass | Brass | Brass | Steel | Zinc alloy | Bronze | Bronze | Aluminum | Brass | Brass | Brass | Steel | Aluminum | Steel | Stainless steel | Stainless steel | Bronze | Bronze | Aluminum | Stainless steel | Stainless steel | Hard anodized aluminum | Hard anodized aluminum |
Potential of housing | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | VDD(+) | Insulated | VDD(+) | VDD(+) | VDD(+) | VDD(+) | Insulated | Insulated | Insulated | Insulated | VDD(+) | VDD(+) | Insulated | Insulated | Insulated | Insulated | Insulated |
Electrostatic discharge (ESD) | 30KV | 30KV | 30KV | 30KV | 20KV | 20KV | 30KV | 30KV | 30KV | 30KV | 20KV | 20KV | 20KV | 30KV | 30KV | 30KV / Arc protection | 30KV / Arc protection | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | 30KV | |
Moisture sensitivity level (MSL) | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | Level 1 - acc to JEDEC J-STD-020E. | |
Wire type | 3*PIN from LD | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG / 2509 connector | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG / Spring | 1007-26AWG | 1007-26AWG | 1007-26AWG | 1007-26AWG | 1007-26AWG / 2509 connector | 1007-26AWG | 1007-26AWG | 2464 2-WIRE CABLE 26 AWG | 2464 3-WIRE CABLE 26 AWG | 1007-26AWG | 1007-26AWG | 2464 2-WIRE CABLE 26 AWG | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) | Micro USB (5V) |
Cable length | 115±15mm / 8±1mm | 115±15mm / 8±1mm | 115±15mm / 6.5±1mm | 115±15mm / 6.5±1mm | 115±15mm / 90mm | 115±15mm / 4±1mm | 115±15mm / 8±1mm | 115±15mm / 4.2±1mm | 115±15mm | 115±15mm | 115±15mm | 115±15mm | 115±15mm / 90mm | 115±15mm | 115±15mm | 330±30mm | 330±30mm | 115±15mm | 115±15mm | 330±30mm | |||||
Mean time to failure (MTTF) 25°C | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 5000hrs | 5000hrs | 10000hrs | 5000hrs / 10000hrs | 10000hrs | 5000hrs / 10000hrs | 5000hrs | 5000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs | 10000hrs |
Application | Lab, without laser driver | General purpose | General purpose | Focus adjustable | Focus adjustable | Economic type | Economic type | Long range application | Long range application | Long range application | Long range application | Small size | Small size | Laser engrave machine pilot laser | Modulation | Modulation | Industrial alignment | Industrial alignment with TTL modulation function | Micro dot size | High power | Laboratory or Medical research and physical-optic experiments. | Concentricity Laser | Concentricity Laser | Concentricity Laser | Concentricity Laser |
Suggestion work distance | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~30 meters / 3~100 feet | 1~10 meters / 3~40 feet | 1~10 meters / 3~40 feet | 10~100 meters / 30~300 feet | 10~100 meters / 30~300 feet | 10~500 meters / 40~2000 feet | 10~200 meters / 30~600 feet | 1~10 meters / 3~40 feet | 1~10 meters / 3~40 feet | 18~45 cm / 6"~18" | 1~10 meters / 3~40 feet | 1~10 meters / 3~40 feet | 0~1.2 meters / 0~4 feet | 0~1.2 meters / 0~4 feet | 1~25 cm / 1/2"~10" | 1~30 meters / 3~100 feet | Above 10mm | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | 0~1 meters / 0~3 feet | 1~30 meters / 3~100 feet | |
Datasheet download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download Download |
Download |
Download Download |
Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download |

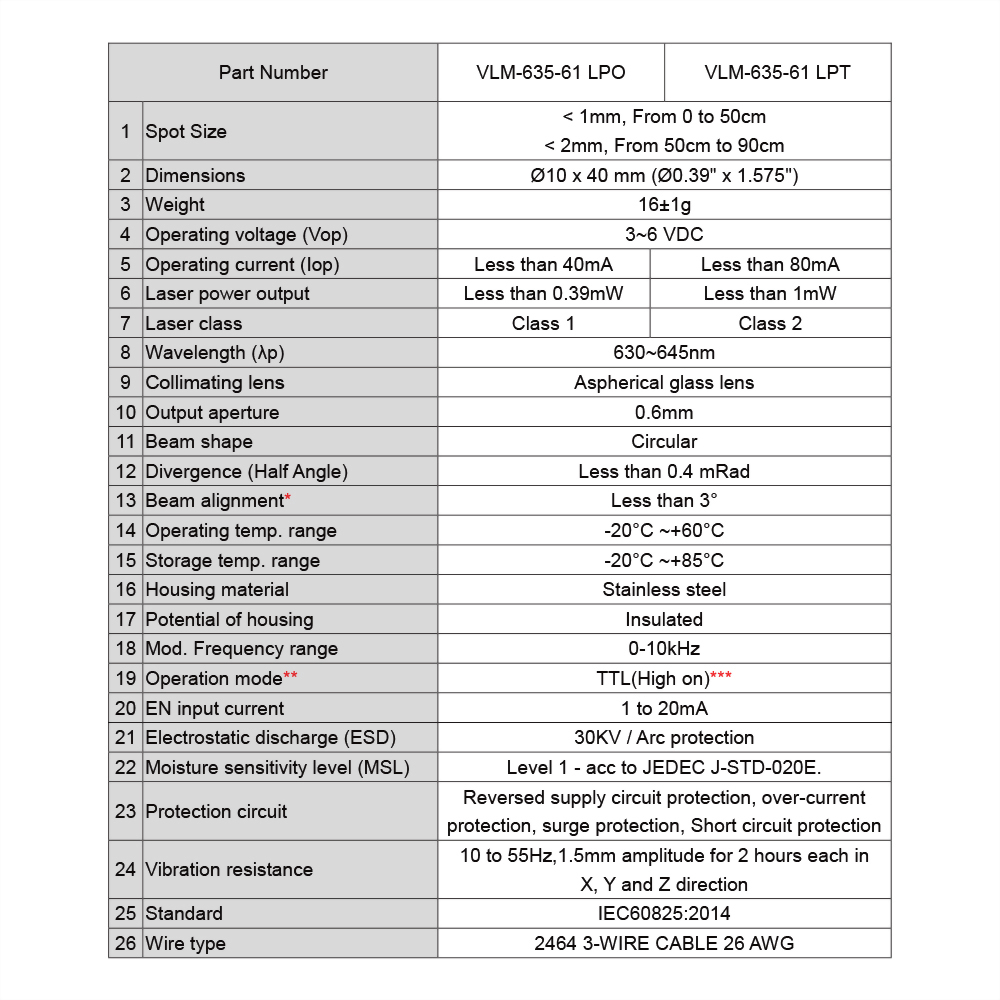

Part Number
VLM-635-61
LPO
VLM-635-61
LPT
Spot Size
<
1mm, From 0 to 50cm
< 2mm,
From 50cm to 90cm
Dimensions
Ø10
x 40 mm (Ø0.39" x 1.575")
Weight
16±1g
Operating voltage (Vop)
3~6
VDC
Operating current (Iop)
Less
than 40mA
Less
than 80mA
Laser power output
Less
than 0.39mW
Less
than 1mW
Laser class
Class
I
Class
II
Wavelength (λp)
630~645nm
Collimating lens
Aspherical
glass lens
Output aperture
0.6mm
Beam shape
Circular
Divergence (Half Angle)
Less than 0.4 mRad
Beam alignment
Less
than 3°
Operating temp. range*
-20°C
~+60°C
Storage temp. range
-20°C
~+85°C
Housing material
Stainless
steel
Potential of housing
Insulated
Mod.
Frequency range
0-10kHz
Operation mode**
TTL(High on)***
EN input
current
1 to 20mA
Electrostatic
discharge (ESD)
30KV / Arc protection
Moisture
sensitivity level (MSL)
Level 1 - acc to JEDEC J-STD-020E.
Wire type
2464 3-WIRE CABLE 26 AWG
Cable
length
330±30mm
Mean time
to failure (MTTF) 25°C
10000 hrs
International
Protection Marking
IP67
Application
Industrial alignment with modulation function
Suggestion
work distance
0~0.9 meters / 0~3 feet
* Operation temperature means within this
temperature range, the laser spot/line will not be affected to change the
spot size/line width. It can still work over this range, but the laser spot
size or laser line width
will be larger.

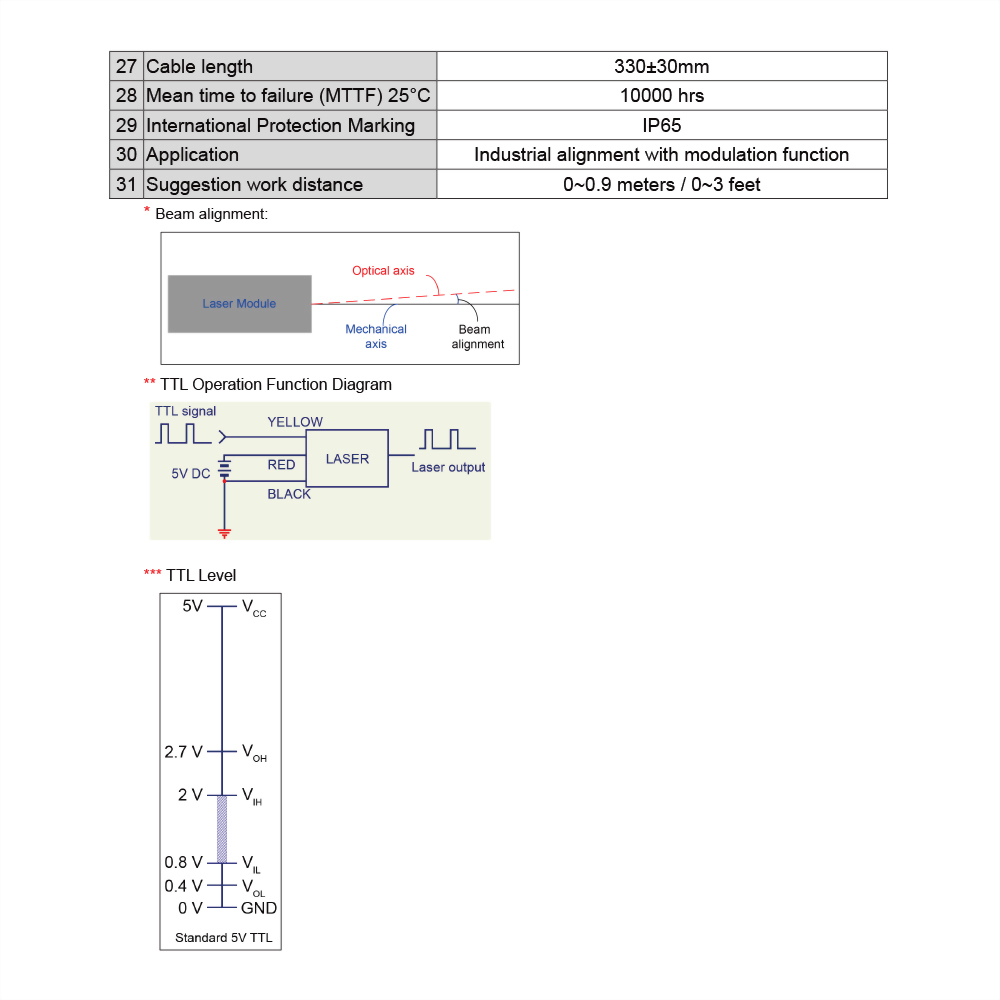

** TTL Operation Function Diagram:
*** TTL Level:
