Concentricity Laser Module / Precision Laser Module

Model : CLM-635-02 LPT
Concentricity laser modules are designed for those who need to perform precision alignment task. Beam error is less than 1 mm at the distance of 30 meters with perfect circular dot. Recommended working range 1~30 meters or above.

FEATURES:

1.  Recommended working range 1~30 meters or above.

2.  Concentricity(beam point error): less than 1mm at 30 meters(10 second).

3.  Circular beam shape, aspect ratio 1:1.

4.  Class I / Class II eye safe laser product.

5.  Micro USB power connector.

6.  Battery pack, USB cable, USB cable switch included.

7.  Plastic carrying case.

8.  Aiming or position work.

9.  Concentricity test of rotating parts or alignment of machine.

10.  Ideal for aiming or position work, concentricity test, carriages, crabs...etc.


Concentricity:

The laser beam error at a distance of 30M is less than 1mm from the mechanical center of the housing.

Laser Beam Position:

Laser beam center to the surface of the housing is 10mm.



Laser products manufactured by Quarton inc. meet the international safety standards:


USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS



Where to buy


Comparison sheet

Model Number

Specifications

CLM-520-01 LPO CLM-520-02 LPT CLM-520-11 LPO CLM-520-12 LPT CLM-635-01 LPO CLM-635-02 LPT CLM-635-11 LPO CLM-635-12 LPT
Dimensions Ø20 x 60 mm Ø20 x 60 mm 20 x 20 x 60 mm 20 x 20 x 60 mm Ø20 x 60 mm Ø20 x 60 mm 20 x 20 x 60 mm 20 x 20 x 60 mm
Operating voltage 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC
Operating current Less than 160mA Less than 160mA Less than 160mA Less than 160mA Less than 50mA Less than 50mA Less than 50mA Less than 50mA
Laser power output Less than 0.39mW Less than 1mW Less than 0.39mW Less than 1mW Less than 0.39mW Less than 1mW Less than 0.39mW Less than 1mW
Laser class Class I Class II Class I Class II Class I Class II Class I Class II
Wavelength 515~530nm 515~530nm 515~530nm 515~530nm 630~645nm 630~645nm 630~645nm 630~645nm
Collimating lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens Glass lens
Output aperture 0.8mm 3mm 0.8mm 3mm 0.8mm 3mm 0.8mm 3mm
Beam shape Circular Circular Circular Circular Circular Circular Circular Circular
Spot size Less than 1.2mm at 1M Less than 9mm at 20M Less than 1.2mm at 1M Less than 9mm at 20M Less than 1.2mm at 1M Less than 9mm at 20M Less than 1.2mm at 1M Less than 9mm at 20M
Divergence (Half Angle) 0.15 mRad 0.15 mRad 0.15 mRad 0.15 mRad 0.15 mRad 0.15 mRad 0.15 mRad 0.15 mRad
Beam alignment Less than 1mm Less than 1mm Less than 1mm Less than 1mm Less than 1mm Less than 1mm Less than 1mm Less than 1mm
Operating temp. range -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C -20°C ~+60°C
Storage temp. range -40°C ~+85°C -40°C ~+85°C -40°C ~+85°C -40°C ~+85°C -40°C ~+85°C -40°C ~+85°C -40°C ~+85°C -40°C ~+85°C
Housing material Stainless steel Stainless steel Hard anodized aluminum Hard anodized aluminum Stainless steel Stainless steel Hard anodized aluminum Hard anodized aluminum
Potential of housing Insulated Insulated Insulated Insulated Insulated Insulated Insulated Insulated
Electrostatic discharge (ESD) 30KV 30KV 30KV 30KV 30KV 30KV 30KV 30KV
Moisture sensitivity level (MSL) Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E.
Wire type Micro USB (5V) Micro USB (5V) Micro USB (5V) Micro USB (5V) Micro USB (5V) Micro USB (5V) Micro USB (5V) Micro USB (5V)
Mean time to failure (MTTF) 25°C 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs 10000hrs
Application Concentricity Laser Concentricity Laser Concentricity Laser Concentricity Laser Concentricity Laser Concentricity Laser Concentricity Laser Concentricity Laser
Suggestion work distance 0~1 meters / 0~3 feet 1~30 meters / 3~100 feet 0~1 meters / 0~3 feet 1~30 meters / 3~100 feet 0~1 meters / 0~3 feet 1~30 meters / 3~100 feet 0~1 meters / 0~3 feet 1~30 meters / 3~100 feet
Datasheet download Download Download Download Download Download Download Download Download

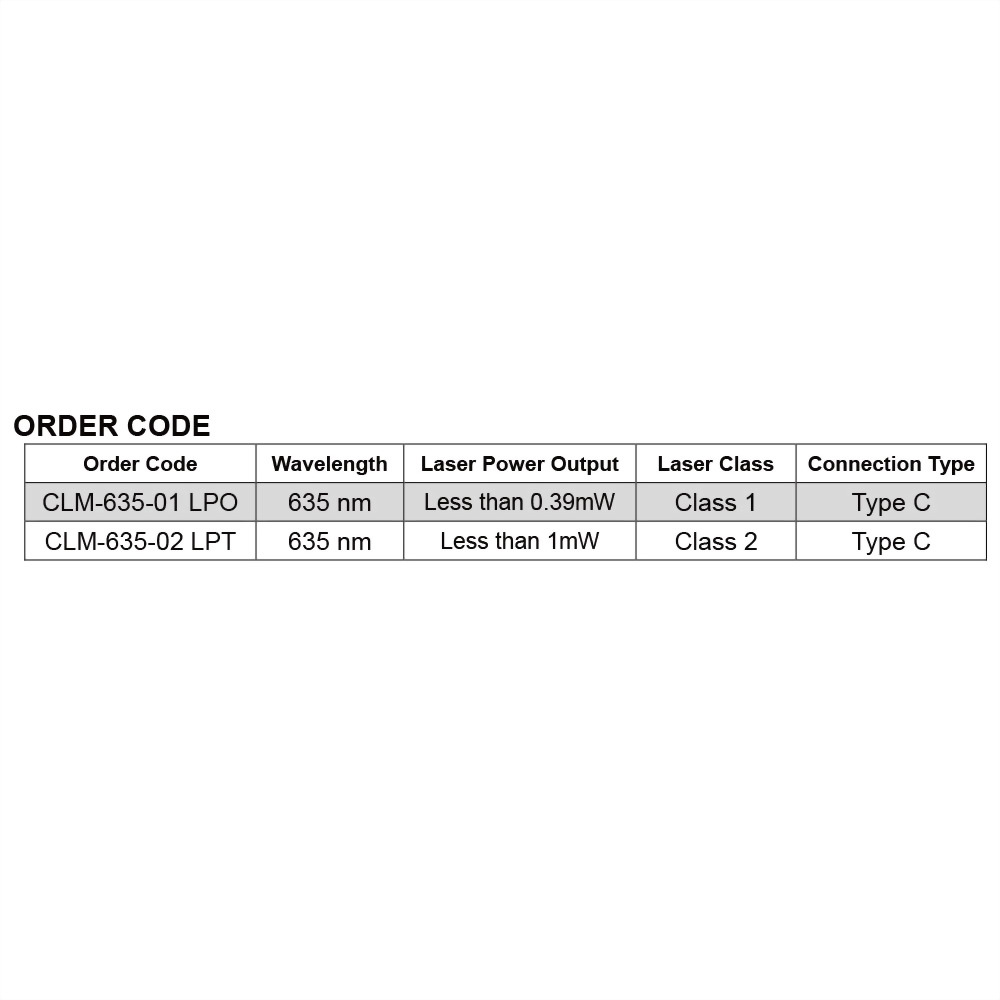

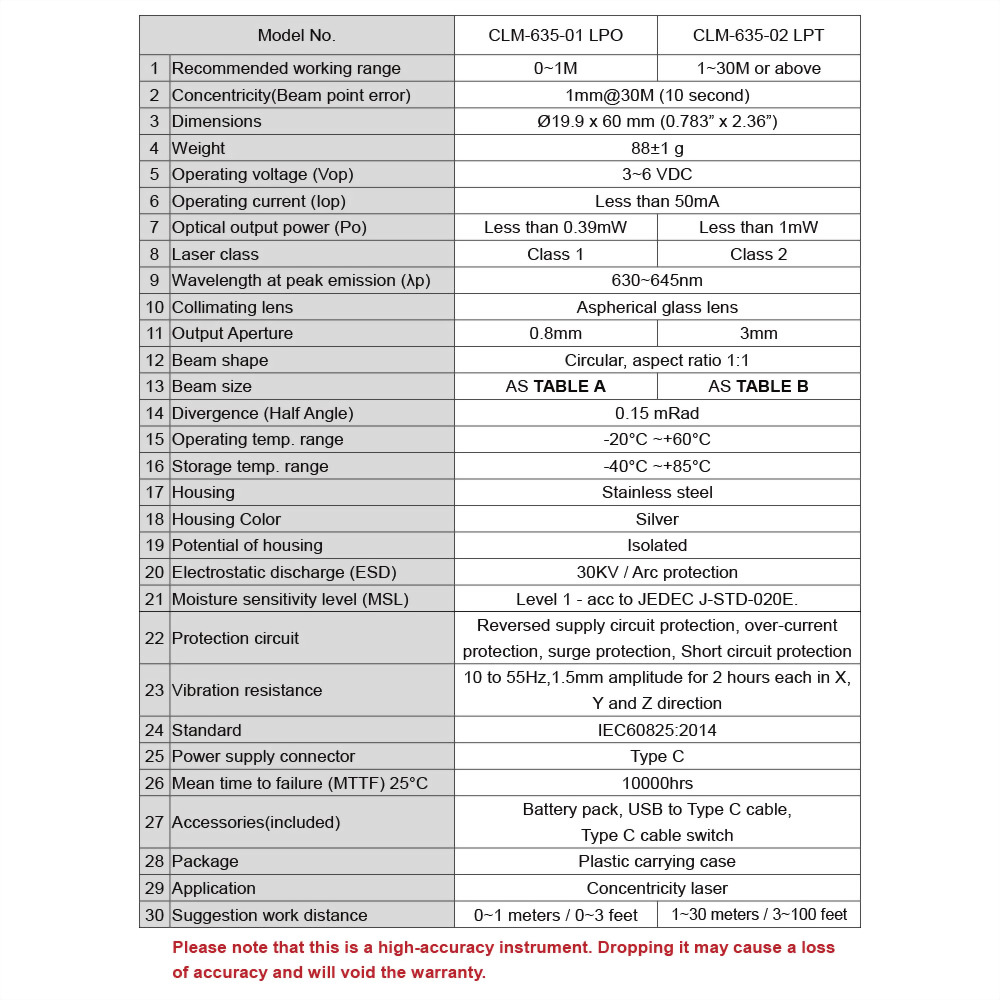

CLM-635-01 LPO

CLM-635-02 LPT

Recommended working range

0~1M

1~30M or above

Concentricity(Beam point error)

1mm@30M (10 second)

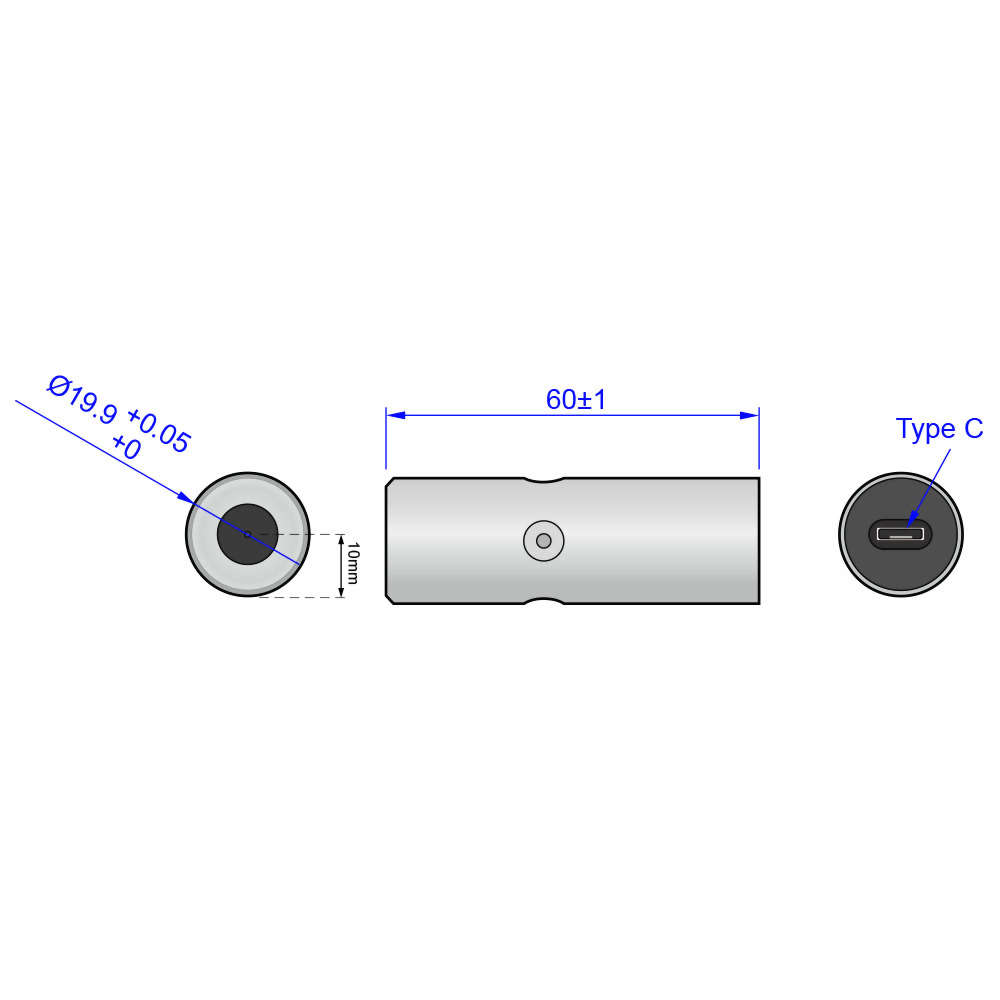

Dimensions

Ø20 x 60 mm (0.787” x 2.36”)

Weight

88±1 g

Operating voltage (Vop)

3~6 VDC

Operating current (Iop)

Less than 50mA

Optical output power (Po)

Less than 0.39mW

Less than 1mW

Laser class

Class I

Class II

Wavelength (λp)

630~645nm

Collimating lens

Aspherical glass lens

Output Aperture

0.8mm

3mm

Beam shape

Circular, aspect ratio 1:1

Beam size

AS TABLE A

AS TABLE B

Divergence (Half Angle)

0.15 mRad

Operating temp. range*

-20°C ~+60°C

Storage temp. range

-40°C ~+85°C

Housing

Stainless steel

Housing Color

Silver

Potential of housing

Isolated

Power supply connector

Micro USB (5V)

Mean time to failure (MTTF) 25°C

10000hrs

Accessories(included)

Battery pack, USB cable, USB cable switch

Package

Plastic carrying case

* Operation temperature: it means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
