Professional Use Line Laser

Model : VLM-635-37 LPT
Professional Green Straight Line Laser Module, ultra-precision grade for professional leveling, alignment, adjusting, positioning.

FEATURES:

1.  Professional Red Line Laser.

2.  The supreme line-accuracy and the widest emitting angle line Laser module for use with Professional applications.

3.  Versatile mechanical structure on 4 sides, easy to fixed.

4.  This module has integrated quartz cylindrical lens, collimating lens, laser diode, and APC driver circuit.

5.  APC driver circuit enables the Laser power output safe and constant.

6.  Aluminum housing with Anodized finish for the best heat transfer consideration.

7.  Utilize Glass Lens, spot-size maintain tight-dot while temperature fluctuate between -20°C ~50°C.




Laser products manufactured by Quarton inc. meet the international safety standards:


USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS


Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.


Where to buy


Comparison sheet

Model Number

Specifications

VLM-635-27 series
VLM-650-27 series
VLM-650-28 LPT VLM-650-30 series VLM-635-37 series
VLM-650-37 series
VLM-650-41 series VLM-635-55 series VLM-635-56 series VLM-635-57 series
Dimensions Ø12.5 x 30 mm Ø9 x 26 mm Ø10 x 27.1 mm (W)14 x (H)14 x (L)26 mm Ø10 x 26 mm Ø10 x 38 mm Ø10 x 40 mm Ø10 x 40 mm
Operating voltage 2.6~6 VDC 2.6~6 VDC 3~6 VDC 2.6~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC 3~6 VDC
Operating current Less than 50mA / 55mA
Less than 35mA / 100mA
Less than 35mA Less than 40mA / 60mA Less than 50mA
Less than 35mA / 100mA
Less than 80mA / 100mA Less than 50mA / 100mA Less than 50mA / 100mA
Optical power Less than 2mW / 4~5mW
Less than 2mW / 12~15mW
Less than 2mW Less than 5mW / 20mW 4~5mW / 12~15mW Less than 2.5mW / 20mW Less than 4~5mW / 9~10mW Less than 5mW / 10mW Less than 5mW / 10mW
Laser power output Less than 0.39mW / 1mW Less than 0.39mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW Less than 0.39mW / 1mW
Laser class Class 1M / Class 2M Class 1M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M Class 1M / Class 2M
Wavelength 630~645nm / 645~665nm 645~665nm 635~665nm 630~645nm / 645~665nm 635~665nm 630~645nm 630~645nm 630~645nm
Collimating lens Plastic lens Plastic lens Plastic lens Glass lens Plastic lens Glass lens Glass lens Glass lens
Line lens Plastic lens Plastic lens Plastic lens Glass lens Plastic lens Glass lens Glass lens Glass lens
Beam shape Line Line Line Line Line Line Line Line
Laser Line width 3 ±0.5mm at 5M
6 ±0.5mm at 10M
1.2mm at 1M Less than 1.6mm at 40CM 2±1mm at 5M
4±1mm at 10M
Less than 1.2mm / 1.5mm 3±0.5mm at 5M
6±0.5mm at 10M
Less than 1mm Less than 1mm
Laser line accuracy 40” (±1mm @5M) 1/100 4/1000(less than 1.6mm @400mm) 20" (± 1mm @10m) 1/100 40”(±1mm@5M) 40”(±1mm@5M) 40”(±1mm@5M)
Emitting angle More than 90° More than 60° 60° / 90° More than 120° 60° / 90° 60° 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110° 5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°
Operating temp. range +10°C ~+40°C +15°C ~+30°C +15°C ~+40°C -20°C ~+50°C +15°C ~+40°C -20°C ~+65°C -20°C ~+60°C -20°C ~+60°C
Storage temp. range -20°C ~+65°C -20°C ~+65°C -20°C ~+65°C -40°C ~+70°C -20°C ~+65°C -20°C ~+85°C -20°C ~+85°C -20°C ~+85°C
Housing material Brass Brass Aluminum Aluminum Aluminum Aluminum Stainless steel Stainless steel
Potential of housing VDD(+) VDD(+) Insulated Insulated Insulated Insulated Insulated Insulated
Electrostatic discharge (ESD) 30KV 30KV 30KV 30KV 30KV 30KV 30KV 30KV
Moisture sensitivity level (MSL) Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E. Level 1 - acc to JEDEC J-STD-020E.
Wire type 1007-26AWG 1007-26AWG 1007-26AWG 1007-26AWG 1007-26AWG 2464 2-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG 2464 2-WIRE CABLE 26 AWG
Cable length 115±15mm 115±15mm 250±10mm 115±15mm 115±15mm 330±30mm 330±30mm 330±30mm
Mean time to failure (MTTF) 25°C 10000hrs 10000hrs 10000hrs 10000hrs 5000hrs 10000hrs 10000hrs 10000hrs
Application General industrial alignment Economic 3D scanner Precision 3D scanner Precision industrial alignment Precision 3D scanner Precision industrial alignment Precision fine line for Automation, Machine vision and Medical Precision fine line for Automation, Machine vision and Medical with modulation function
Suggestion work distance Above 2 meters 0.3~1.8 meters / 1~6 feet 20~60 cm / 8"~24" 1~20 meters / 3~60 feet 20~60 cm / 8"~24" 1~20 meters / 3~60 feet 0~1.2 meters / 0~4 feet 0~1.2 meters / 0~4 feet
Datasheet download Download
Download
Download Download Download
Download
Download Download Download Download

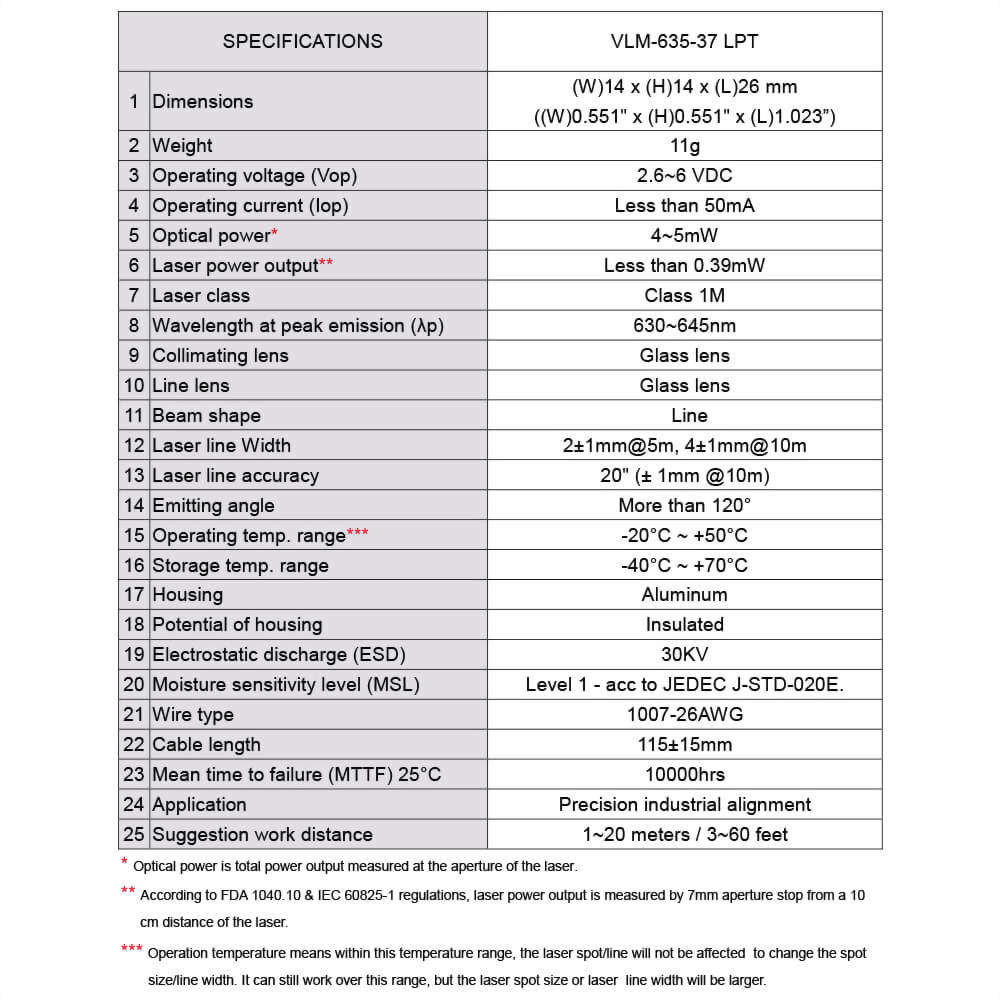

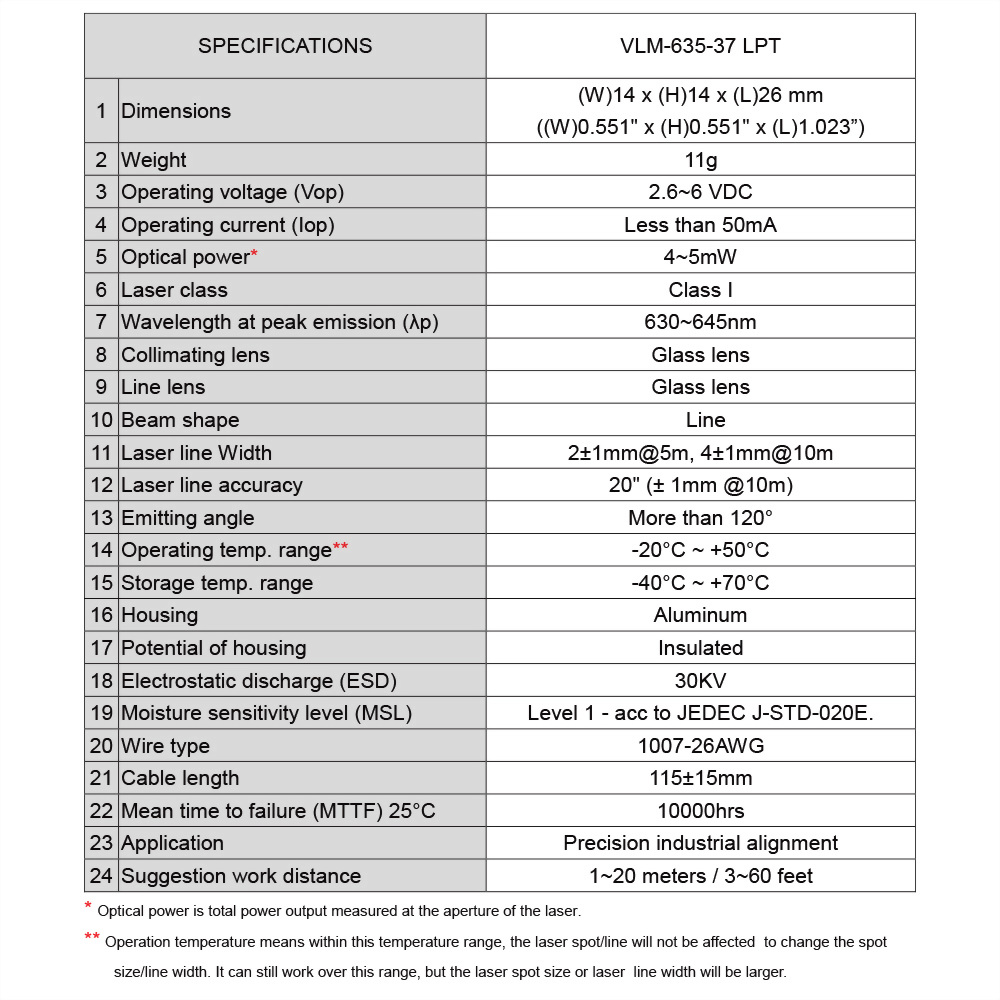

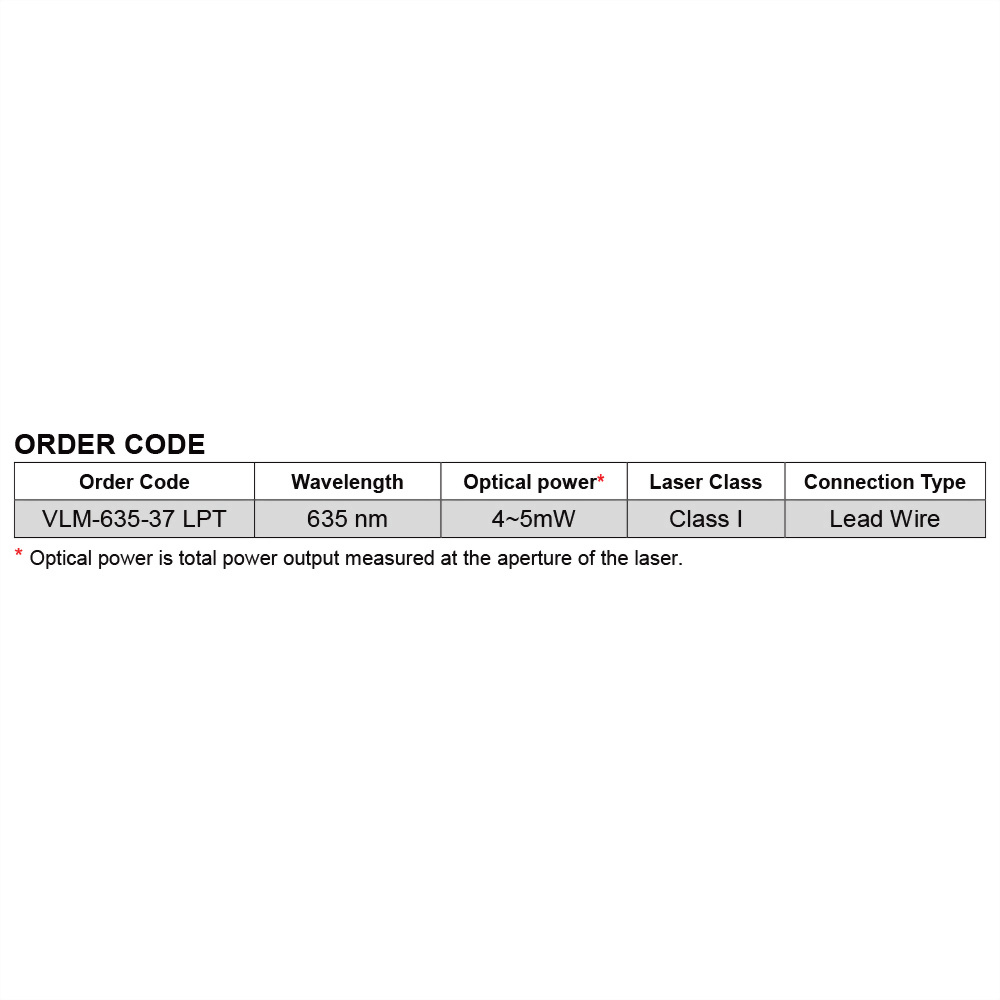

VLM-635-37 LPT

Dimensions

(W)14 x (H)14 x (L)26 mm

((W)0.551" x (H)0.551" x (L)1.023”)

Weight

11g

Operating voltage (Vop)

2.6~6 VDC

Operating current (Iop)

Less than 50mA

Optical power*

4~5mW

Laser power output**

Less than 0.39mW

Laser class

Class 1M

Wavelength (λp)

630~645nm

Collimating lens

Glass lens

Line lens

Glass lens

Beam shape

 Line

Laser line Width

2±1mm@5m, 4±1mm@10m

Laser line accuracy

20" (± 1mm @10m)

Emitting angle

More than 120°

Operating temp. range***

-20°C ~ +50°C

Storage temp. range

-40°C ~ +70°C

Housing

Aluminum

Potential of housing

Insulated

Electrostatic discharge (ESD)

30KV

Moisture sensitivity level (MSL)

Level 1 - acc to JEDEC J-STD-020E.

Wire type

1007-26AWG

Cable length

115±15mm

Mean time to failure (MTTF) 25°C

10000hrs

Application

Precision industrial alignment

Suggestion work distance

1~20 meters / 3~60 feet

* Optical power is total power output measured at the aperture of the laser.

** According to FDA 1040.10 & IEC 60825-1 regulations, laser power output is measured by 7mm aperture stop from a 10 cm distance of the laser.

*** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.
