Industrial Use Line Laser

FEATURES:

1.  Industrial Red Line Laser.

2.  The best line-accuracy and the widest emitting angle line Laser module for use with high-precision devices.

3.  This module has integrated quartz cylindrical lens, collimating lens, laser diode, and APC driver circuit.

4.  APC driver circuit enables the Laser output power safe and constant.

5.  Includes patented solid brass structure for the best shock resistance and better heat transfer consideration.

6.  Aspherical Plastic Lens and Quartz Cylindrical Lens provides Line Laser.

Laser module demonstration video:

Laser products manufactured by Quarton inc. meet the international safety standards:

USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS

Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.

Where to buy

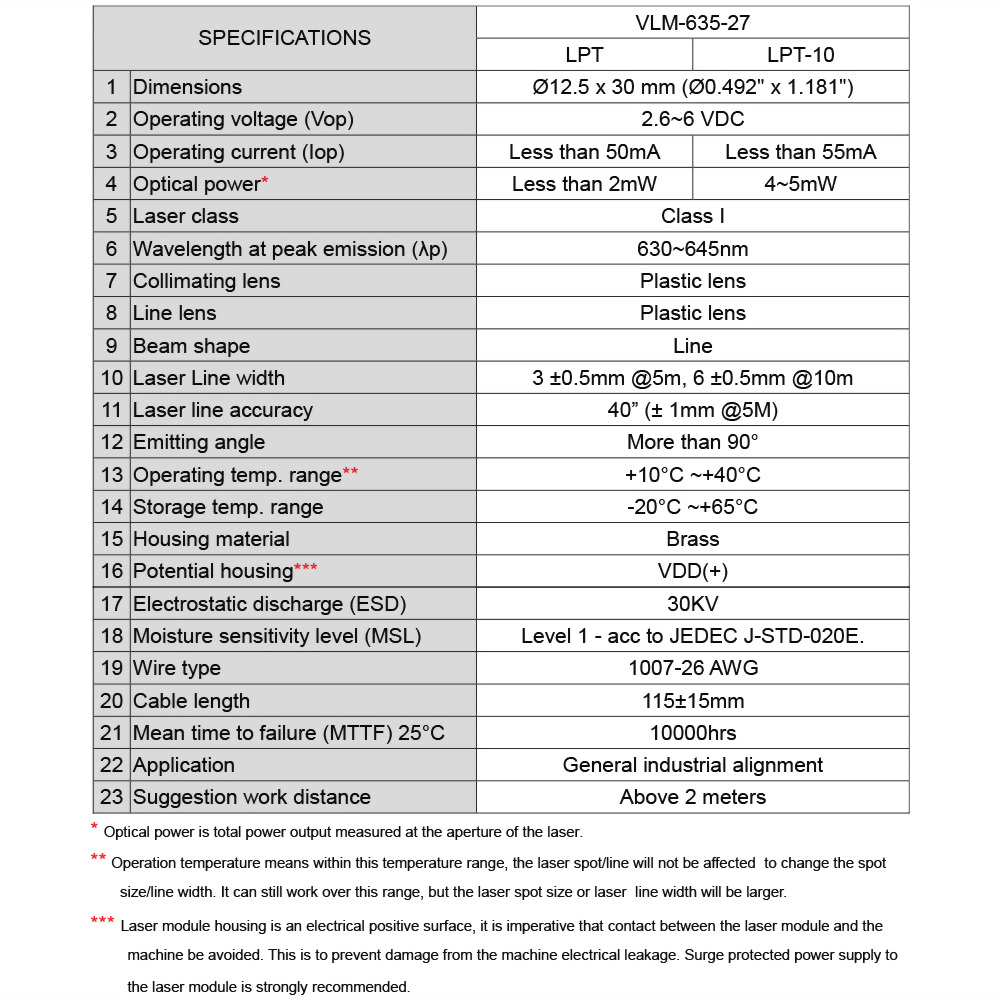

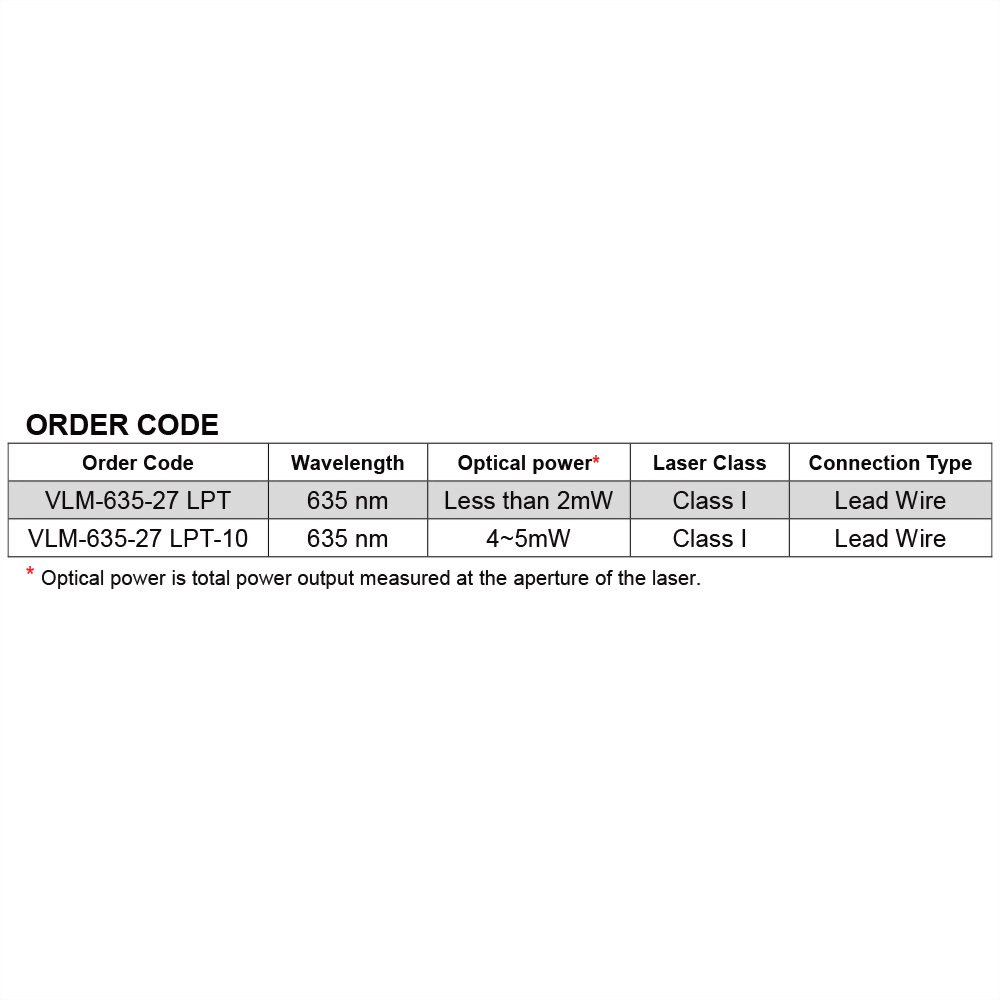

Comparison sheet

Model Number Specifications	VLM-635-27 series VLM-650-27 series	VLM-650-28 LPT	VLM-650-30 series	VLM-635-37 series VLM-650-37 series	VLM-650-41 series	VLM-635-55 series	VLM-635-56 series	VLM-635-57 series
Dimensions	Ø12.5 x 30 mm	Ø9 x 26 mm	Ø10 x 27.1 mm	(W)14 x (H)14 x (L)26 mm	Ø10 x 26 mm	Ø10 x 38 mm	Ø10 x 40 mm	Ø10 x 40 mm
Operating voltage	2.6~6 VDC	2.6~6 VDC	3~6 VDC	2.6~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC	3~6 VDC
Operating current	Less than 50mA / 55mA Less than 35mA / 100mA	Less than 35mA	Less than 40mA / 60mA	Less than 50mA Less than 35mA / 100mA		Less than 80mA / 100mA	Less than 50mA / 100mA	Less than 50mA / 100mA
Optical power	Less than 2mW / 4~5mW Less than 2mW / 12~15mW	Less than 2mW	Less than 5mW / 20mW	4~5mW / 12~15mW	Less than 2.5mW / 20mW	Less than 4~5mW / 9~10mW	Less than 5mW / 10mW	Less than 5mW / 10mW
Laser power output	Less than 0.39mW / 1mW	Less than 0.39mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW	Less than 0.39mW / 1mW
Laser class	Class 1M / Class 2M	Class 1M	Class 1M / Class 2M	Class 1M / Class 2M	Class 1M / Class 2M	Class 1M / Class 2M	Class 1M / Class 2M	Class 1M / Class 2M
Wavelength	630~645nm / 645~665nm	645~665nm	635~665nm	630~645nm / 645~665nm	635~665nm	630~645nm	630~645nm	630~645nm
Collimating lens	Plastic lens	Plastic lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens
Line lens	Plastic lens	Plastic lens	Plastic lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens
Beam shape	Line	Line	Line	Line	Line	Line	Line	Line
Laser Line width	3 ±0.5mm at 5M 6 ±0.5mm at 10M	1.2mm at 1M	Less than 1.6mm at 40CM	2±1mm at 5M 4±1mm at 10M	Less than 1.2mm / 1.5mm	3±0.5mm at 5M 6±0.5mm at 10M	Less than 1mm	Less than 1mm
Laser line accuracy	40” (±1mm @5M)	1/100	4/1000(less than 1.6mm @400mm)	20" (± 1mm @10m)	1/100	40”(±1mm@5M)	40”(±1mm@5M)	40”(±1mm@5M)
Emitting angle	More than 90°	More than 60°	60° / 90°	More than 120°	60° / 90°	60°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°
Operating temp. range	+10°C ~+40°C	+15°C ~+30°C	+15°C ~+40°C	-20°C ~+50°C	+15°C ~+40°C	-20°C ~+65°C	-20°C ~+60°C	-20°C ~+60°C
Storage temp. range	-20°C ~+65°C	-20°C ~+65°C	-20°C ~+65°C	-40°C ~+70°C	-20°C ~+65°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C
Housing material	Brass	Brass	Aluminum	Aluminum	Aluminum	Aluminum	Stainless steel	Stainless steel
Potential of housing	VDD(+)	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated
Electrostatic discharge (ESD)	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.
Wire type	1007-26AWG	1007-26AWG	1007-26AWG	1007-26AWG	1007-26AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG
Cable length	115±15mm	115±15mm	250±10mm	115±15mm	115±15mm	330±30mm	330±30mm	330±30mm
Mean time to failure (MTTF) 25°C	10000hrs	10000hrs	10000hrs	10000hrs	5000hrs	10000hrs	10000hrs	10000hrs
Application	General industrial alignment	Economic 3D scanner	Precision 3D scanner	Precision industrial alignment	Precision 3D scanner	Precision industrial alignment	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function
Suggestion work distance	Above 2 meters	0.3~1.8 meters / 1~6 feet	20~60 cm / 8"~24"	1~20 meters / 3~60 feet	20~60 cm / 8"~24"	1~20 meters / 3~60 feet	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet
Datasheet download	Download Download	Download	Download	Download Download	Download	Download	Download	Download

* Optical power is total power output measured at the aperture of the laser.

** According to FDA 1040.10 & IEC 60825-1 regulations, laser power output is measured by 7mm aperture stop from a 10 cm distance of the laser.

*** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.

**** Laser module housing is an electrical positive surface, it is imperative that contact between the laser module and the machine be avoided. This is to prevent damage from the machine electrical leakage. Surge protected power supply to the laser module is strongly recommended.
