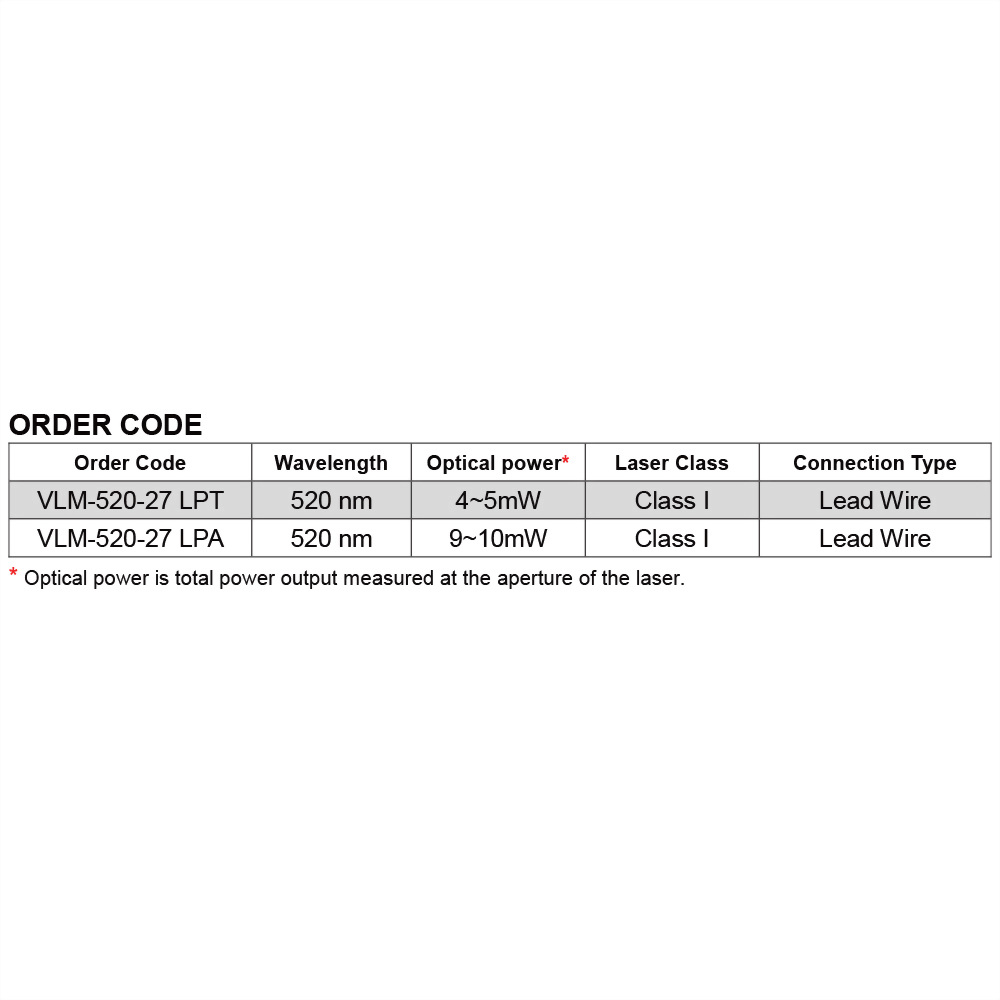

FEATURES:

1.  Direct Green Laser Diode for large temperature operation range.

2.  The best line-accuracy and the widest emitting angle line laser module for use with high-precision devices.

3.  Laser beam is focused at 10 meters to generate best thin laser line from 5 meters to 20 meters.

4.  This module has integrated quartz cylindrical lens, collimating lens, laser diode, and APC driver circuit.

5.  APC driver circuit enables the laser power output safe and constant.

6.  Includes patented solid brass structure for the best shock resistance and better heat transfer consideration.

Laser module demonstration video:

Laser products manufactured by Quarton inc. meet the international safety standards:

USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS

Quarton inc. places emphasis on laser safety

About APC (automatic power control) circuit:

The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.

Where to buy



Comparison sheet

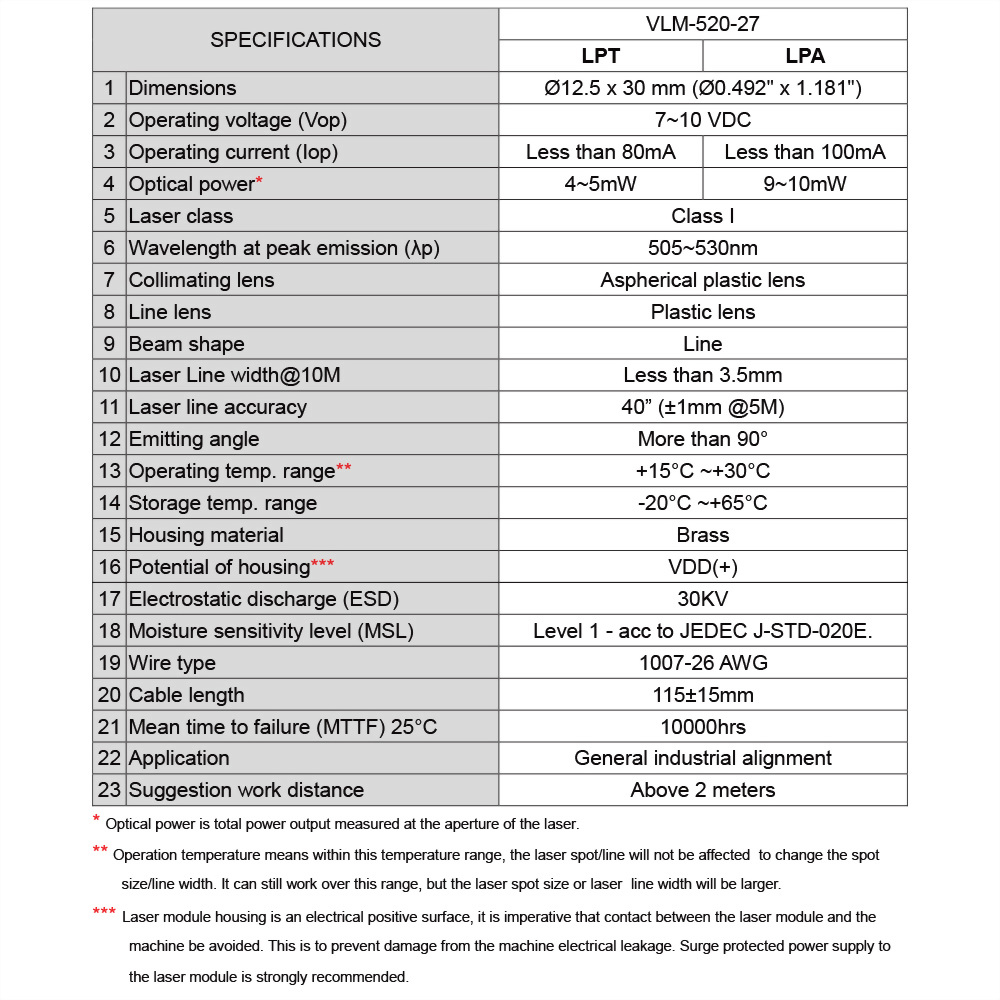

Model Number Specifications	VLM-520-27 series	VLM-520-28 LPT	VLM-520-37 series	VLM-520-55 series	VLM-520-56 series	VLM-520-57 series	VLM-520-66 series	VLM-520-67 series	VLM-520-75 series	VLM-POWELL series
Dimensions	Ø12.5 x 30 mm	Ø9 x 26 mm	(W)14 x (H)14 x (L)26 mm	Ø10 x 38 mm	Ø10 x 40 mm	Ø10 x 40 mm	M12 x 68 mm	M12 x 68 mm	Ø10 x 50 mm	Ø10 x 68 mm
Operating voltage	7~10 VDC	7~10 VDC	7~10 VDC	3~6 VDC	3~6 VDC	3~6 VDC	10~36 VDC	10~36 VDC	3~6 VDC	3~6 VDC 10~36 VDC
Operating current	Less than 80mA / 100mA	Less than 100mA	Less than 80mA / 120mA	Less than 200mA	Less than 80mA / 180mA	Less than 80mA / 180mA	Less than 20mA at 24V	Less than 20mA at 24V	Less than 100mA	Less than 55mA
Optical power	4~5mW / 9~10mW	Less than 4.5mW	4~5mW / 9~10mW	4~5mW / 9~10mW	Less than 10mW / 30mW	Less than 10mW / 30mW	Less than 0.39mW / 7~9mW	Less than 0.39mW / 7~9mW	Less than 5mW	8±0.5mW
Laser class	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I	Class I
Wavelength	505~530nm	510~530nm	505~530nm	510~530nm	515~530nm	515~530nm	515~530nm	515~530nm	505~530nm	505~535nm
Collimating lens	Plastic lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Line lens	Plastic lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens	Glass lens
Beam shape	Line	Line	Line	Line	Line	Line	Line	Line	Line	Line
Laser Line width	Less than 3.5mm at 10M	1.2mm at 1M	2±1mm at 5M 4±1mm at 10M	3±0.5mm at 5M 6±0.5mm at 10M	Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm	2 mm at 0~5 meters 3 mm at 8 meters	Less than 1mm
Laser line accuracy	40” (±1mm @5M)	80” (+/- 2mm @5M)	20" (± 1mm @10m)	40”(±1mm@5M)	40”(±1mm@5M)	40”(±1mm@5M)	4/1000(<1.6mm @400mm)	4/1000(<1.6mm @400mm)		4/1000(<1.6mm @400mm)
Emitting angle	More than 90°	More than 60°	More than 120°	More than 90°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 10°, 15°, 20°, 30°, 45°, 60°, 110°	5°, 15°, 30°, 60°, 110°	5°, 15°, 30°, 60°, 110°	120°	45°±5° / 75°±5°
Operating temp. range	+15°C ~+30°C	+15°C ~+30°C	-20°C ~+50°C	-20°C ~+65°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+65°C	-20°C ~+60°C
Storage temp. range	-20°C ~+65°C	-20°C ~+65°C	-40°C ~+70°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C
Housing material	Brass	Brass	Aluminum	Aluminum	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Aluminum	Aluminum
Potential of housing	VDD(+)	VDD(+)	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated	Insulated
Electrostatic discharge (ESD)	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.
Wire type	1007-26 AWG	1007-26 AWG	1007-26 AWG	1007-26 AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	UL-2464/22 AWG	UL-2464/22 AWG	UL-2464/22 AWG	UL-2464/22 AWG
Cable length	115±15mm	115±15mm	115±15mm	115±15mm	330±30mm	330±30mm	UL2464 D4.2,L=2000±30mm	UL2464 D4.2,L=2000±30mm	D4.2,L=2000±30mm	D4.2,L=2000±30mm
Mean time to failure (MTTF) 25°C	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs	10000hrs
Application	General industrial alignment	Economic 3D scanner	Precision industrial alignment	Precision industrial alignment	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function	Precision fine line for Automation, Machine vision and Medical	Precision fine line for Automation, Machine vision and Medical with modulation function	Wood, metal, stone processing and works that need precision fine laser line	Scanning, Image processing, Medical & Science, Automatic industry, Robotic arm
Suggestion work distance	Above 2 meters	0.3~1.8 meters / 1~6 feet	1~20 meters / 3~60 feet	1~20 meters / 3~60 feet	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet	0~5 meters / 0~16 feet	0~5 meters / 0~16 feet	1 to 10 meters or beyond
Datasheet download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download

* Optical power is total power output measured at the aperture of the laser.

** Operation temperature means within this temperature range, the laser spot/line will not be affected to change the spot size/line width. It can still work over this range, but the laser spot size or laser line width will be larger.

*** Laser module housing is an electrical positive surface, it is imperative that contact between the laser module and the machine be avoided. This is to prevent damage from the machine electrical leakage. Surge protected power supply to the laser module is strongly recommended.
