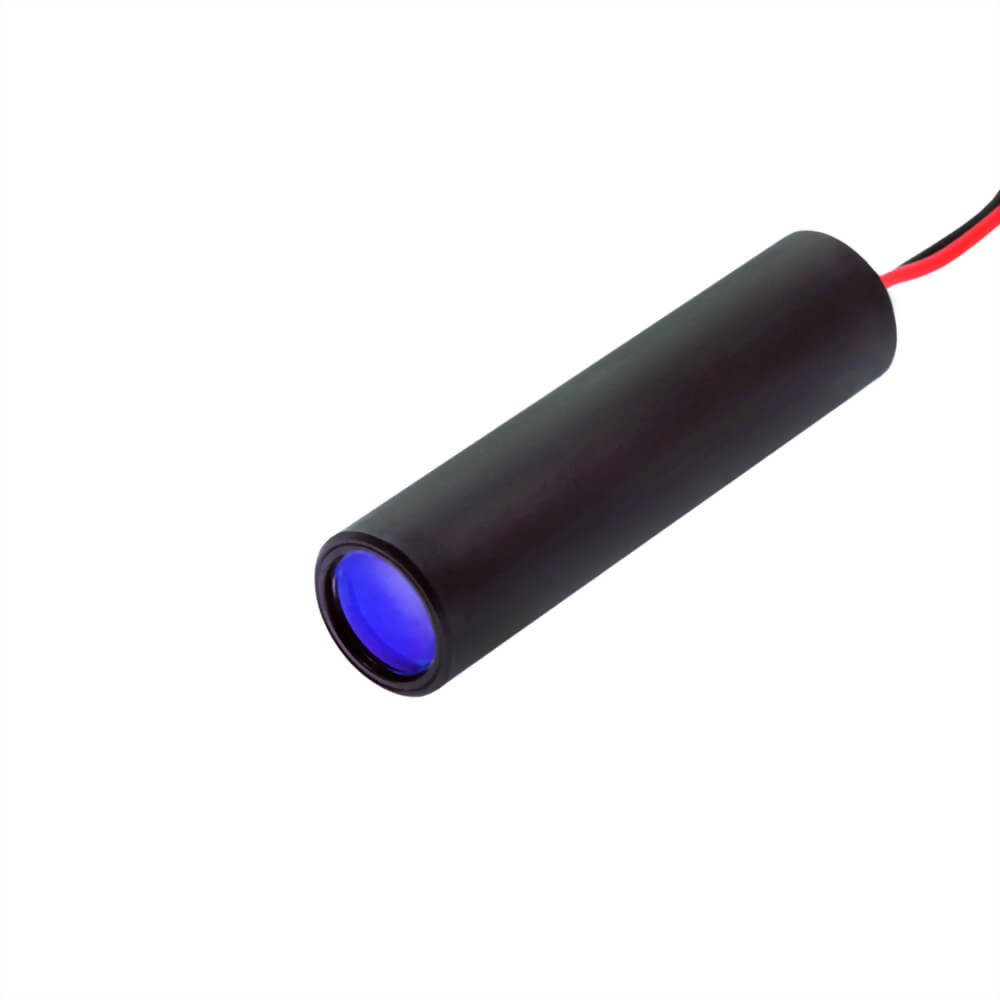

Ultra-Far Range IR Laser Module
FEATURES:
1. Diffraction-limited lens to achieve a near-collimated laser system, detectable at ultra-far distances.
2. Perfect round dot - Ø15 mm at 100 meters.
3. Anodized aluminum housing provides insulated protection and durability.
4. Integrated optic, laser diode, and APC driver circuit in one compact module.
5. APC driver circuit ensures safe and constant laser output power.
6. Glass-based hybrid lens delivers ultra-far range round dot projection.
Laser products manufactured by Quarton inc. meet the international safety standards:
USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS
Quarton inc. places emphasis on laser safety
About APC (automatic power control) circuit:
The Laser output power must be stable especially in safety reason.
But the Laser power is related to the Junction Temperature (Tj) of the LD. It means that as the different Tj, the Laser power will be increased or decreased.
An APC (automatic power control) circuit is used to compensate the varying Laser output power to constant.
As shown in the picture, The principle of the APC circuit is monitoring portion of the laser light from the LD by the built-in PD and real-time feedback to control the laser output power constant and safety.
|

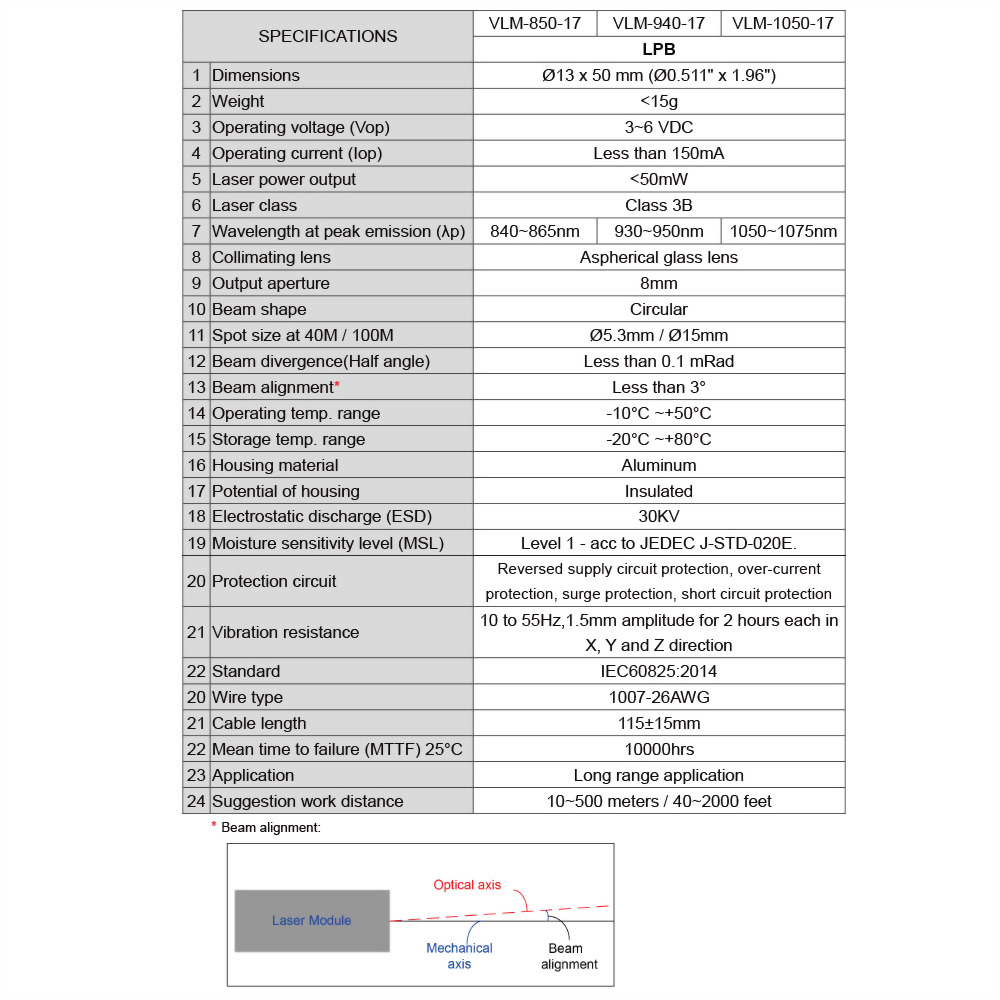

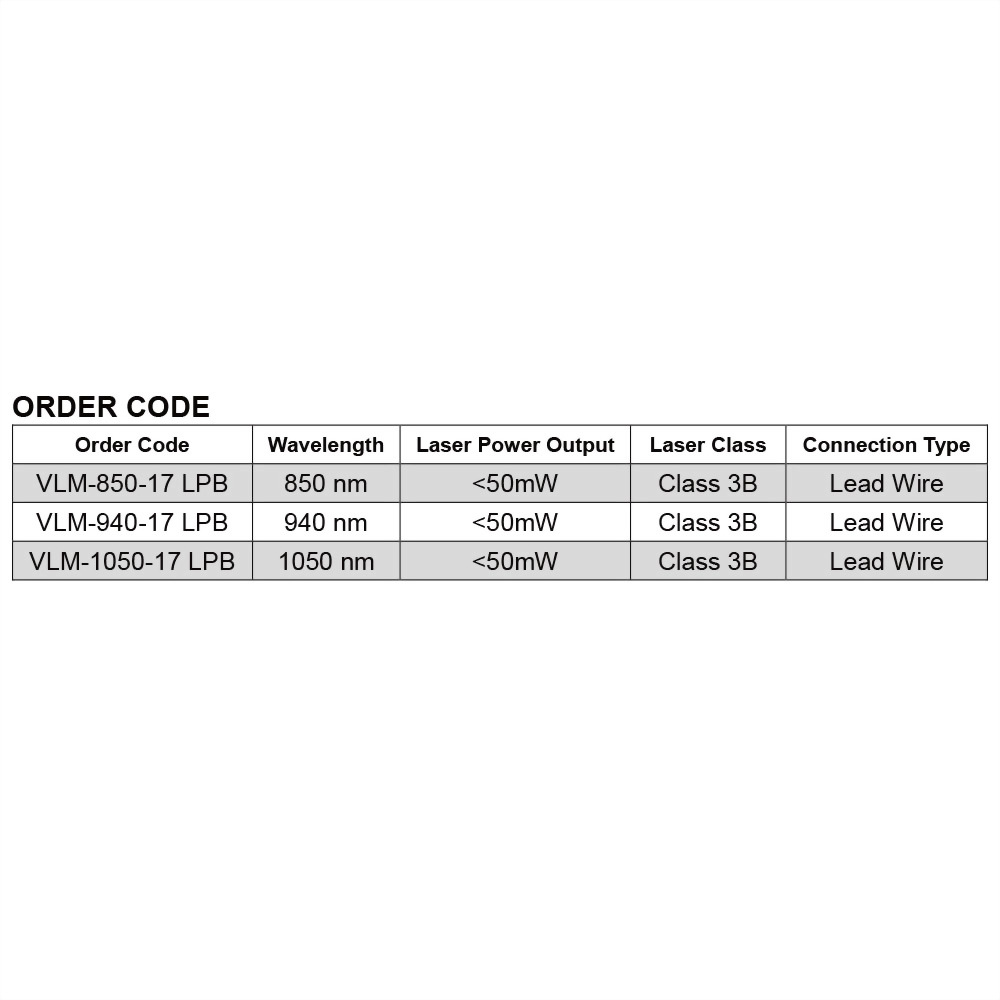

SPECIFICATIONS |
VLM-850-17 |
VLM-940-17 |
VLM-1050-17 |
|
LPB |
|||
|

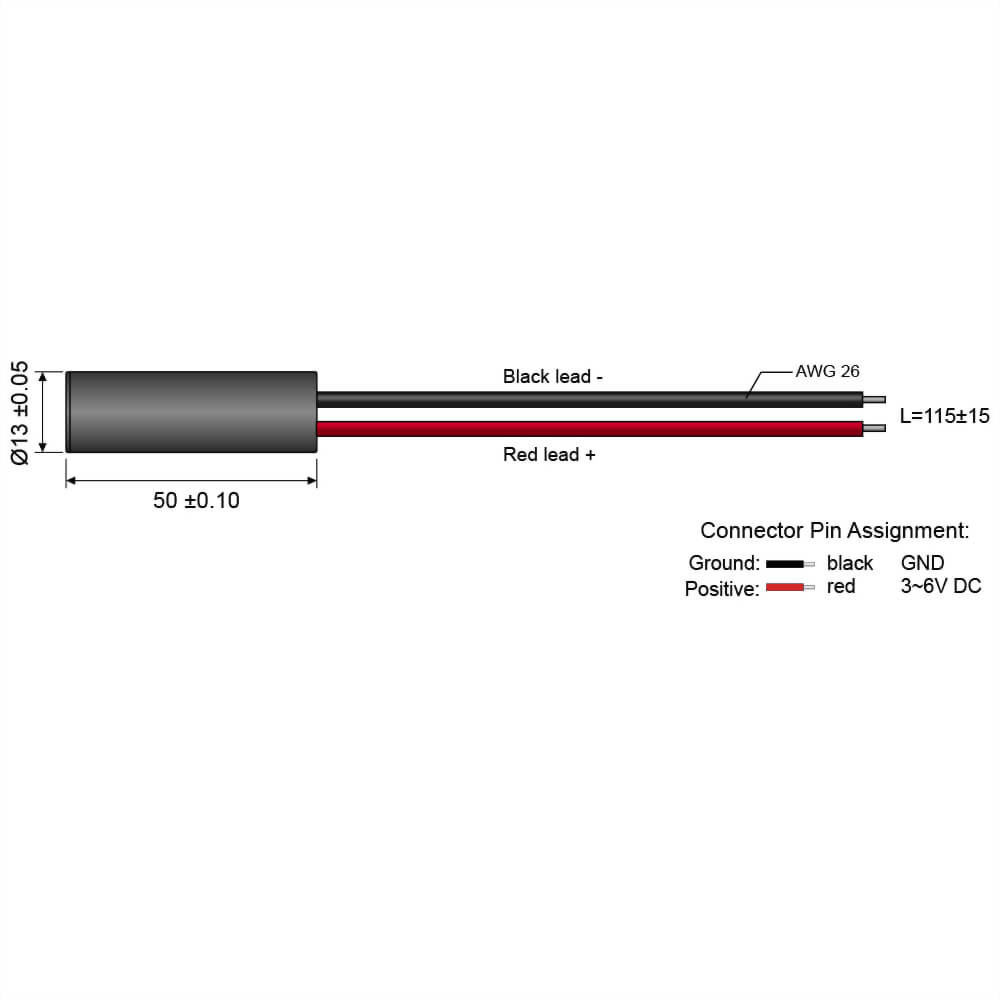

Dimensions |
Ø13 x 50 mm (Ø0.511" x 1.96") |
||
|
Weight |
<15g |
||
|
Operating voltage (Vop) |
3~6 VDC |
||
|
Operating current (Iop) |
Less than 150mA |
||
|
Laser power output |
<50mW |
||
|
Laser class |
Class 3B |
||
|
Wavelength at peak emission (λp) |
840~865nm |
930~950nm |
1050~1075nm |
|
Collimating lens |
Aspherical glass lens |
||
|
Output aperture |
8mm |
||
|
Beam shape |
Circular |
||
|

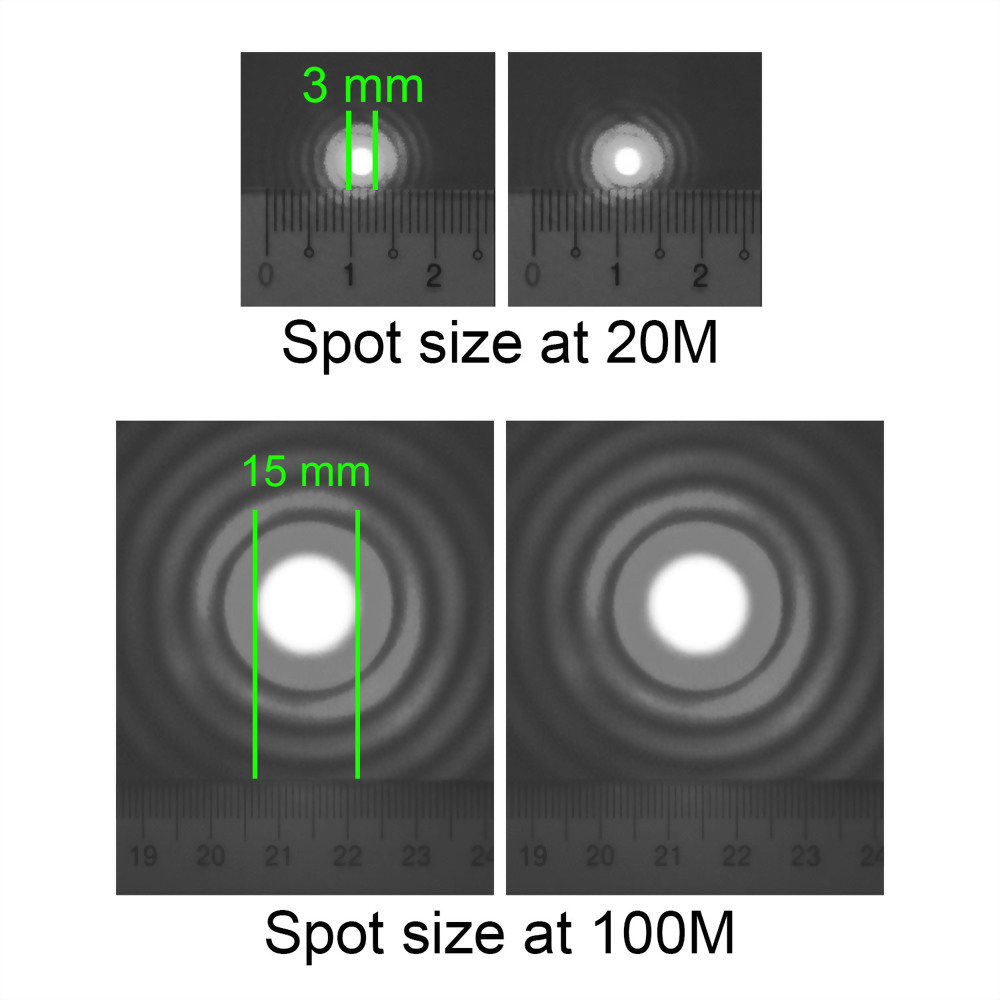

Spot size at 40M / 100M |
Ø5.3mm / Ø15mm |
||
|
Beam divergence(Half angle) |
Less than 0.1 mRad |
||
|
Beam alignment* |
Less than 3° |
||
|
Operating temp. range |
-10°C ~+50°C |
||
|
Storage temp. range |
-20°C ~+80°C |
||
|
Housing material |
Aluminum |
||
|
Potential of housing |
Insulated |
||
|
Electrostatic discharge (ESD) |
30KV |
||
|
Moisture sensitivity level (MSL) |
Level 1 - acc to JEDEC J-STD-020E. |
||
|
Protection circuit |
Reversed supply circuit protection, over-current protection, surge protection, short circuit protection |
||
|
Vibration resistance |
10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction |
||
|
Standard |
IEC60825:2014 |
||
|
Wire type |
1007-26AWG |
||
|
Cable length |
115±15mm |
||
|
Mean time to failure (MTTF) 25°C |
10000hrs |
||
|
Application |
Long range application |
||
|
Suggestion work distance |
10~500 meters / 40~2000 feet |
||
* Beam alignment:
