Green Laser Crosshairs Generator

Model : ML-300

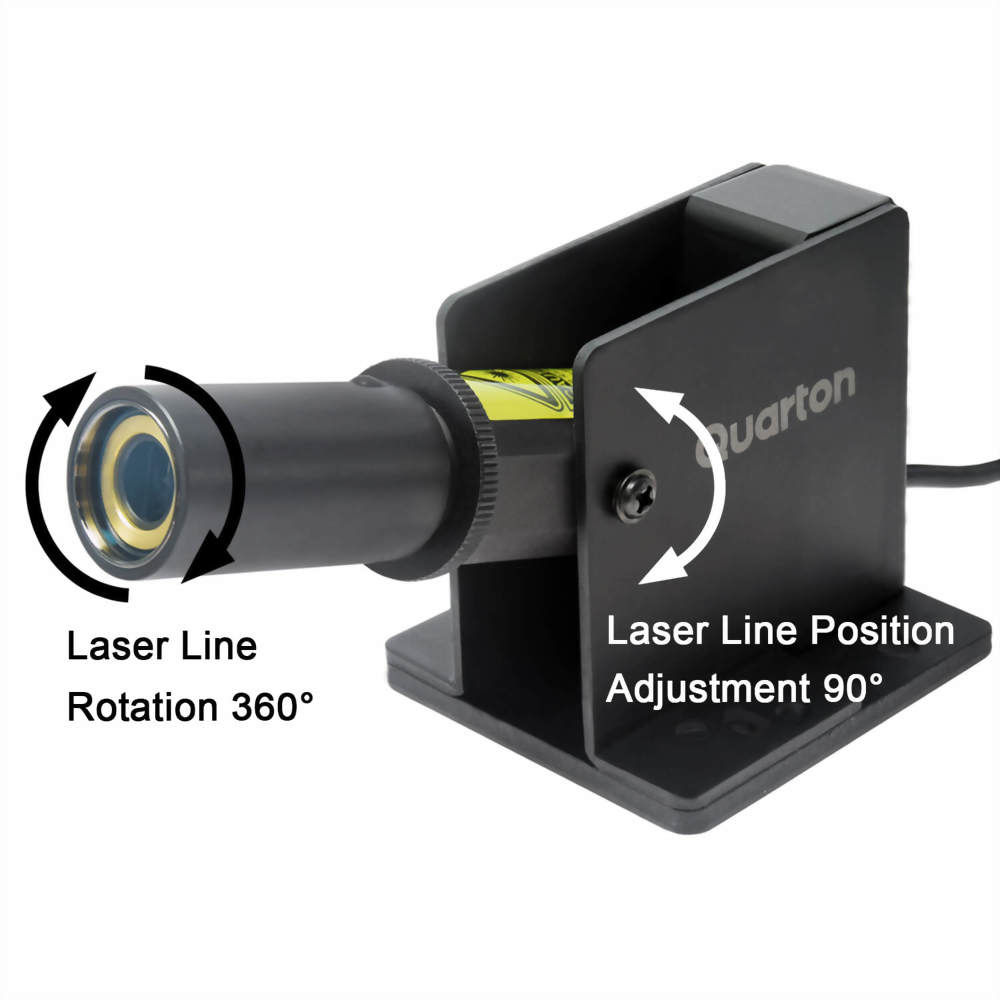

Used as a guideline for use in alignment, machine vision systems, construction, and process control and is ideal for most large-field cutting applications. Improved version with built-in tempered glass window and waterproof feature to be protected under all weather and sawdust damage from sawmill. The ML-300 features green laser crosshairs up to 80 degrees, excellent stability even at extreme temperatures, and a flexible adjustable housing.

FEATURES:

1.  Used as a guideline for use in alignment, machine vision systems, construction, and process control and is ideal for most large-field cutting applications, even under a bright surrounding condition indoor or outdoor and at extreme temperatures. Improved version with built-in tempered glass window and waterproof feature to be protected under all weather and sawdust damage from sawmill.

2.  Operating Temperature Range: -4 °F to 140 °F (-20 °C to +60 °C). Eye safe laser output. Green lasers appear up to 7 times brighter than red lasers.

3.  Dimensions: 4.60"(L) x 2.13" (W) x 2.32" (H) ( 117 x 54 x 59 mm ). Weight: 7.05 ±0.17 ounces (200±5g). Type C connector. 100~240V AC to DC adaptor and USB Type C cable included. Compatible with cell phone charger.

4.  When in heavy shock/vibration environments, users can place the rubber buffer between bottom chassis and surface. Laser line Width: less than 3mm at 5 meters. Emitting angle: more than 80°.

5.  Integrated quartz cylindrical lens, collimating lens, industrial grade green laser diode, and APC driver circuit. APC Driver Circuit enables the Laser output power safe and constant. Therefore, the ML-300 can operate all day 7 days a week. ML-300 Green Laser Line Generator – ideal for large scale cutting and alignment work. Include stone, lumber, textile cutting and press brake, surface grinder, big pipe connections and tire manufacturing alignment.


Ideal for long range accuracy position and cross guideline.
The ML-300 features bright green crosshair for long range leveling, alignment, adjusting, positioning, measuring, targeting, pointing and laser sighting device. Wood processing. Metal processing. Stone processing. Textile industry. Food industry. Automotive industry. Medical science.

It can be used as a guideline for use in alignment, machine vision systems, construction and process control and is ideal for most large-field cutting applications, even under a bright surrounding condition indoor and at extreme temperatures! The ML-300 will increase your accuracy for many applications, such as wood cutting, stone cutting, and textile cutting. Compact and lightweight features make it very convenient to mount the ML-300 to a worktable or a cutting machine - saving you time.

Direct Green Laser Diode: new revolution in green laser technology
The new revolution in green laser technology provides excellent stability even at extreme temperatures!
A laser line generator is only as good as the lines it produces in any application, any time. In the past, the bad news for green laser products is that green lasers are more sensitive to extreme temperatures than red lasers. People once thought that green lasers were meant to perform poorly at low and high temperatures, but not anymore. If you try this ML-300, you will find out that our green lasers have excellent stability even at extreme temperatures.
Built-in revolutionary direct green laser diode in the ML-300 makes the output power of its green laser steady. The operating temperature range of the ML-300 is from -4 degrees Fahrenheit (-20 degrees Celsius) to 140 degrees Fahrenheit (60 degrees Celsius), which is a huge spread. You're about productivity in any temperatures. So is the capability that's employed on the ML-300.


Where to buy


Comparison sheet

Model Number

Specifications

ML-100 ML-200 ML-300
Dimensions 4.60”x2.13”x2.32” (11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.60”x2.13”x2.32” (11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.60”x2.13”x2.32” (11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
Weight 200±5g / 7.05±0.17 oz. 200±5g / 7.05±0.17 oz. 200±5g / 7.05±0.17 oz.
Power Type C (adapter included) Type C (adapter included) Type C (adapter included)
Laser power output CL II CW mode CL II CW mode CL II CW mode
Wavelength 635 nm (Red) 520 nm (Green) 520 nm (Green)
Width of laser line Less than 2mm at 4M Less than 3mm at 5M Less than 3mm at 5M
Emitting angle More than 120° More than 120° More than 80°
Operating temp range -20°C ~+60°C/
-4°F ~+140°F
-20°C ~+60°C/
-4°F ~+140°F
-20°C ~+60°C/
-4°F ~+140°F
Housing Metal / Black anodized Metal / Black anodized Metal / Black anodized
Datasheet download Download Download Download

Dimension(L x W x H)

4.60” x 2.13” x 2.32” (11.7cm x 5.4cm x 5.9cm)

Weight

200±5g / 7.05±0.17 oz.

Wavelength

520 nm (Green)

Width of laser line

<3mm at 5M

Output power

CL II CW mode

Operating temp range

-20°C ~ 60°C / -4°F ~ 140°F

Emitting angle

>80

Housing

Metal

Finishing

Black anodized

Power

Type C (adapter included)
