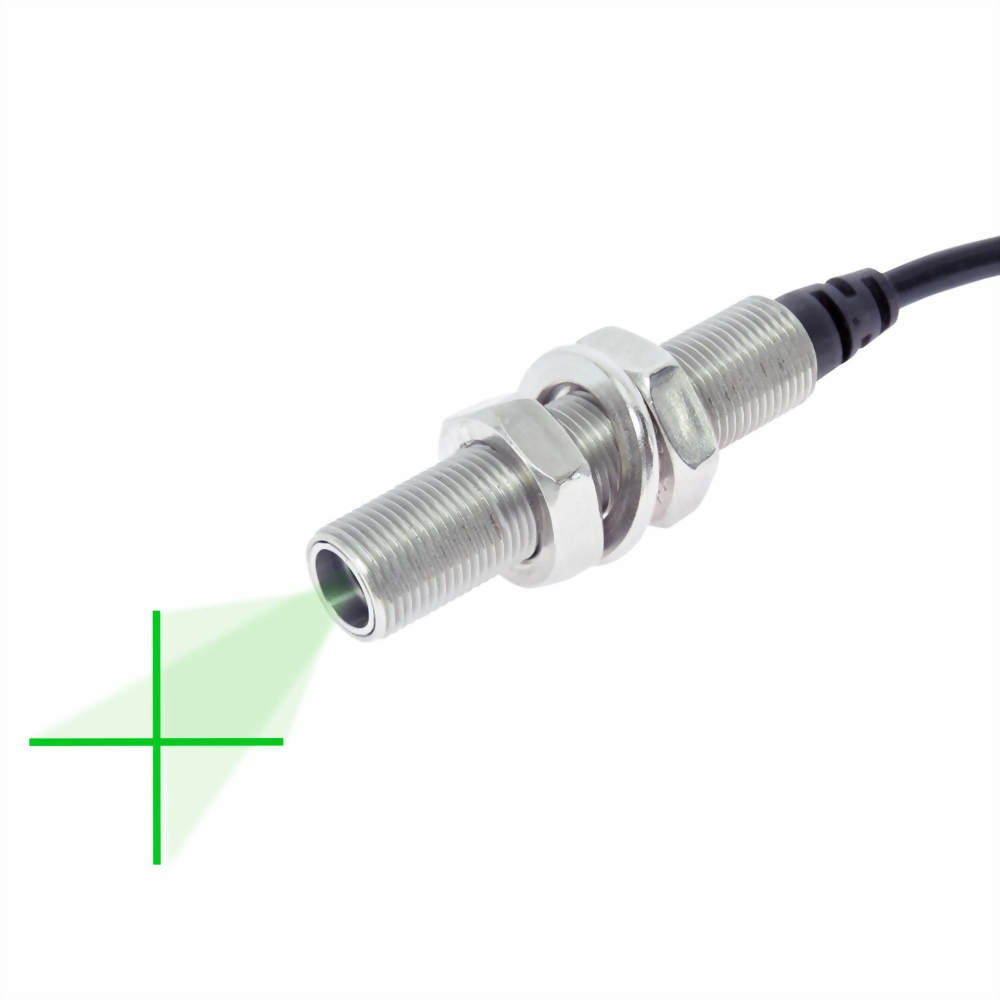

Uniform Green Crosshairs Laser Module

Model : VLM-520-69 series

TTL Function Uniform Green Crosshairs Laser Module with wide Voltage Compatibility: Operates at 10~36V, covering 12V, 24V, and 30V, meeting industrial standard requirements. Ideal for machine vision, patient alignment, CNC milling, chassis alignment, quality control, textile industry, printing industry...etc.

Q'ty :

Description
Specifications

The newly developed glass crosshairs lens come with various fan angles and they produce high quality uniform crosshairs laser lines in a robust stainless housing. These crosshairs laser modules provide target aid in alignment and position task. Ideal for machine vision, patient alignment, CNC milling, chassis alignment, quality control, textile industry and printing industry. They are available at 1 meter and 5 meters focus length, red & green wavelength to cover various task. For customized focus length or wavelength, please contact us.

FEATURES:

1. Built with high precision glass crosshair lens and glass laser collimating lens.

2. 10~36V Laser Module, it could be used as a 12V / 24V / 30V laser module while using 12V / 24V / 30V industrial current.

3. CW to 10K HZ stable power output for demanding power and speed are of important.

4. Fan Angle : 2°, 5°, 15°, 30°, 45°, 60°, 75°

5. Focus range: 1 meter, 5 meters.

6. Customized focus or length are available, please direct contact us.

Selection Guide:

The new series of crosshairs laser modules are for those applications that need uniform fine crosshairs in 10~36 VDC industrial.

Ideal for machine vision, patient alignment, CNC milling, chassis alignment, quality control, textile industry and printing industry.

Laser products manufactured by Quarton inc. meet the international safety standards:

USA: FDA Class I, II, IIIa
Japan: PSC(JQA)
Europe: EU60825, CE & TUV-GS

Where to buy

Comparison sheet

Model Number Specifications	VLM-520-29 series	VLM-520-58 series	VLM-520-59 series	VLM-520-68 series	VLM-520-69 series	VLM-650-29 LPT	VLM-635-58 series	VLM-635-59 series	VLM-650-68 series	VLM-650-69 series

Dimensions	Ø9 x 26 mm	Ø10 x 40 mm	Ø10 x 40 mm	M12 x 68 mm	M12 x 68 mm	Ø9 x 26 mm	Ø10 x 40 mm	Ø10 x 40 mm	M12 x 68 mm	M12 x 68 mm
Operating voltage	7~10 VDC	3~6 VDC	3~6 VDC	10~36 VDC	10~36 VDC	2.6~6 VDC	3~6 VDC	3~6 VDC	10~36 VDC	10~36 VDC
Operating current	Less than 80mA / 100mA	Less than 80mA / 180mA	Less than 80mA / 180mA	Less than 20mA at 24V	Less than 20mA at 24V	Less than 35mA	Less than 50mA / 100mA	Less than 50mA / 100mA	Less than 20mA at 24V	Less than 20mA at 24V
Optical power	4~5mW / 9~10mW	9~10mW / 20~24mW	9~10mW / 20~24mW	Less than 0.39mW / 7~9mW	Less than 0.39mW / 7~9mW	Less than 2mW	Less than 4~5mW / 8mW	Less than 4~5mW / 8mW	Less than 0.39mW / 5~7mW	Less than 0.39mW / 5~7mW
Laser class	Class 1	Class 1	Class 1	Class 1 / Class 2	Class 1 / Class 2	Class I	Class I	Class I	Class 1 / Class 2	Class 1 / Class 2
Wavelength	505~530nm	510~530nm	510~530nm	515~530nm	515~530nm	645~665nm	630~645nm	630~645nm	645~665nm	645~665nm
Collimating lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens
Line lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens	Plastic lens	Glass lens	Glass lens	Glass lens	Glass lens
Beam shape	Crosshairs	Crosshairs	Crosshairs	Crosshairs	Crosshairs	Crosshairs	Crosshairs	Crosshairs	Crosshairs	Crosshairs
Laser Line width	1mm at 40cm	Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm	1mm at 40cm	Less than 1mm	Less than 1mm	Less than 1mm	Less than 1mm
Laser line accuracy	80” (± 2mm @5M)	4/1000(<1.6mm @400mm)	4/1000(<1.6mm @400mm)			80” (± 2mm @5M)	4/1000(<1.6mm @400mm)	4/1000(<1.6mm @400mm)
Emitting angle	More than 60°	10°, 15°, 20°, 30°, 60°, 110°	10°, 15°, 20°, 30°, 60°, 110°	2°, 5°, 15°, 30°, 45°, 60°, 75°	2°, 5°, 15°, 30°, 45°, 60°, 75°	More than 60°	10°, 15°, 20°, 30°, 60°, 110°	10°, 15°, 20°, 30°, 60°, 110°	2°, 5°, 15°, 30°, 45°, 60°, 75°	2°, 5°, 15°, 30°, 45°, 60°, 75°
Operating temp. range	+15°C ~+30°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	+15°C ~+30°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C	-20°C ~+60°C
Storage temp. range	-20°C ~+65°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+65°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C	-20°C ~+85°C
Housing material	Brass	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Brass	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Potential of housing	VDD(+)	Insulated	Insulated	Insulated	Insulated	VDD(+)	Insulated	Insulated	Insulated	Insulated
Electrostatic discharge (ESD)	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV	30KV
Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.	Level 1 - acc to JEDEC J-STD-020E.
Wire type	1007-26AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	UL-2464/22 AWG	UL-2464/22 AWG	1007-26AWG	2464 2-WIRE CABLE 26 AWG	2464 2-WIRE CABLE 26 AWG	UL-2464/22 AWG	UL-2464/22 AWG
Cable length	115±15mm	330±30mm	330±30mm	2000±30mm	2000±30mm	115±15mm	330±30mm	330±30mm	2000±30mm	2000±30mm
Mean time to failure (MTTF) 25°C	5000hrs	10000hrs	10000hrs	10000hrs	10000hrs	5000hrs	10000hrs	10000hrs	10000hrs	10000hrs
Application	Economic application	Precision fine crosshairs for Machine vision, CNC and Medical	Precision fine crosshairs for Machine vision, CNC and Medical with modulation function	Precision fine crosshairs for Machine vision, CNC and Medical	Precision fine crosshairs for Machine vision, CNC and Medical with modulation function	Economic application	Precision fine crosshairs for Machine vision, CNC and Medical	Precision fine crosshairs for Machine vision, CNC and Medical with modulation function	Precision fine crosshairs for Machine vision, CNC and Medical	Precision fine crosshairs for Machine vision, CNC and Medical with modulation function
Suggestion work distance	0~1 meter / 0~3 feet	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet	1~5 meters / 3~16 feet	1~5 meters / 3~16 feet	0~1 meter / 0~3 feet	0~1.2 meters / 0~4 feet	0~1.2 meters / 0~4 feet	1~5 meters / 3~16 feet	1~5 meters / 3~16 feet
Datasheet download	Download	Download	Download	Download	Download	Download	Download	Download	Download	Download

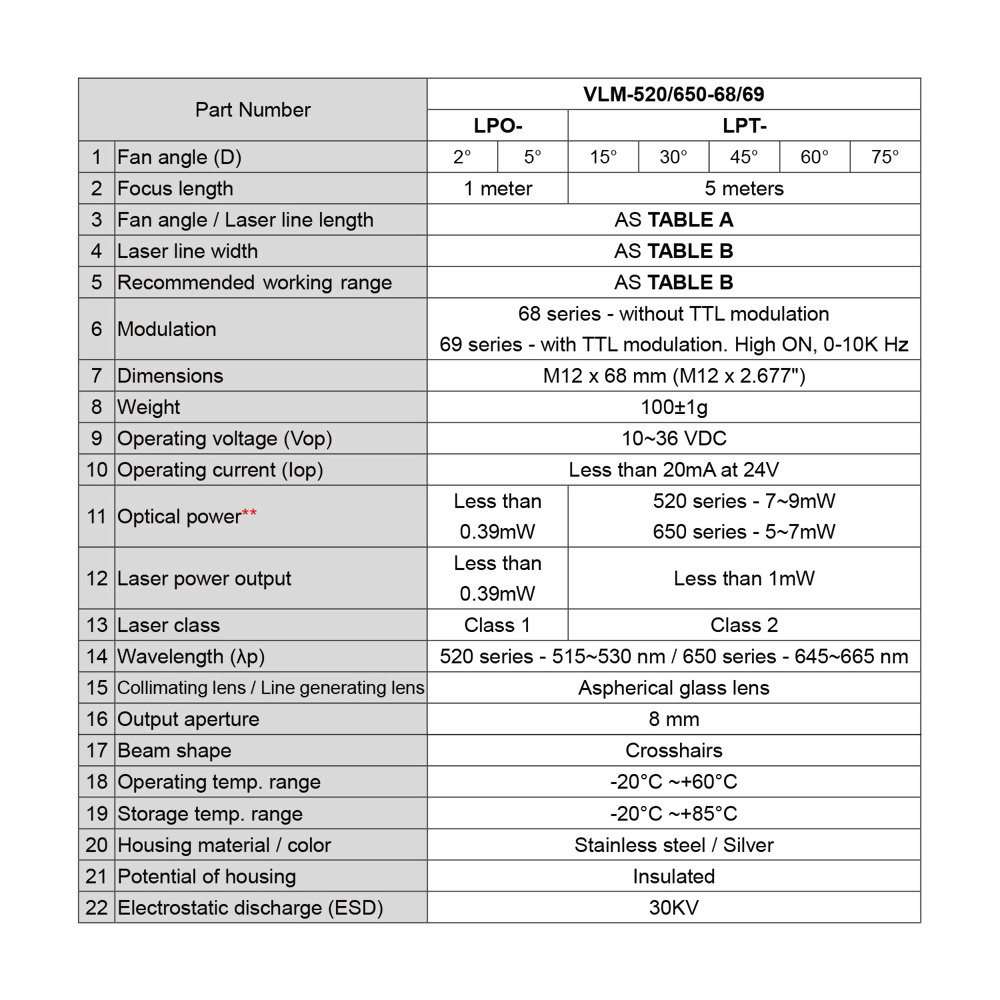

Part Number	VLM-520/650-68/69
	LPO-		LPT-
Fan angle (D)	2°	5°	15°	30°	45°	60°	75°
Focus length	1 meter		5 meters
Fan angle / Laser line length	AS TABLE A
Laser line width	AS TABLE B

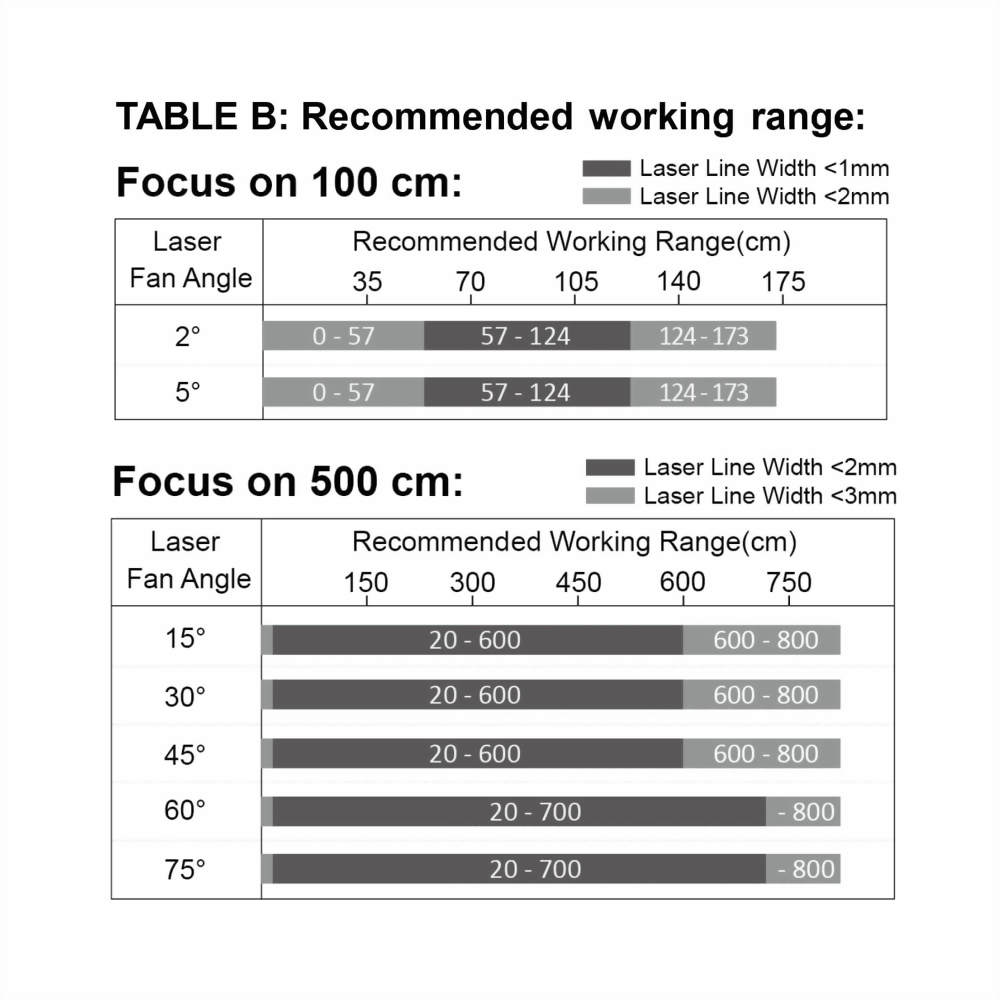

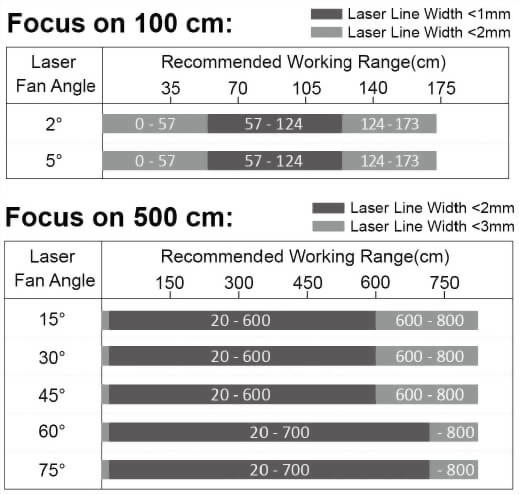

Recommended working range	AS TABLE B
Modulation	68 series - without TTL modulation 69 series - with TTL modulation. High ON, 0-10K Hz

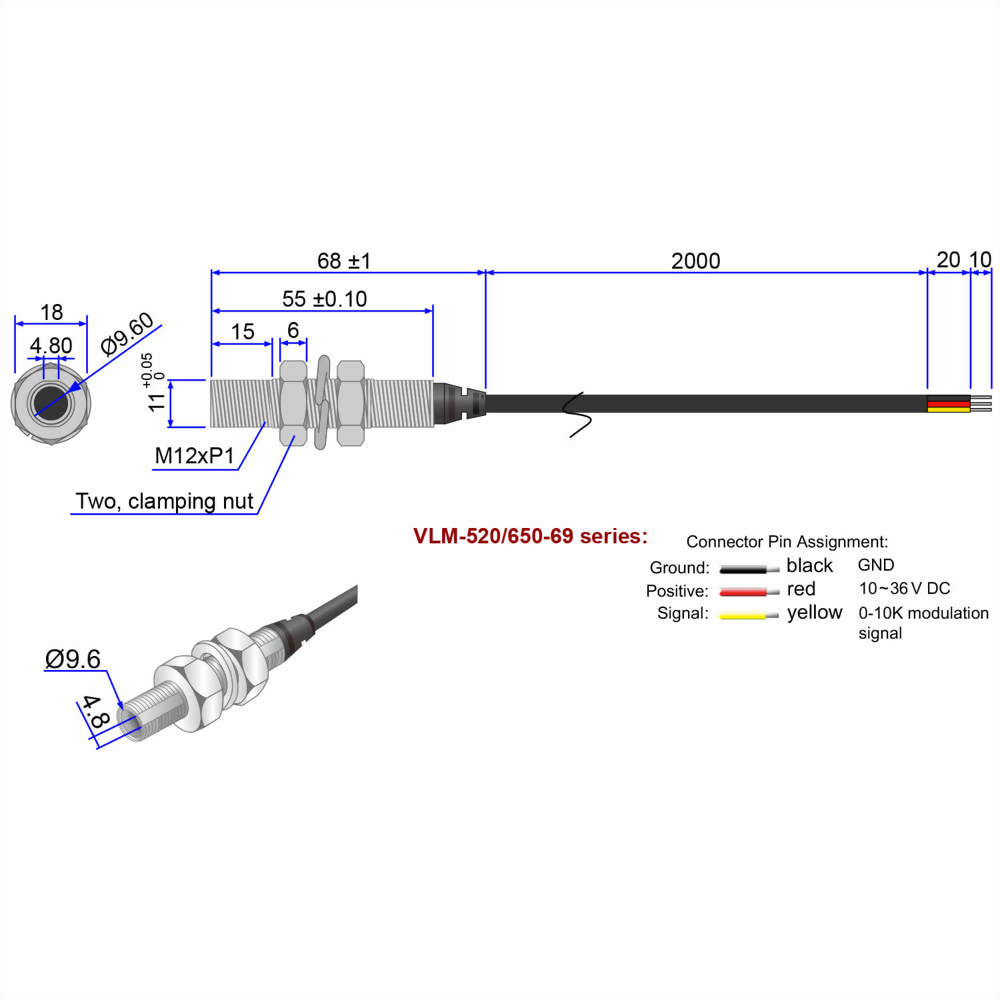

Dimensions	M12 x 68 mm (M12 x 2.677")
Weight	100±1g
Operating voltage (Vop)	10~36 VDC
Operating current (Iop)	Less than 20mA at 24V
Optical power**	Less than 0.39mW		520 series - 7~9mW 650 series - 5~7mW
Laser power output	Less than 0.39mW		Less than 1mW
Laser class	Class 1		Class 2
Wavelength (λp)	520 series - 515~530 nm / 650 series - 645~665 nm
Collimating lens / Line generating lens	Aspherical glass lens
Output aperture	8 mm
Beam shape	Crosshairs
Operating temp. range	-20°C ~+60°C
Storage temp. range	-20°C ~+85°C
Housing material / color	Stainless steel / Silver
Potential of housing	Insulated
Electrostatic discharge (ESD)	30KV

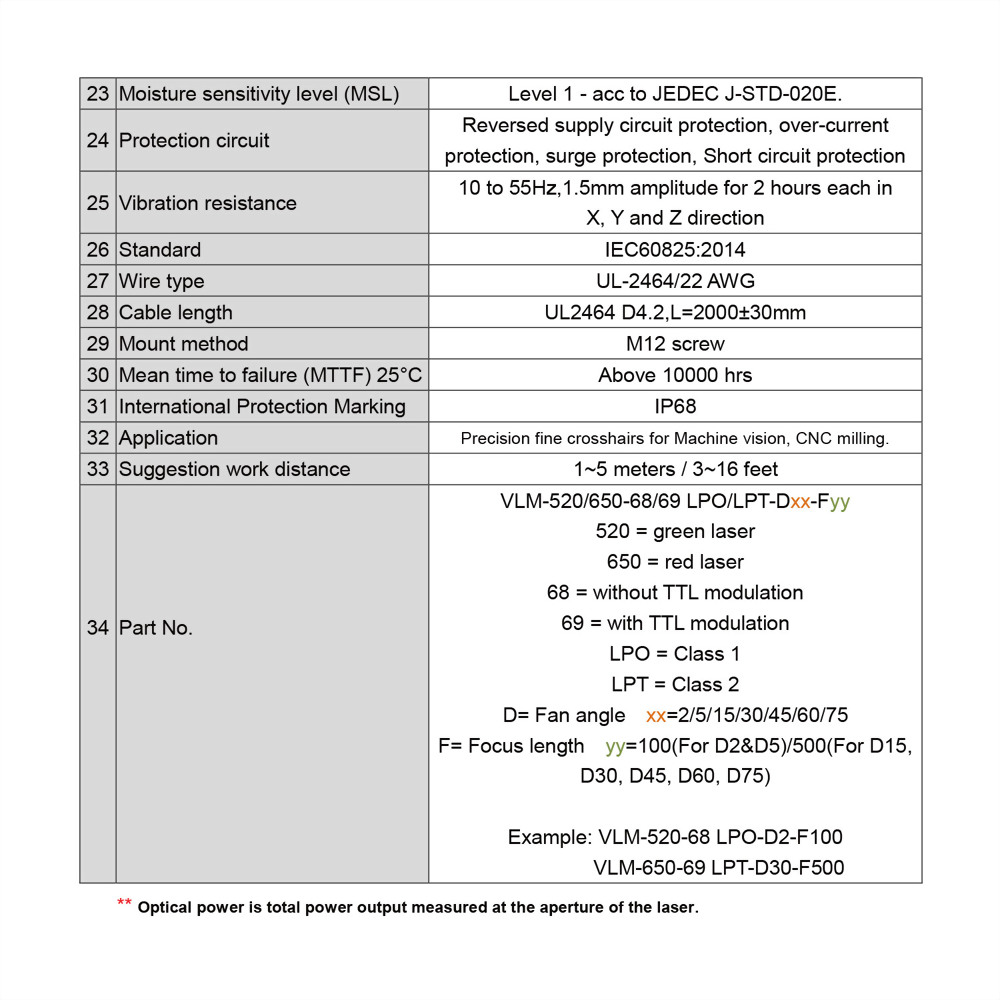

Moisture sensitivity level (MSL)	Level 1 - acc to JEDEC J-STD-020E.
Protection circuit	Reversed supply circuit protection, over-current protection, surge protection, Short circuit protection
Vibration resistance	10 to 55Hz,1.5mm amplitude for 2 hours each in X, Y and Z direction
Standard	IEC60825:2014
Wire type	UL-2464/22 AWG
Cable length	UL2464 D4.2,L=2000±30mm

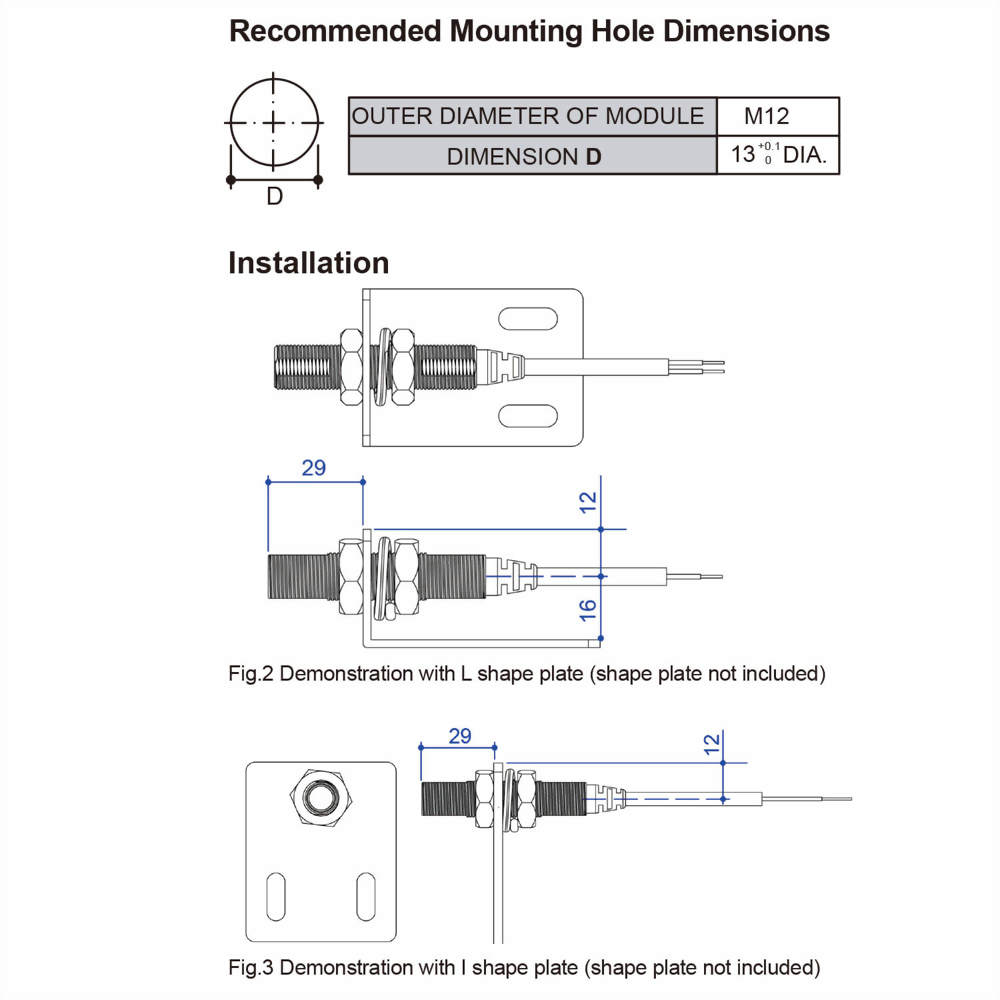

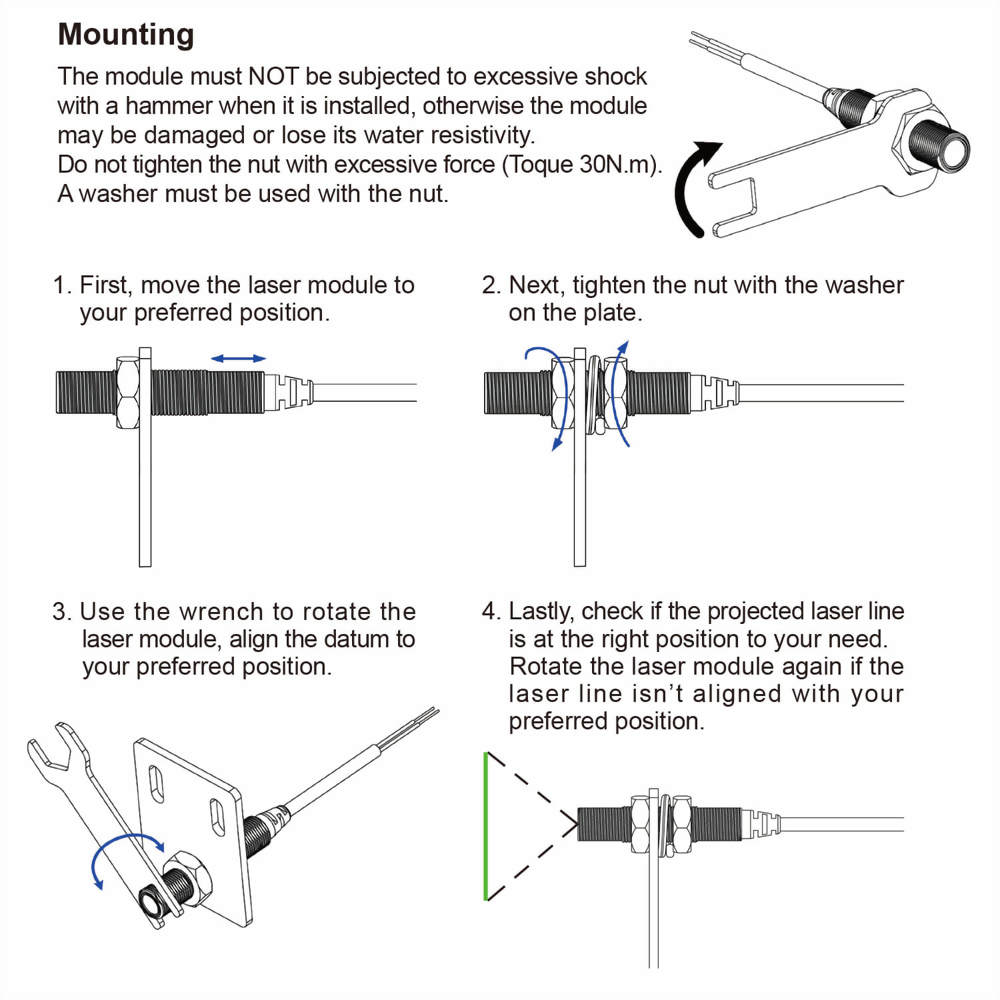

Mount method	M12 screw
Mean time to failure (MTTF) 25°C	Above 10000 hrs
International Protection Marking	IP68
Application	Precision fine crosshairs for Machine vision, CNC milling.
Suggestion work distance	1~5 meters / 3~16 feet
Part No.	VLM-520/650-68/69 LPO/LPT-Dxx-Fyy 520 = green laser 650 = red laser 68 = without TTL modulation 69 = with TTL modulation LPO = Class 1 LPT = Class 2 D= Fan angle xx=2/5/15/30/45/60/75 F= Focus length yy=100(For D2&D5)/500(For D15, D30, D45, D60, D75) Example: VLM-520-68 LPO-D2-F100 VLM-650-69 LPT-D30-F500

** Optical power is total power output measured at the aperture of the laser.

SAFETY PRECAUTIONS

POWER SUPPLY - Do not impose an excessive voltage on the laser module, otherwise it may be damaged. Do not impose AC current (100 to 380 V AC) on any DC module, otherwise it may be damaged.

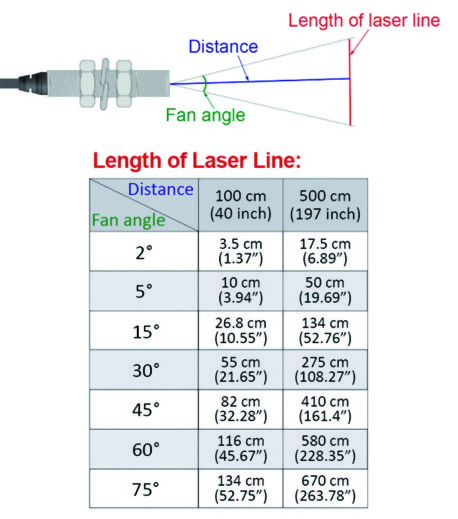

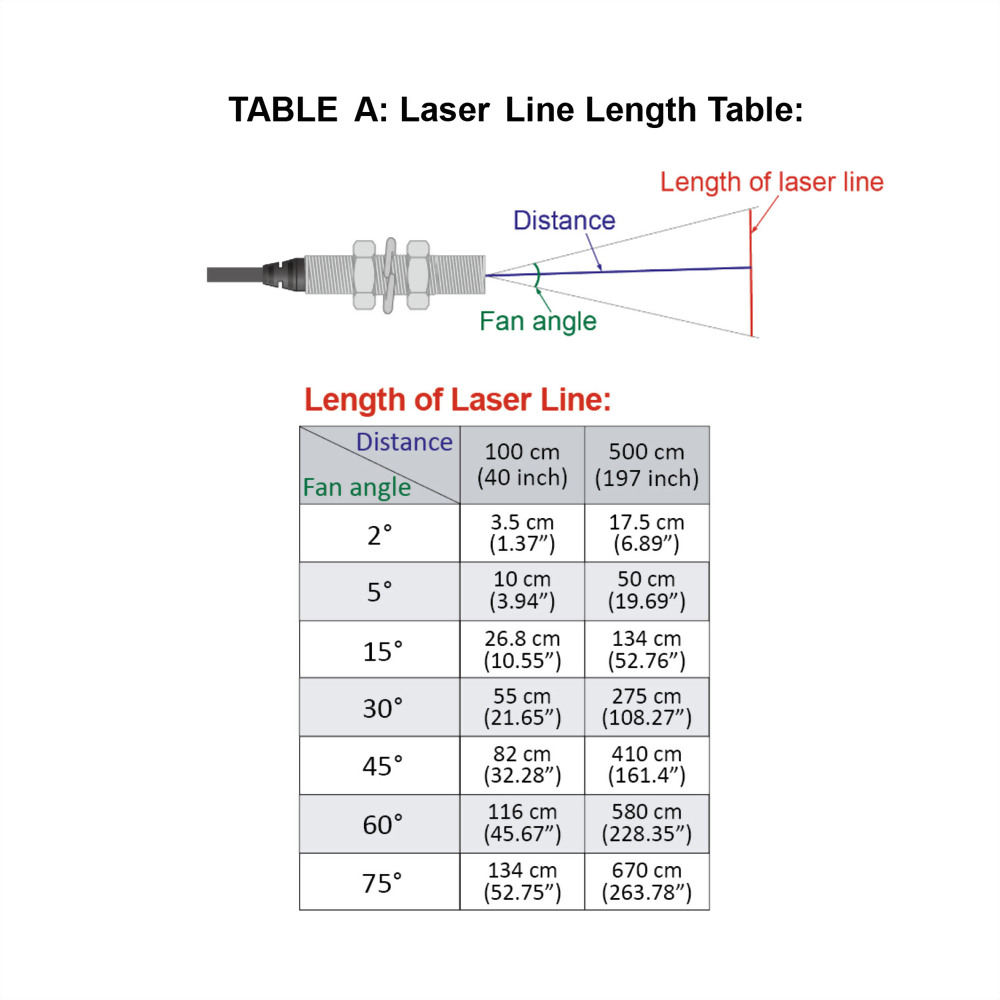

TABLE A
